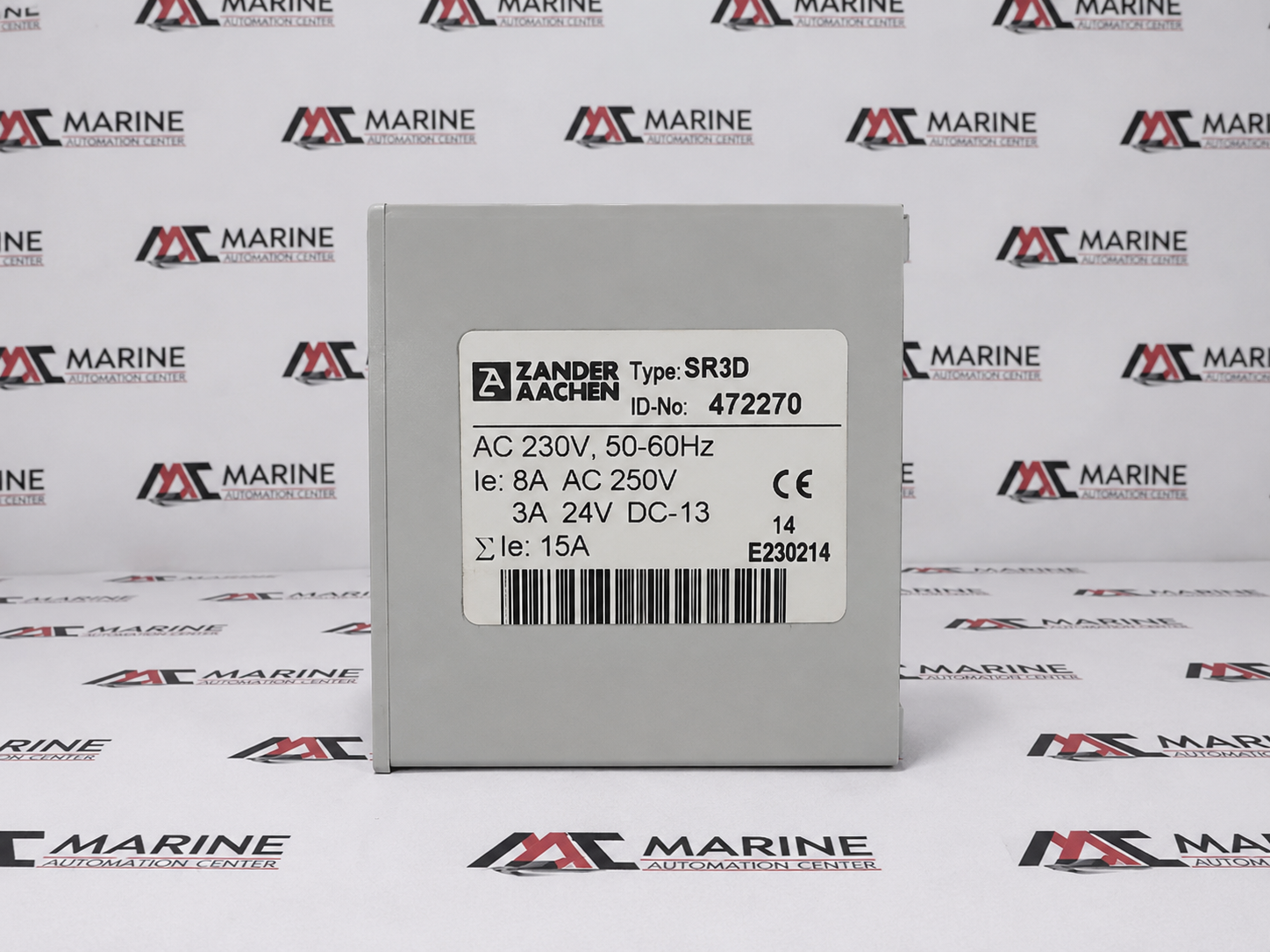

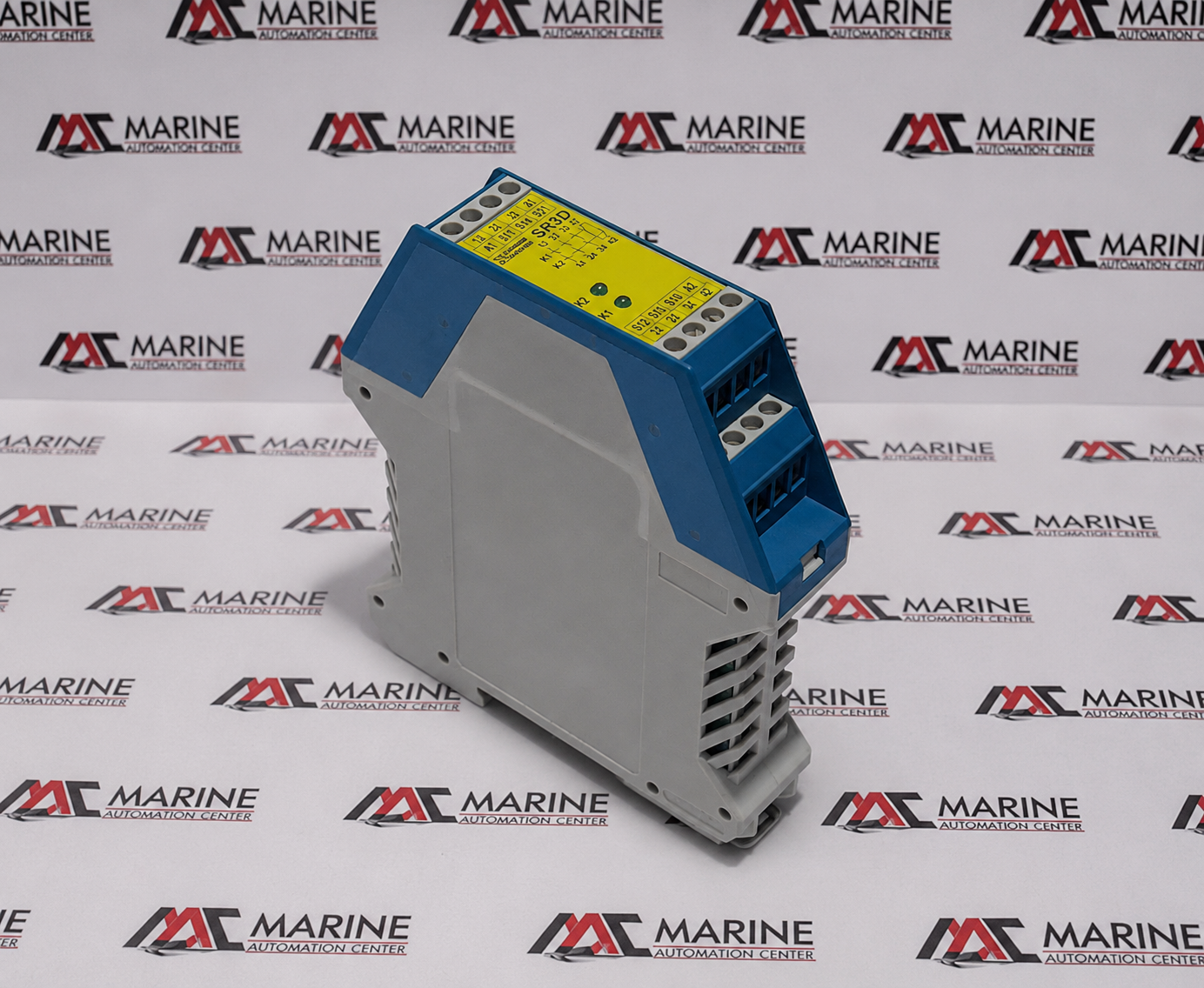

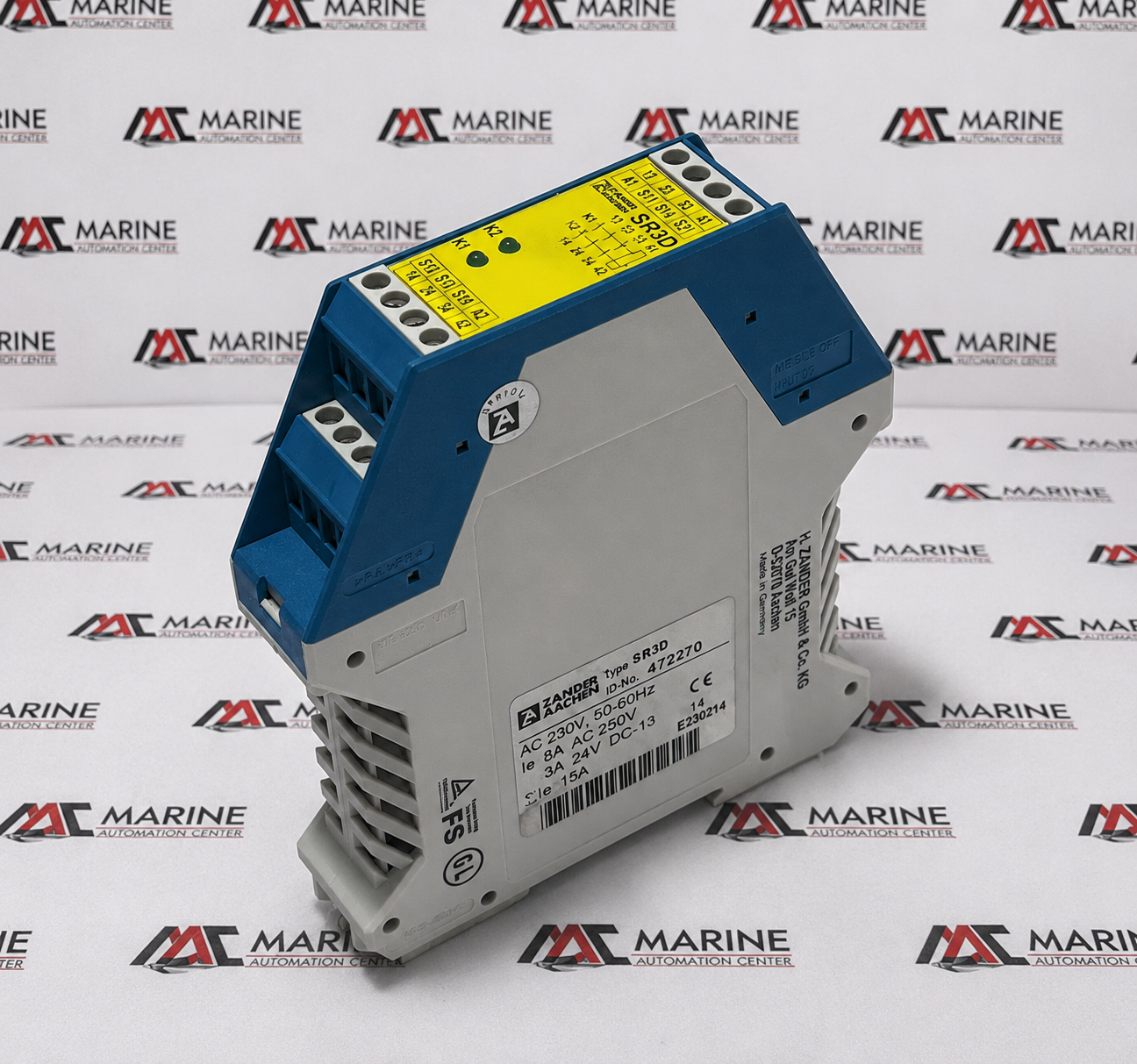

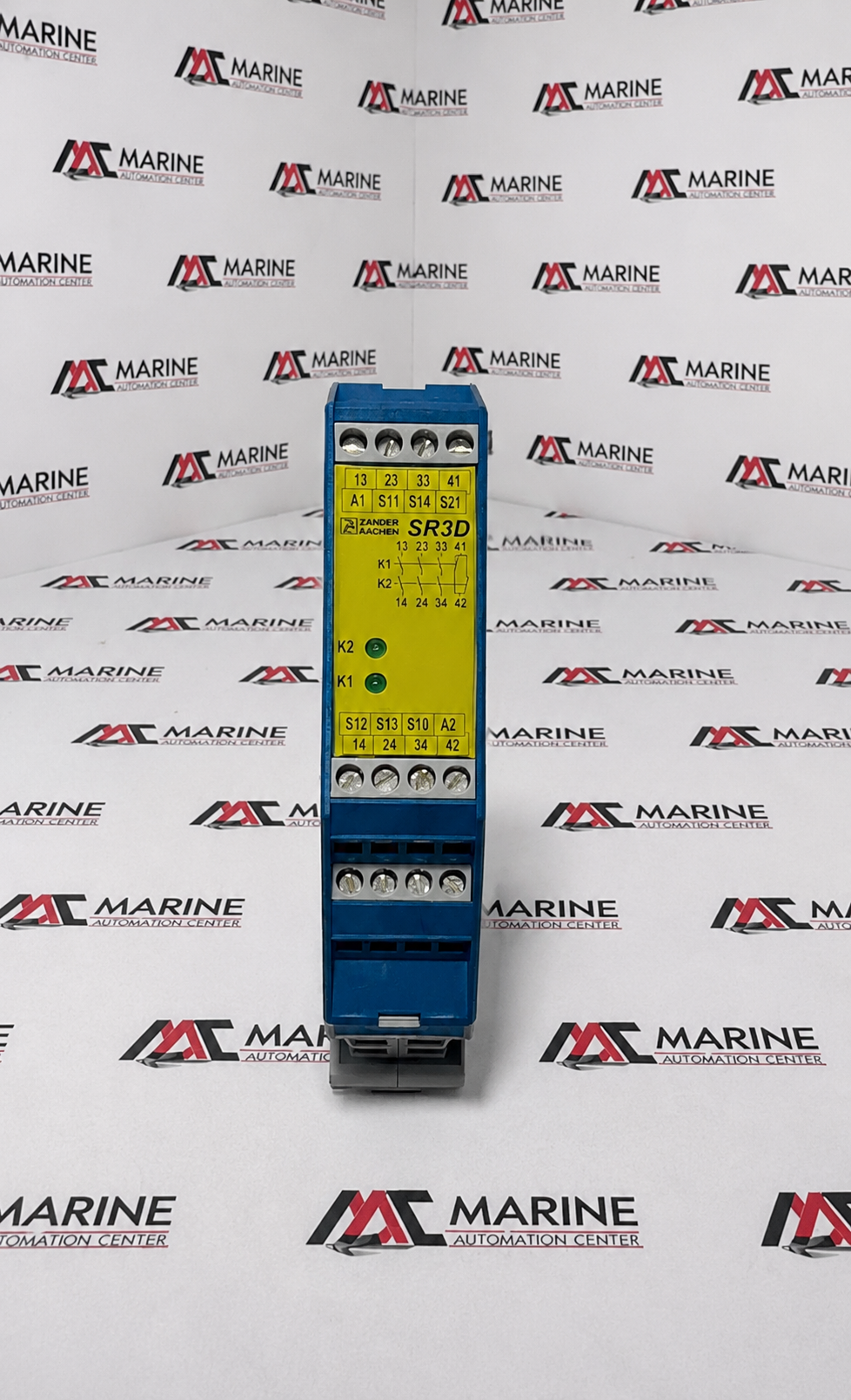

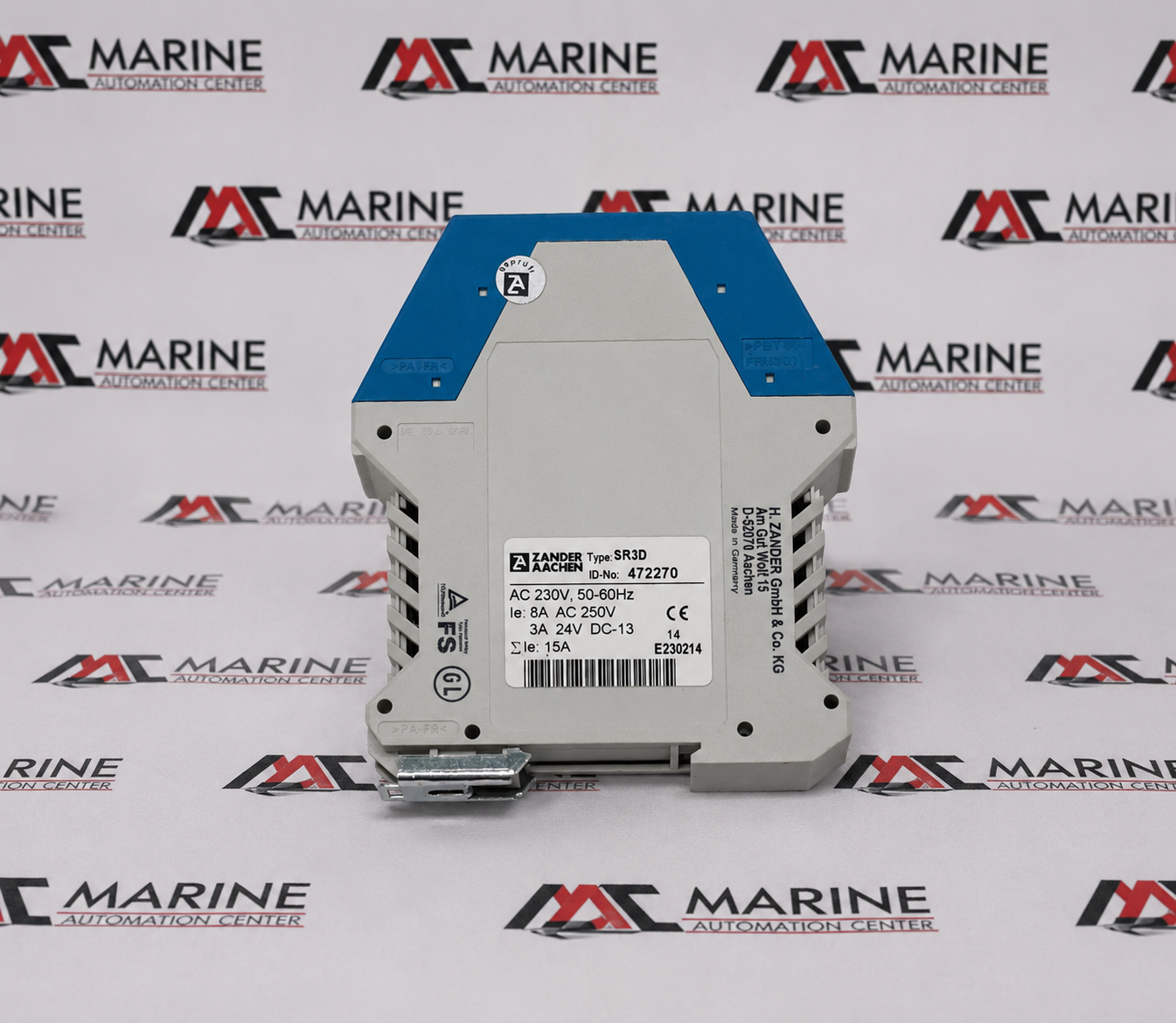

Zander Aachen SR3D Safety Relay
Zander Aachen SR3D Safety Relay is a dependable industrial safety relay designed to monitor emergency stop circuits, safety gates, and other critical machine safety functions. It provides reliable safety switching and fault monitoring to help protect personnel and equipment while ensuring safe machine operation. Suitable for industrial automation, machinery, and safety control applications.
BRAND
Zander Aachen
TYPE
Safety Relay
PART NO.
Safety Relay SR3D
MODEL
SR3D
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Zander Aachen |
| TYPE | Safety Relay |
| PART NO. | Safety Relay SR3D |
| MODEL | SR3D |
| MANUFACTURER | Zander Aachen GmbH & Co. KG |
| SUPPLY VOLTAGE | AC 230 V |
| SUPPLY FREQUENCY | 50–60 Hz |
| RATED OPERATIONAL CURRENT (AC-15) | 8 A @ AC 250 V |
| TOTAL SWITCHING CURRENT (ΣIe) | 15 A |
| CONTACT CONFIGURATION | 3 Normally Open (NO) Safety Contacts + 1 Normally Closed (NC) Auxiliary Contact |
| OUTPUT RELAYS | Dual Safety Relay Outputs (K1 & K2) |
| OPERATING MODE | Emergency Stop & Safety Guard Monitoring |
| MOUNTING TYPE | 35 mm DIN Rail Mount |
| TERMINAL TYPE | Screw Terminal Connections |
| STATUS INDICATION | Dual LED Indicators (K1 & K2) |
| APPLICATION | Emergency stop circuits, safety gate monitoring, machine safety systems, industrial automation, safety control panels, protection circuits |
| CERTIFICATION | CE Marked |
| SAFETY COMPLIANCE | SAFETY COMPLIANCE EN 60204-1, EN 954-1 / ISO 13849 Safety Relay Applications |
| MADE IN | Germany |
| REF NO | 1312 |
