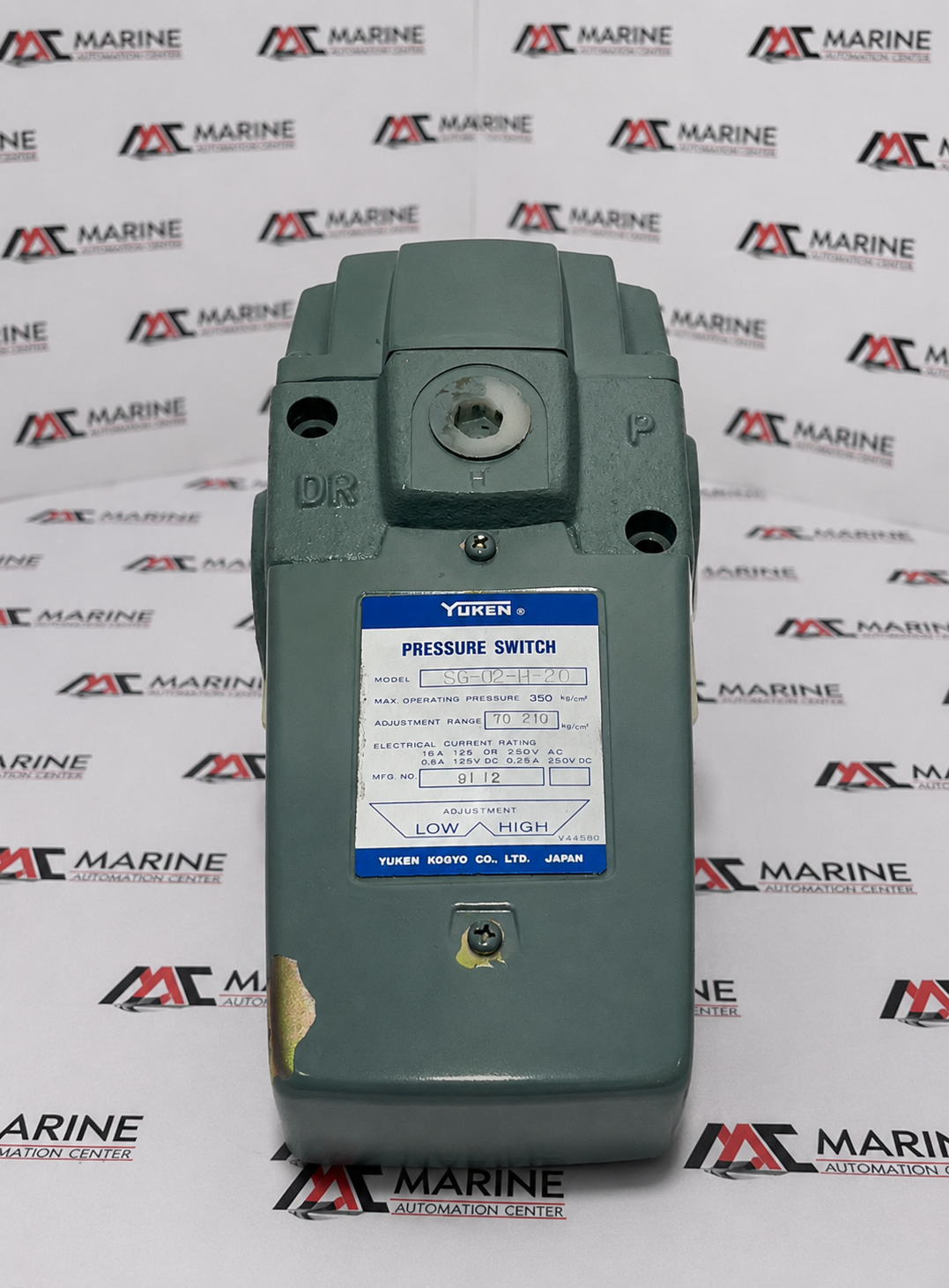

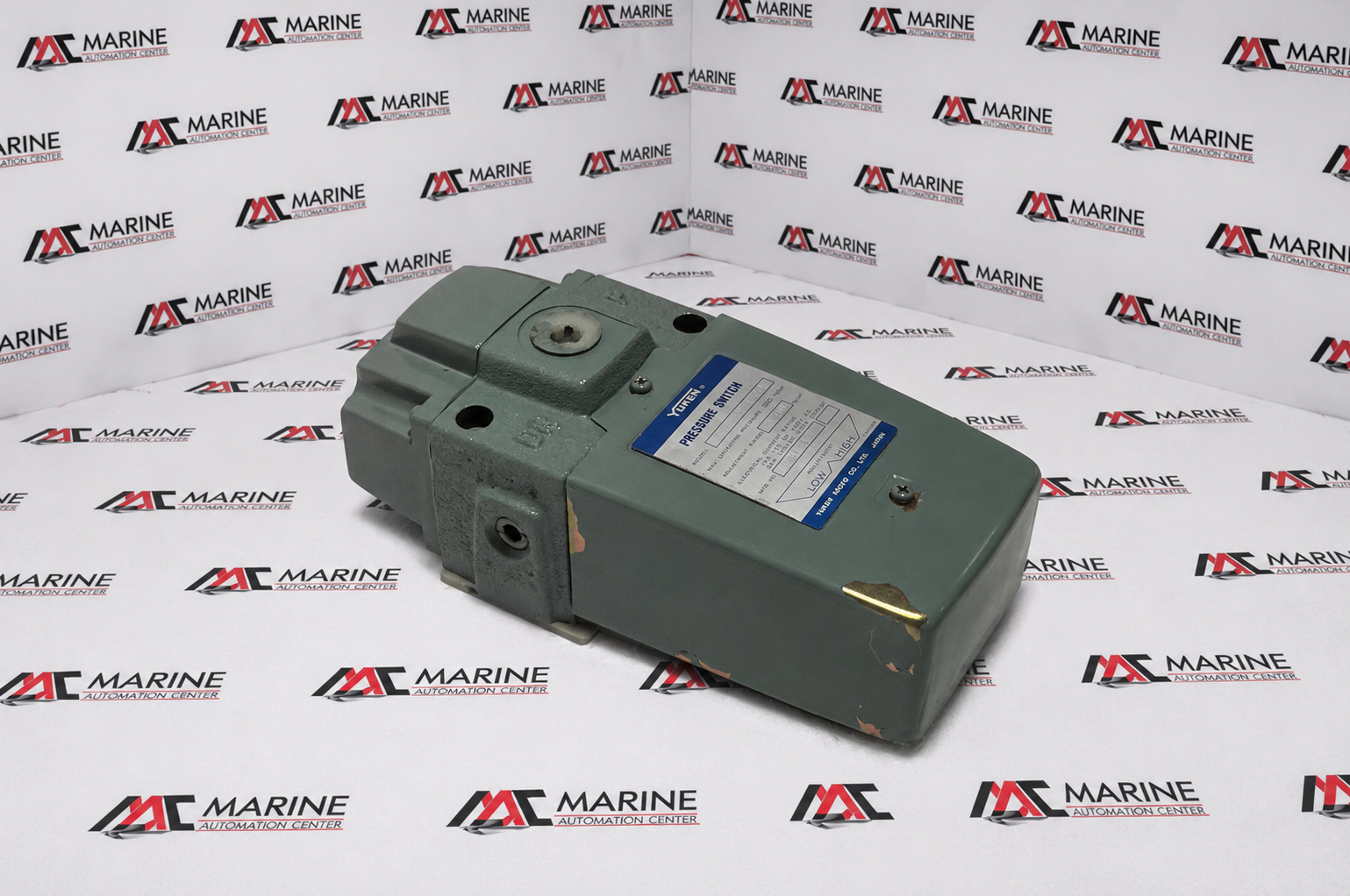

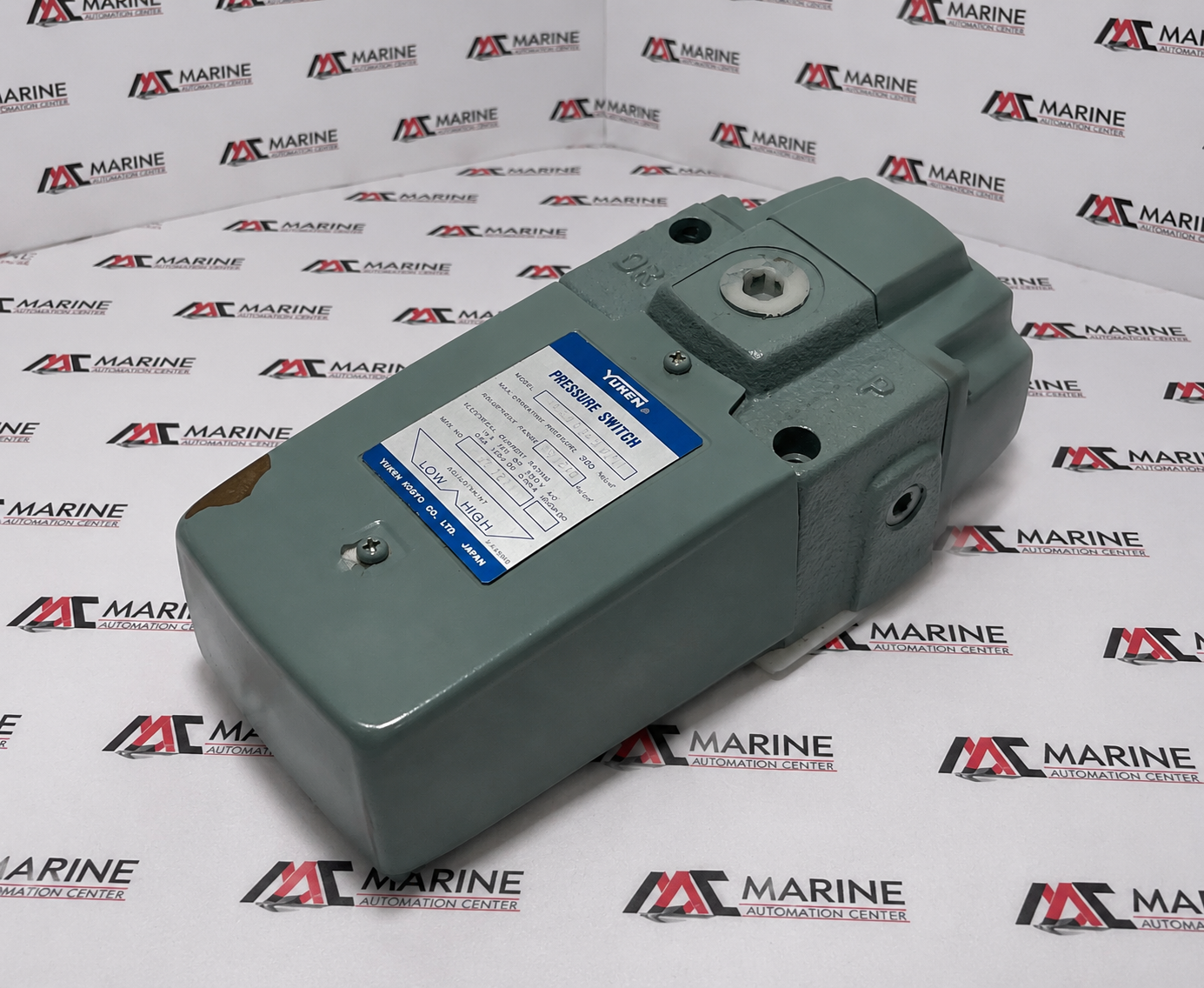

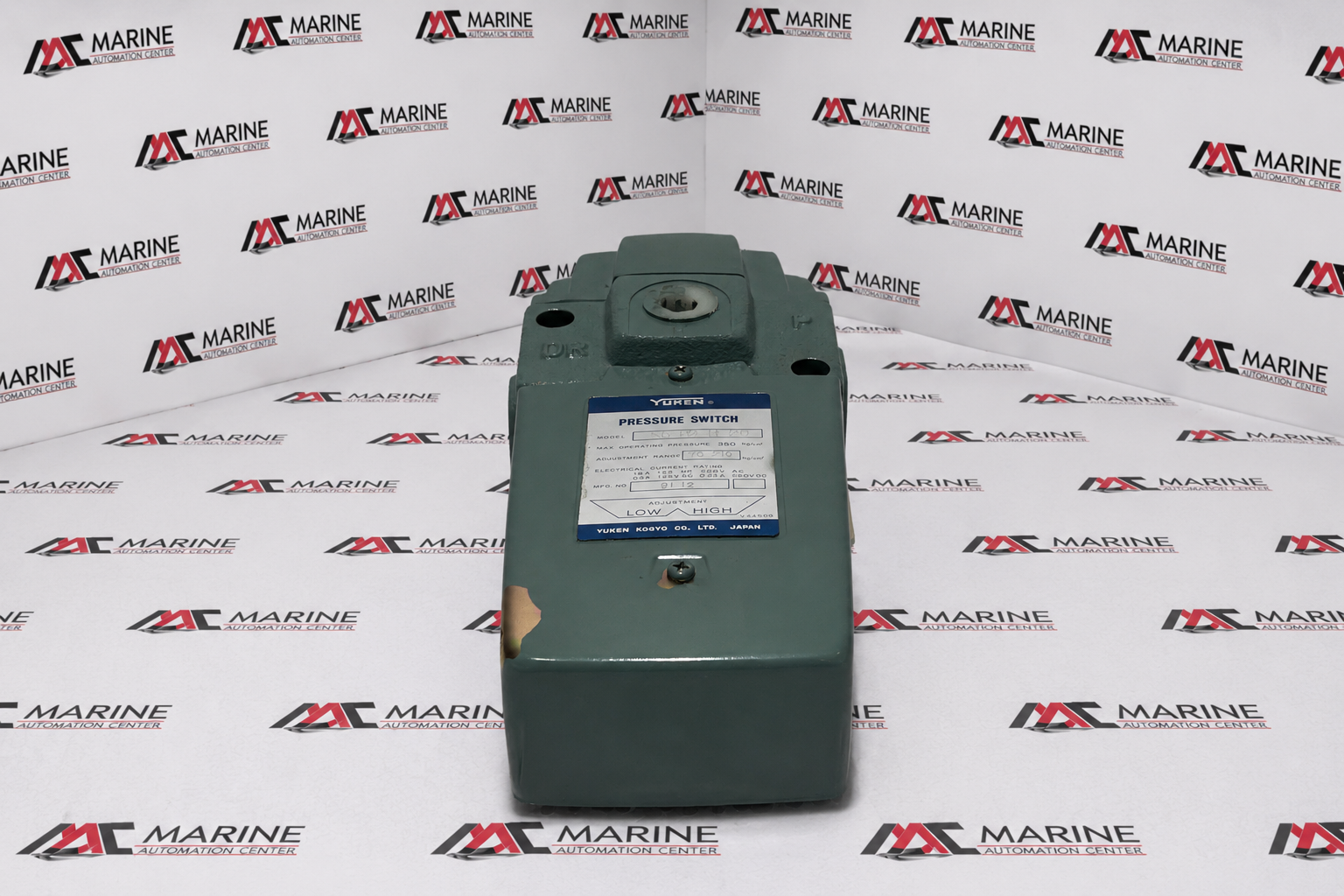

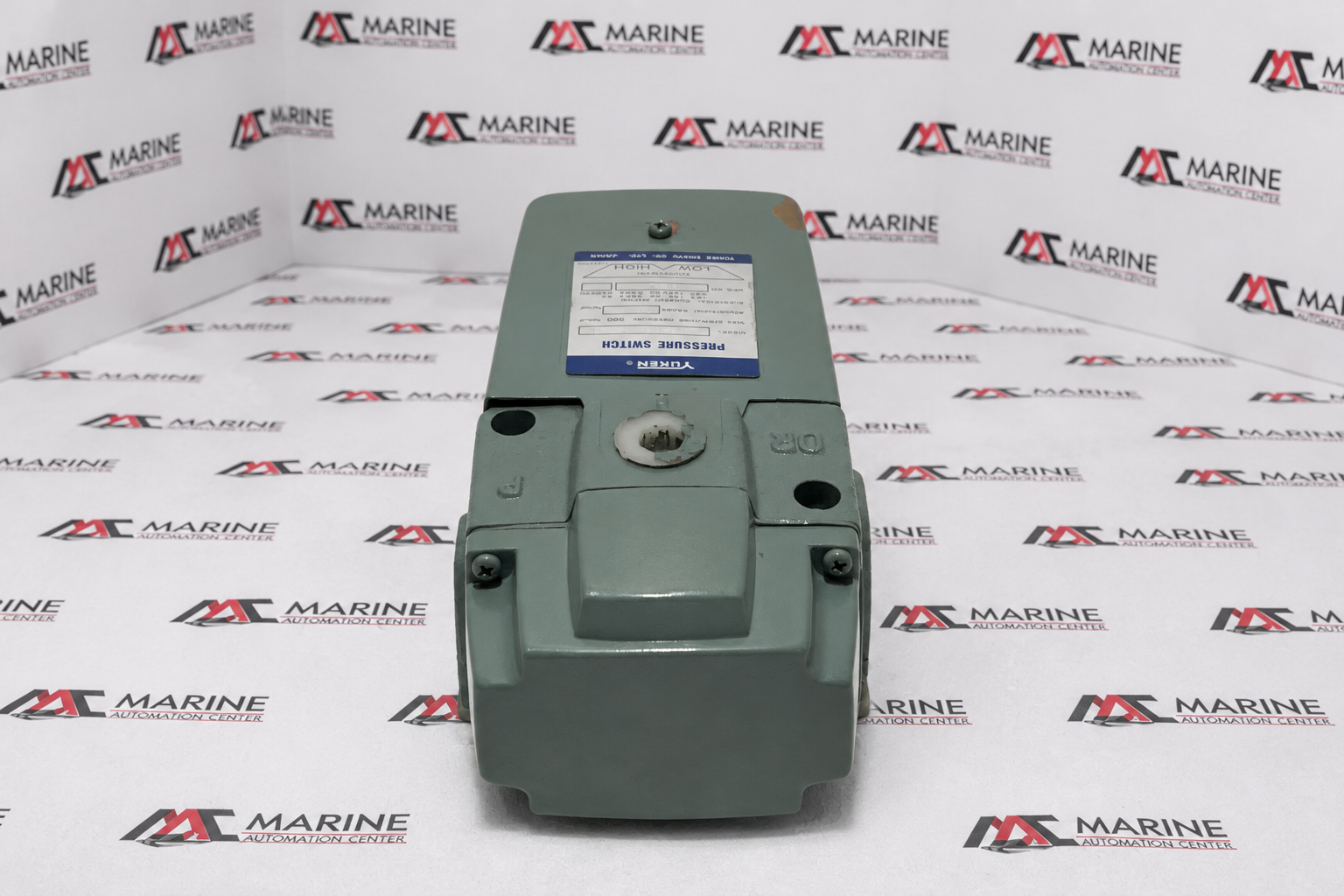

Yuken Pressure Switch
The Yuken SG-02-H-20 is an industrial pressure switch designed to monitor and control hydraulic system pressure with high accuracy and reliability. It provides dependable pressure sensing and switching for hydraulic circuits, helping protect equipment and optimize system performance in industrial machinery, automation, and fluid power applications.
BRAND
Yuken
TYPE
Pressure Switch
PART NO.
Yuken Pressure Switch SG-02-H-20
MODEL
SG-02-H-20
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Yuken |
| TYPE | Pressure Switch |
| PART NO. | Yuken Pressure Switch SG-02-H-20 |
| MODEL | SG-02-H-20 |

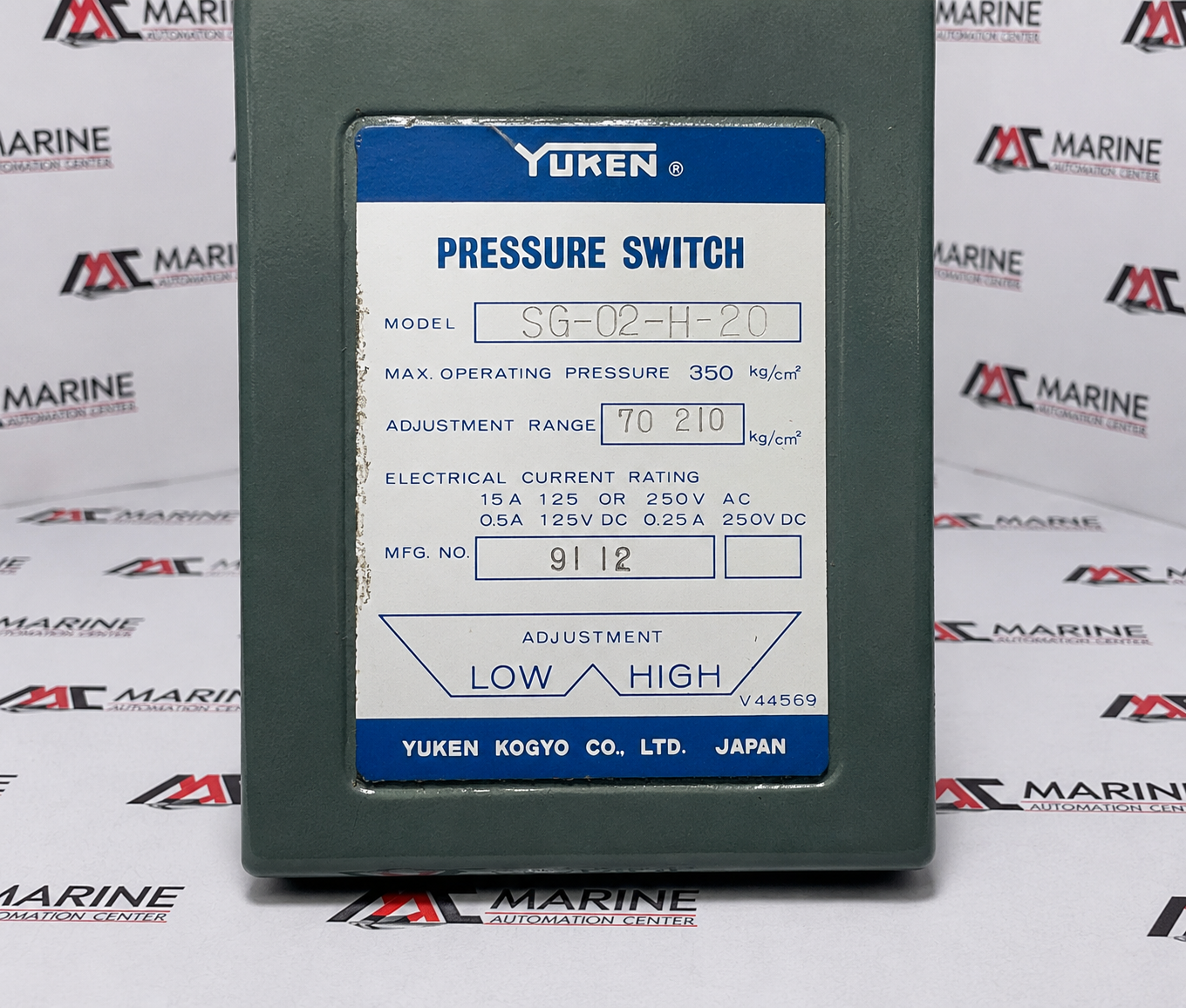

| MAX. OPERATING PRESSURE | 350 kg/cm² |
| PRESSURE ADJUSTMENT RANGE | 70–210 kg/cm² |
| ELECTRICAL CONTACT RATING (AC) | 15 A at 125/250 VAC |
| ELECTRICAL CONTACT RATING (DC) | 0.5 A at 125 VDC, 0.25 A at 250 VDC |
| PRESSURE PORT | Hydraulic Port (P) |
| DRAIN PORT | DR Port |
| PRESSURE ADJUSTMENT | Adjustable (LOW → HIGH) |

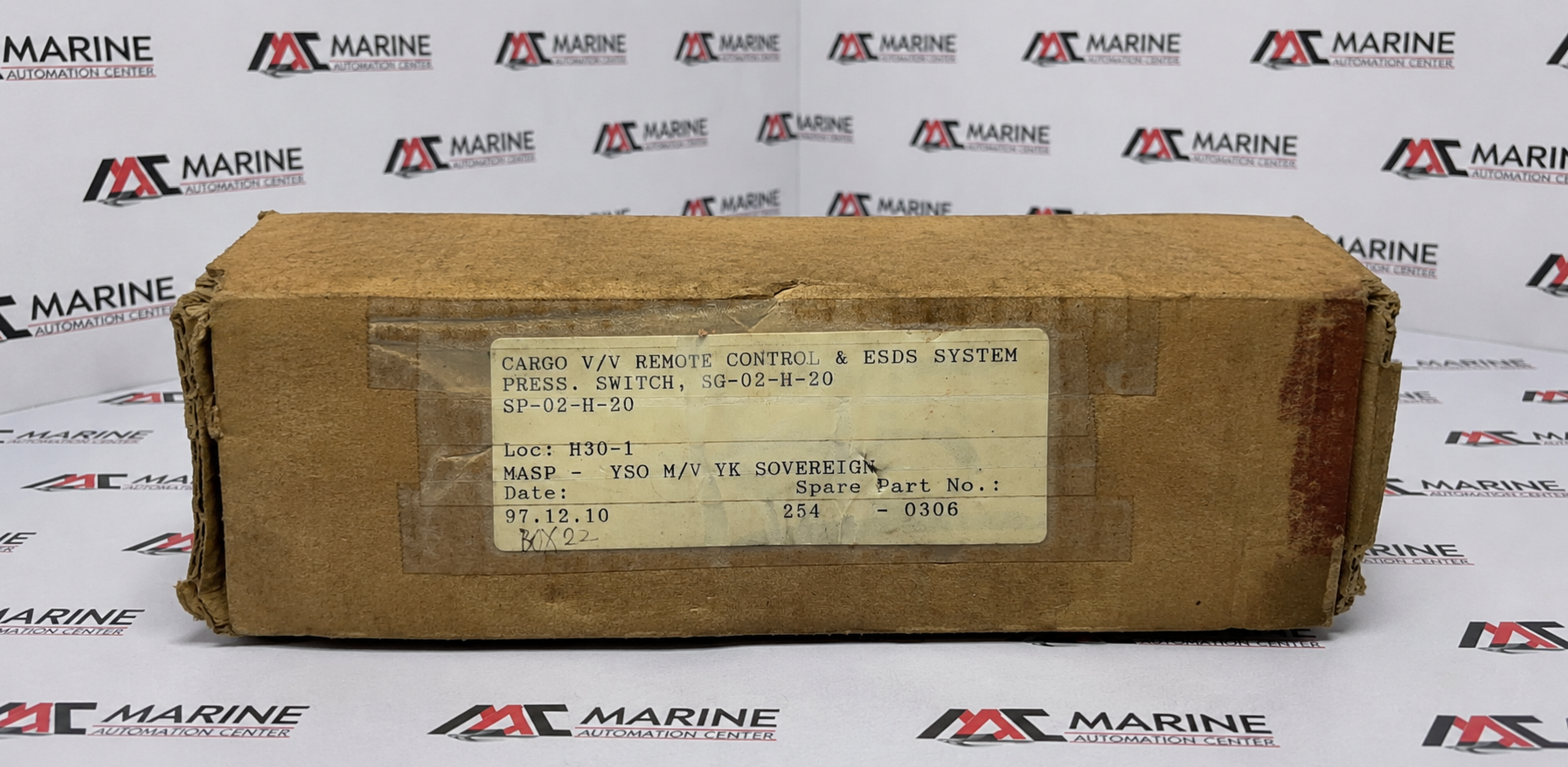

| APPLICATION | Hydraulic pressure monitoring and switching for hydraulic power units, industrial machinery, marine hydraulic systems, cargo valve remote control systems, ESD systems, presses and automation equipment |
| MADE IN | Japan |
| REF NO. | 1293 |
