Yamatake (Azbil) SDC31 Digital Indicating Controller
Yamatake (Azbil) SDC31 Digital Indicating Controller (Part No. C312GA000500) is a high-performance temperature and process controller designed for precise monitoring and PID control of industrial processes. It delivers accurate digital indication, stable control performance, and reliable operation for maintaining consistent process conditions. Ideal for temperature control, process automation, manufacturing equipment, and industrial instrumentation applications.
BRAND
Yamatake
TYPE
Indicating Controller
PART NO.
C312GA000500
MODEL
SDC31
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Yamatake |
| TYPE | Indicating Controller |
| PART NO. | C312GA000500 |
| MODEL | SDC31 |
| MANUFACTURER | Yamatake Corporation |
| Serial Number | 023202220 |
| Frequency | 50/60 Hz |
| Power Consumption | 18 VA Max |

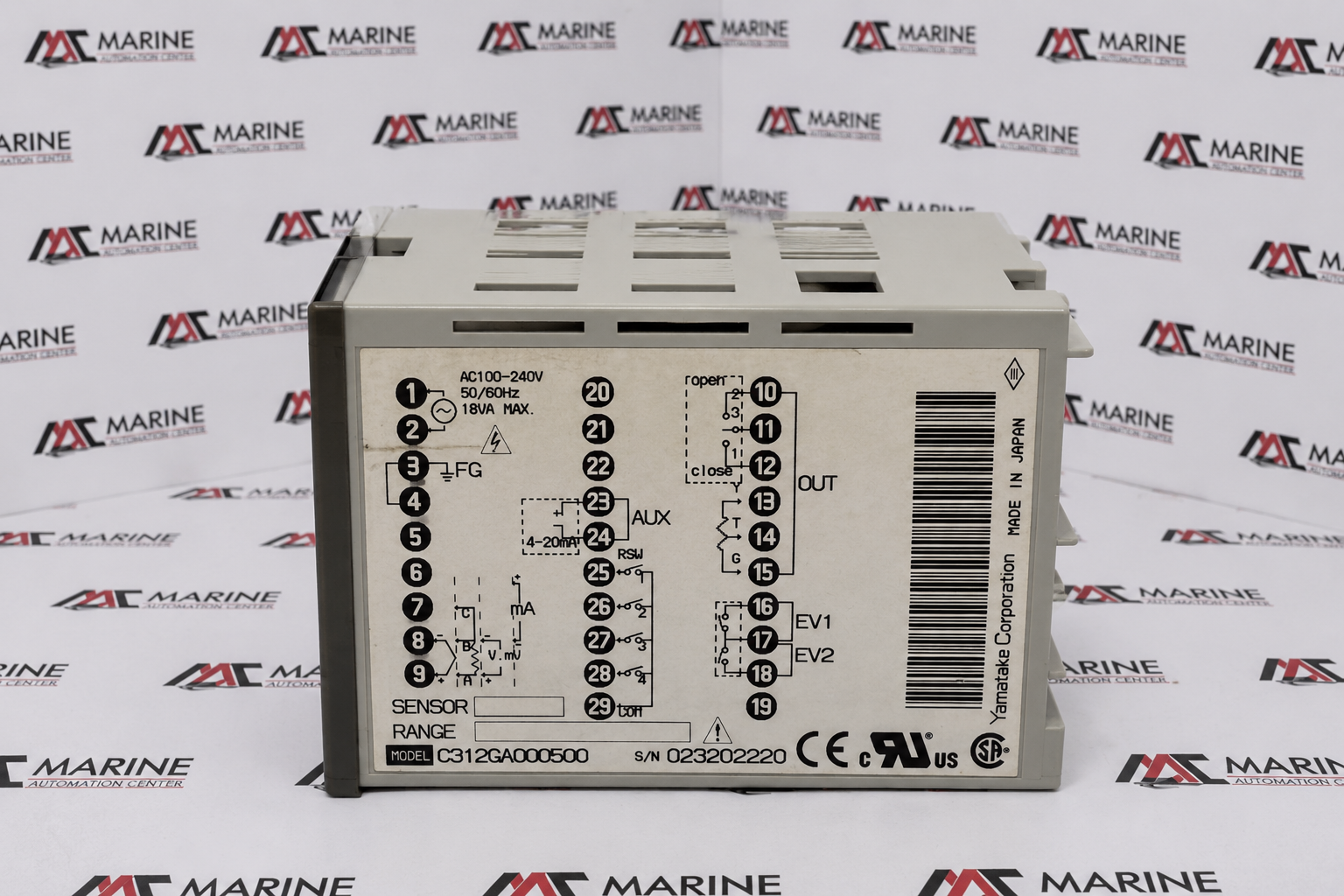

| Power Supply Terminals | Terminals 1 & 2: AC Supply, Terminal 3: Frame Ground (FG) |
| Sensor Input | Multi-range Analog Input (Voltage, Millivolts, Current mA) |
| Sensor Input Terminals | Terminals 7, 8, 9 |
| Control Output | Relay Output (Open/Close / SPDT) |
| Application | Industrial temperature and process control, PID control, automation, and instrumentation systems |
| Made In | Japan |
| REF NO | 1416 |
