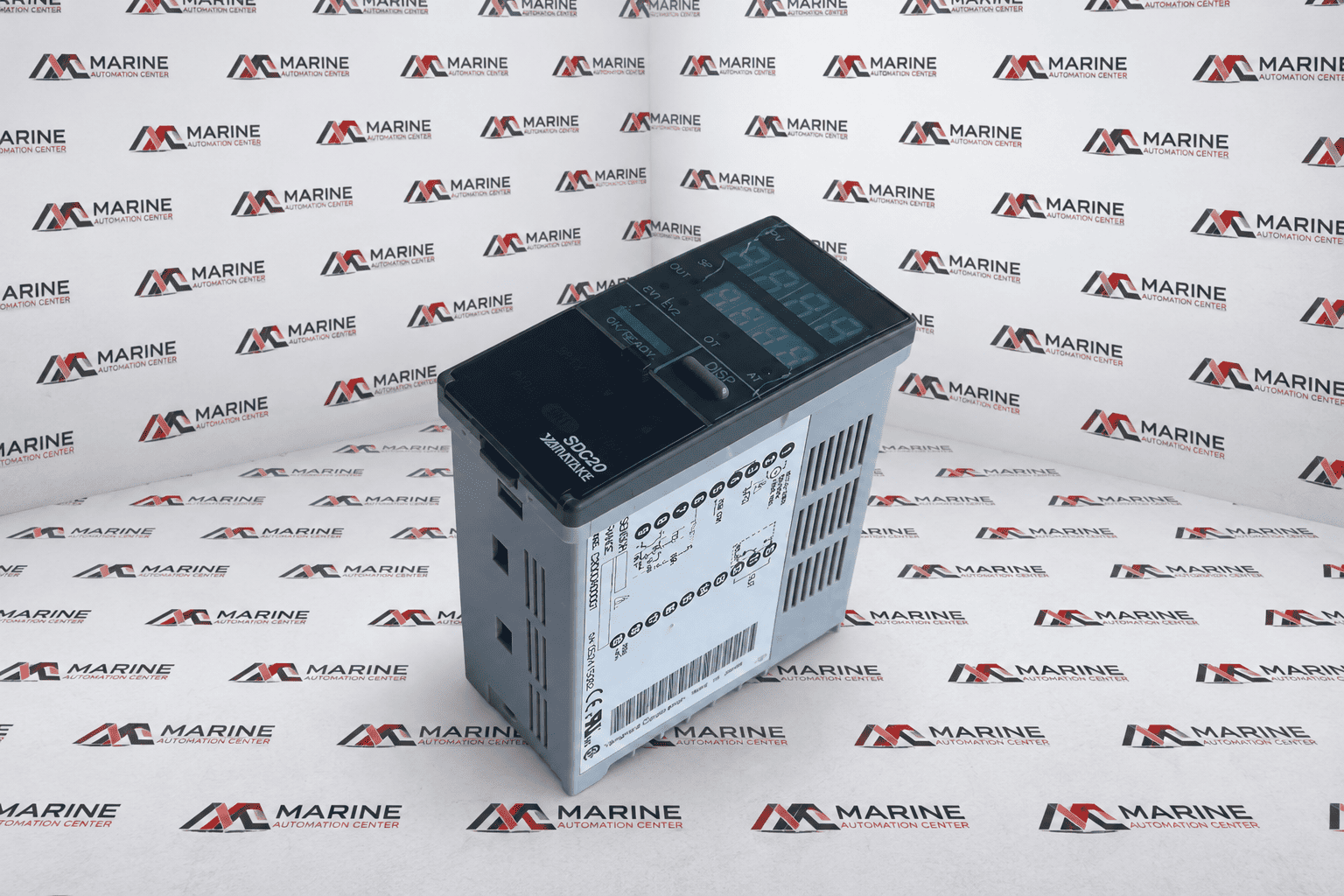

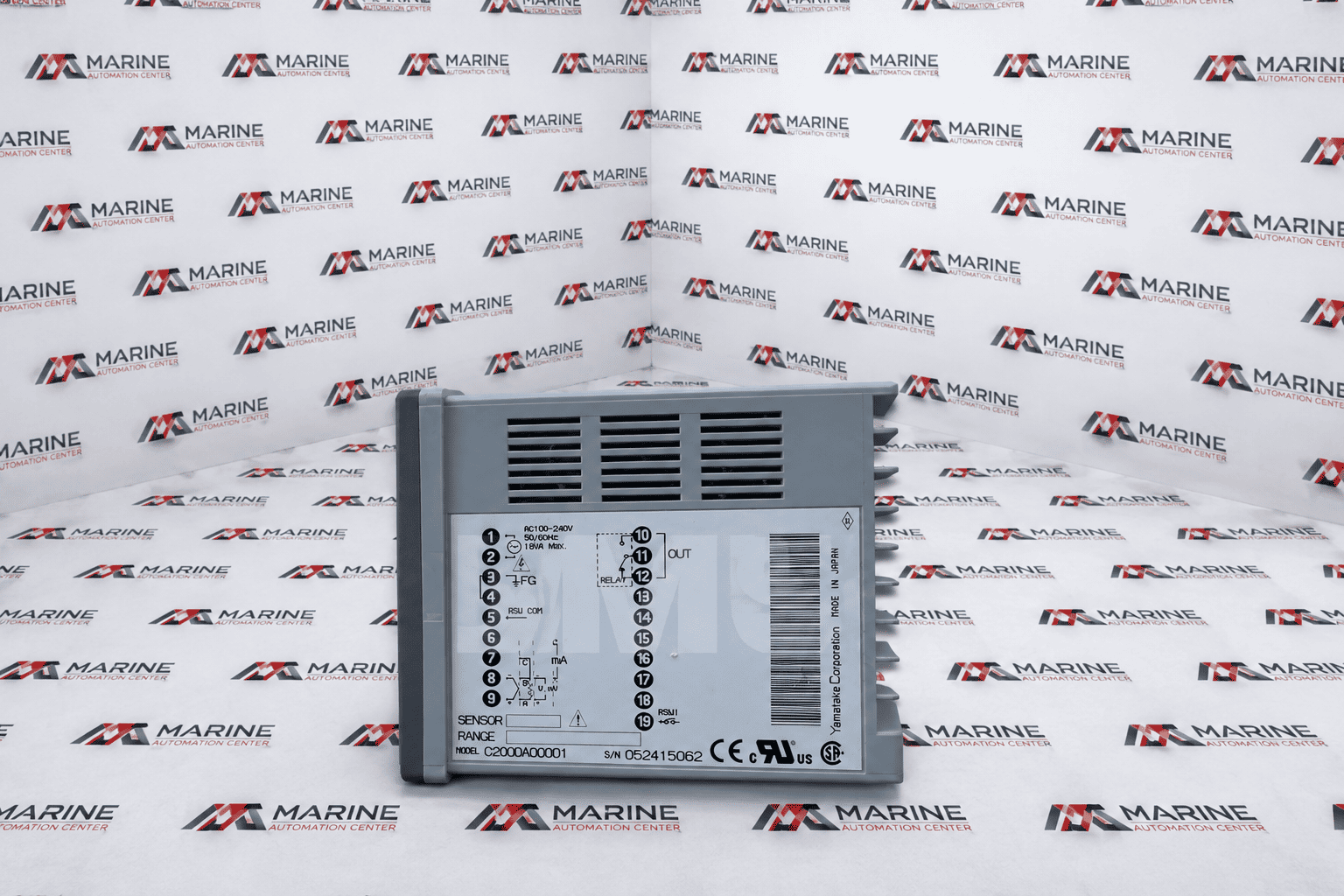

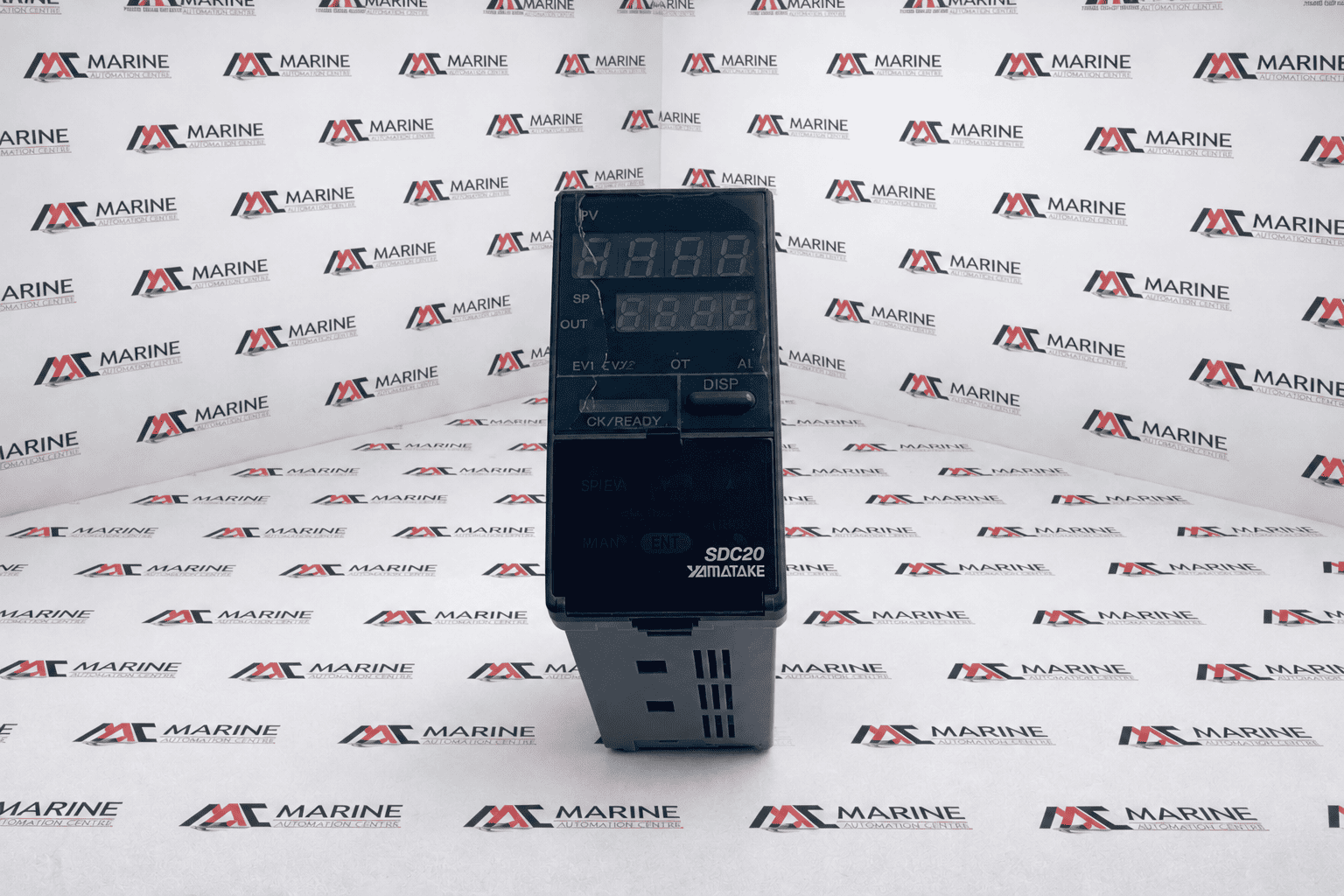

Yamatake Azbil DigitroniK SDC20 Single Loop Digital Indicating Controller
The Yamatake / Azbil C200DA00001 is a high-precision, single-loop Digital Indicating PID Controller from the SDC20 Series. Made in Japan, this versatile instrument features universal multi-input capability, allowing it to interface directly with diverse thermocouples, Pt100 RTDs, and linear analog process loops (4–20mA / 1–5V) to regulate temperature, pressure, and flow rates in industrial furnaces, kilns, and marine utility plants.
BRAND
Yamatake / Azbil
TYPE
Digital Indicating Controller (PID Temperature Controller)
PART NO.
C200DA00001
MODEL
SDC20 Series
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Yamatake / Azbil |
| TYPE | Digital Indicating Controller (PID Temperature Controller) |
| PART NO. | C200DA00001 |
| MODEL | SDC20 Series |
| Voltage Rating: | AC 100V - 240V, 50/60Hz, Max 13VA consumption |
| Application | Precise temperature, pressure, and flow rate regulation in industrial furnaces, kilns, and marine utility plants |
| IEC | Built to standard panel dimension classes with IP65-equivalent front face sealing |
| Universal Multi-Input Capability | It accommodates diverse Thermocouple sensor configurations (Types K, J, E, T, R, S, B, N), standard Platinum Resistance Temperature Detectors (RTDs) like the Pt100, and standard industrial linear analog current/voltage scaling arrays (4–20mA, 1–5V, 0–5V) |
| Compact Multi-Display UI | It tracks the dynamic Process Variable (PV) alongside the Set Variable (SV) parameter status lines simultaneously for immediate operator tracking |
| Galvanic Protection Thresholds | 3-way electrical isolation barrier paths ,This design protects sensitive microprocessing infrastructure from high common-mode voltage spikes up to 30V RMS |
| Severe Climate Adaptation | -10°C up to +55°C |
| Smart Loader Software Hookup | SLP-C20 / SLP-C30 Smart Loader software package |
| Made In | Japan |
| REF NO | 66 |
