WIKA Pressure Transmitter

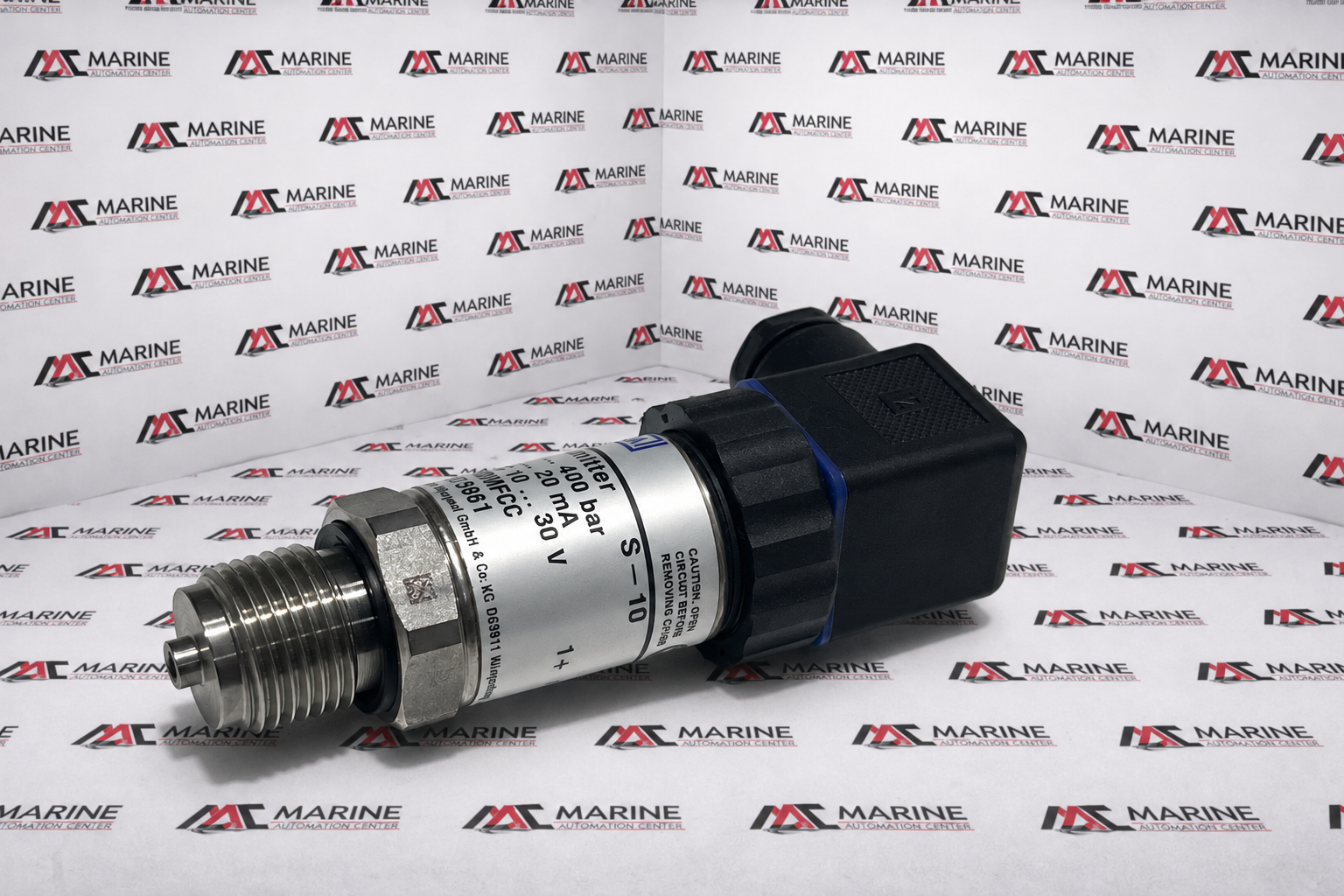

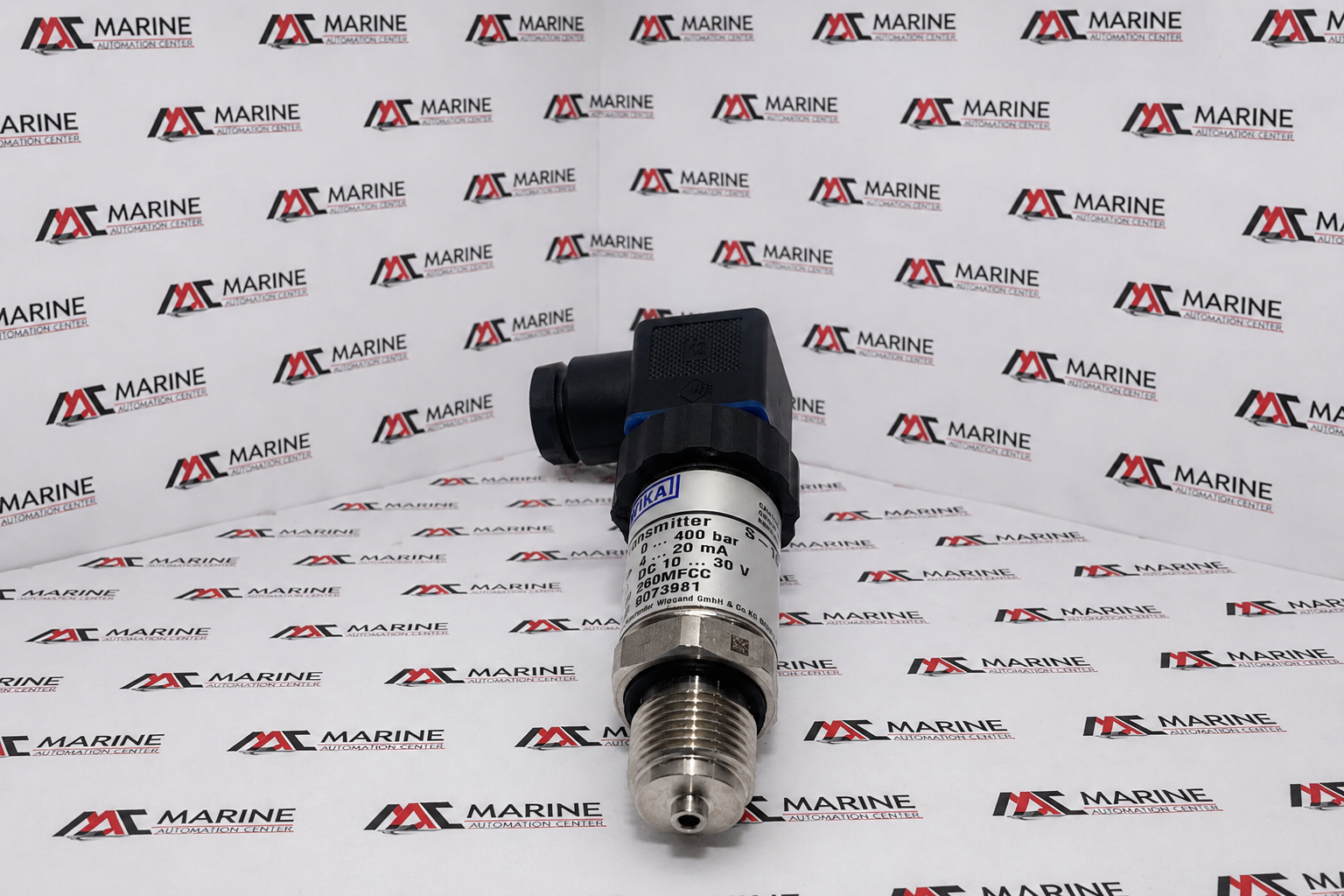

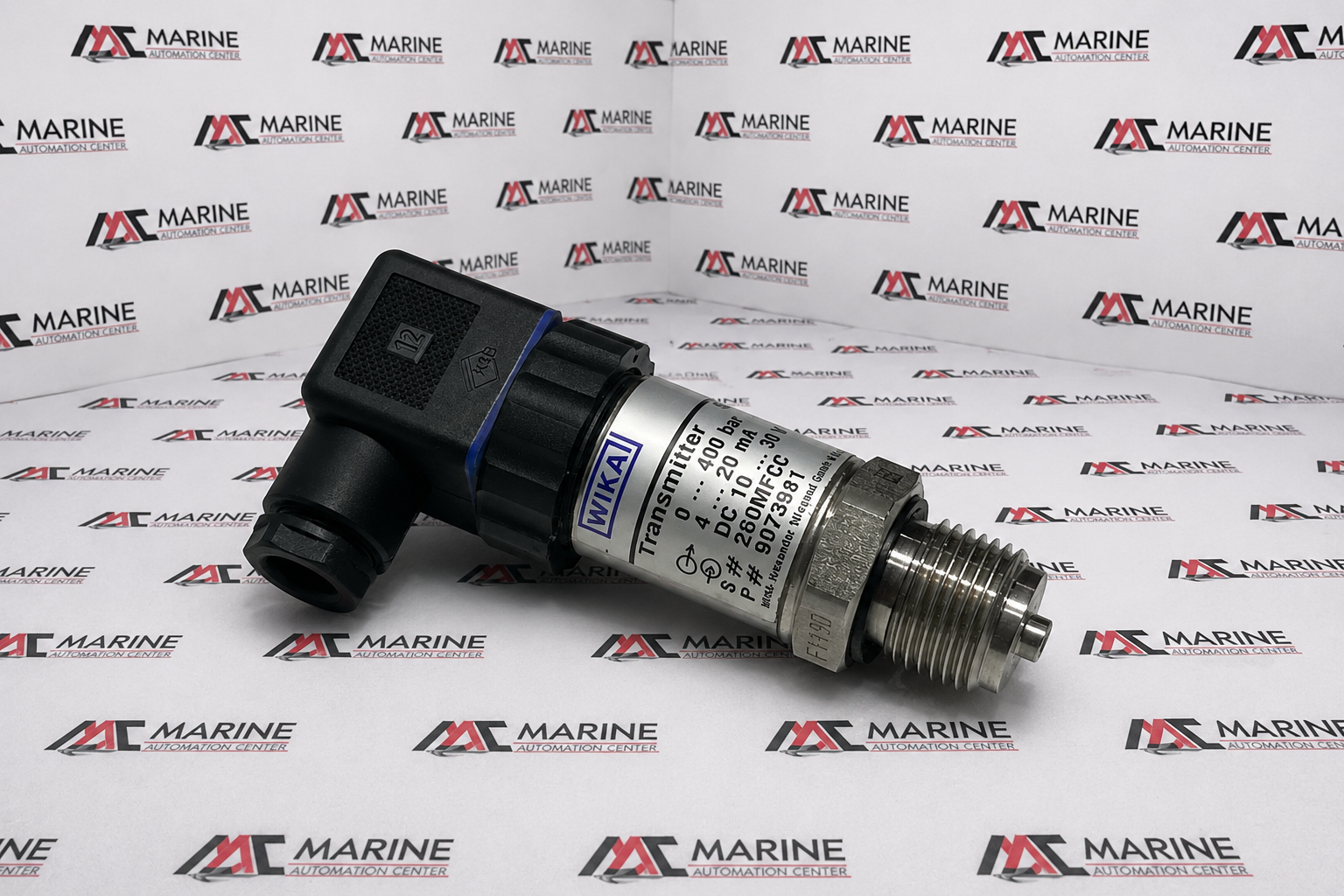

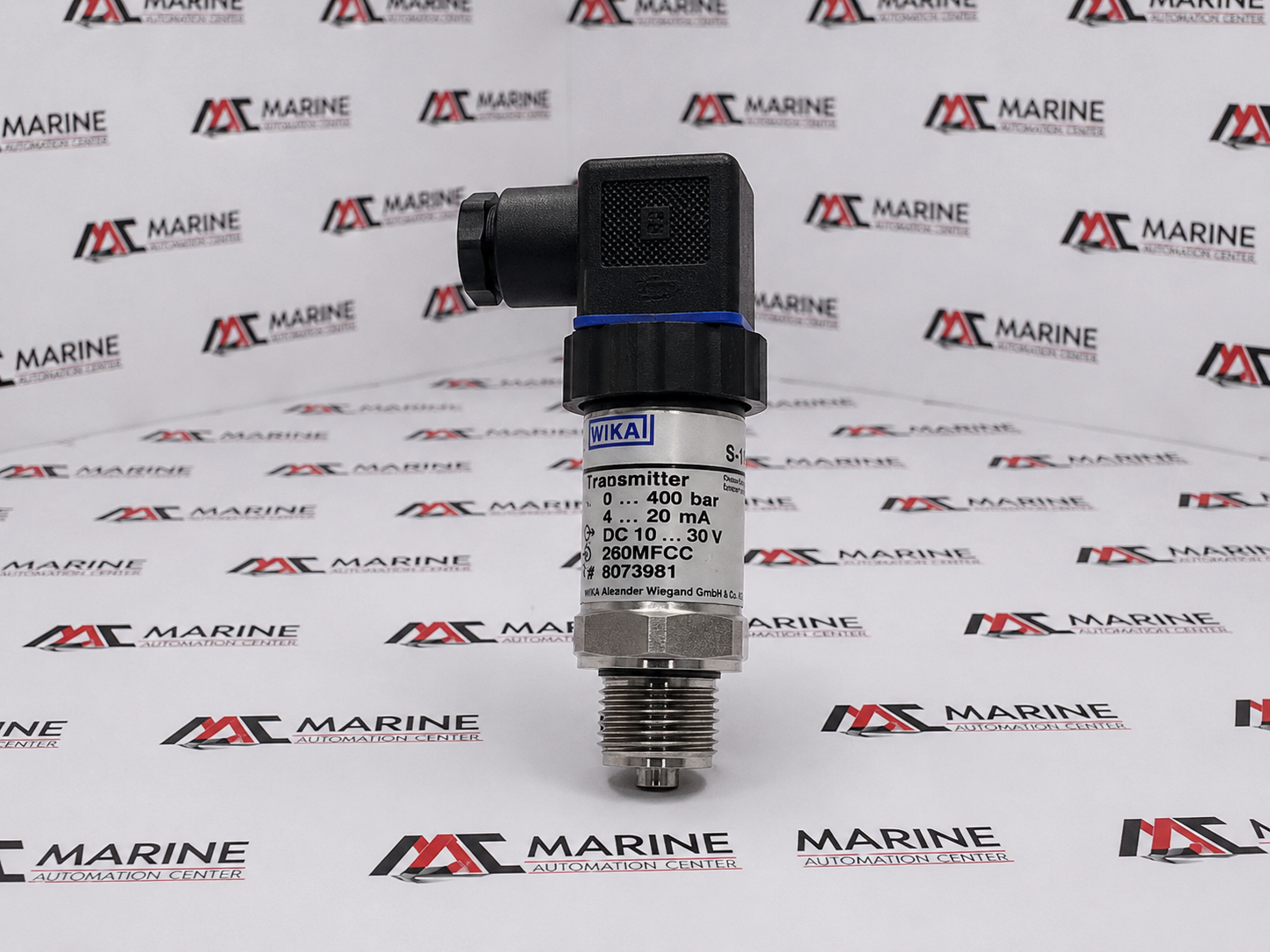

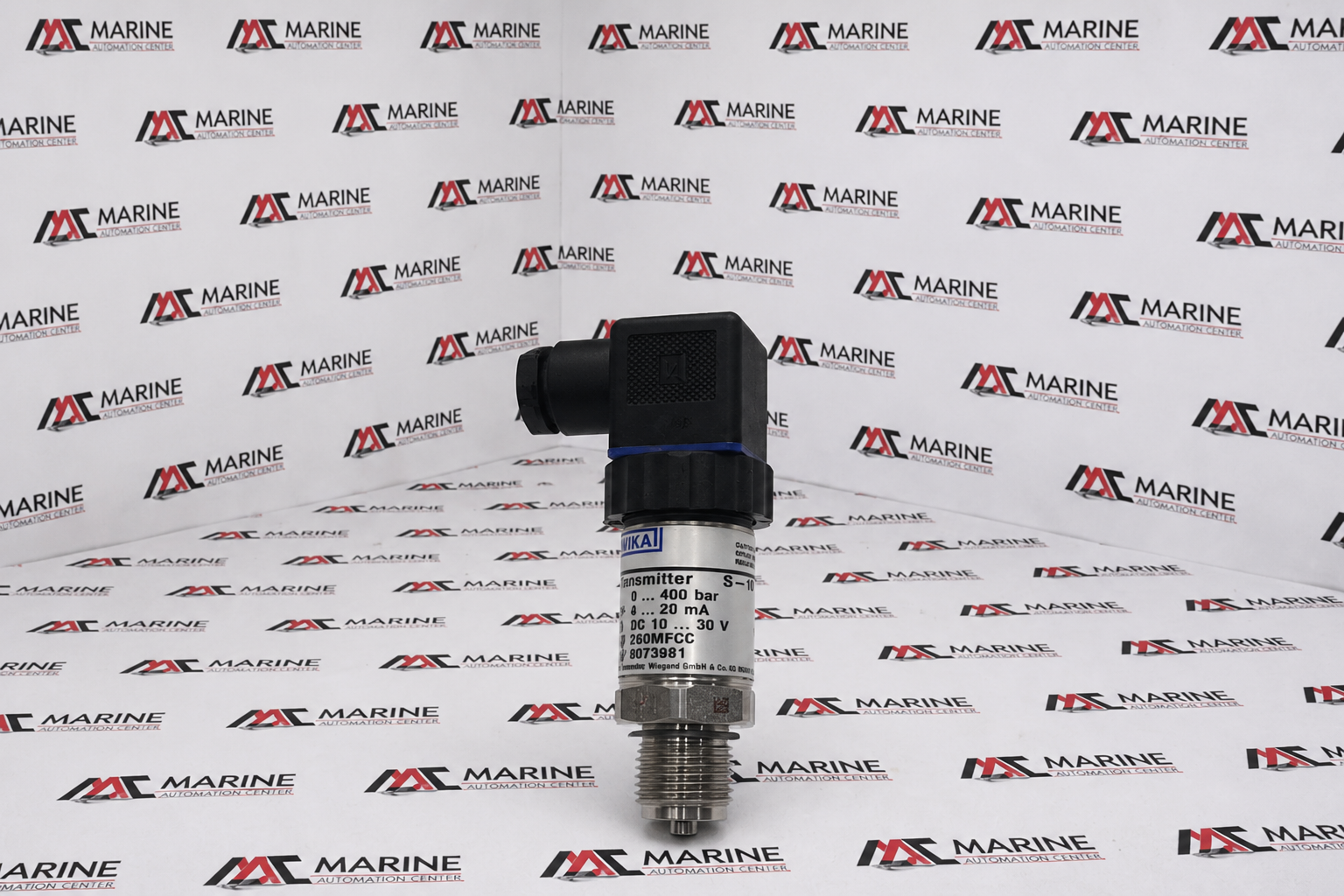

WIKA S-10 Pressure Transmitter (P/N: 9073981) is a compact industrial pressure transmitter designed for accurate and reliable pressure measurement in liquid and gas applications. It provides a stable electrical output, robust stainless steel construction, and long-term performance, making it ideal for industrial automation, hydraulic, pneumatic, and process control systems.
BRAND
WIKA
TYPE
Pressure Transmitter
PART NO.
9073981
MODEL
S-10
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | WIKA |
| TYPE | Pressure Transmitter |
| PART NO. | 9073981 |
| MODEL | S-10 |
| SERIAL / CONFIGURATION NUMBER | 260MFCC |
| Pressure Range | 0 ... 400 bar |
| Output Signal | 4 ... 20 mA, 2-wire |
| Supply Voltage | DC 10 ... 30 V |
| Electrical Connection | Angular Connector (DIN 175301-803 Form A / Hirschmann Type) |
| Process Connection | Threaded Male Process Connection |
| Process Connection Size | G 1/2 B Male (Based on visible process connection and standard S-10 configuration) |
| Wetted Parts Material | Stainless Steel |
| Housing Material | Stainless Steel |
| Ingress Protection | IP65 (Typical for DIN connector version) |
| Accuracy | ±0.5 % Full Scale (Typical for standard S-10 series) |
| Pressure Type | Gauge Pressure |
| Response Time | ≤ 1 ms |
| Application | Pressure measurement in hydraulic systems, pumps, compressors, marine systems, industrial machinery, process control and automation systems |
| Suitable Media | Liquids, gases and compressed air compatible with stainless steel |
| Electrical Terminal Marking | Terminal 1 (+), Terminal 2 (-) |
| Safety Marking | CAUTION: OPEN CIRCUIT BEFORE REMOVING COVER |
| Certification Marking | CSA, CE |
| IEC | IEC Compliant Industrial Pressure Transmitter |
| Made In | Germany |
| REF NO | 1261 |
