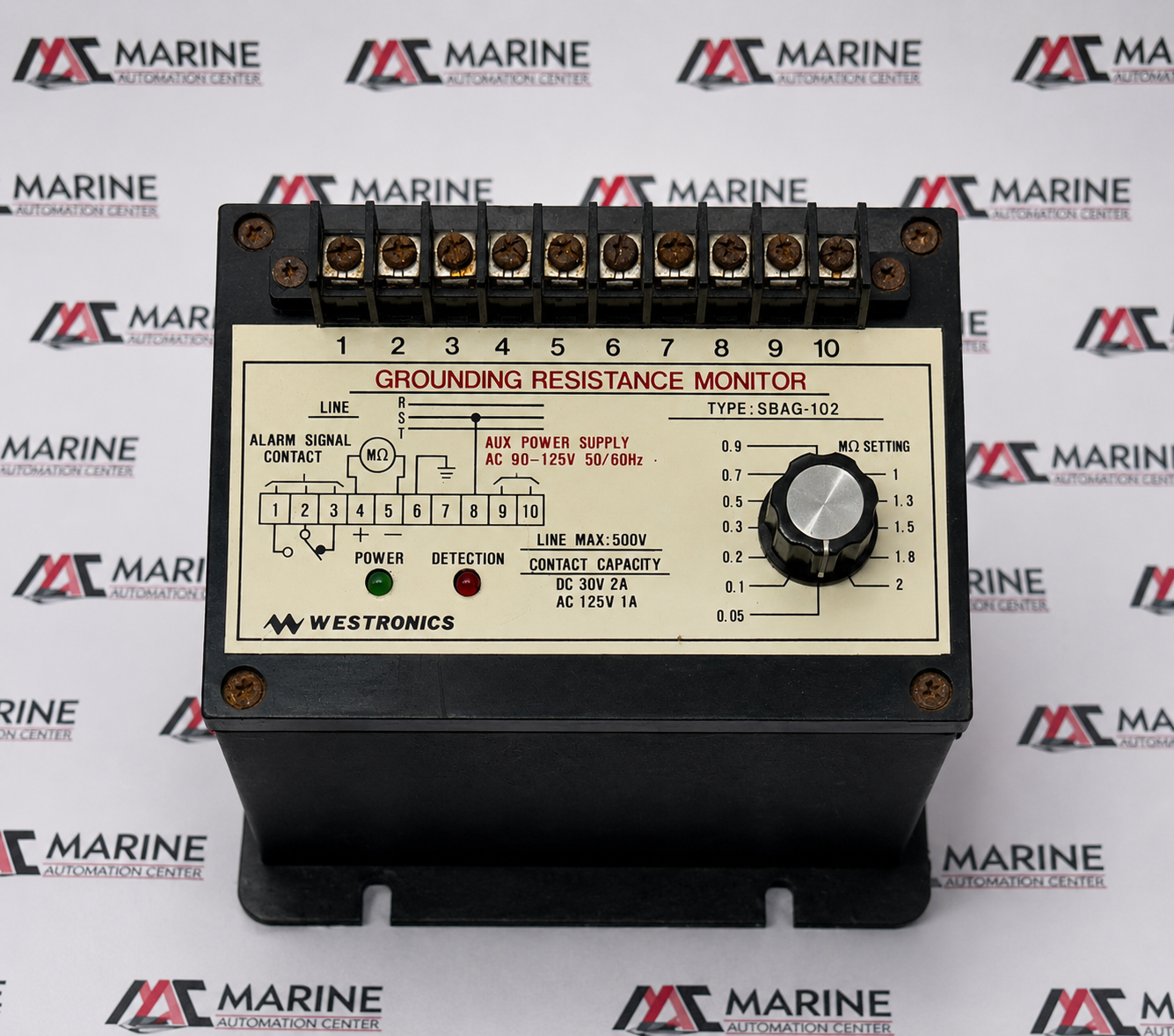

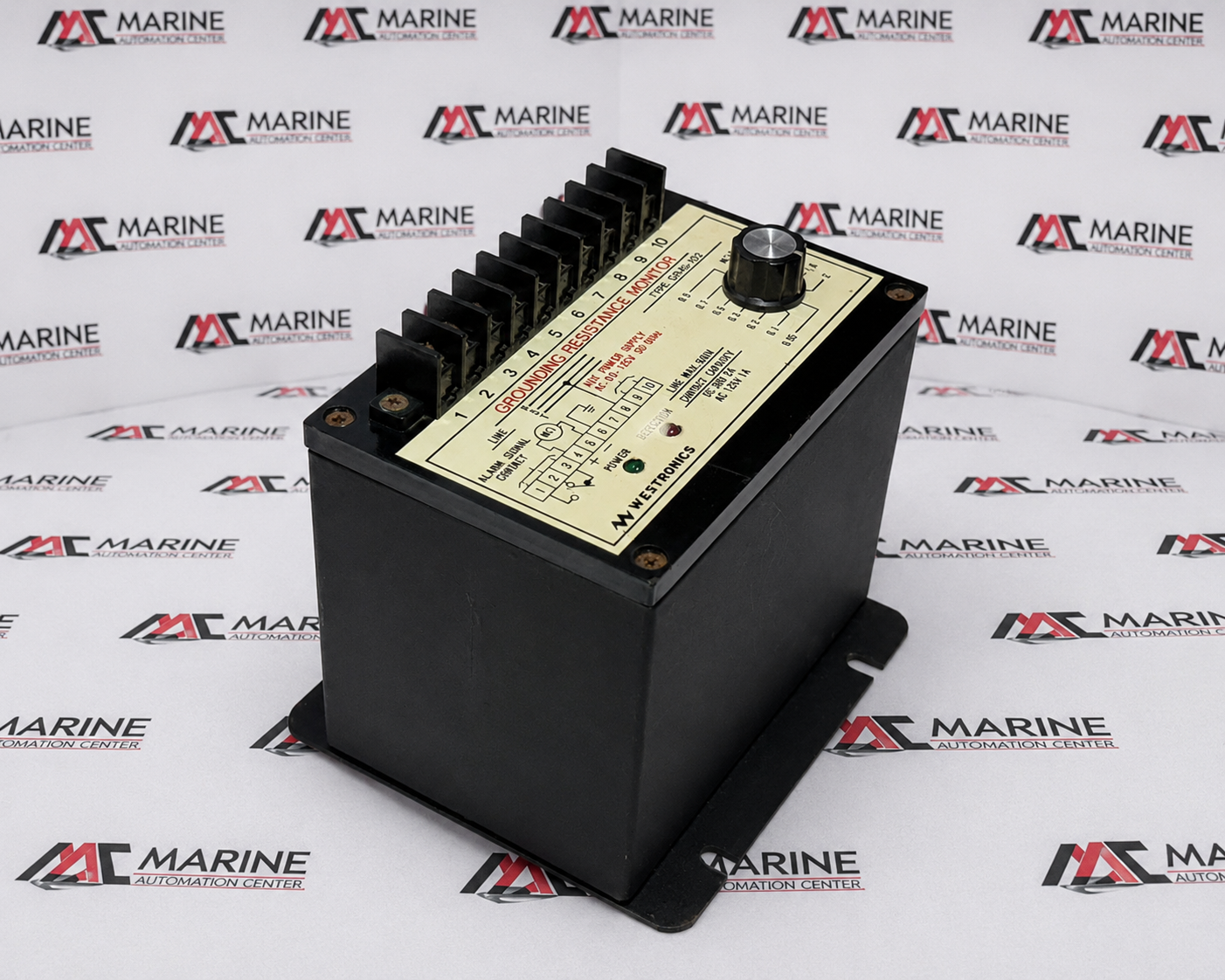

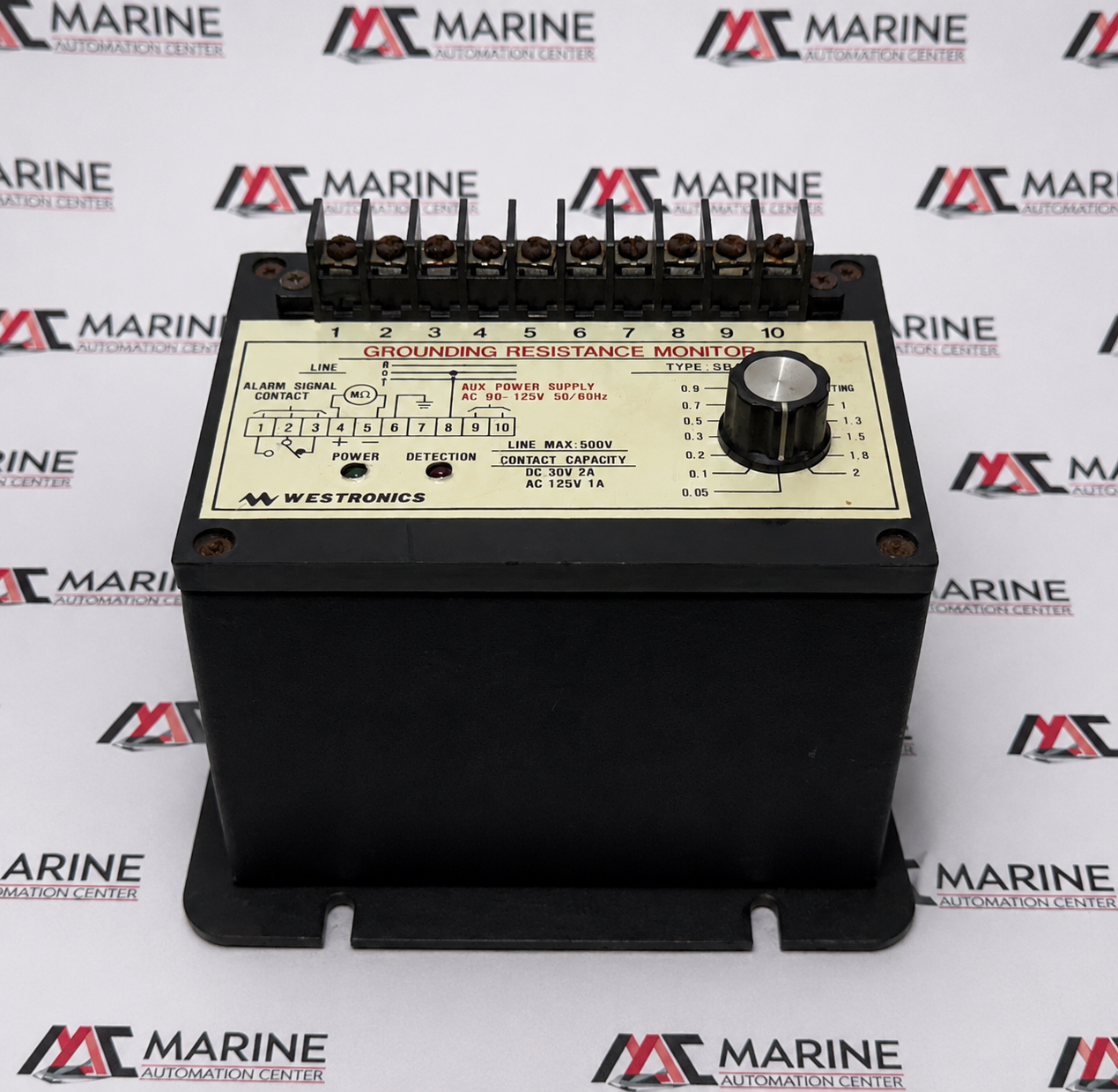

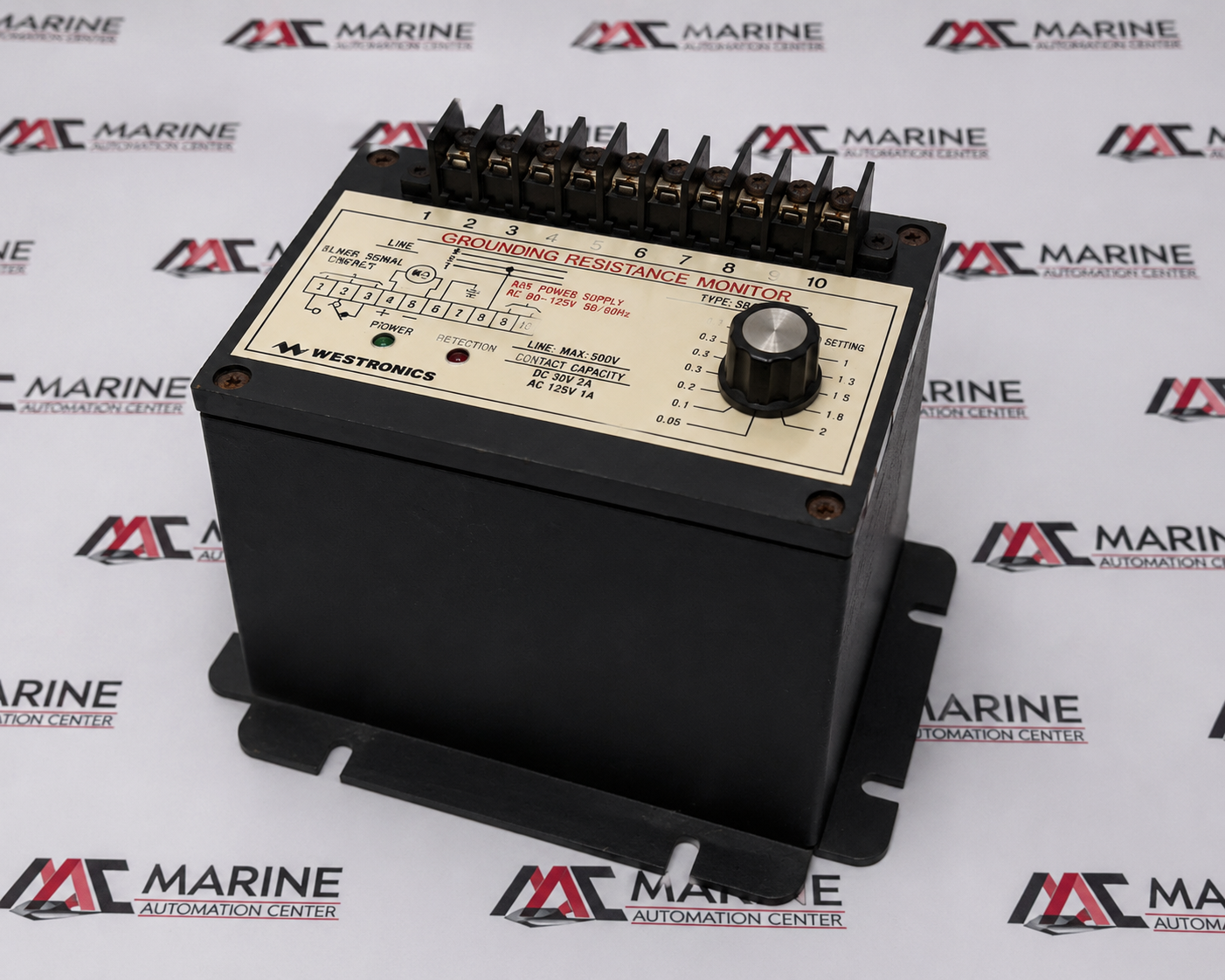

WESTRONICS Grounding Resistance Monitor SBAG-102
The WESTRONICS SBAG-102 is a grounding resistance monitor / insulation resistance monitor designed for continuous monitoring of insulation and ground fault conditions in ungrounded AC/DC electrical systems. It provides early detection of insulation deterioration and earth leakage, helping to improve electrical safety, prevent equipment damage, and ensure reliable operation in industrial, marine, and power distribution applications.
BRAND
WESTRONICS
TYPE
Grounding Resistance Monitor
PART NO.
SBAG-102
MODEL
SBAG-102
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | WESTRONICS |
| TYPE | Grounding Resistance Monitor |
| PART NO. | SBAG-102 |
| MODEL | SBAG-102 |
| MANUFACTURER | Westronics |
| Voltage Rating | Line Voltage: Max. 500V AC (RMS) |
| Auxiliary Power Supply | AC 90–125V, 50/60Hz |
| Ground Resistance Setting | Adjustable 0.05 MΩ to 2 MΩ |
| Detection Method | Continuous insulation / grounding resistance monitoring with adjustable alarm threshold |
| Alarm Output | Relay Alarm Signal Contact (SPDT) |
| Contact Capacity | DC 30V 2A, AC 125V 1A |
| Maximum Line Voltage | 500V AC |
| Application | Monitoring insulation resistance to ground in marine electrical distribution systems, switchboards, generators, AC power systems, and industrial electrical installations |
| Country of Manufacture | Korea |
| REF NO. | 1481 |
