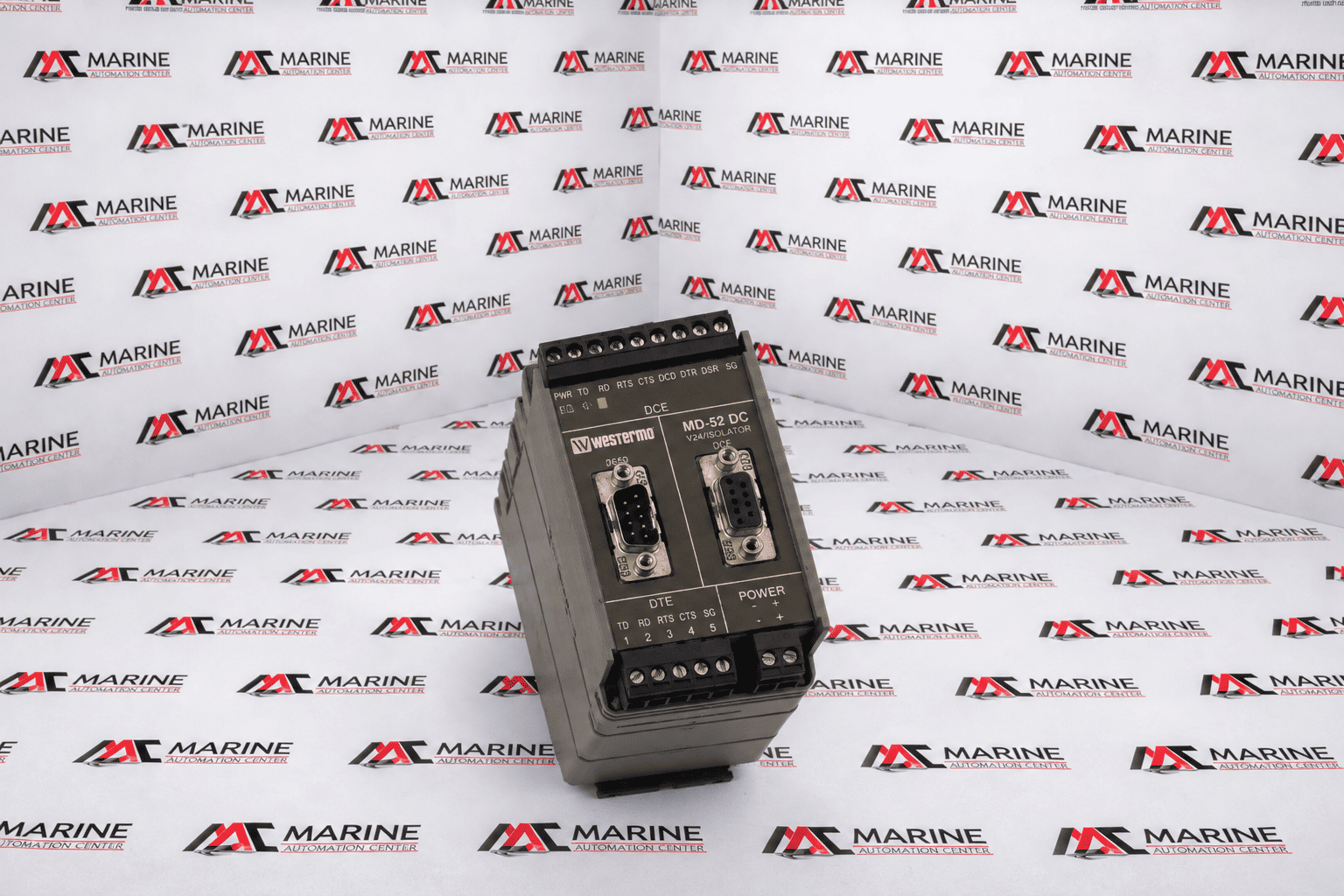

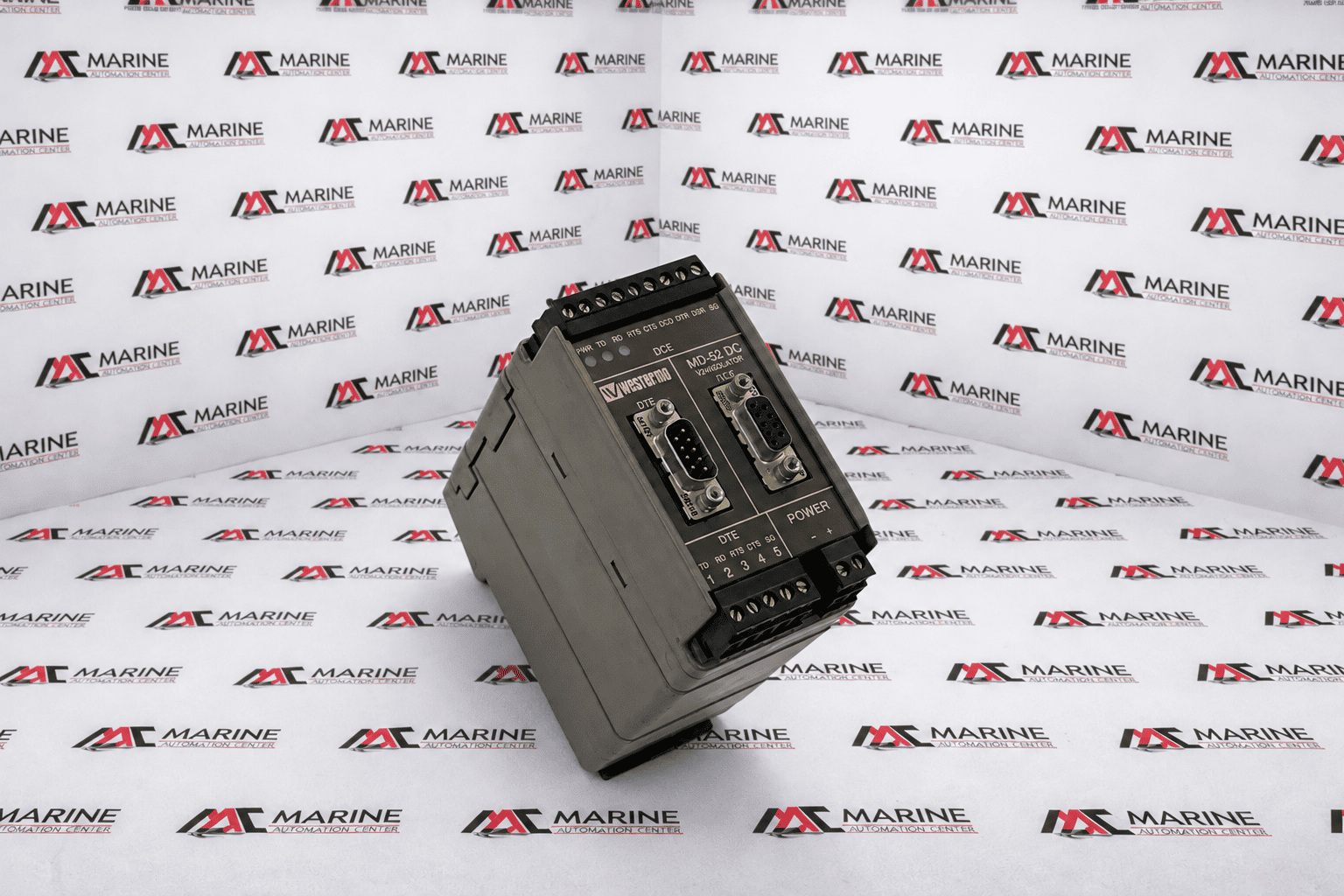

Westermo RS-232 Isolator / Repeater MD-52 DC
The Westermo MD-52 DC (Part Number: 3601-0001) is an industrial-grade RS-232 Isolator and Repeater designed to protect serial communication lines from electrical noise and voltage transients. It operates on a 12–36 V DC power supply and provides 1500 V RMS galvanic isolation using optocouplers and transformers to eliminate ground loops and EMI.
BRAND
Westermo
TYPE
RS-232 Isolator
PART NO.
3601-0001
MODEL
MD-52 DC
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Westermo |
| TYPE | RS-232 Isolator |
| PART NO. | 3601-0001 |
| MODEL | MD-52 DC |
| Voltage Rating | 12–36 V DC |
| Application | Industrial serial communication isolation, signal repeating and ground loop protection |
| Product Name | MD-52 DC RS-232 Isolator |
| Device Function | Galvanically Isolated RS-232 Interface Converter |
| Communication Interface | RS-232 Asynchronous Serial |
| Data Rate | Up to 115.2 kbit/s |
| Isolation Type | Full Galvanic Isolation (Optocoupler & Transformer) |
| Isolation Voltage | 1500 V RMS |
| Power Consumption | 1 W |
| Power Supply | 12–36 V DC |
| DTE Interface | DB9 Male & 5-Pin Screw Terminal |
| DCE Interface | DB9 Female & 9-Pin Screw Terminal |
| Mounting | DIN Rail |
| Primary Function | Electrically isolates RS-232 communication lines while repeating serial data and protecting connected equipment from electrical noise and voltage transients |
| Made In | Sweden |
| REF NO | 81 |
