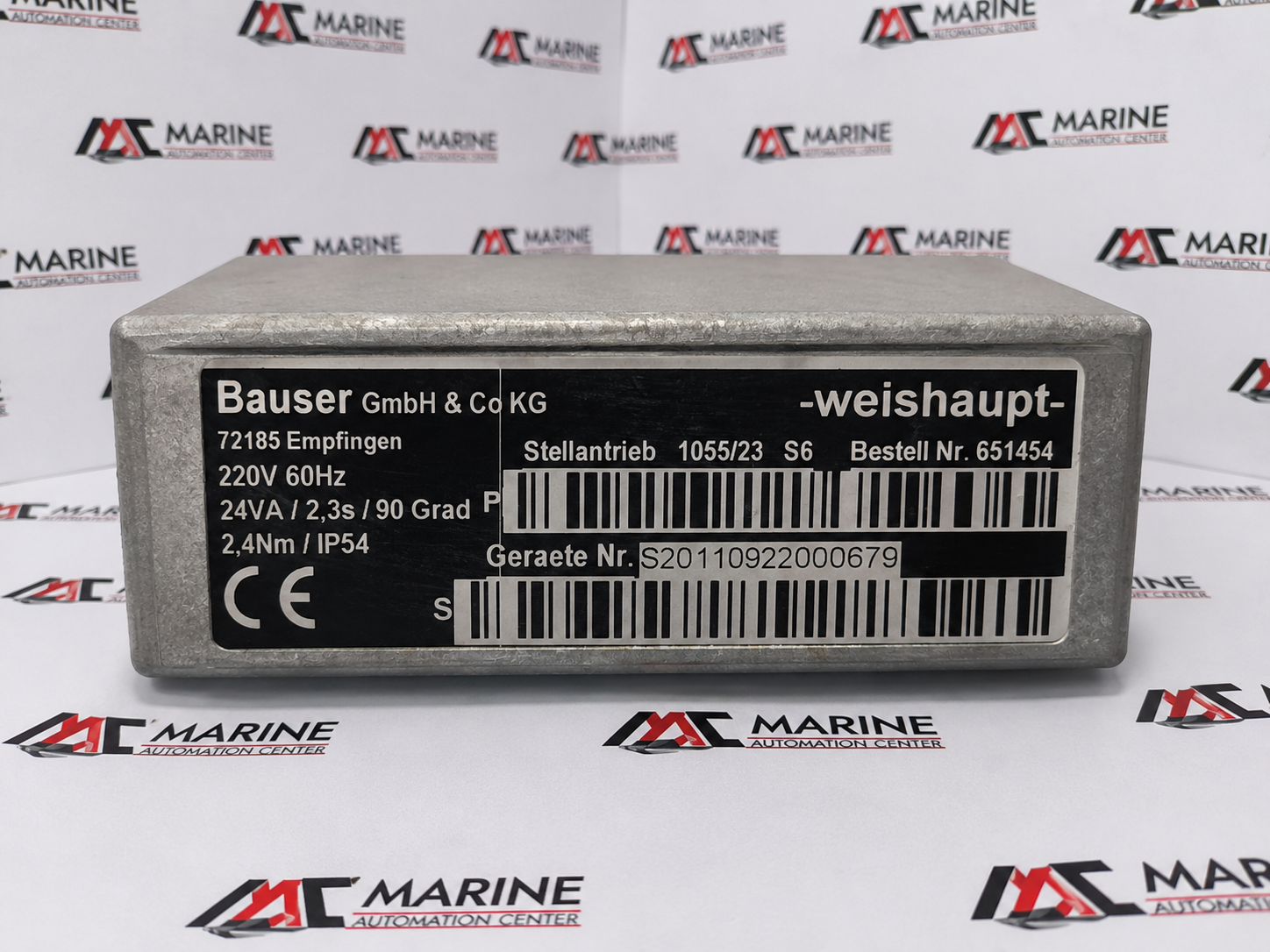

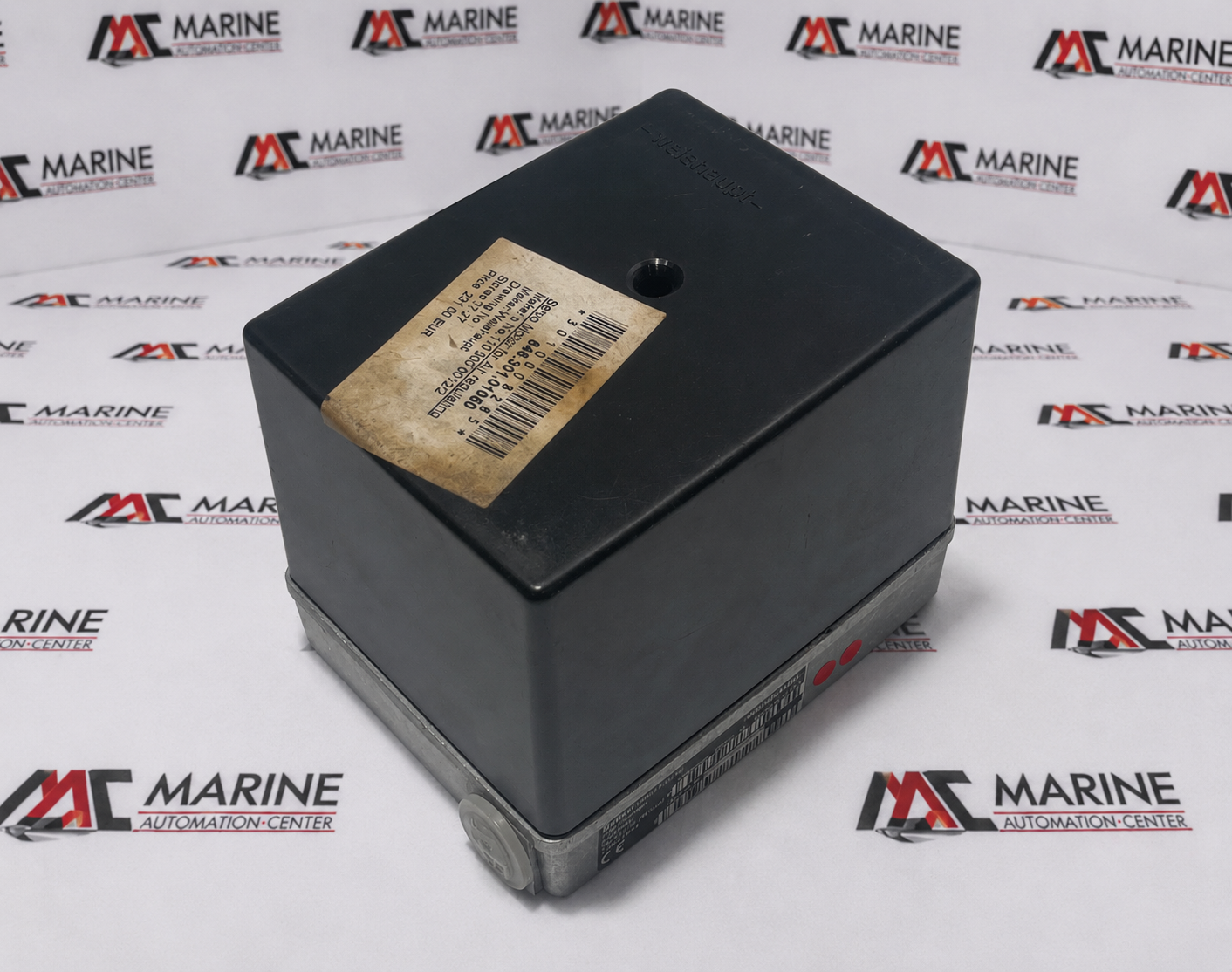

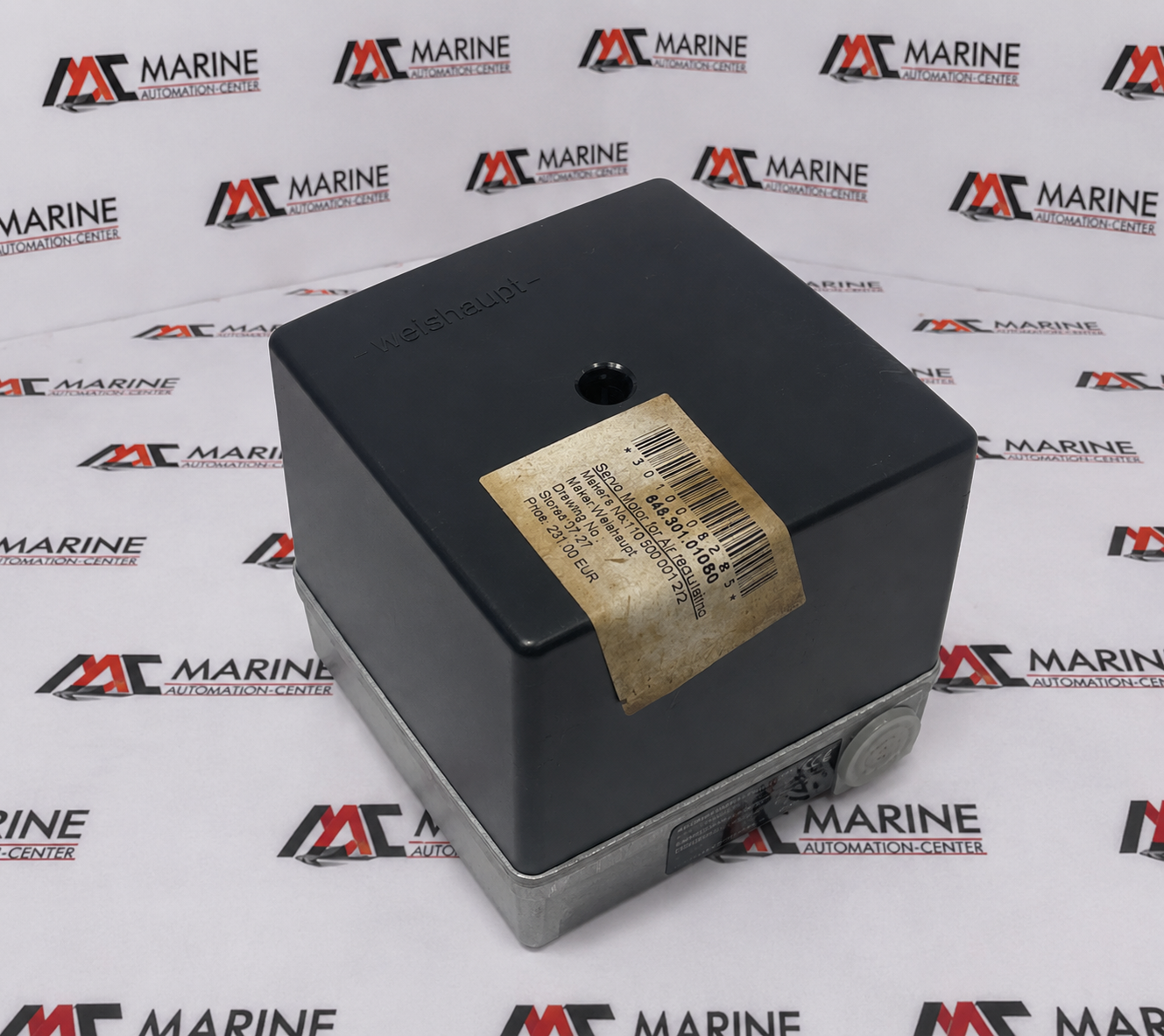

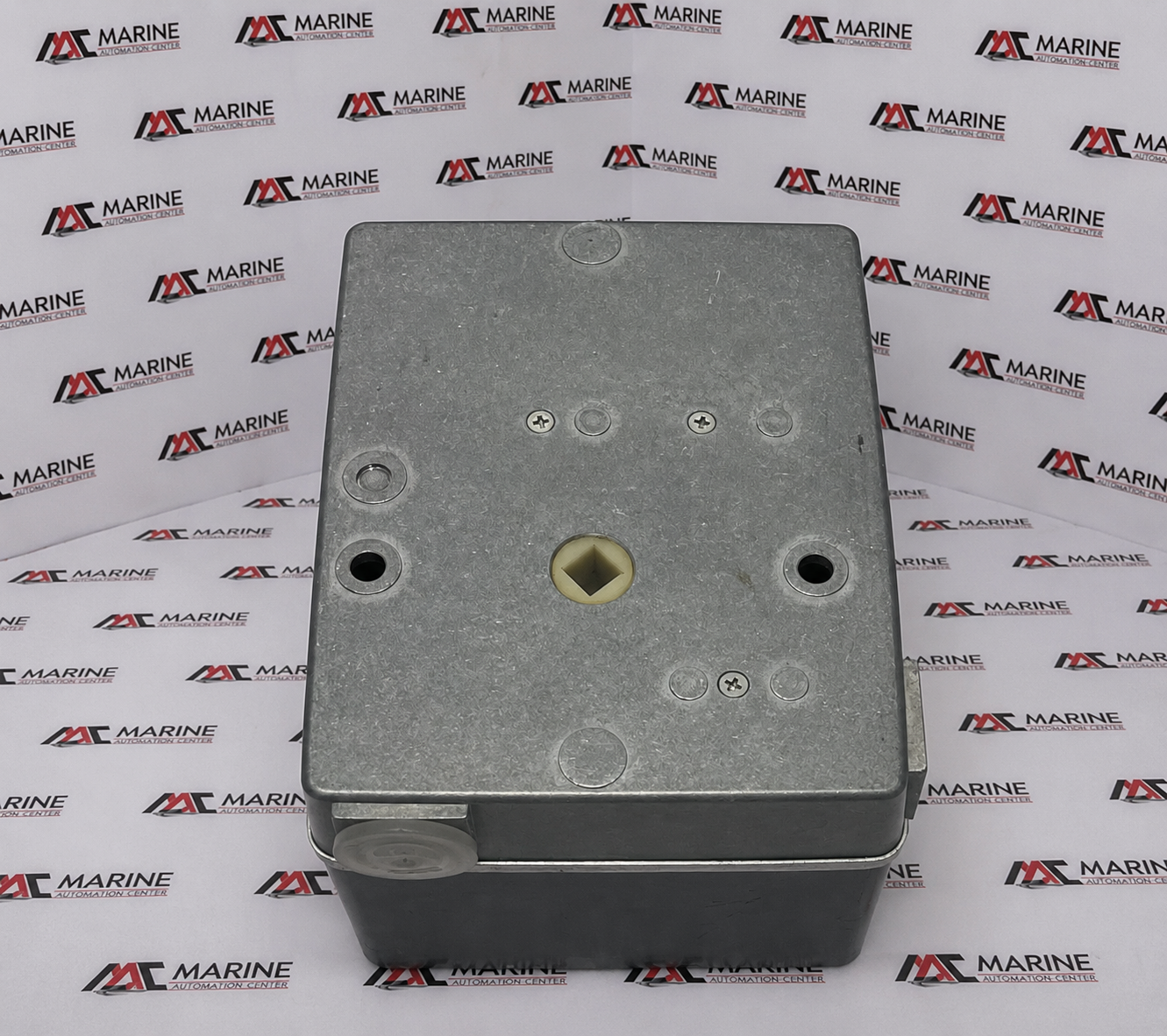

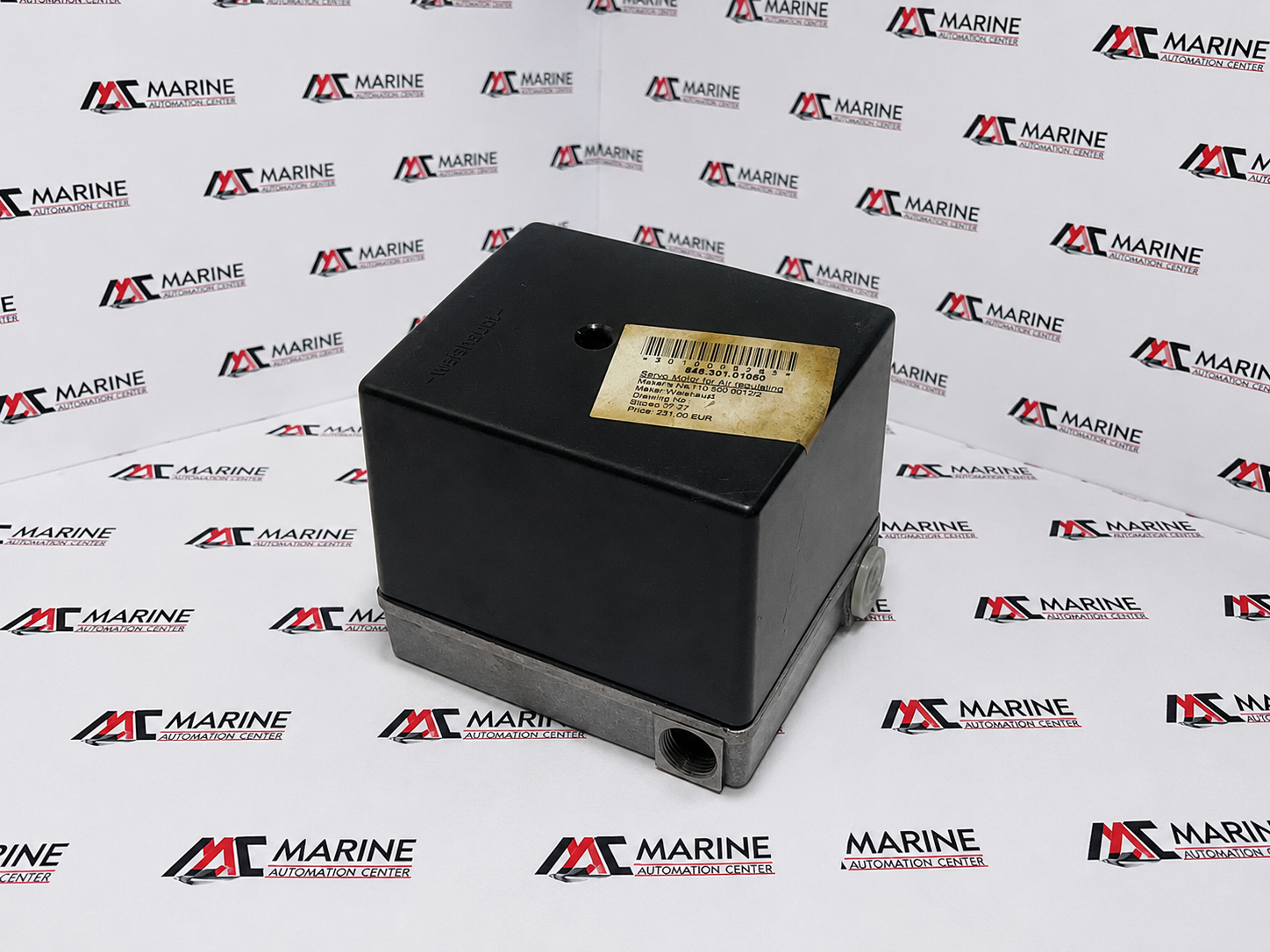

Weishaupt 1055/23 S6 Servo Motor
Weishaupt 1055/23 S6 Servo Motor (P/N 651454) is an industrial actuator designed for precise positioning control in burner and combustion systems. It regulates air and fuel flow by accurately adjusting dampers or valves, ensuring efficient combustion, stable operation, and reliable performance in heating applications.
BRAND
Weishaupt
TYPE
Servo Motor
PART NO.
651454
MODEL
1055/23 S6
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Weishaupt |
| TYPE | Servo Motor |
| PART NO. | 651454 |
| MODEL | 1055/23 S6 |
| SUPPLY VOLTAGE | 220 V AC |
| FREQUENCY | 60 Hz |
| POWER CONSUMPTION | 24 VA |
| OPERATING TIME | 2.3 Seconds |
| ROTATION ANGLE | 90° |
| OUTPUT TORQUE | 2.4 Nm |
| DUTY CYCLE | S6 |
| PROTECTION CLASS | IP54 |
| APPLICATION | Air damper positioning and combustion air regulation in Weishaupt industrial burners, boiler systems, heating equipment, and combustion control systems |
| CERTIFICATION | CE |
| PRODUCT MARKING | Stellantrieb |
| MADE IN | Germany |
| REF NO. | 1271 |
