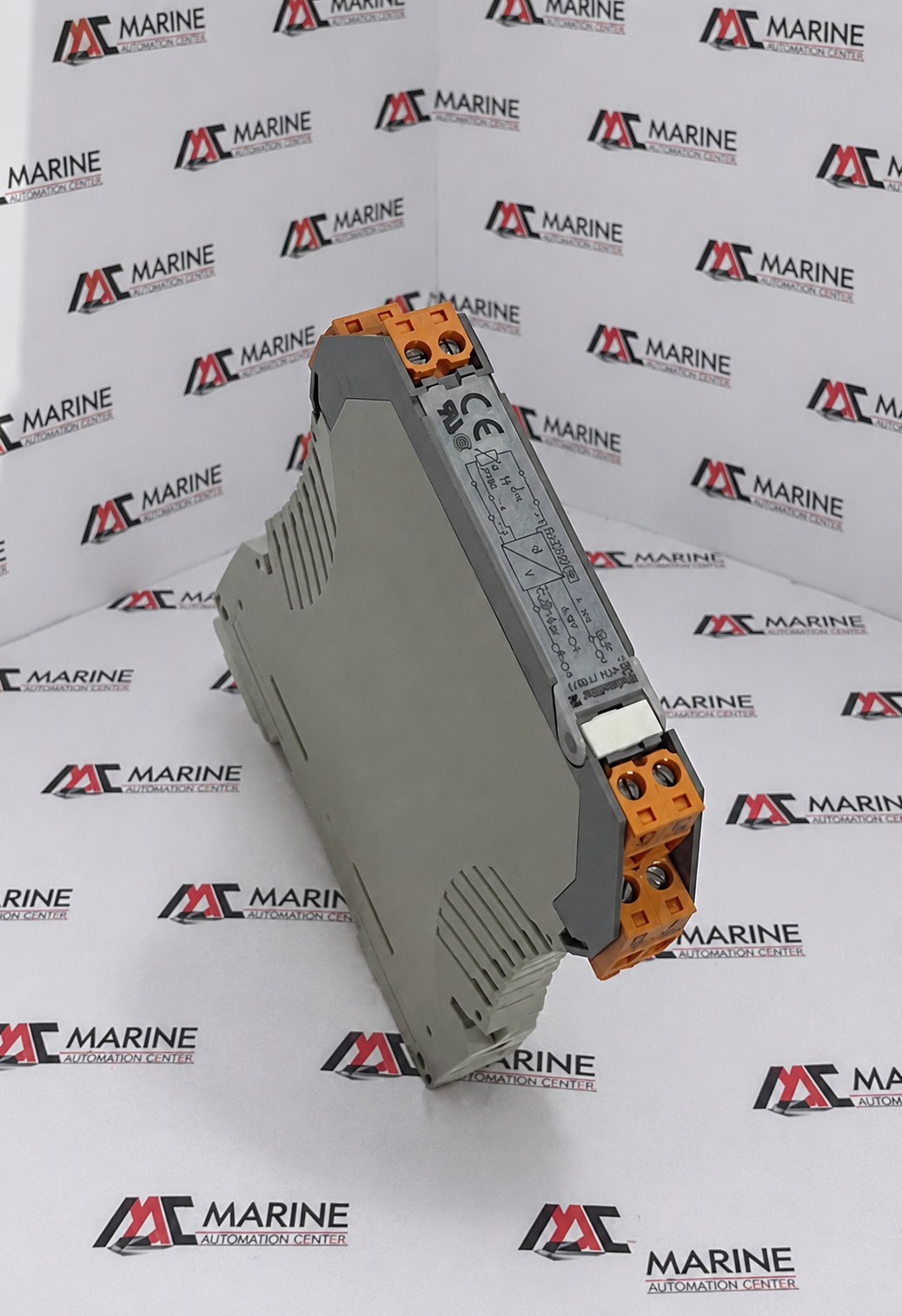

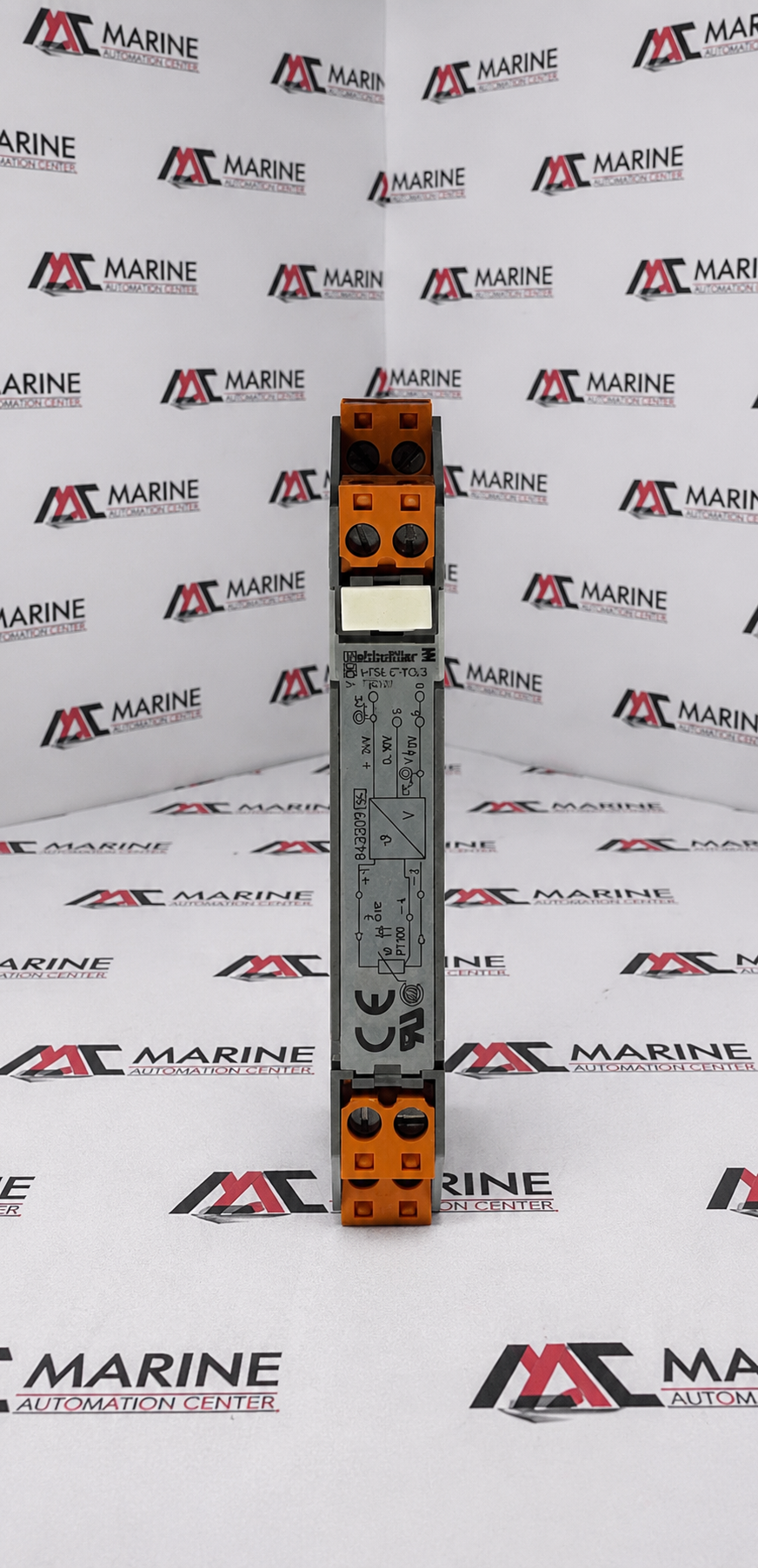

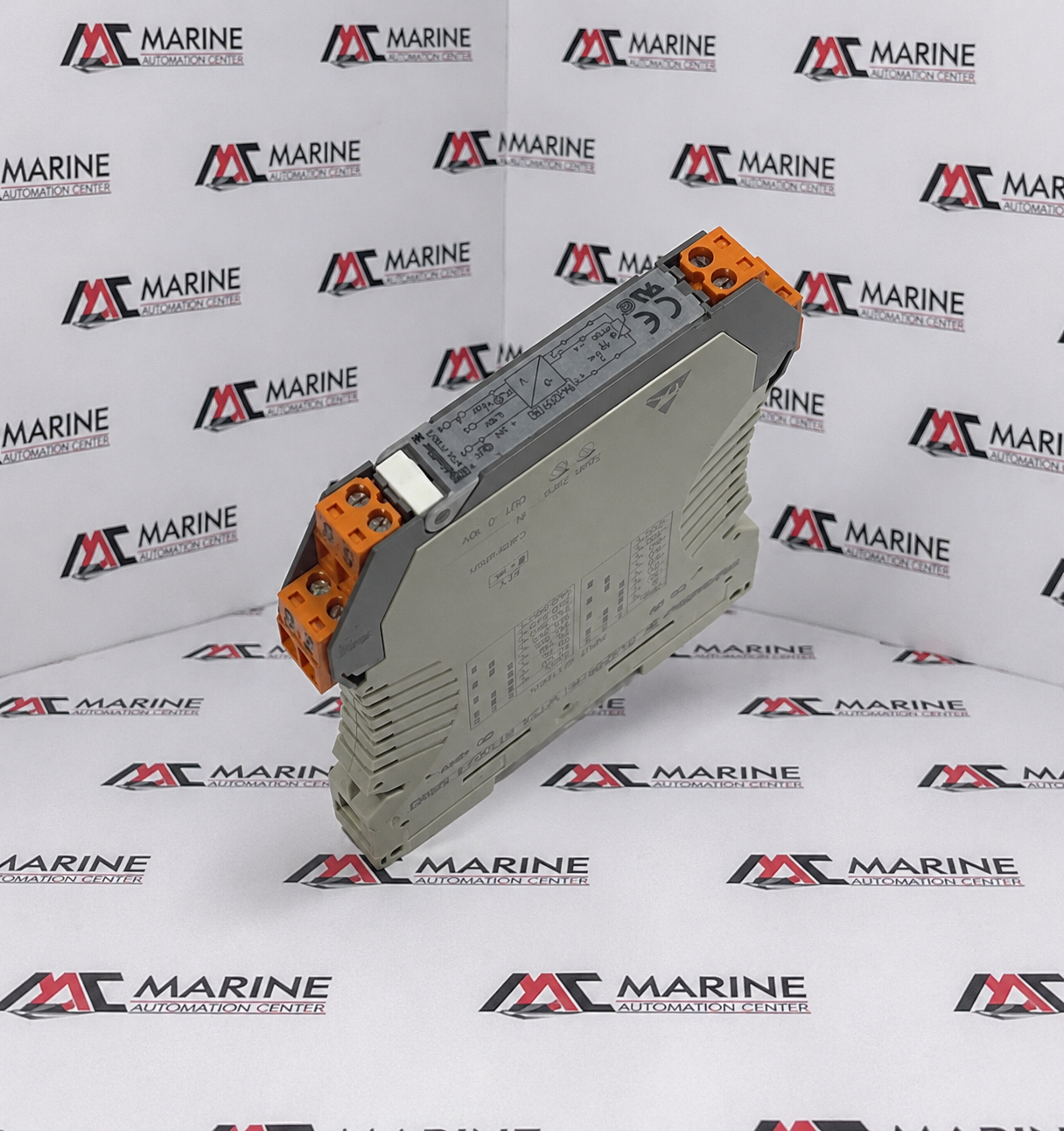

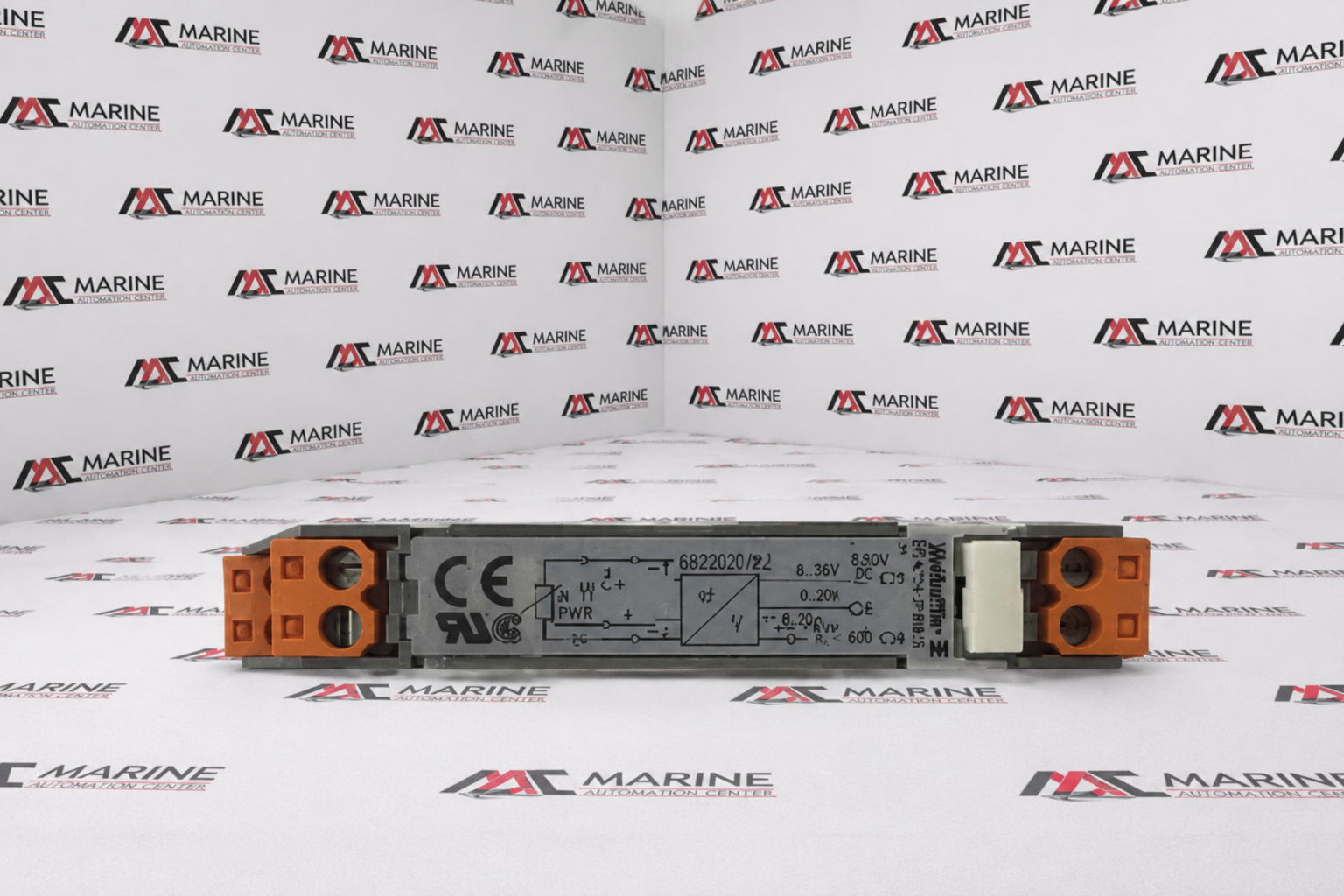

Weidmüller RTD Temperature Transmitter WTS4 PT100/3 Select V
**Short Description:** The **Weidmüller WTS4 PT100/3 Select V** is a **PT100 temperature signal converter (RTD temperature transmitter)** designed to convert PT100 resistance temperature sensor signals into a stable **0–10 V analog output**. It provides accurate temperature measurement and signal conditioning for industrial automation, process control, HVAC, and monitoring applications, featuring selectable input ranges and DIN-rail mounting for easy control panel installation.
BRAND
Weidmüller
TYPE
PT100 Temperature Signal Converter
PART NO.
843209
MODEL
WTS4 PT100/3 Select V
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Weidmüller |
| TYPE | PT100 Temperature Signal Converter |
| PART NO. | 843209 |
| MODEL | WTS4 PT100/3 Select V |
| Voltage Rating | 24 V DC ±20% Supply |
| Application | Converts a 3-wire PT100 RTD temperature sensor input into a configurable 0–10 V analog output for PLCs, DCS, industrial automation, HVAC, marine control, and process instrumentation. |
| IEC | DIN EN 50178, EN 55011, EN 61000-6, IEC/EN compliant industrial signal conditioner. |
| Input Signal | PT100 RTD, 3-wire |
| Output Signal | 0–10 V DC |
| Supply Voltage | 24 V DC ±20% |
| Current Consumption | <38 mA |
| Configuration | DIP Switches and Zero/Span Potentiometers |
| Operating Temperature | 0°C to +55°C |
| Made In | Germany |
| REF NO | 412 |
