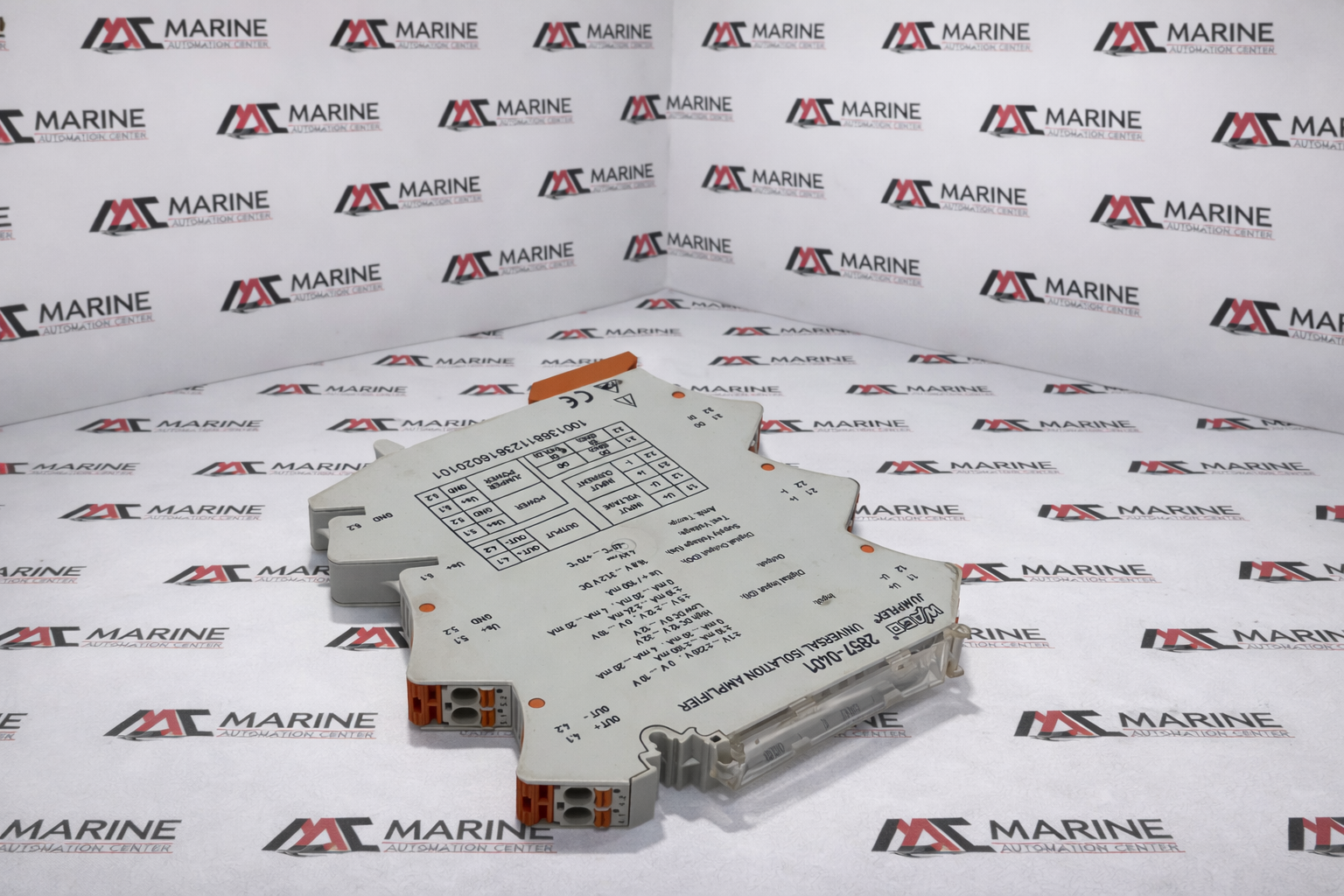

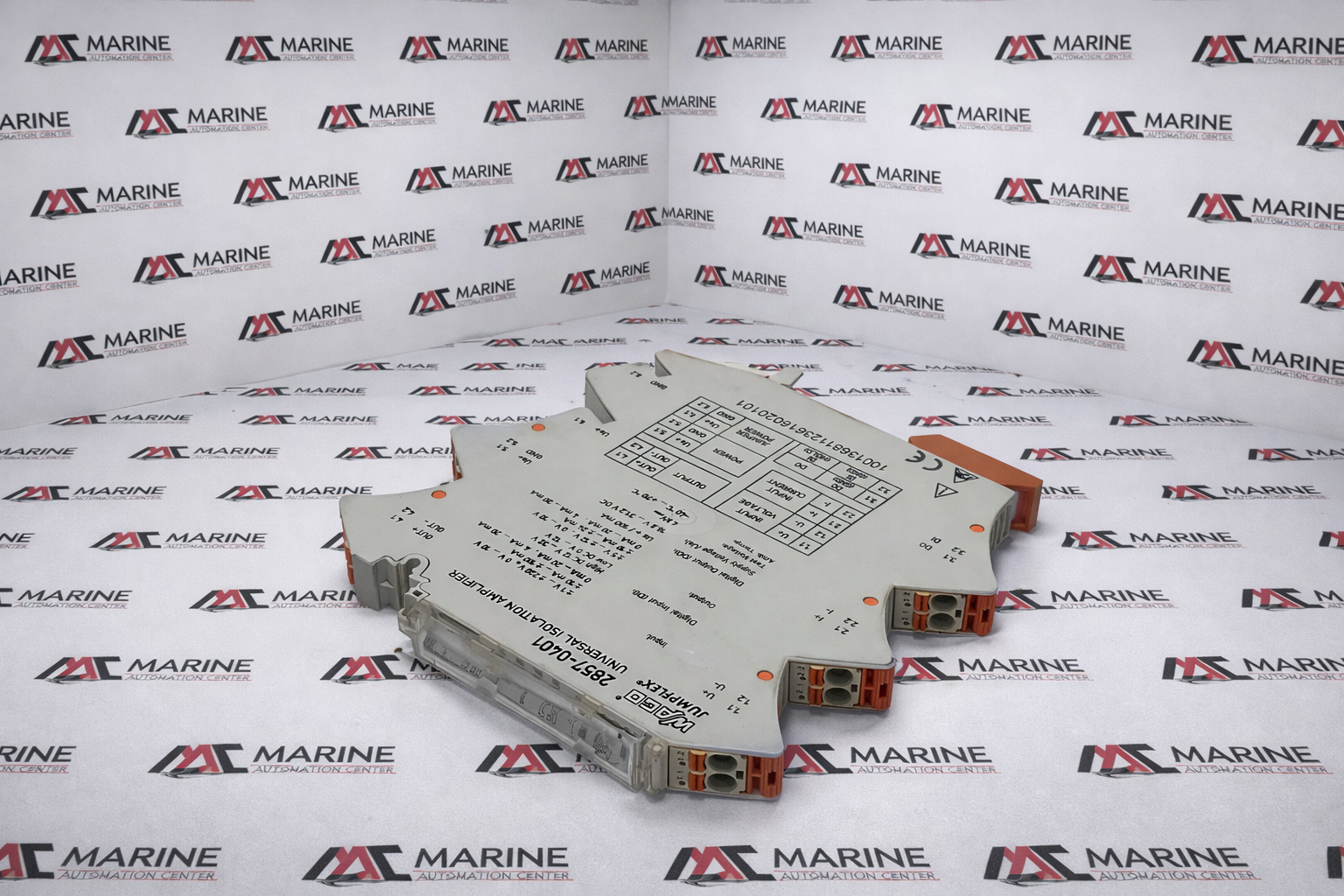

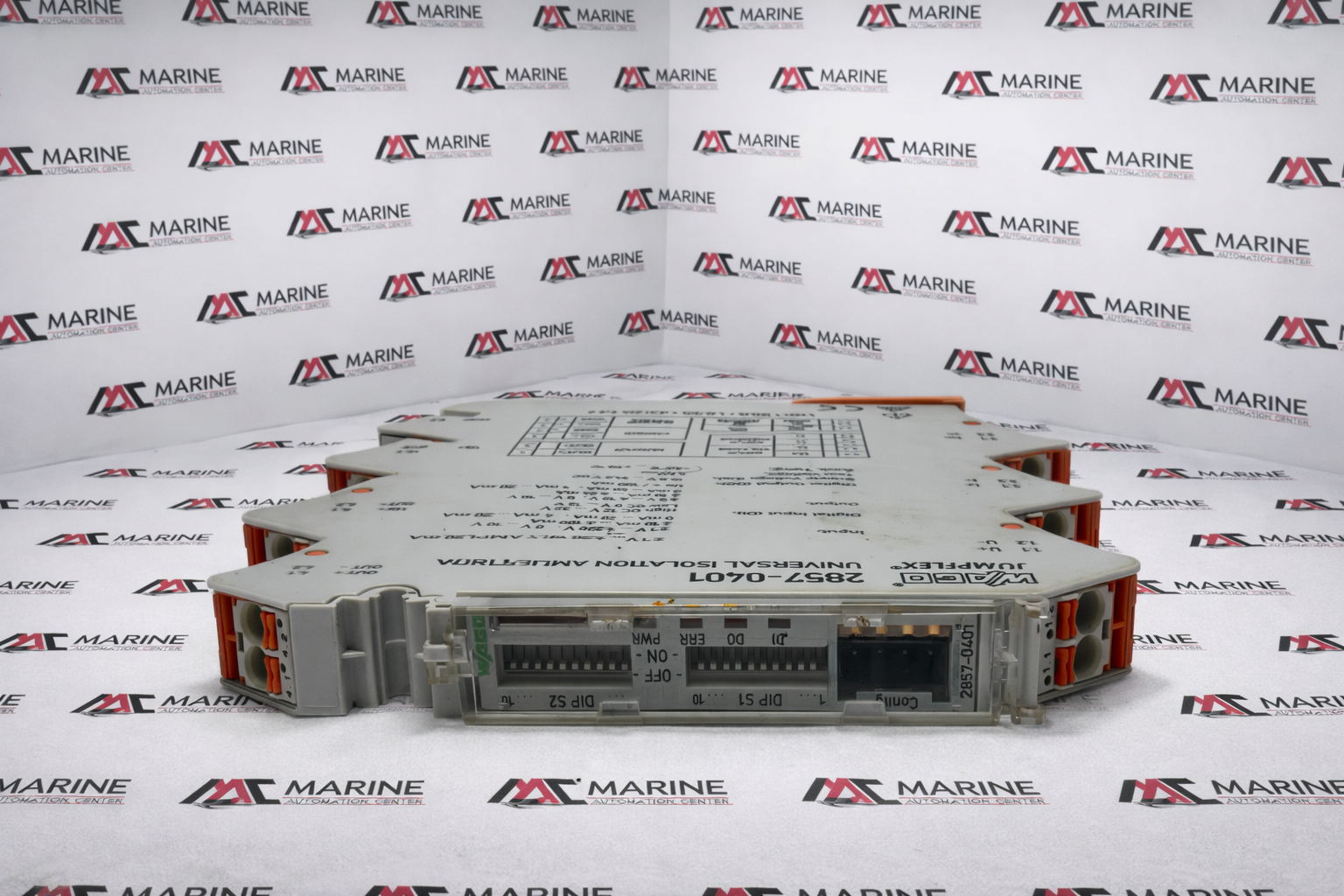

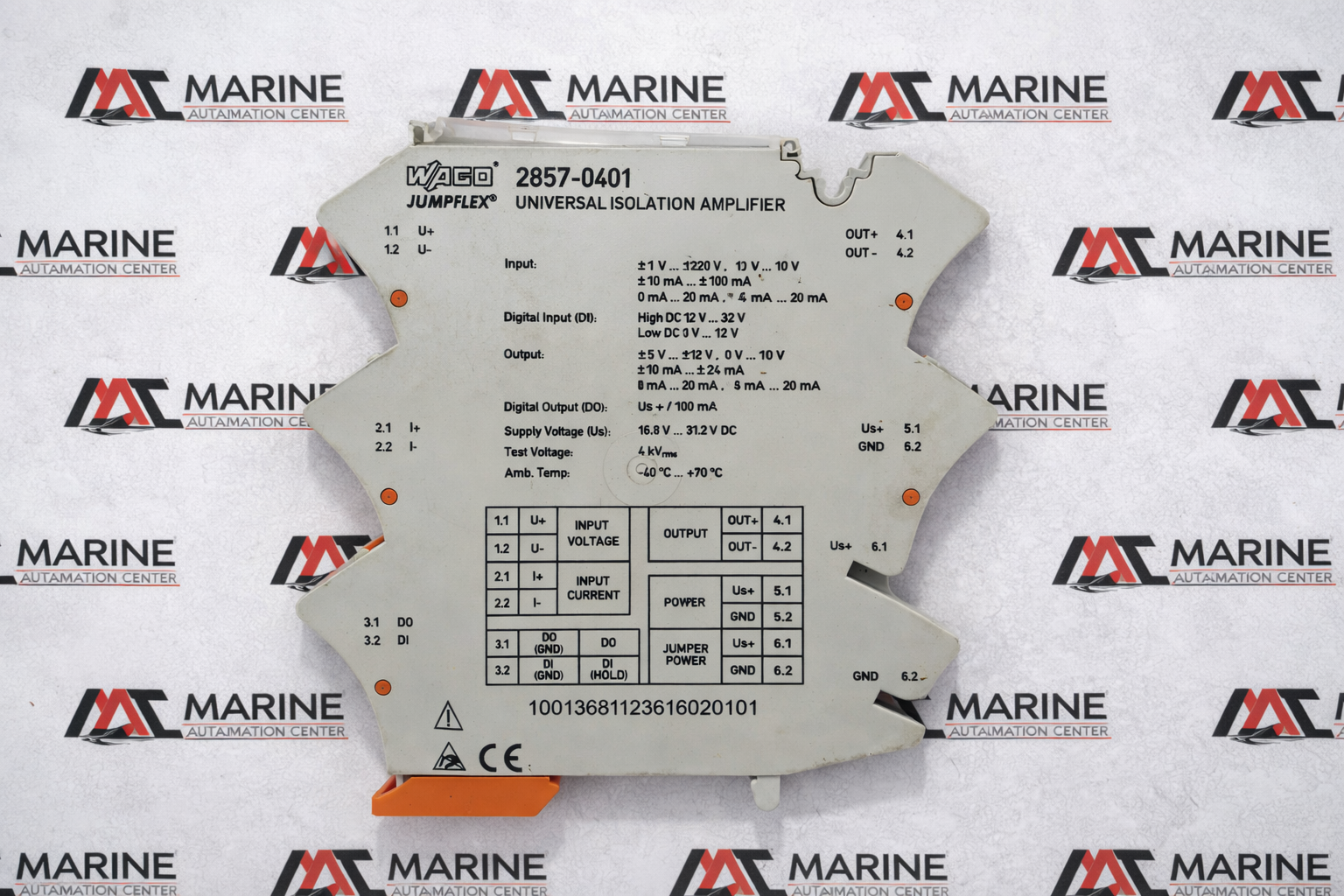

Wago 2857-0401 Universal Isoaltion Amplifier 4kvrms
Wago 2857-0401 JUMPFLEX universal isolation amplifier with 4kVrms test voltage. Supports wide input/output ranges, digital I/O, and 16.8–31.2V DC supply. Reliable performance in -40°C to +70°C environments.
BRAND
Wago
TYPE
Universal Isoaltion Amplifier
PART NO.
Wago 2857-0401 Universal Isoaltion Amplifier 4kvrms
MODEL
2857-0401
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Wago |
| TYPE | Universal Isoaltion Amplifier |
| PART NO. | Wago 2857-0401 Universal Isoaltion Amplifier 4kvrms |
| MODEL | 2857-0401 |
| Input | ±1v...±220v, 0v...10v |
| : | ±10 ma...±100ma |
| : | 0 mA...20mA, 4mA...20mA |
| Digital Input(DI) | High DC 12v....32v |
| : | Low dc 0v...12v |
| Output | ±5v...±12v, 0v...10v |
| : | ±10ma...±24ma |
| : | 0mA...20mA, 4mA...20mA |
| Digital Output | Us+/ 100mA |
| Supply Voltage | 16.8v...31.2v dc |
| Test voltage | 4kvrms |
| Amb.Temp | -40c...+70c |
| : | 10013681123616020101 |
| Reference No | 799 |
