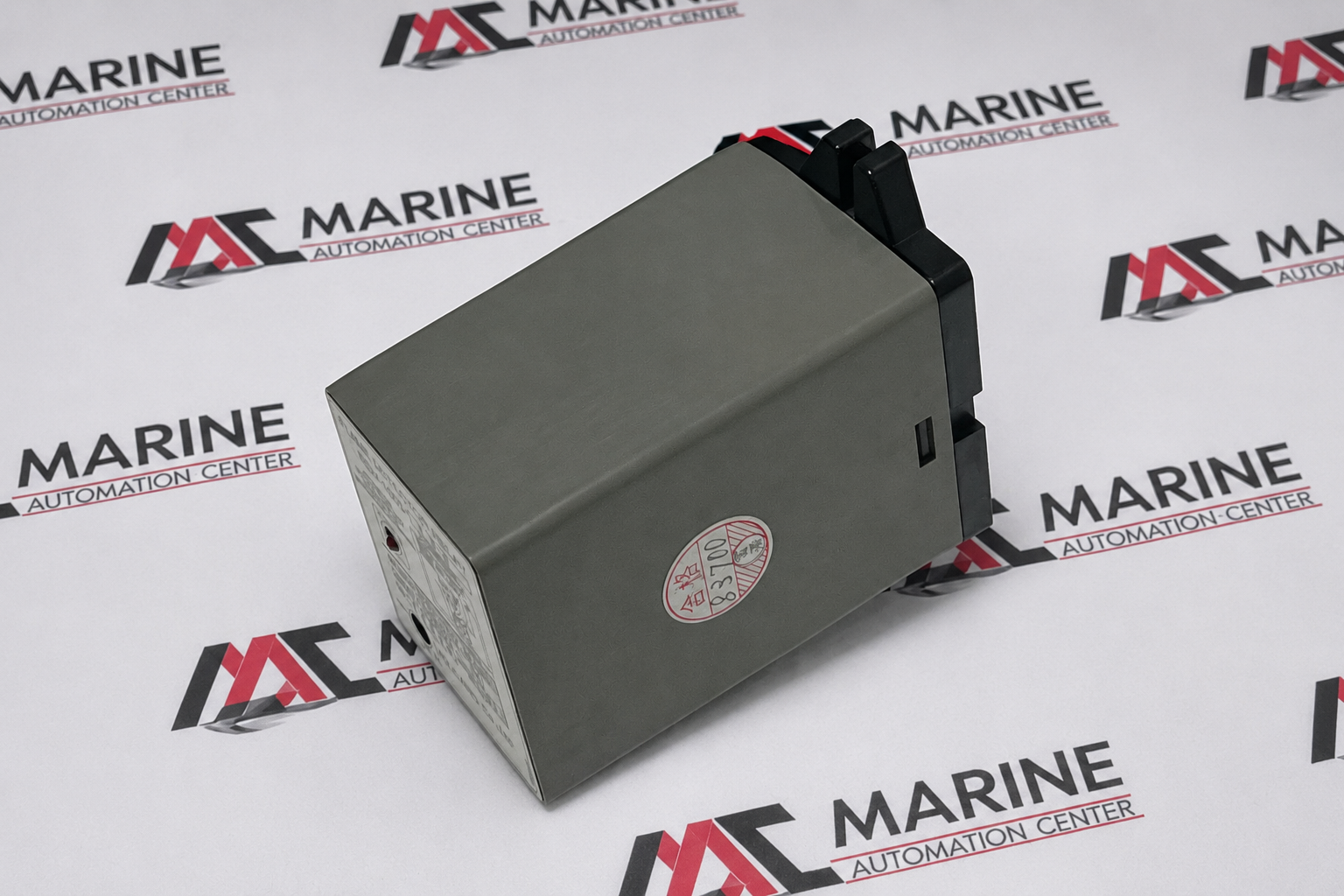

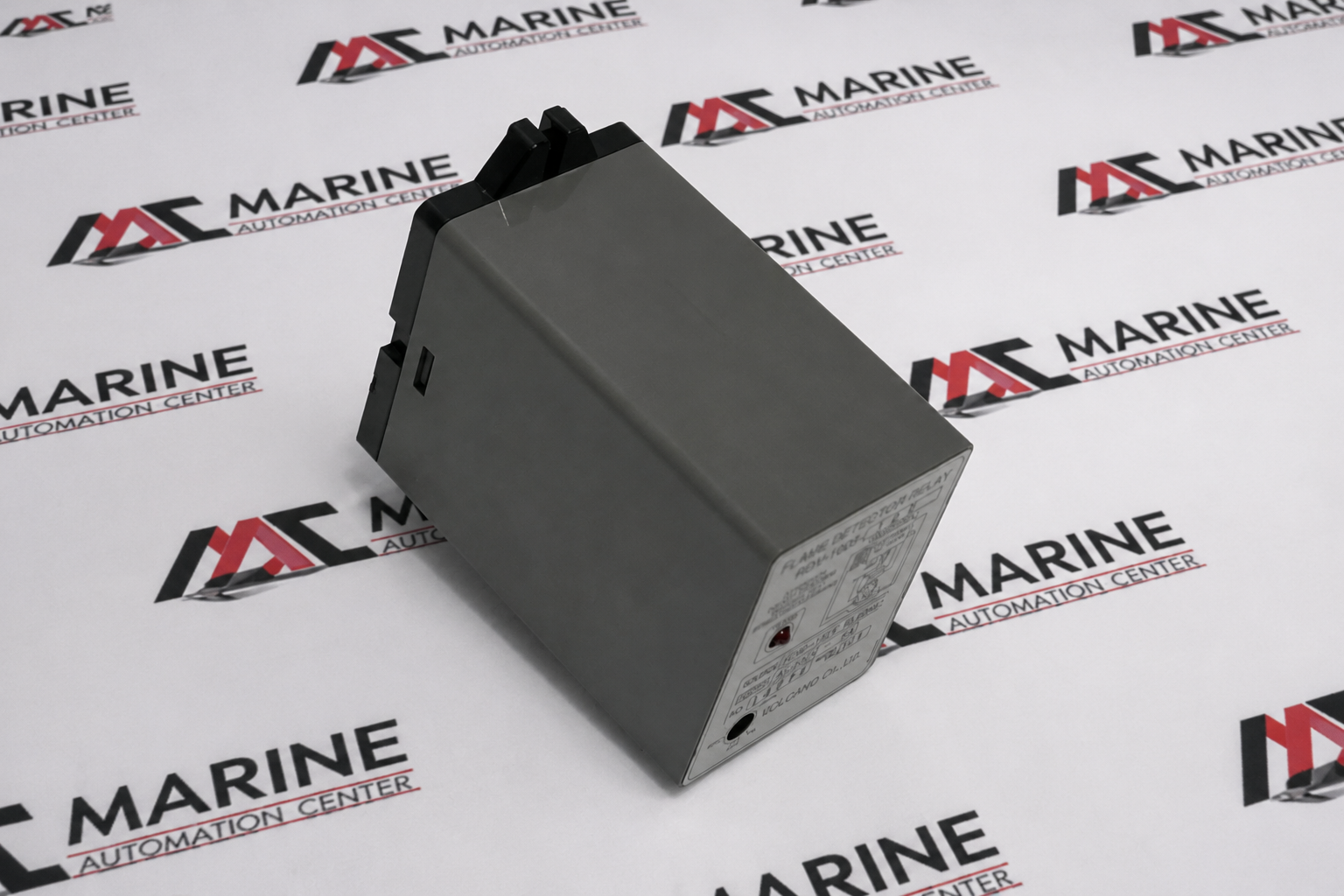

Volcano RDV-1005-200 Flame Detector Relay
The Volcano RDV-1005-200 Flame Detector Relay is an industrial flame supervision relay designed to monitor flame signals and provide reliable burner safety in boiler and combustion systems. Operating on a 200 V supply, it detects flame failure and initiates protective shutdown to prevent unsafe fuel accumulation. It is widely used in marine boilers, industrial furnaces, and combustion control systems for dependable flame monitoring and safe burner operation.
BRAND
Volcano Co., Ltd.
TYPE
Flame Detector Relay
PART NO.
RDV-1005-200
MODEL
RDV-1005-200 (200 V Version)
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Volcano Co., Ltd. |
| TYPE | Flame Detector Relay |
| PART NO. | RDV-1005-200 |
| MODEL | RDV-1005-200 (200 V Version) |
| Voltage Rating | AC 180–264 V, 50/60 Hz (200 V nominal version) |
| Application | Flame supervision relay for Volcano marine boiler and burner management systems. Monitors the flame signal from the Flame Eye detector and provides burner safety interlock and flame-failure shutdown. |
| Made In | Japan |
| REF NO. | 1190 |
