VOLCANO Flame Detector Relay
VOLCANO FDR-2TBJ Flame Detector Relay is an industrial flame detector relay designed to monitor flame sensor signals and provide reliable flame detection for burner safety and combustion control systems. It ensures safe operation by delivering dependable relay output for flame supervision in industrial heating and boiler applications
BRAND
VOLCANO
TYPE
Flame Detector Relay
PART NO.

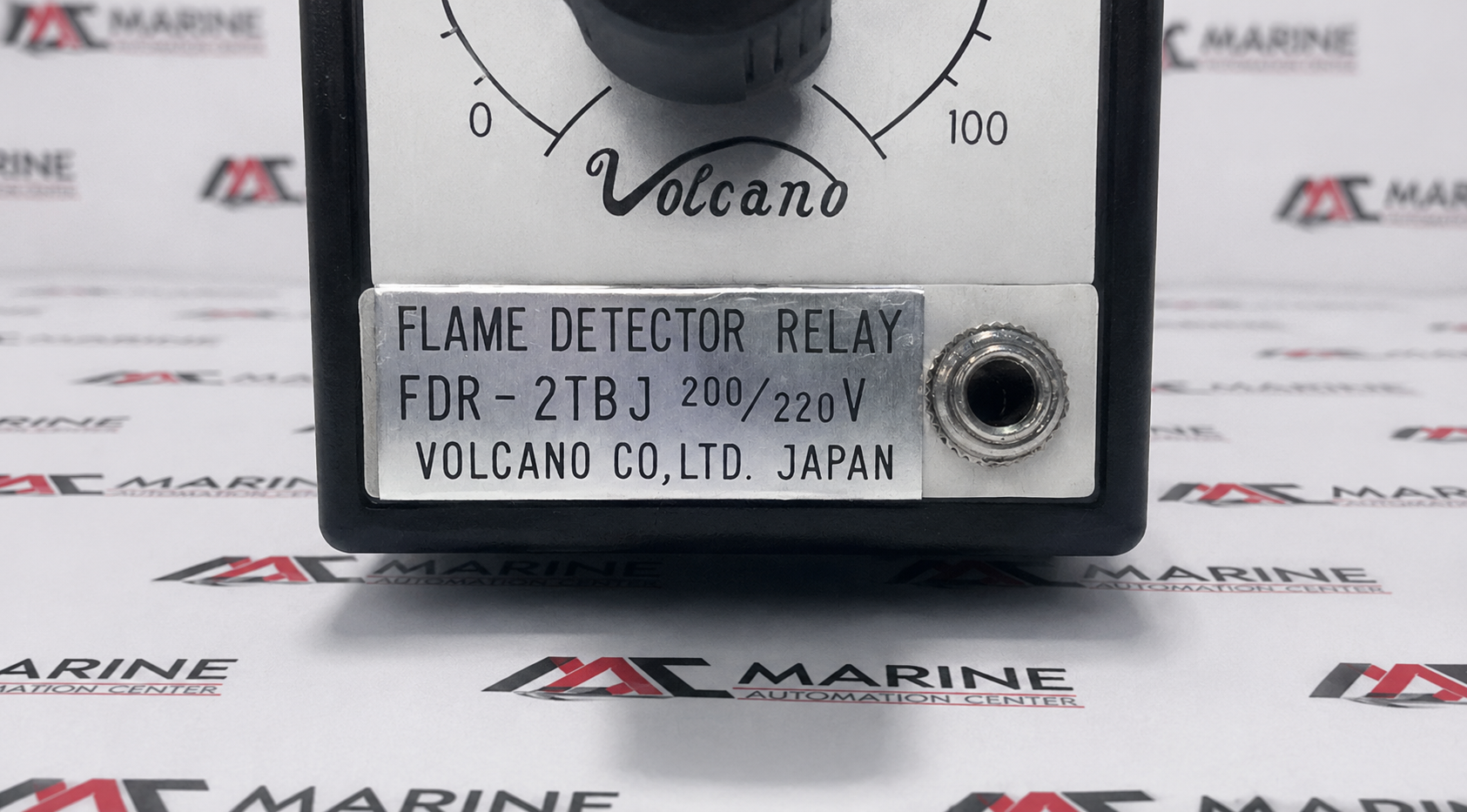

VOLCANO Flame Detector Relay FDR-2TBJ
MODEL
FDR-2TBJ
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | VOLCANO |
| TYPE | Flame Detector Relay |
| PART NO. | VOLCANO Flame Detector Relay FDR-2TBJ |
| MODEL | FDR-2TBJ |
| Associated Unit | MFC-BK-J |
| Rated Voltage | 200/220 V AC |
| Frequency | 50/60 Hz |

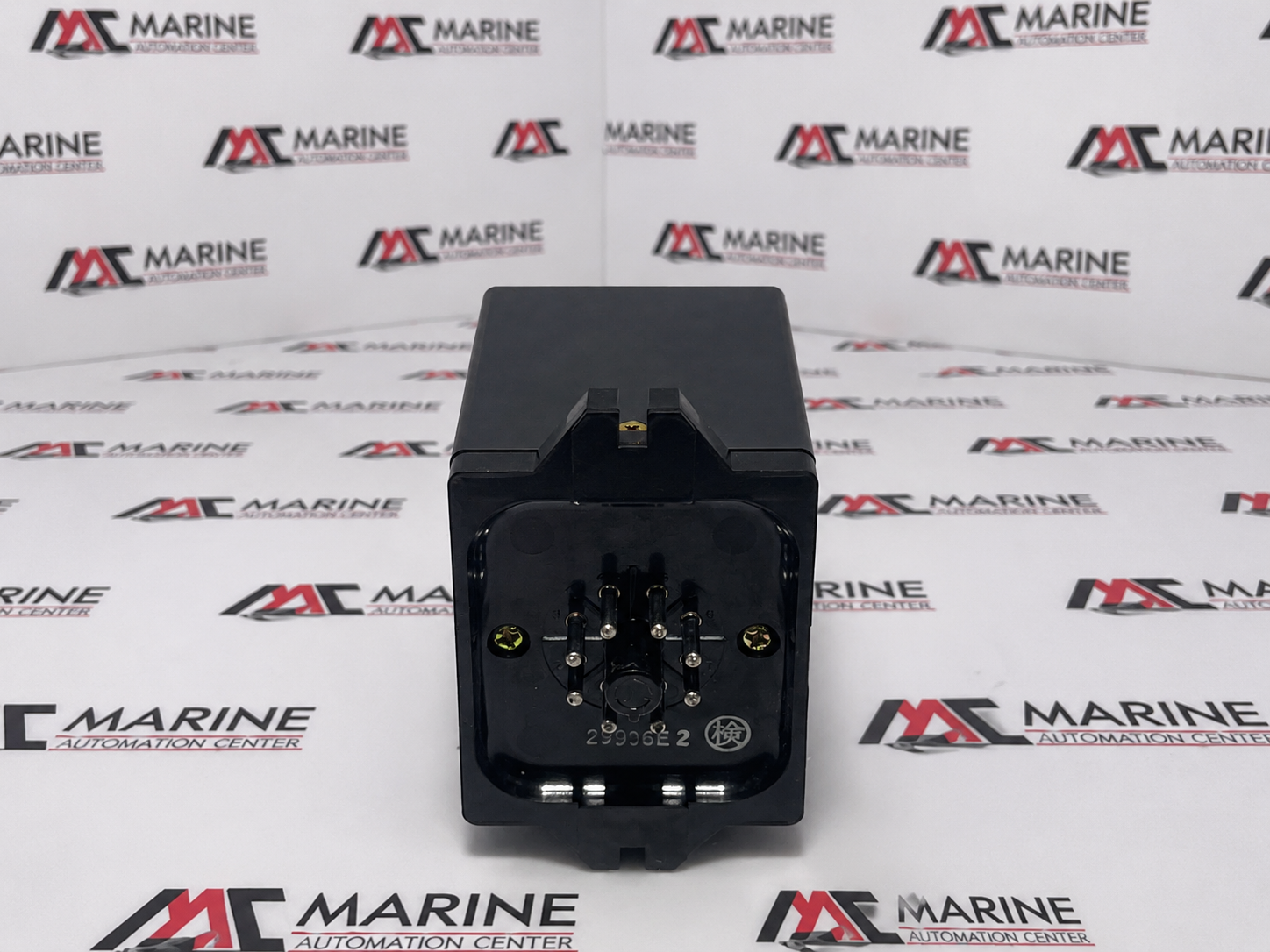

| Socket Type | 8-Pin Octal Socket (8PFA) |
| Contact Rating | 250 V AC, 7.5 A |
| Power Consumption | 10 VA |
| Maximum Ambient Temperature | 55°C |

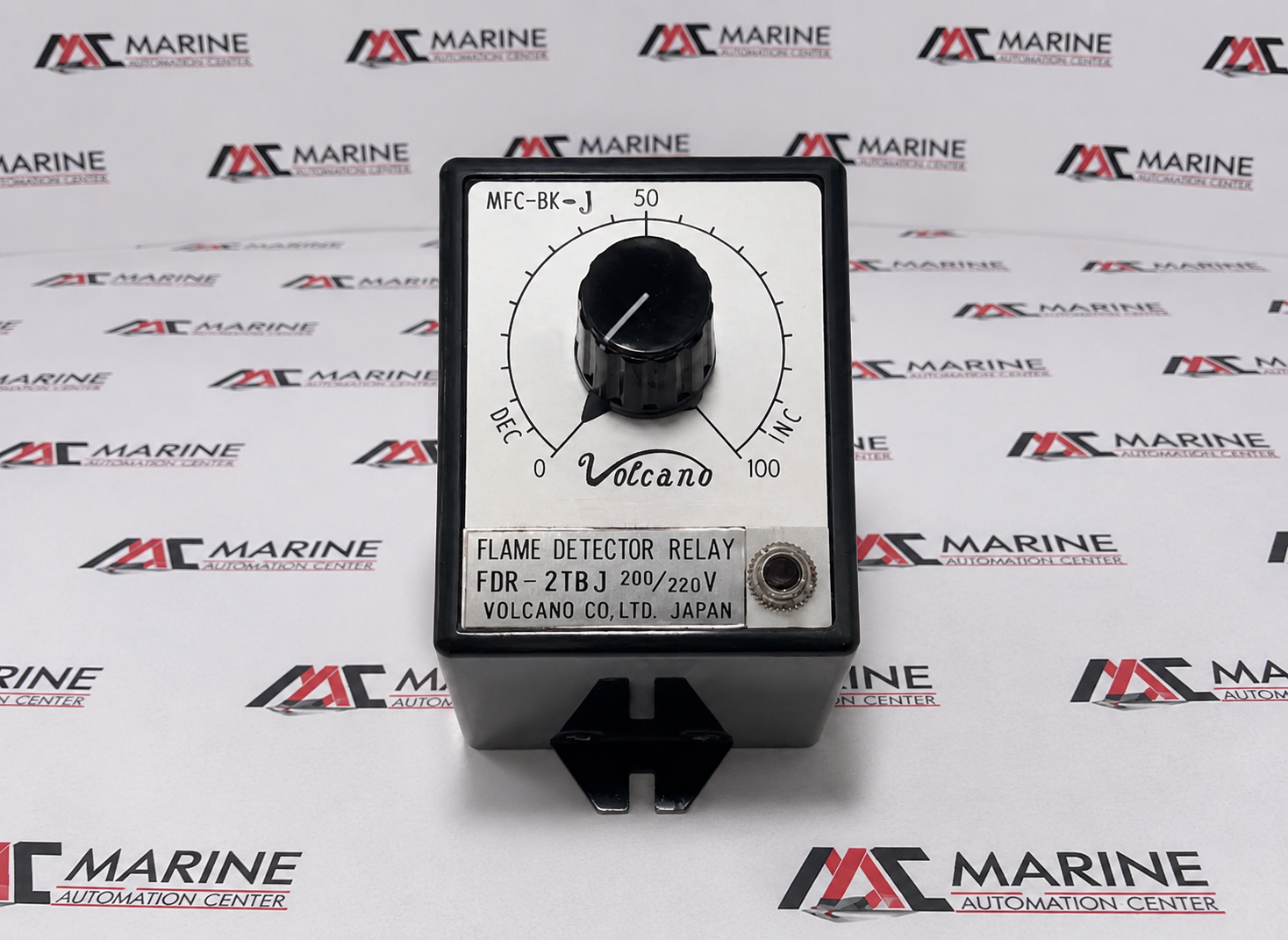

| Adjustment Range | 0 - 100 (DEC/INC Adjustable Dial) |

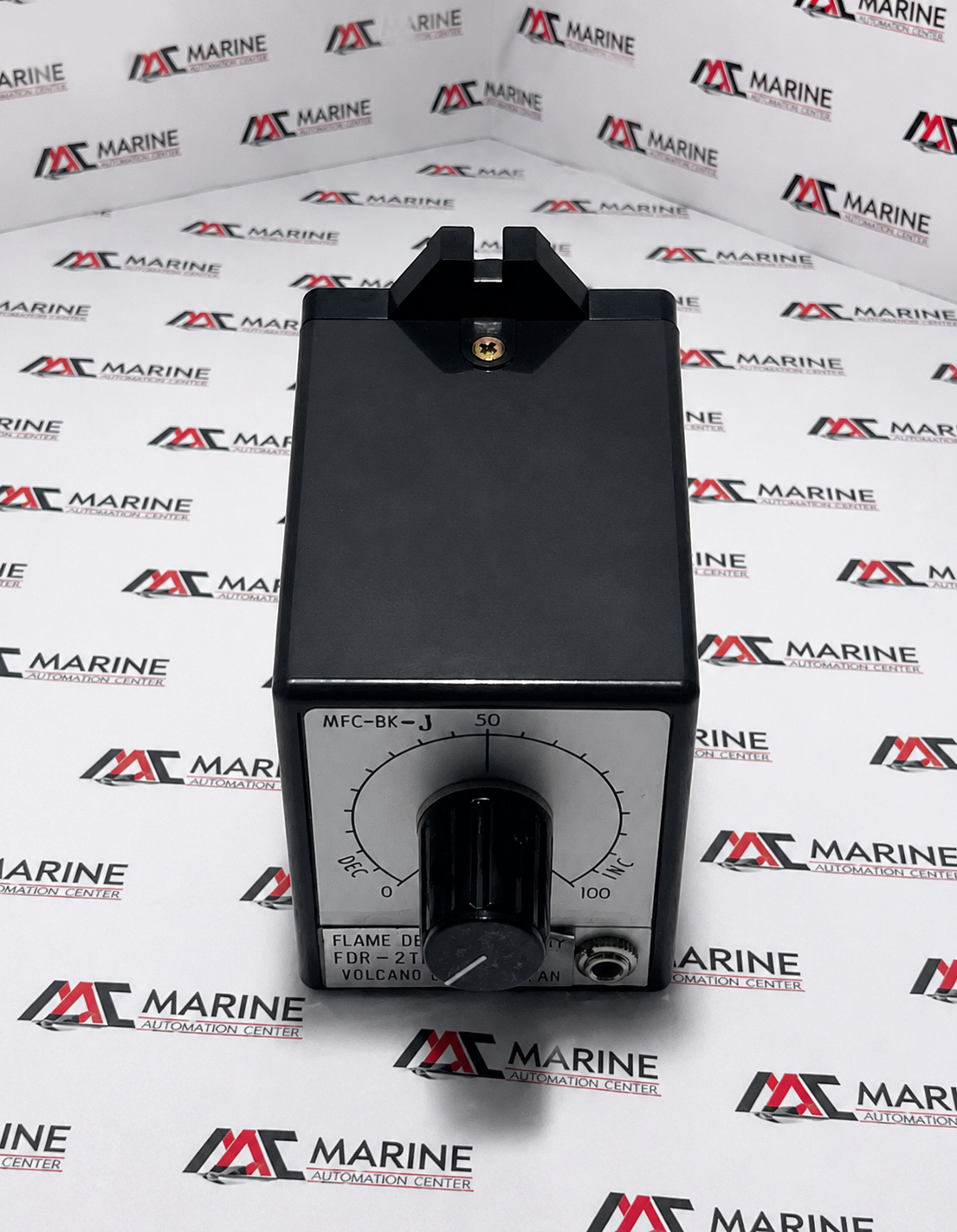

| Front Dial Type | Manual Sensitivity Adjustment Knob |
| Mounting Type | Plug-in / Socket Mount |
| Application | Flame supervision and burner flame monitoring in marine boilers, auxiliary boilers, combustion systems, and burner management systems |
| Compatible Equipment | Auxiliary Boiler MAC-35B (Mitsubishi) |

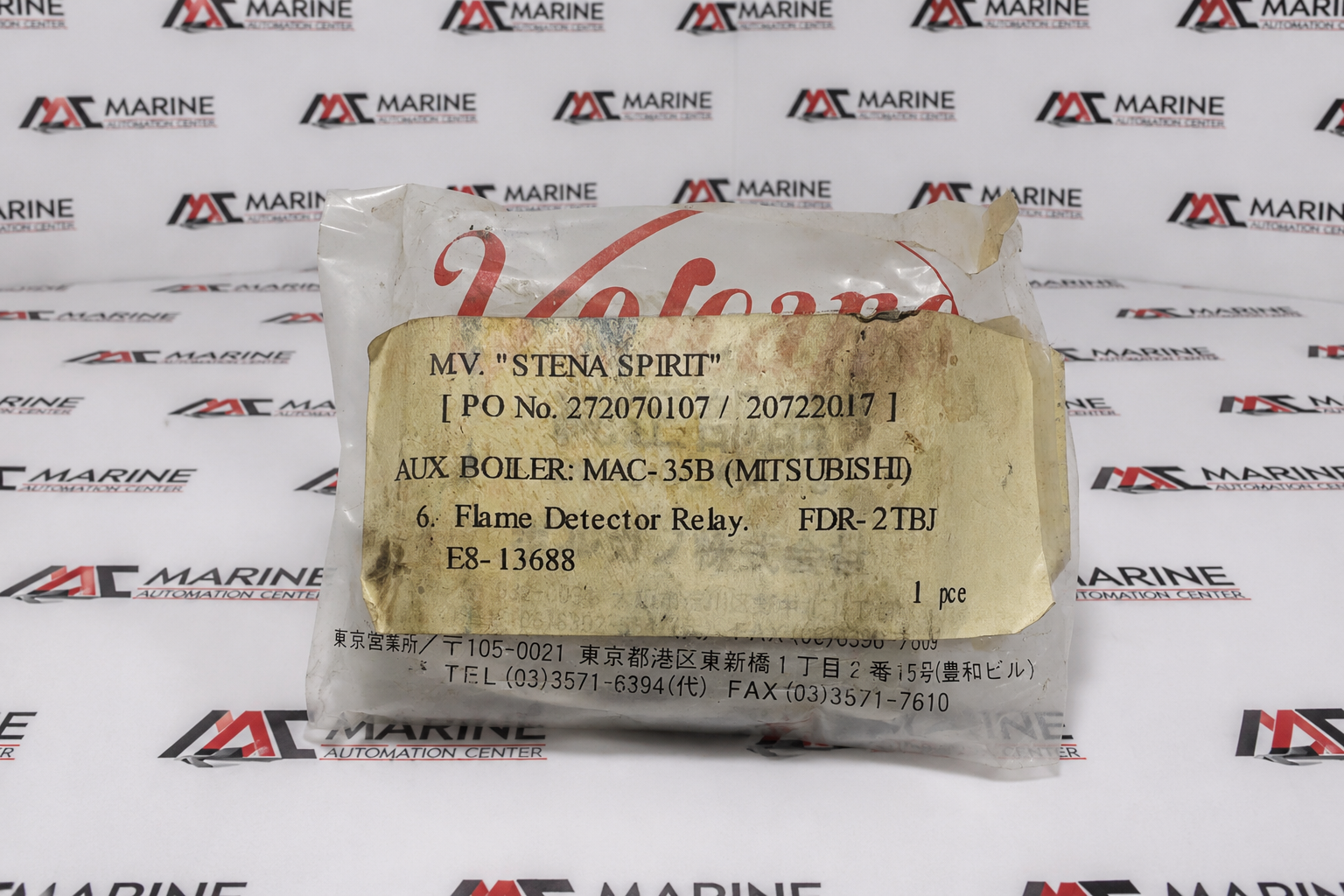

| Vessel Name | MV "STENA SPIRIT" |
| Equipment Tag | E8-13688 |

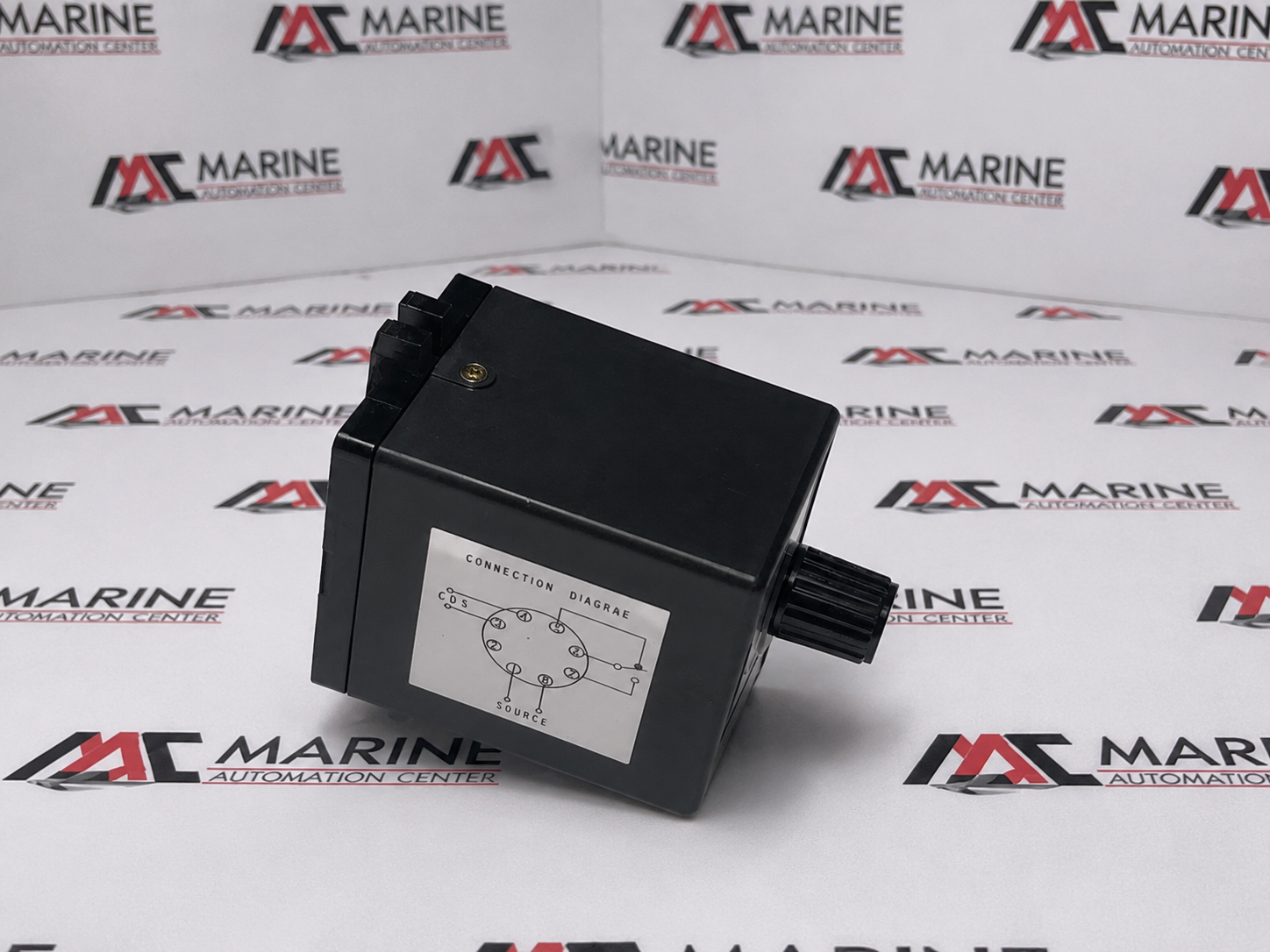

| Connection | Source and Contact terminals as per side connection diagram |
| Indicator Scale | DEC 0-50-100 INC |
| Made In | Japan |
| REF NO | 1264 |
