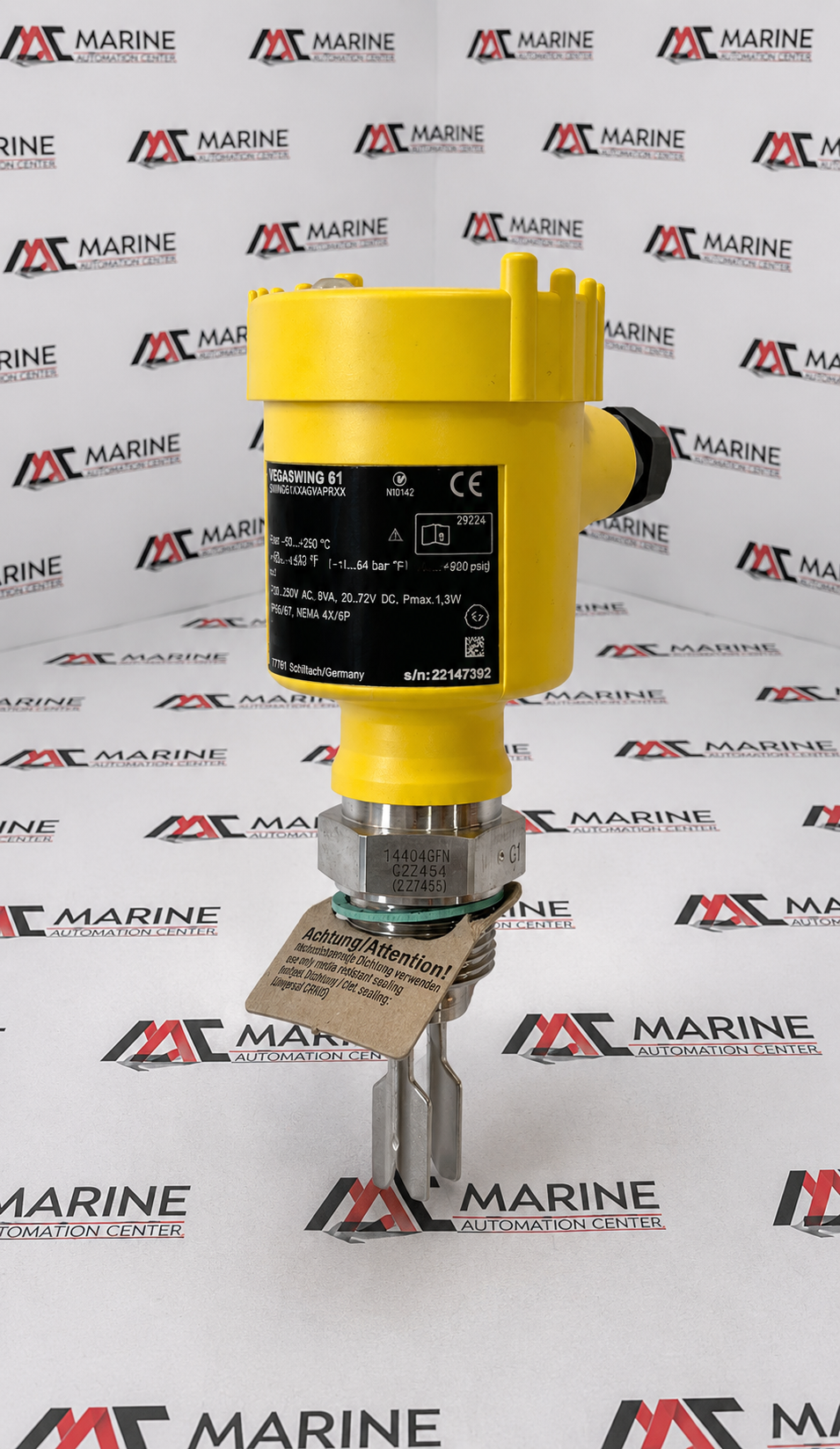

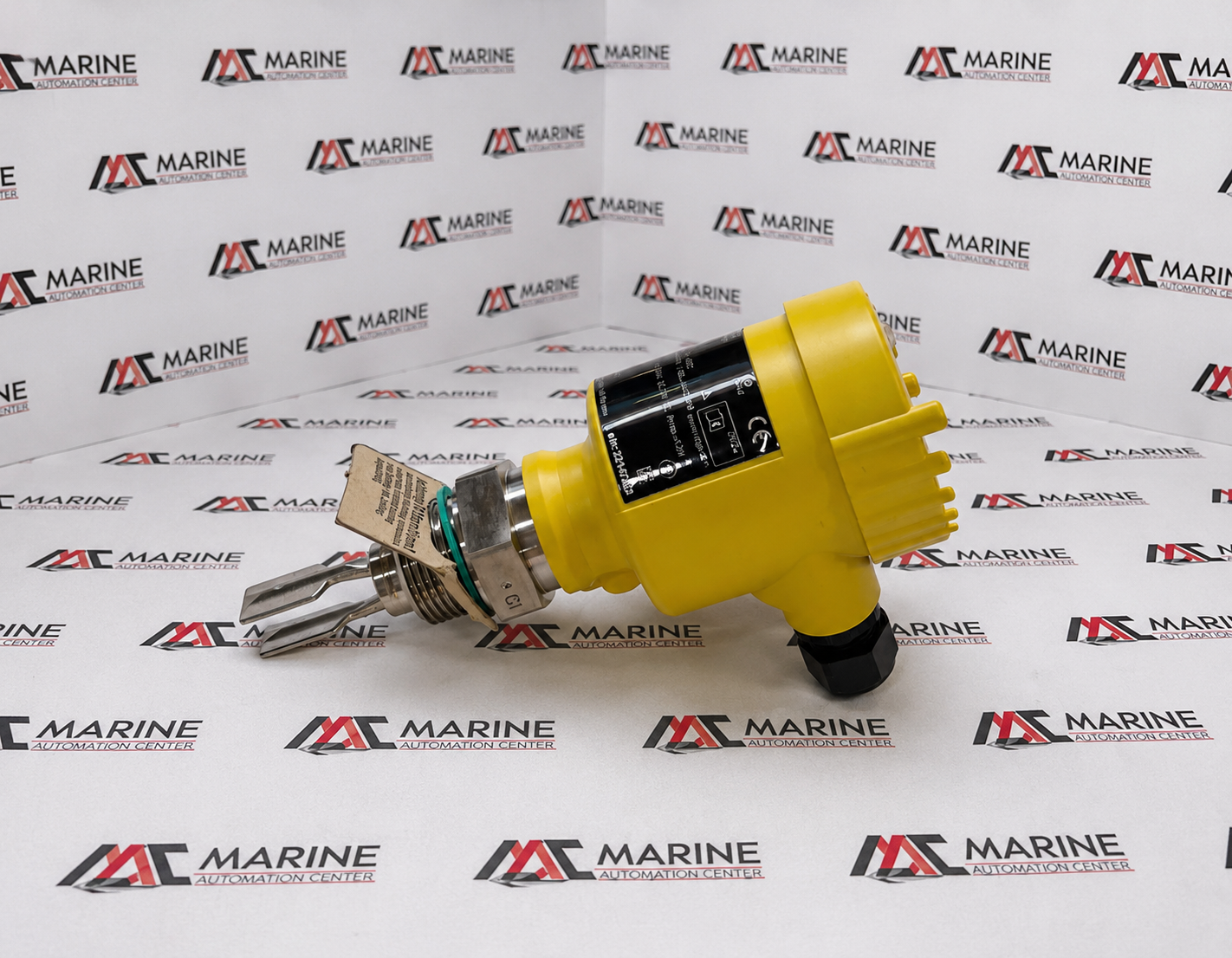

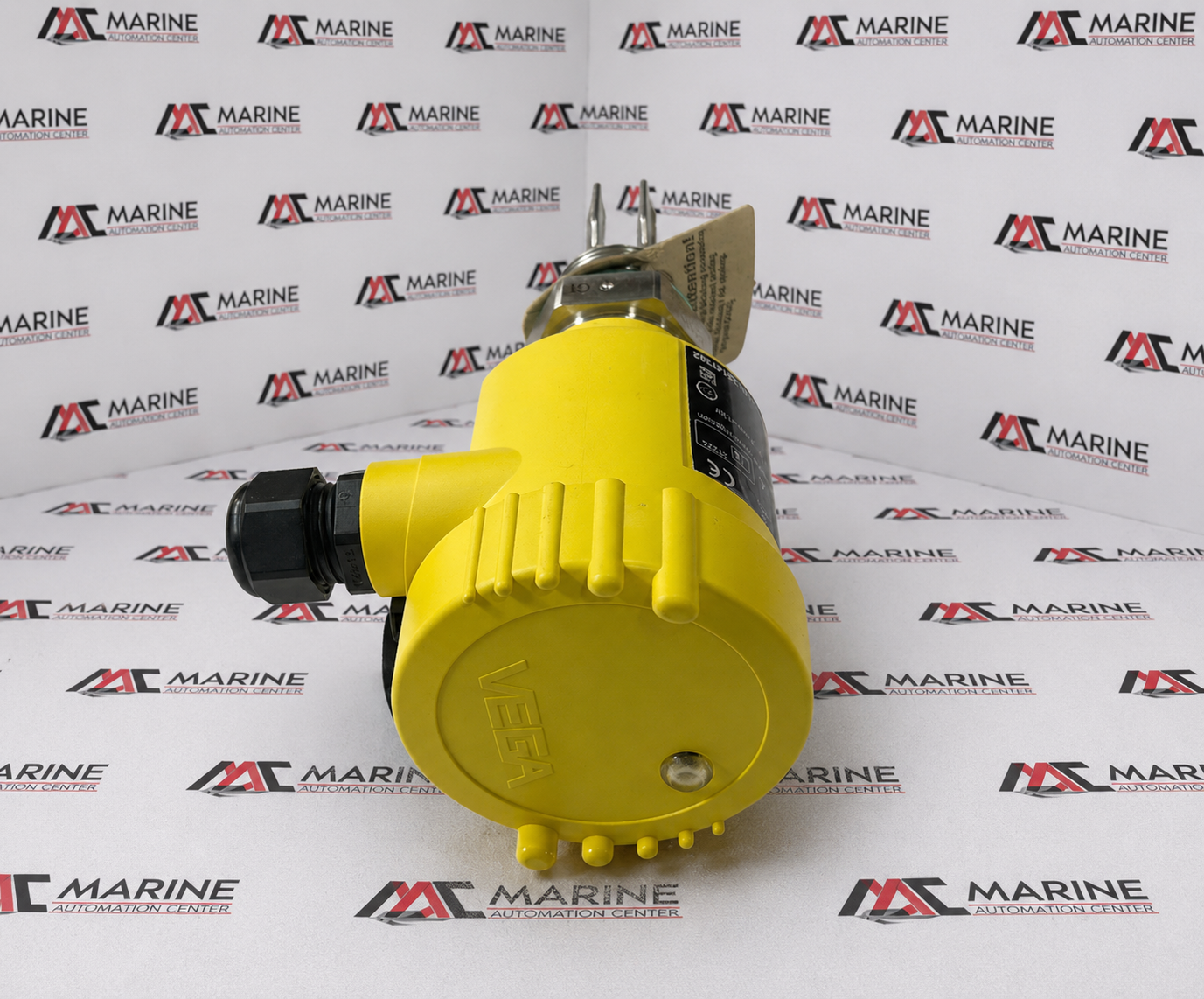

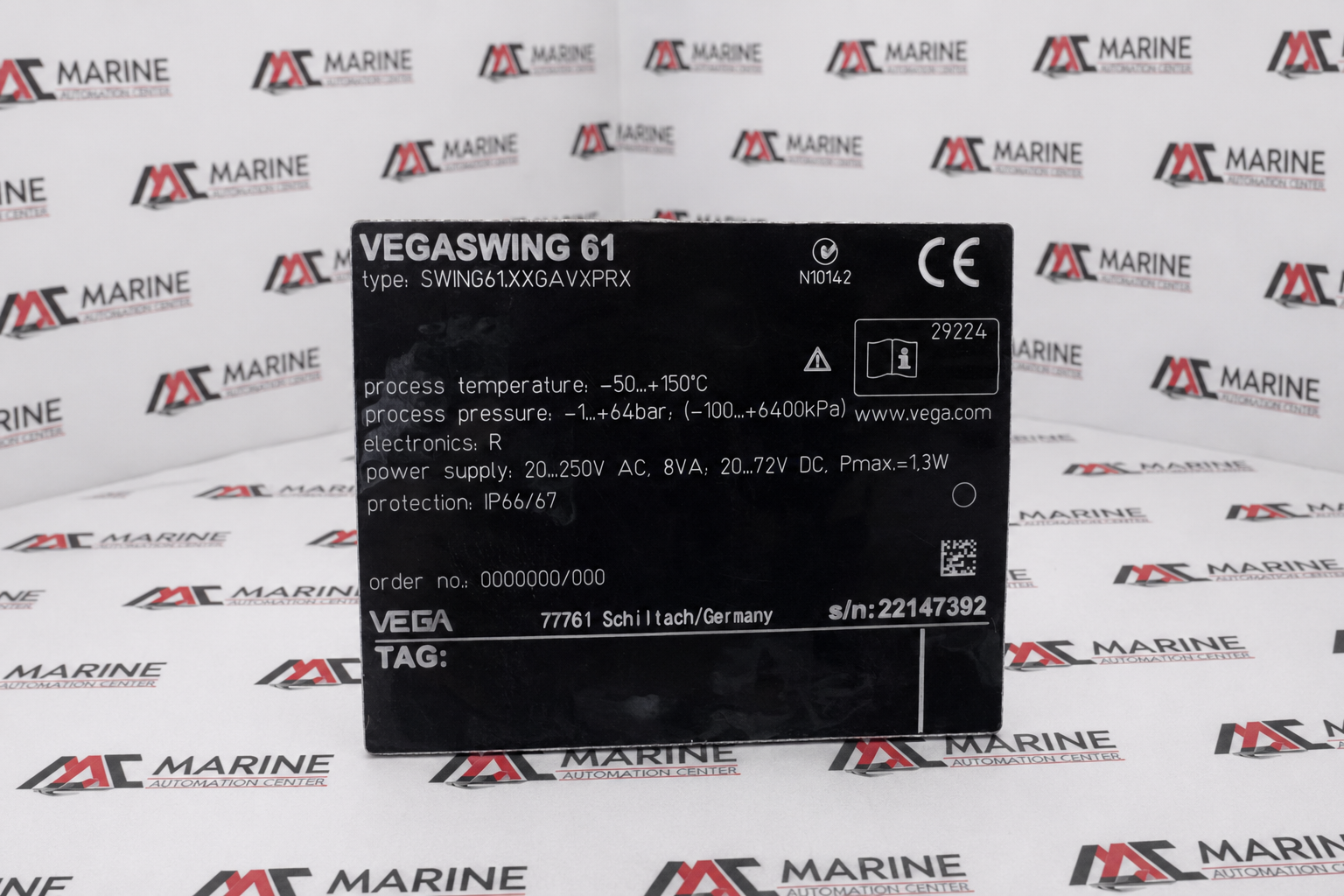

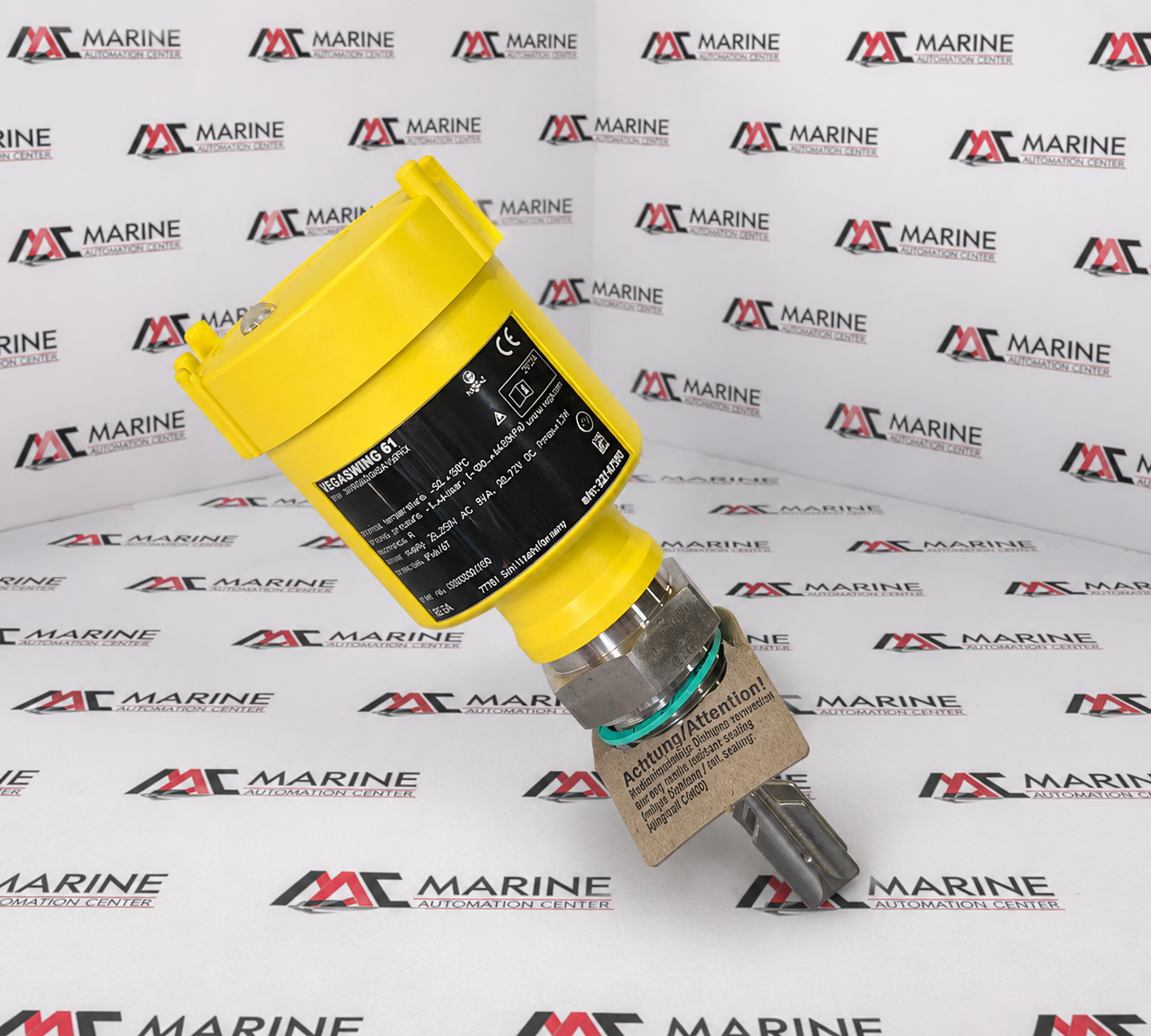

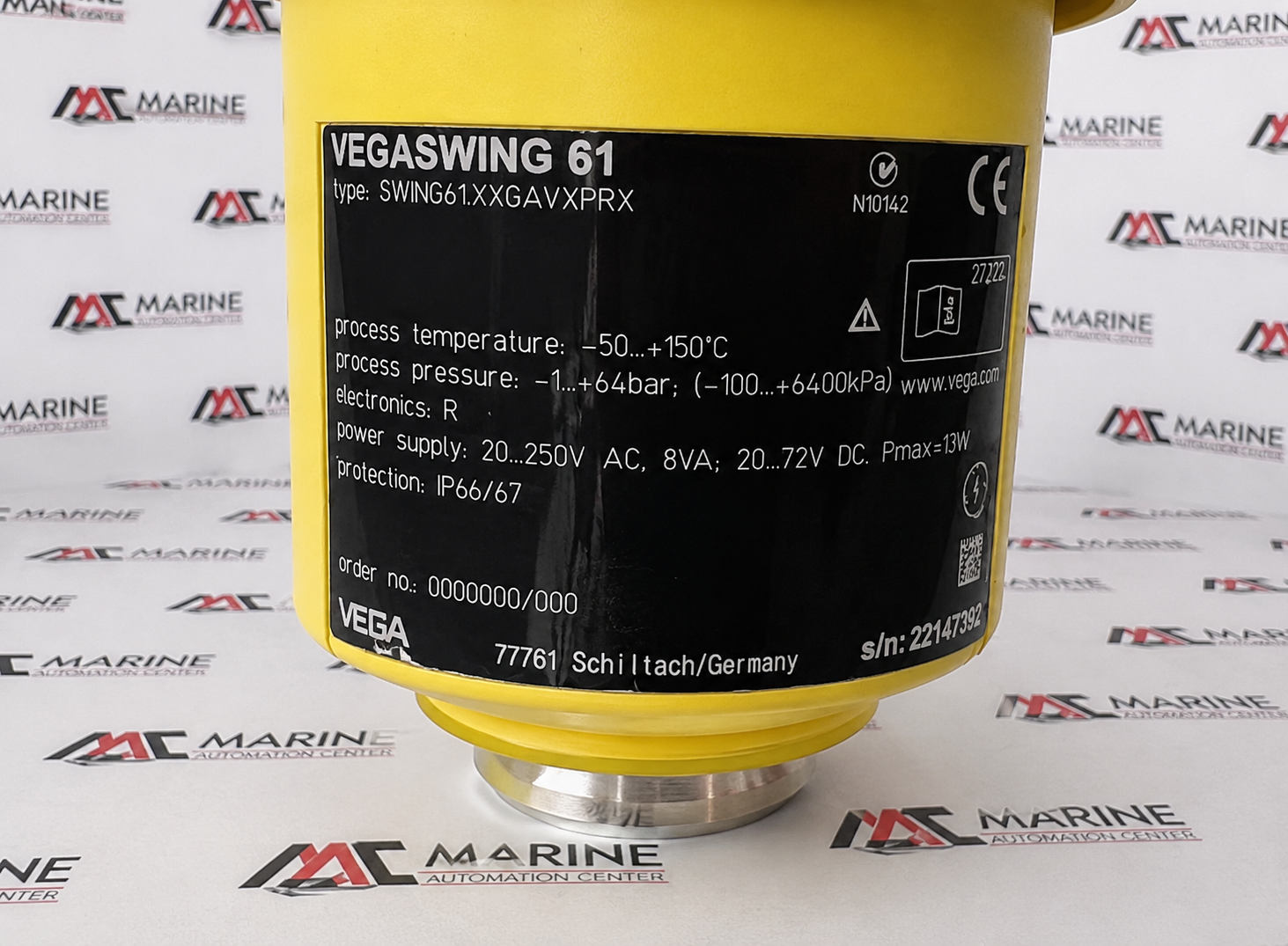

VEGA VEGASWING 61 Vibrating Level Switch
VEGA VEGASWING 61 is a vibrating fork level switch designed for reliable point level detection of liquids in tanks, vessels, and pipelines. It features robust vibration technology for accurate switching, requires no calibration, and provides dependable operation across a wide range of industrial process applications
BRAND
VEGA
TYPE
Vibrating Level Switch (Electronics Insert Module)
PART NO.
SWING61.XXGAVXPRX
MODEL
VEGASWING 61
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | VEGA |
| TYPE | Vibrating Level Switch (Electronics Insert Module) |
| PART NO. | SWING61.XXGAVXPRX |
| MODEL | VEGASWING 61 |
| Voltage Rating | Universal Power Supply: 20...250 V AC (50/60 Hz, 8 VA) | 20...72 V DC (\(P_{max} = 1.3\text{ W}\)) |
| Application | Point level detection for liquids across process tanks and pipelines in automated plants |
| IEC Standards | Built to general European safety metrics; CE and C-Tick (N10142) certified |
| Serial no | 22147392 |
| Electronics Dynamic Variant | The integrated internal circuit block represents the Electronics R type configuration, utilizing a non-contact electronic switch mechanism |
| Process Pressure Constraints | Designed to function inside pressure zones tracking from -1 to +64 bar |
| Process Thermal Limits | -50°C to +150°C |
| Environmental Ingress Protection | IP66 / IP67 |
| Logistics Validation Tracker | identified under production database number 29224 alongside an automated factory tracking matrix indicator system |
| Made In | Germany |
| REF NO | 478 |
