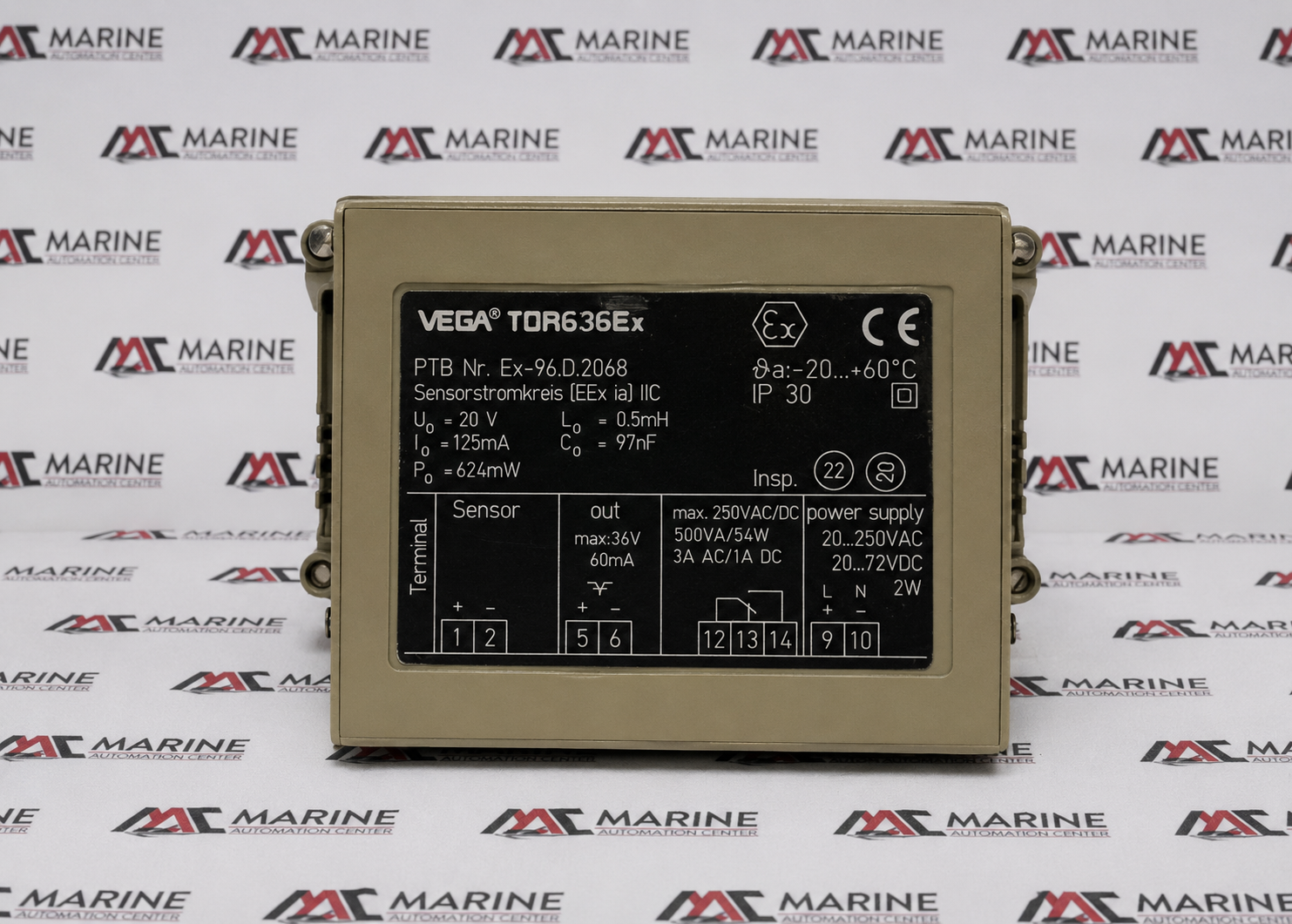

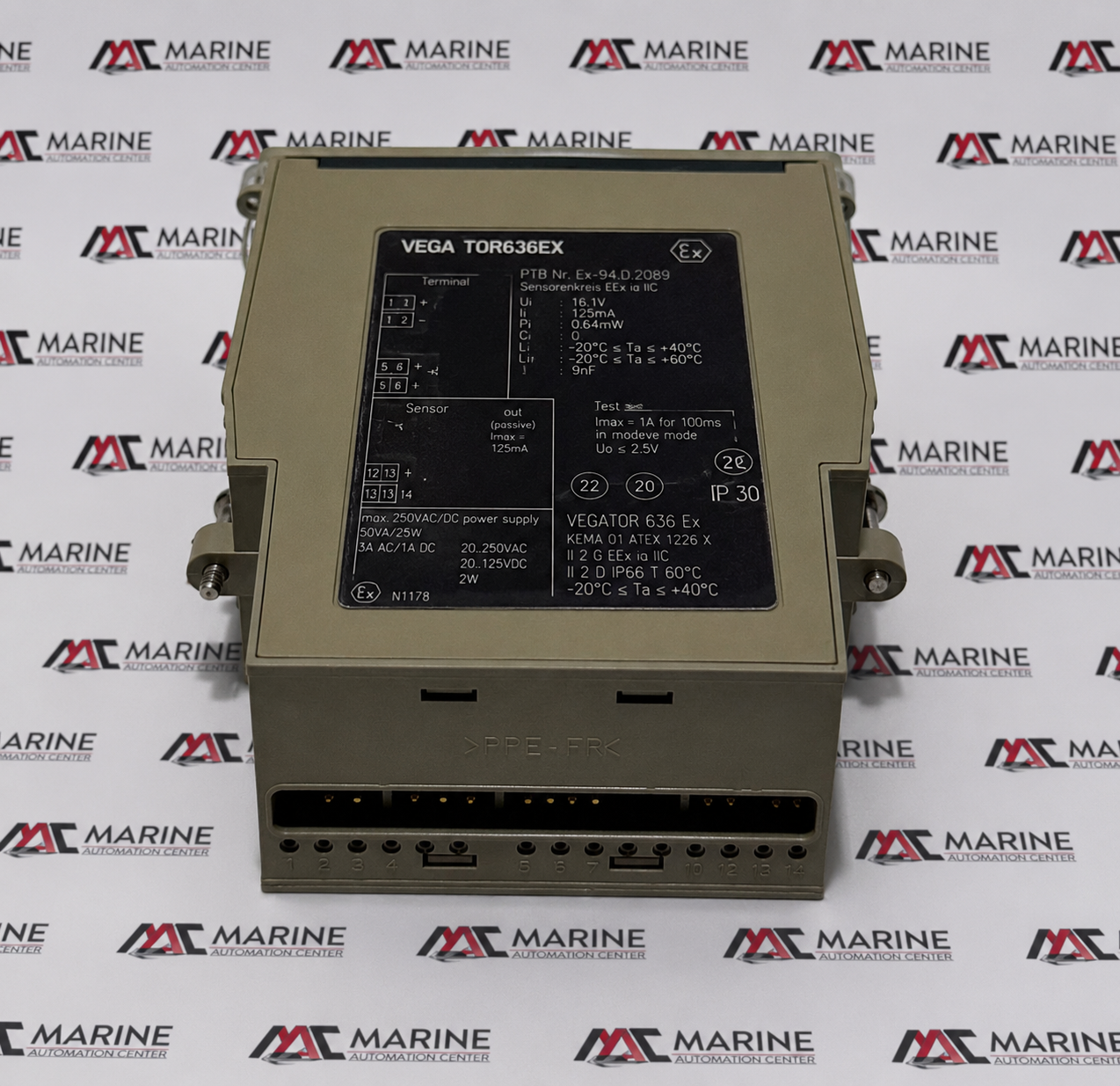

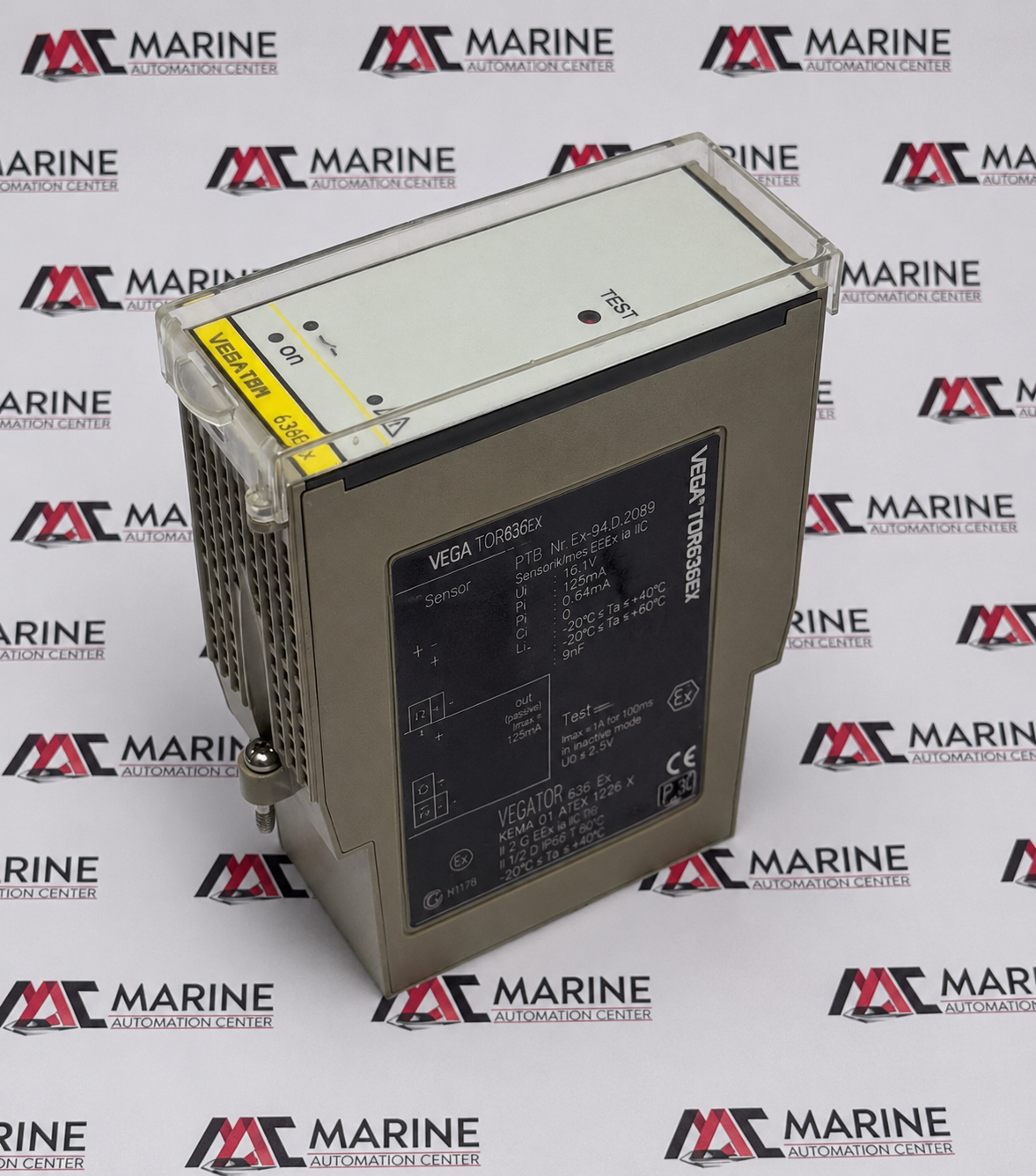

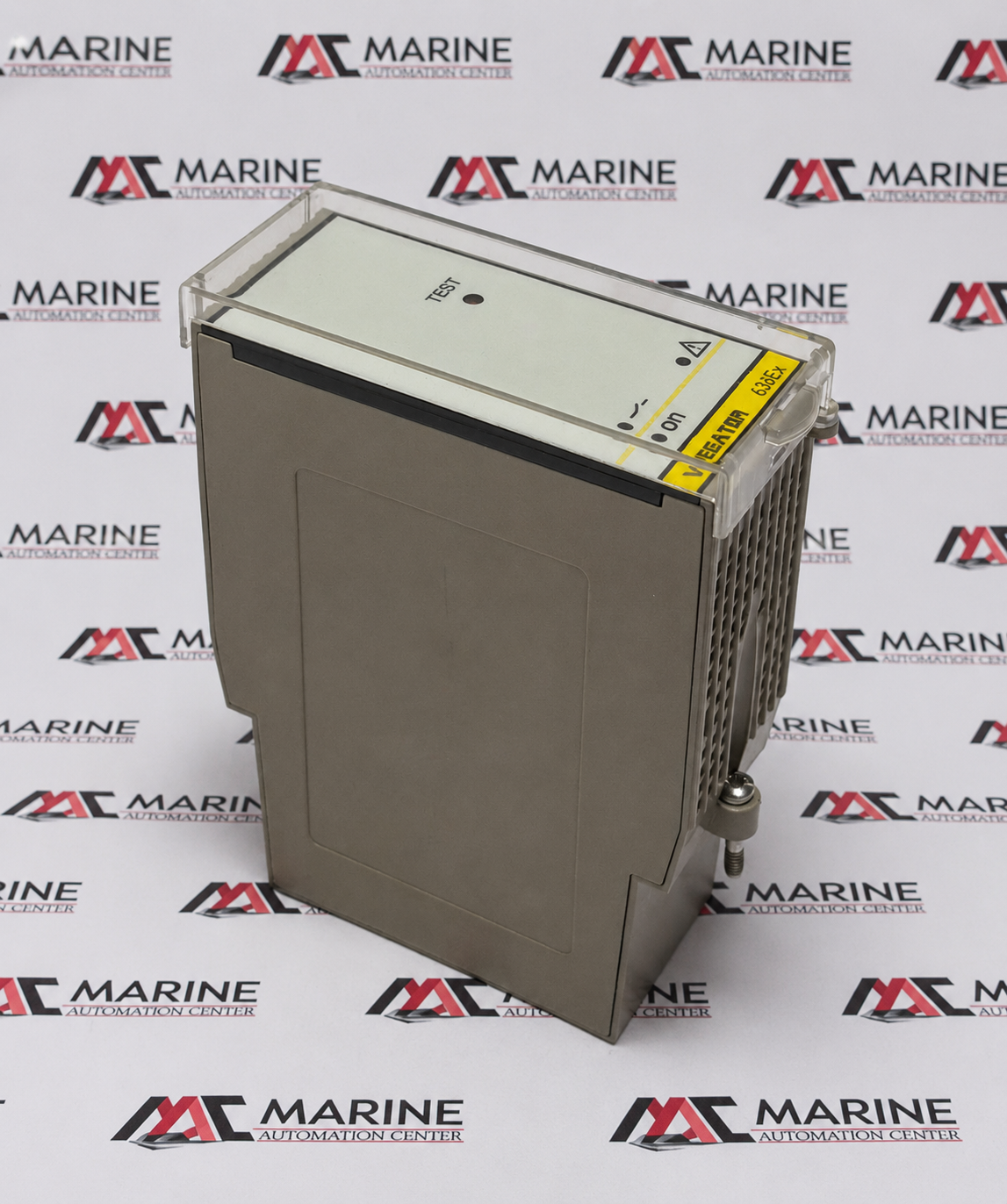

VEGA TOR636Ex Intrinsically Safe Level Switch Amplifier
VEGA TOR636Ex Intrinsically Safe Level Switch Amplifier / Signal Conditioner is a high-reliability interface module designed for safe signal processing and level switch monitoring in hazardous areas. It provides intrinsically safe signal conditioning, dependable switching, and reliable communication between field instruments and control systems. Ideal for oil & gas, chemical processing, pharmaceuticals, and other industrial automation applications requiring explosion protection.
BRAND
VEGA
TYPE
Switch Amplifier
PART NO.
Intrinsically Safe Level Switch Amplifier TOR636Ex
MODEL
TOR636Ex
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | VEGA |
| TYPE | Switch Amplifier |
| PART NO. | Intrinsically Safe Level Switch Amplifier TOR636Ex |
| MODEL | TOR636Ex |
| MANUFACTURER | VEGA |
| Voltage Rating | 20–250 V AC / 20–72 V DC |
| Application | Intrinsically safe level detection, hazardous area monitoring, pump control, valve control, tank level monitoring, and process automation |
| Power Consumption | 2 W Max |
| Intrinsic Safety Classification | EEx ia IIC |
| Open Circuit Voltage (U₀) | 20 V |
| Short Circuit Current (I₀) | 125 mA |
| Maximum Output Power (P₀) | 624 mW |
| Sensor Input | Terminals 1 (+), 2 (−) |
| Power Supply Terminals | 9, 10 |
| Relay Output | Volt-Free Form C Dry Contacts |
| Ambient Temperature | -20°C to +60°C |
| Enclosure Rating | IP30 |
| Made In | Germany |
| REF NO | 1480 |
