VAP30 Operator Access Unit Input

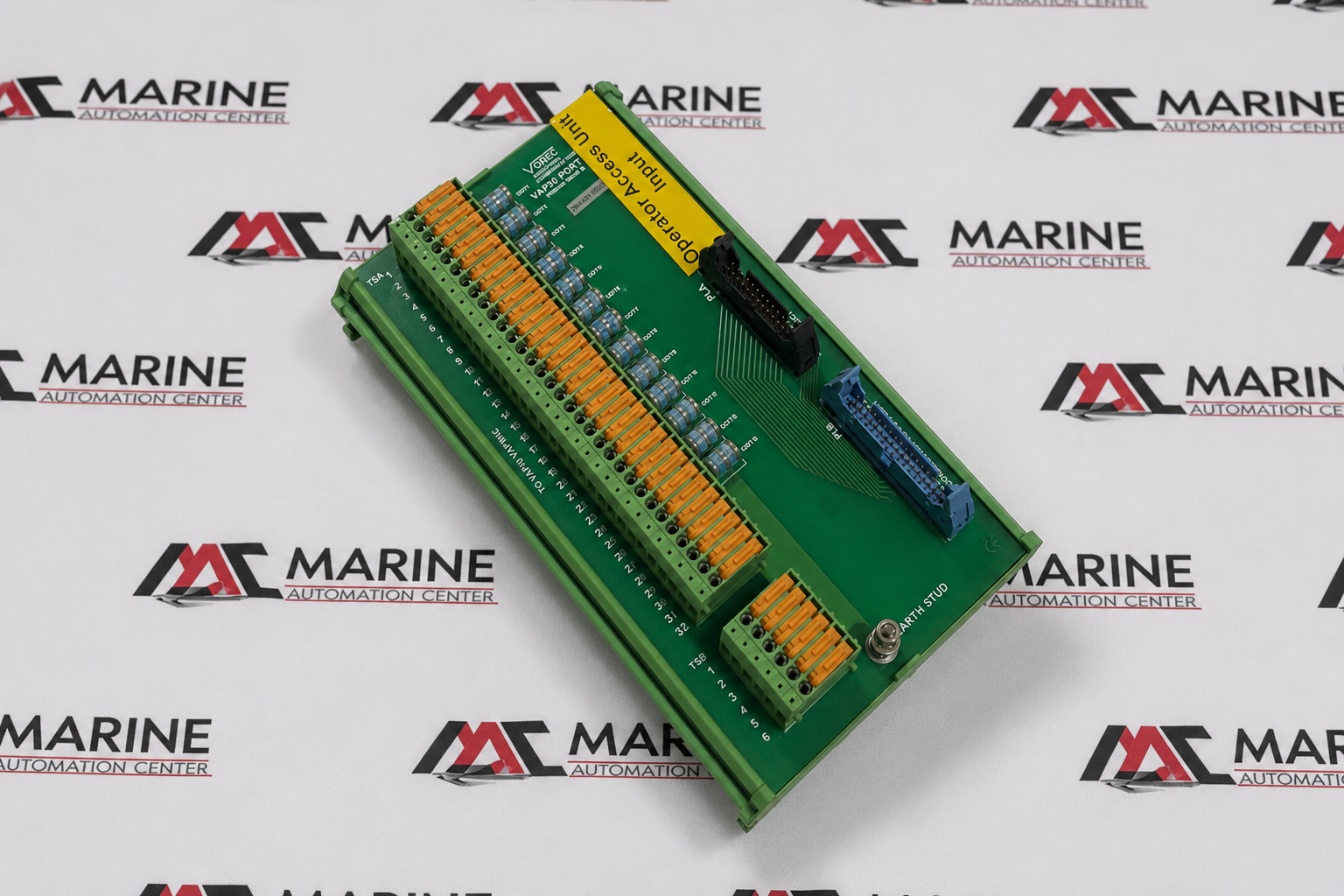

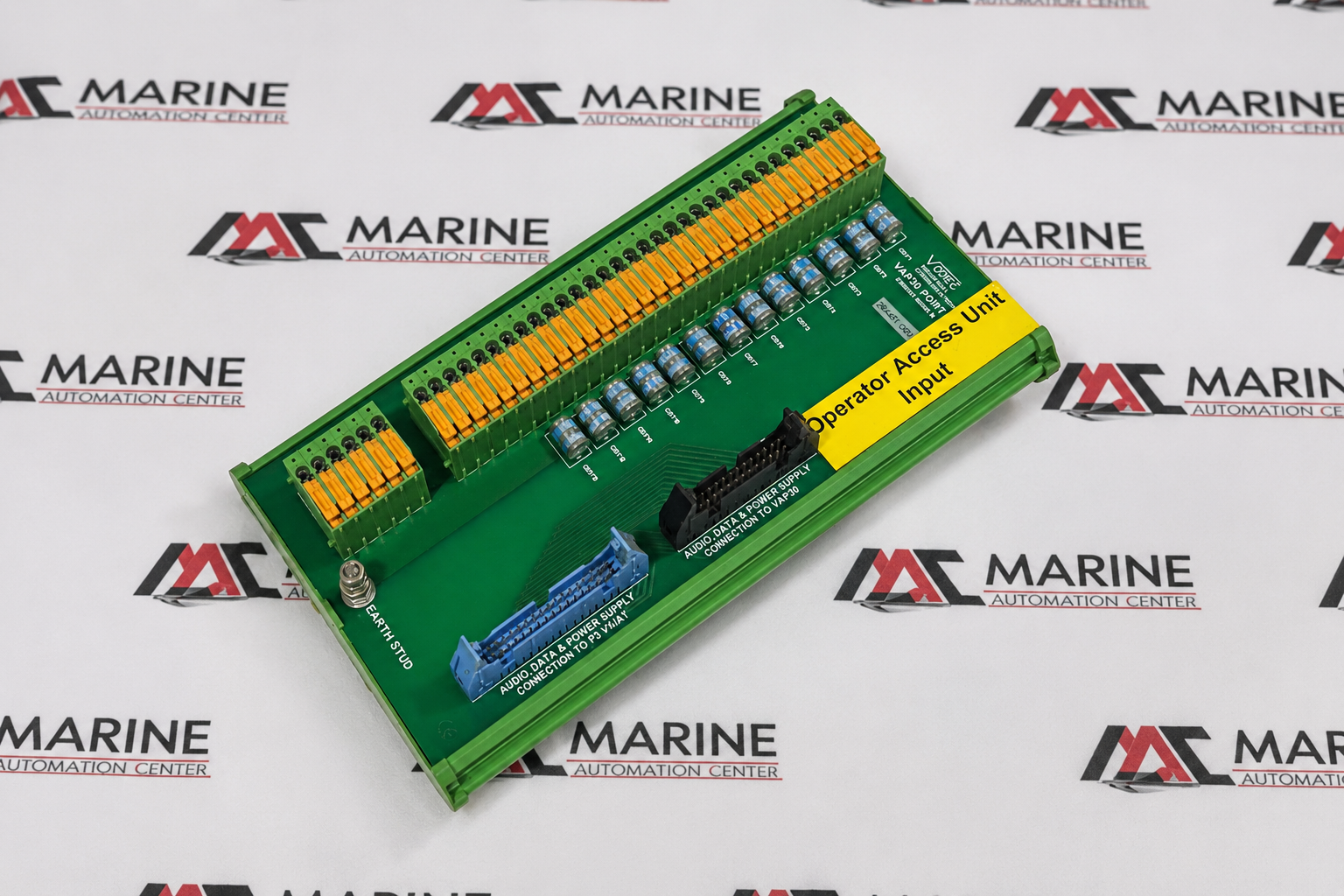

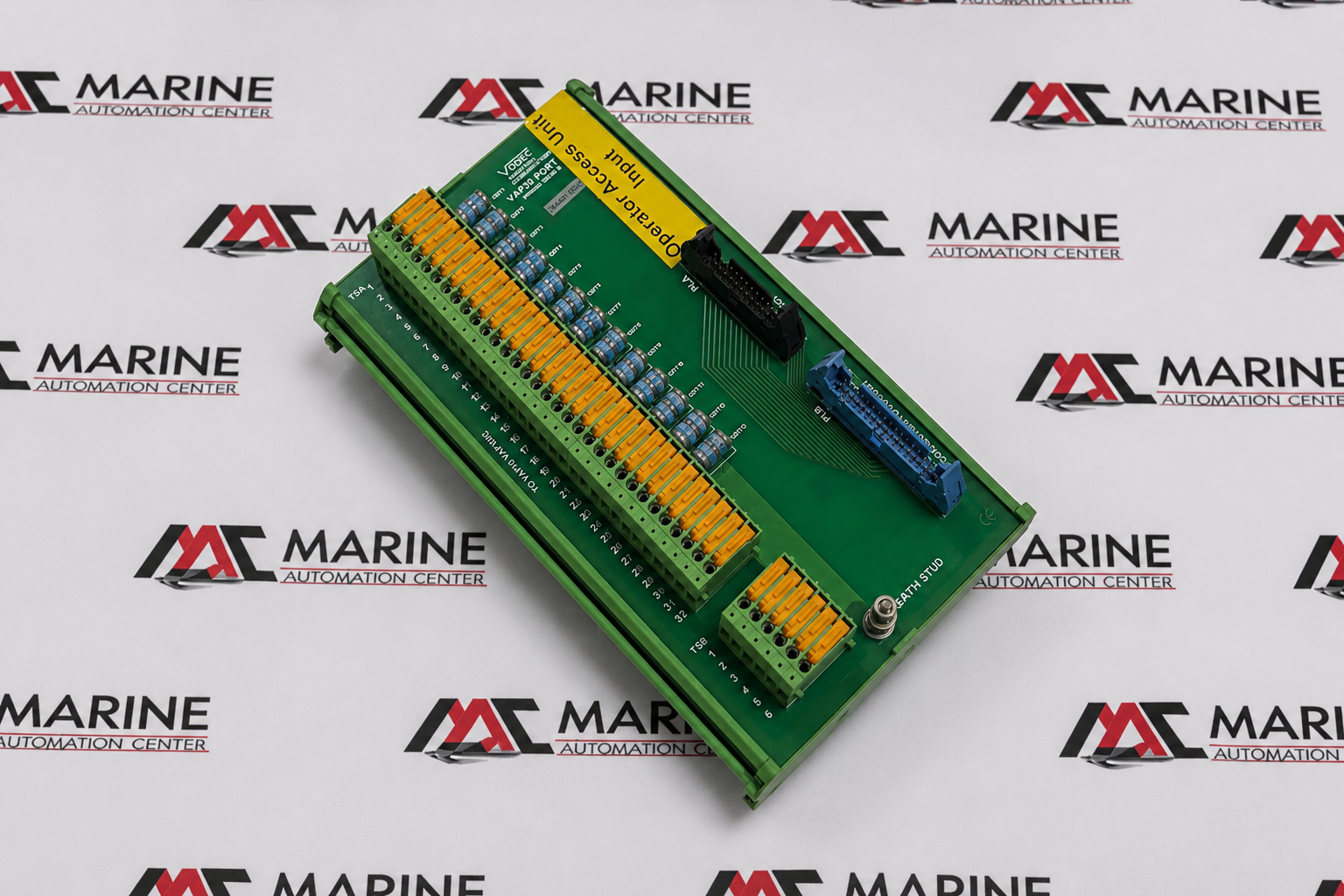

The VODEC (BARTEC VODEC) VAP30 PORT Operator Access Unit Input Port, Model VAP30 PORT (PCB Assembly Reference: 264451/0505) is a communication interface module used in VODEC Public Address and General Alarm (PA/GA) systems. It provides the interface between operator access units and the central communication network, enabling reliable transmission of audio, control, and call signals for industrial and marine communication applications. Designed for DIN rail mounting, it ensures dependable operat
BRAND
VODEC (BARTEC VODEC)
TYPE
Operator Access Unit Input Port (VAP30 Port Interface Module)
PART NO.
264451/0505
MODEL
VAP30 PORT
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | VODEC (BARTEC VODEC) |
| TYPE | Operator Access Unit Input Port (VAP30 Port Interface Module) |
| PART NO. | 264451/0505 |
| MODEL | VAP30 PORT |
| PRODUCT NAME | VAP30 Operator Access Unit Input |
| Application | Interface module for VAP30 operator microphone access units in marine and offshore Public Address & General Alarm (PA/GA) communication systems. Provides audio, data and DC power connections between the VAP30 access panel and the central VX/AT management |
| System Compatibility | PSC VODEC VX/AT, P3-VX/AT PA/GA System |
| Supply Voltage | 48 VDC supplied from host system |
| Communication | Full Duplex DTMF signalling through host system |

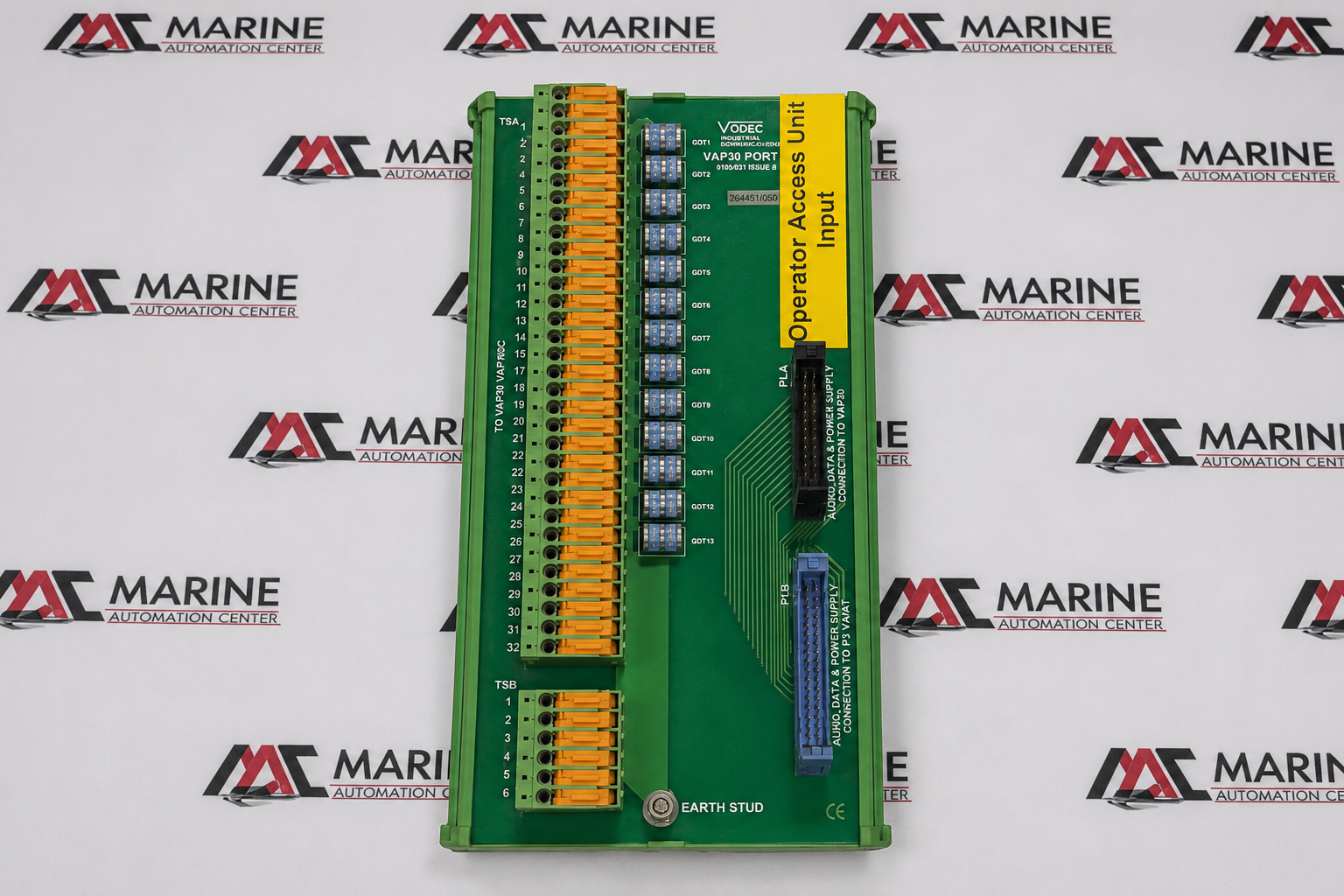

| Terminal Connections | TSA (32 field terminals), TSB (6 field terminals) |
| Interface Connectors | PLA & PLB IDC Ribbon Connectors |
| Function | Audio, Data & Power Supply connection to VAP30 Operator Access Unit |
| Dimensions | Approx. 252 × 111 × 60 mm |
| Temperature Range | 0°C to +50°C |
| IEC | Industrial Communication Equipment (IEC-compliant installation within PA/GA systems) |
| Made In | United Kingdom |
| Reference No. | 401 |
