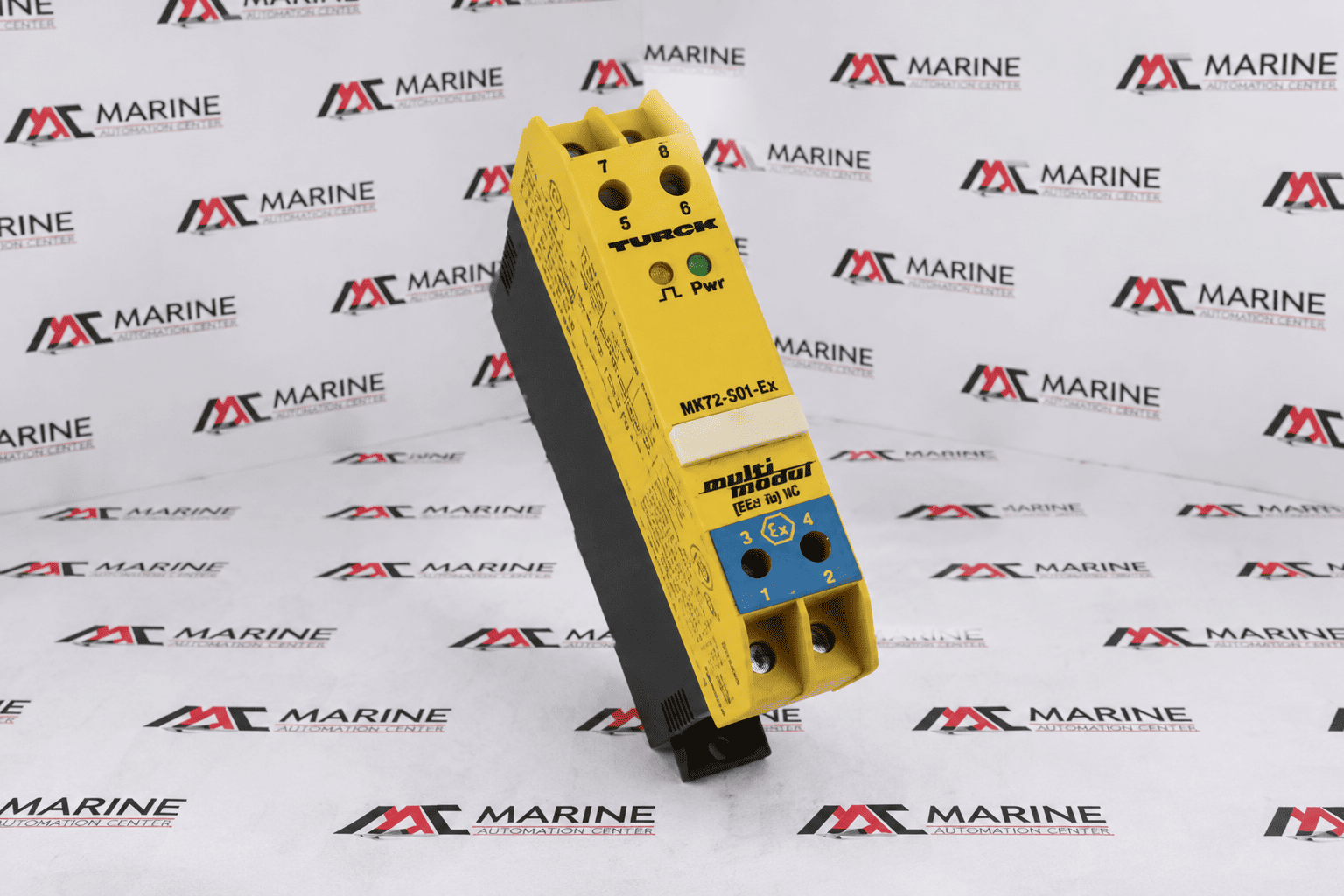

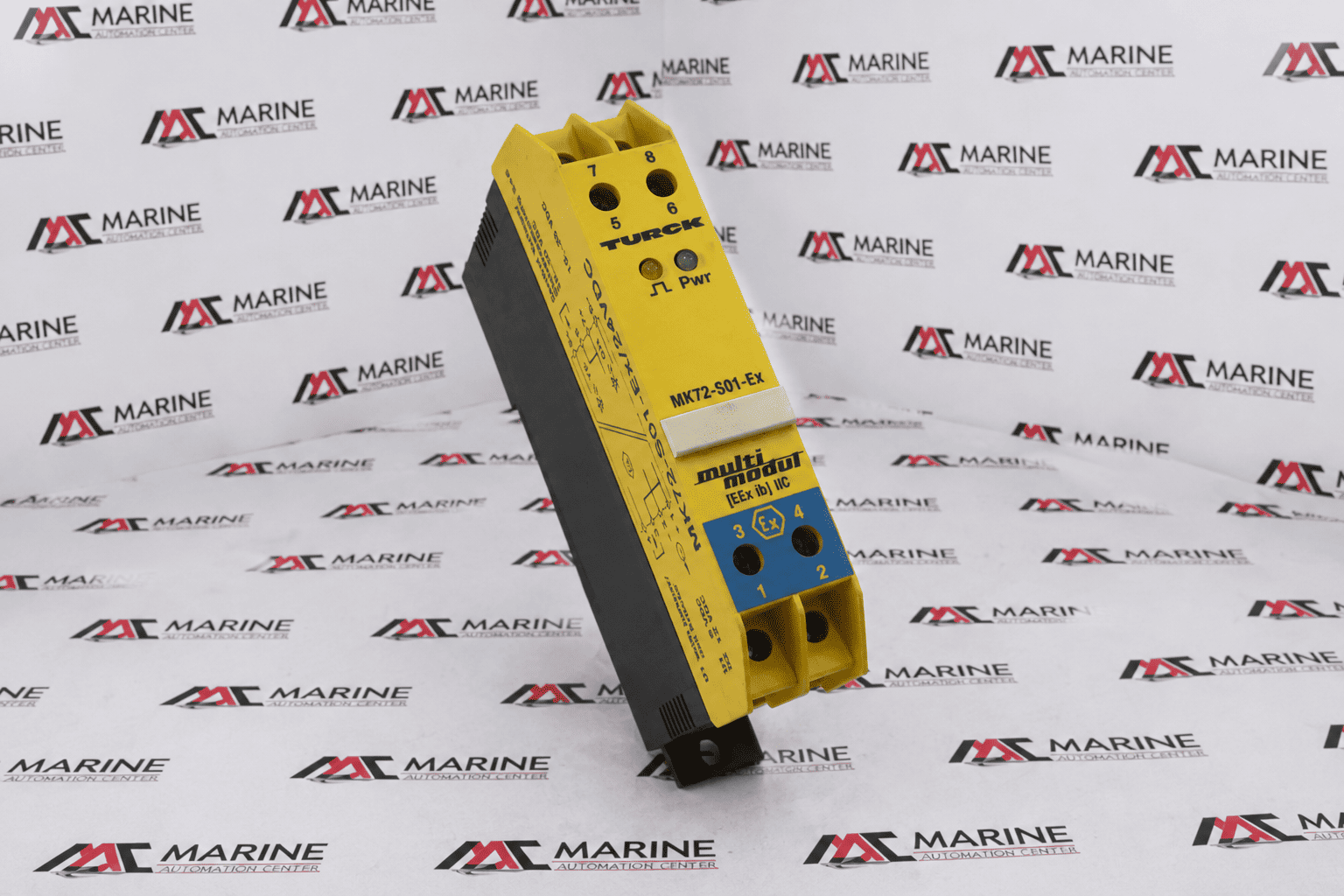

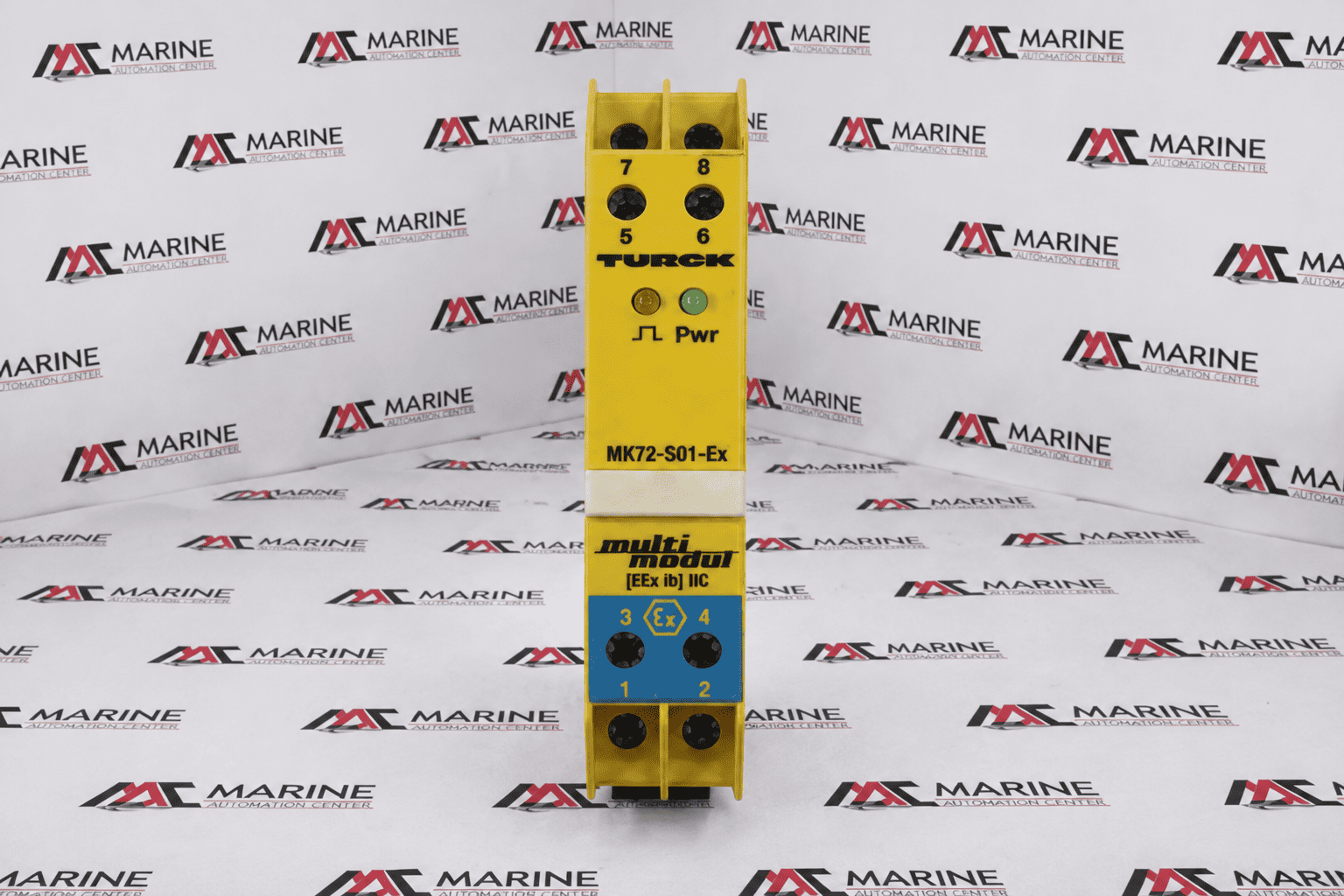

TURCK Multimodul MK72-S01-Ex/24VDC Solenoid Driver
The Turck Multimodul MK72-S01-Ex/24VDC (Ident No: 7507005) is a 1-channel intrinsically safe solenoid driver and valve control module manufactured by Hans Turck GmbH & Co. KG in Germany. It is designed to safely actuate intrinsically safe pilot valves, solenoid coils, displays, and acoustic alarms located in hazardous industrial environments, operating on a nominal supply voltage of 19 to 29 V DC.
BRAND
TURCK
TYPE
Valve Control Module
PART NO.
MK72-S01-Ex/24VDC
MODEL
Multimodul MK72 Series
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | TURCK |
| TYPE | Valve Control Module |
| PART NO. | MK72-S01-Ex/24VDC |
| MODEL | Multimodul MK72 Series |
| Voltage Rating: | Supply Voltage: 19...29 VDC nominal track input |
| Catalog No. | MK72-S01-Ex/24VDC (Ident. No.: 7507005) |
| Application: | Safe actuation of intrinsically safe EEx i pilot valves, solenoid coils, displays, and acoustic alarms in hazardous locations |
| IEC | Intrinsically safe output circuits according to EEx ib / EEx ia safety directives |

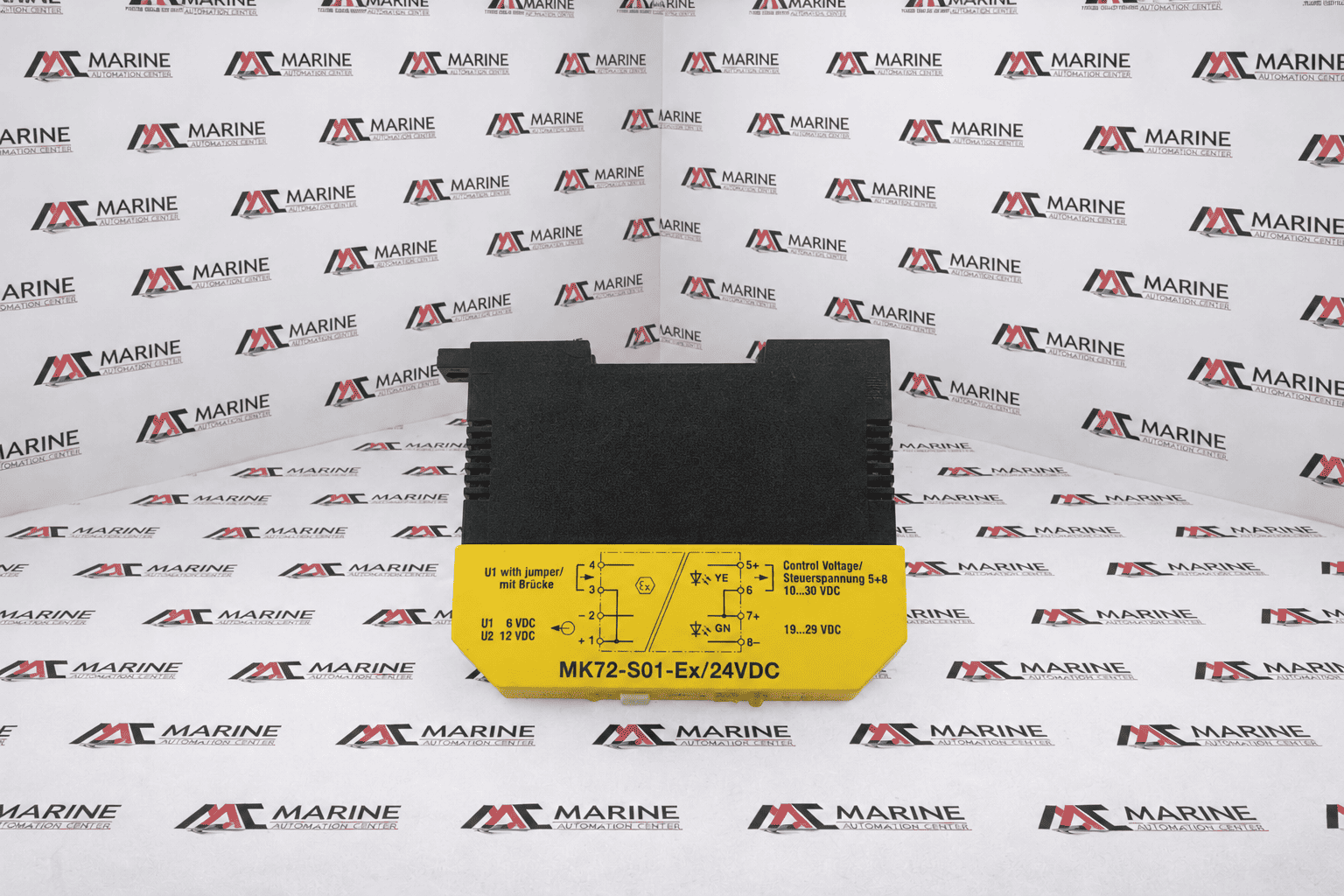

| Dual Output Voltage Configurations | Operating normally at 12 VDC (U2), the output can be manually stepped down to 6 VDC (U1) by jumping terminals 3 and 4 together on the faceplate [Kp2-Ak] |
| Potential-Free Control | 10...30 VDC |
| Intrinsically Safe Entity Parameters | Maximum Output Voltage (U₀): 28 V Maximum Output Current (I₀): 110 mA Maximum Power Output (P₀): 770 mW |
| Galvanic Isolation Protection | 2,500 V |
| Made In | Germany |
| REF NO | 173 |
