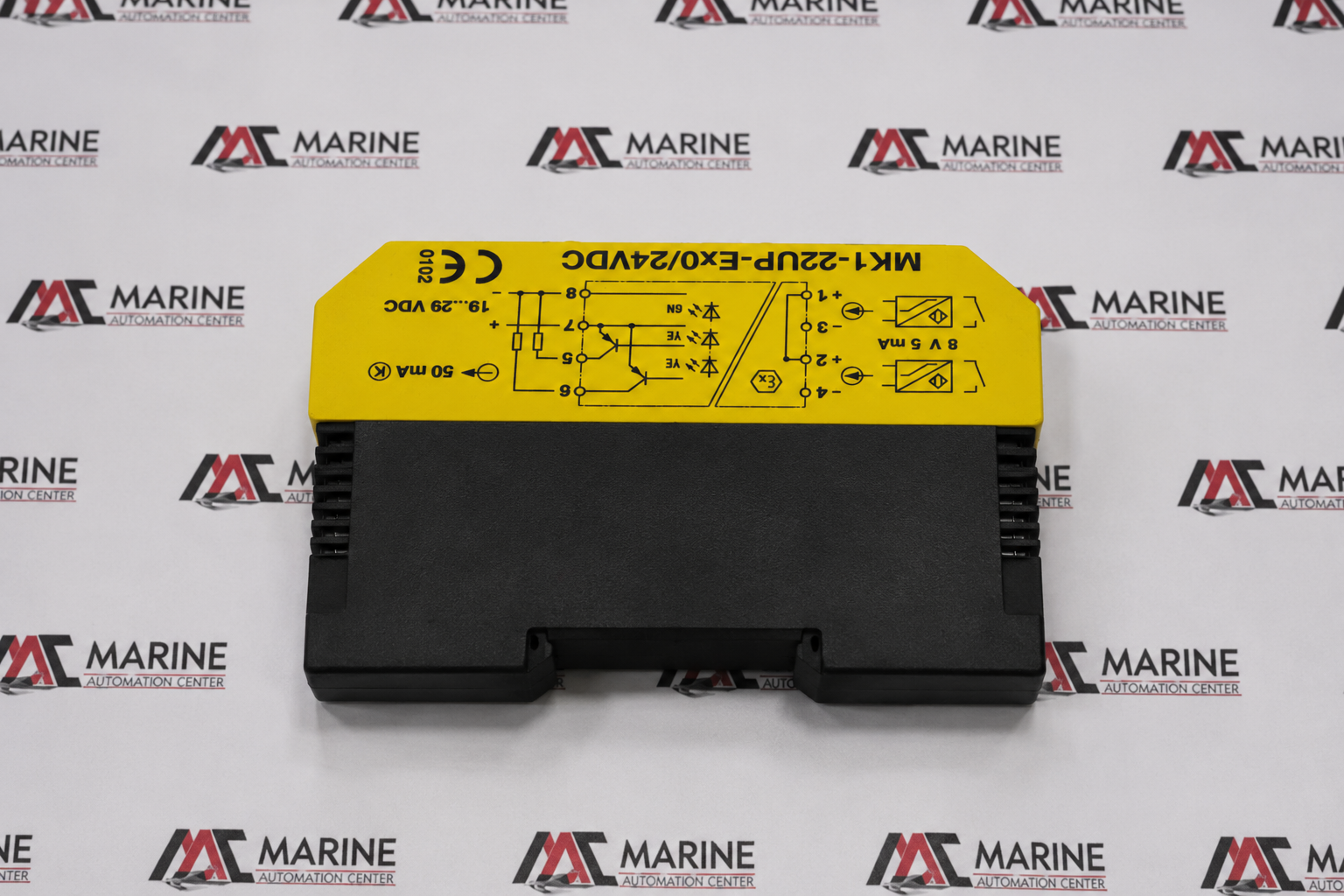

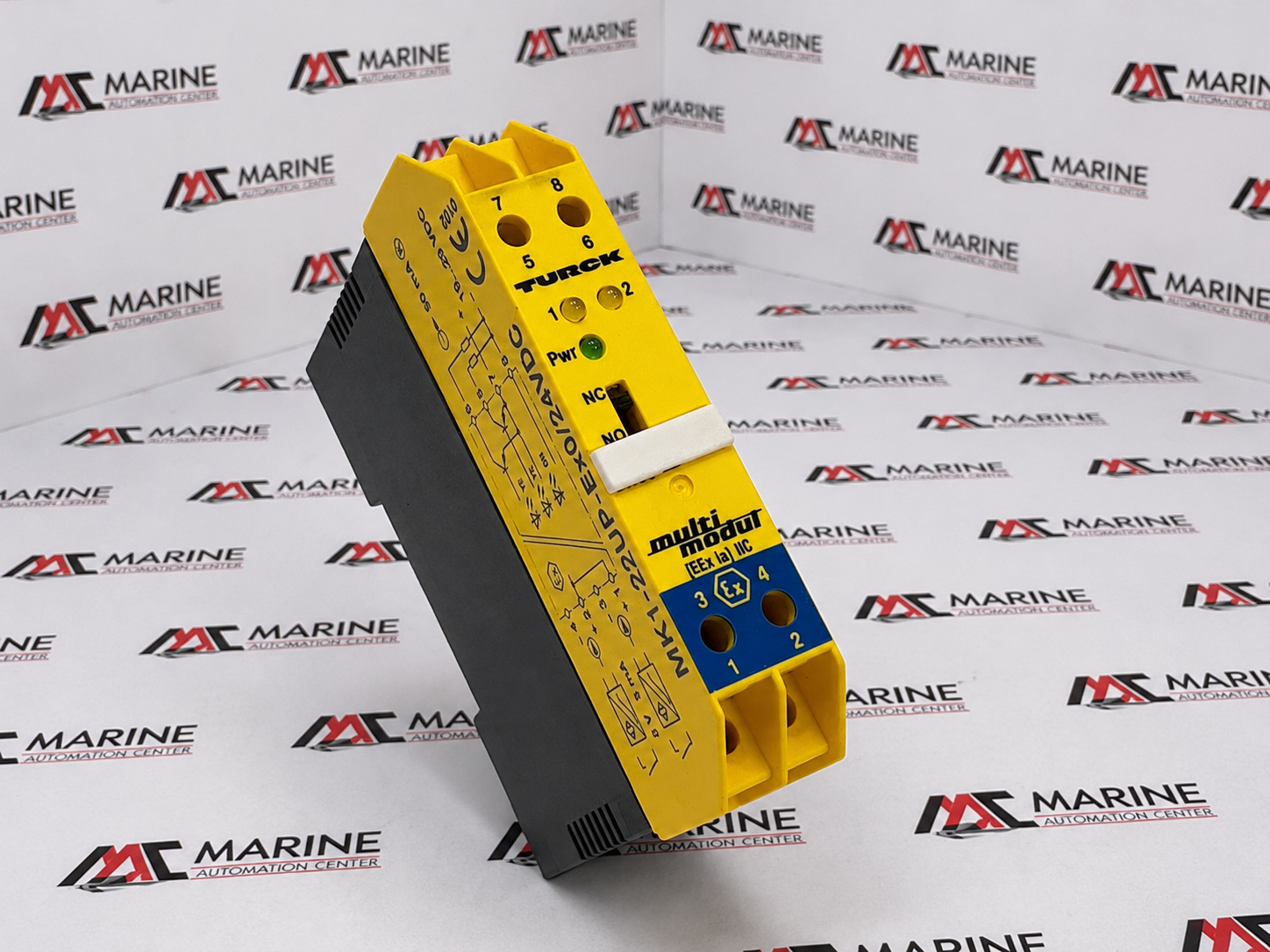

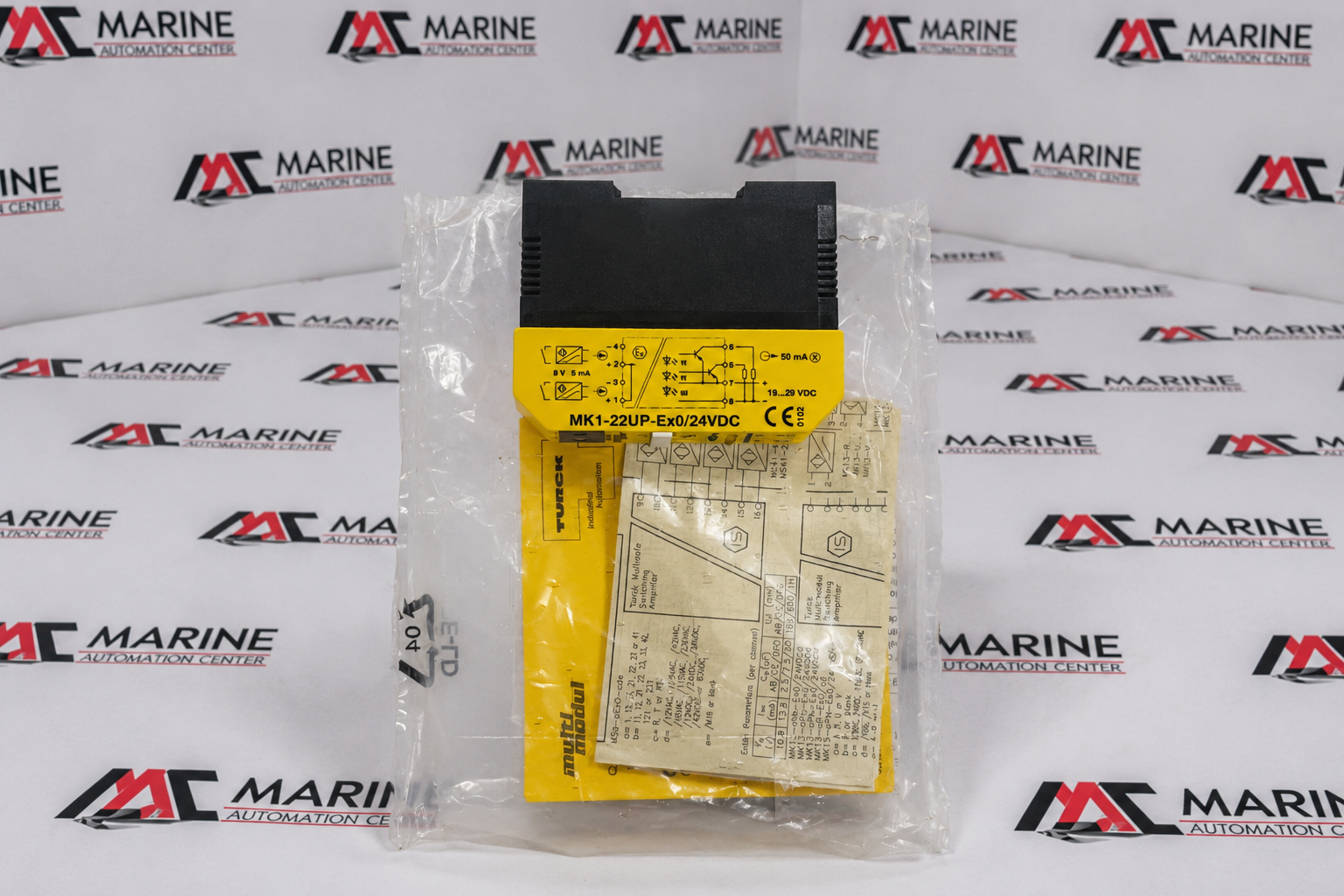

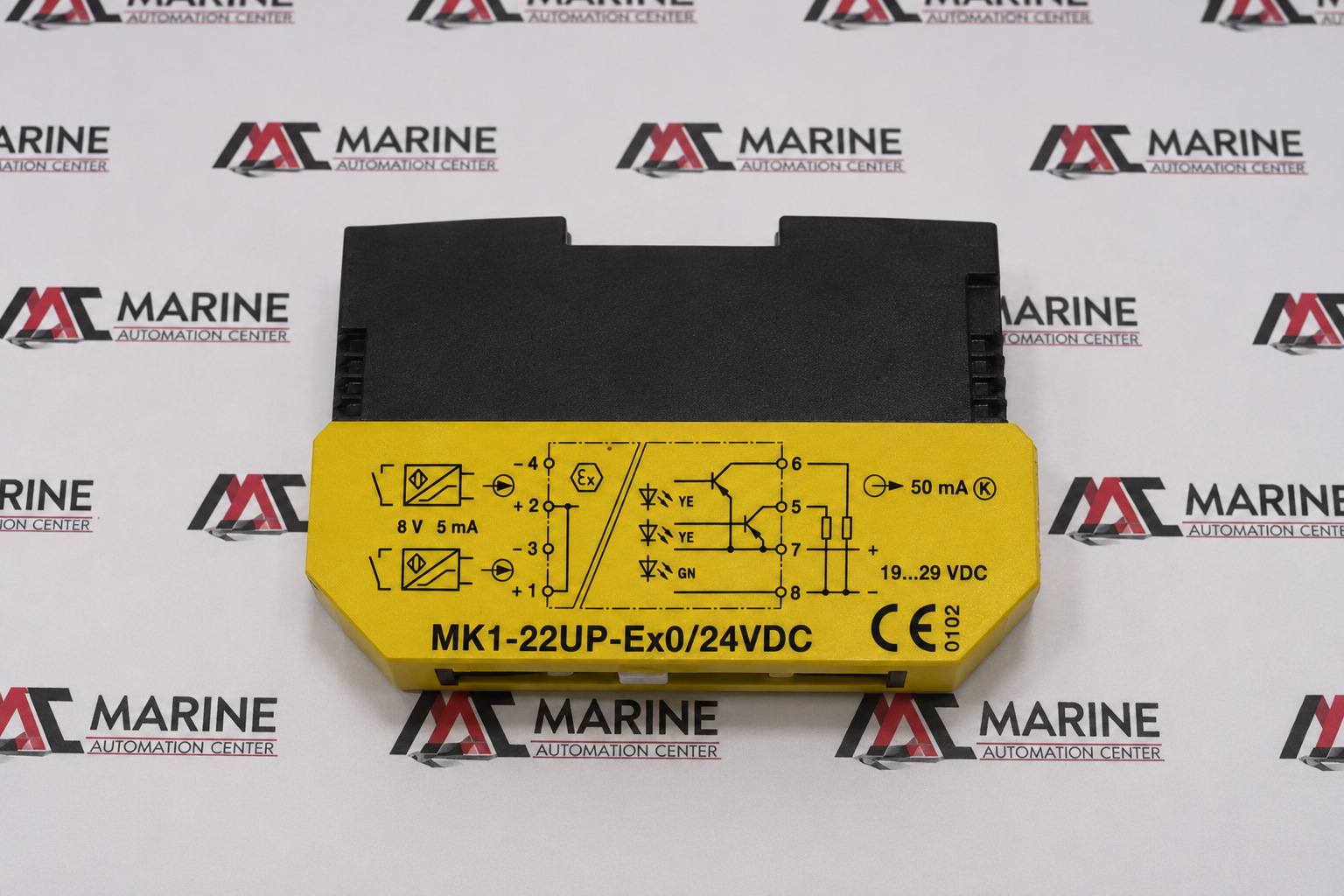

Turck Multi Module Analog MK1-22UP-Ex0/24VDC
Turck MK1-22UP-Ex0/24VDC Multi Module Analog is an intrinsically safe analog signal isolation module designed for reliable signal conversion and galvanic isolation between hazardous and safe areas. Powered by 24 VDC, it ensures accurate analog signal transmission and explosion protection for industrial process control, marine, oil & gas, and chemical automation applications.
BRAND
Turck
TYPE
Multi Module Analog
PART NO.
Turck Multi Module Analog MK1-22UP-Ex0/24VDC
MODEL
MK1-22UP-Ex0/24VDC
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Turck |
| TYPE | Multi Module Analog |
| PART NO. | Turck Multi Module Analog MK1-22UP-Ex0/24VDC |
| MODEL | MK1-22UP-Ex0/24VDC |
| SERIES | MultiModul MK1 Series |
| INPUT TYPE | NAMUR Sensor / Dry Contact Input (EN 60947-5-6) |
| INPUT CURRENT | 5 mA |
| OUTPUT TYPE | 2 × PNP Transistor Outputs, Short-Circuit Protected |
| SUPPLY VOLTAGE | 19…29 VDC |
| TERMINAL CONNECTIONS | 8 Screw Terminals (1–8) |
| LED INDICATIONS | Green LED – Power (Pwr); Yellow LEDs – Channel 1 & Channel 2 Switching Status |
| MOUNTING | 35 mm DIN Rail Mount |
| APPLICATION | Signal isolation and switching for NAMUR proximity sensors or dry contacts in hazardous (Ex) areas, PLC/DCS interface, process automation and industrial control systems. |
| MADE IN | Germany |
| REF NO | 415 |
