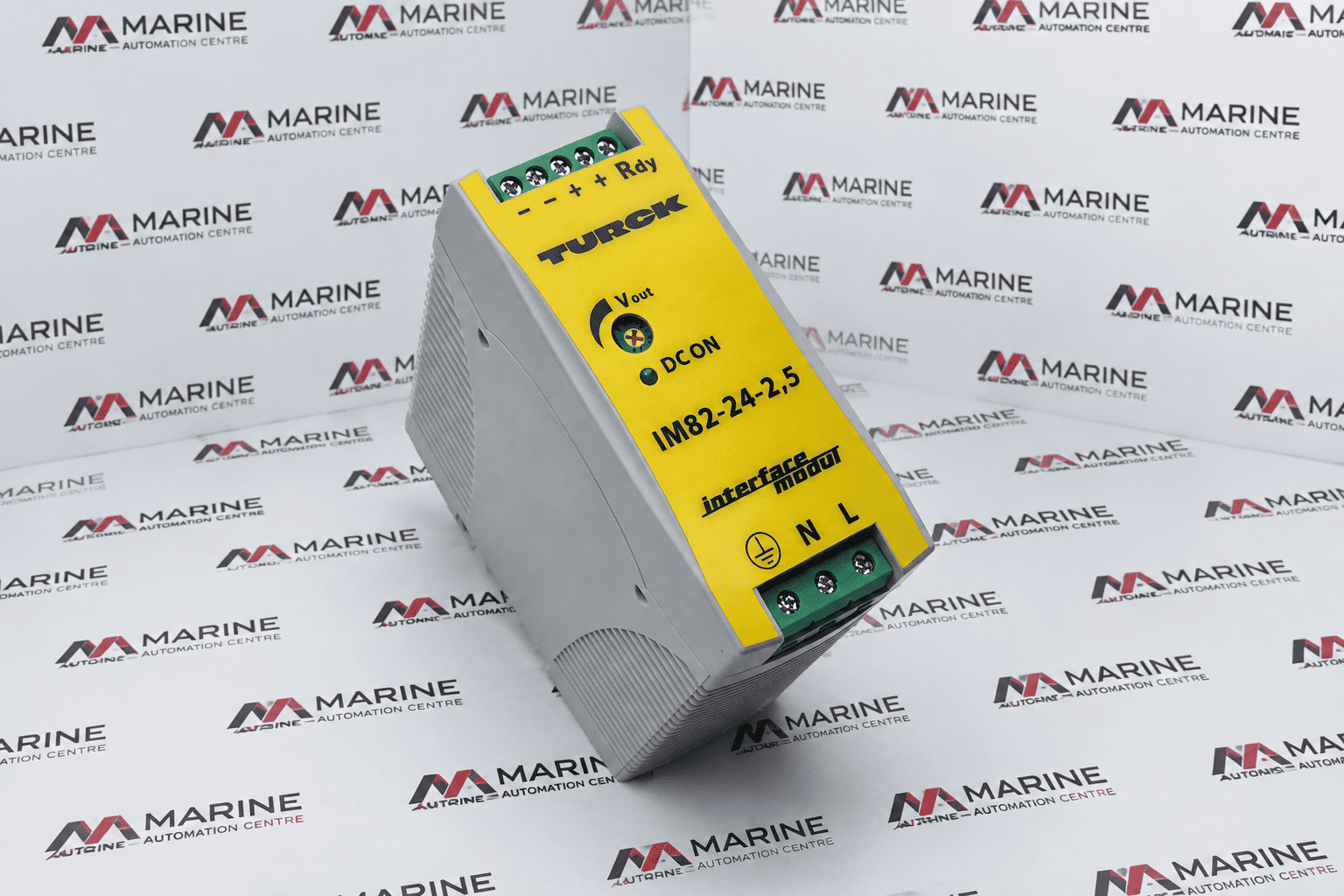

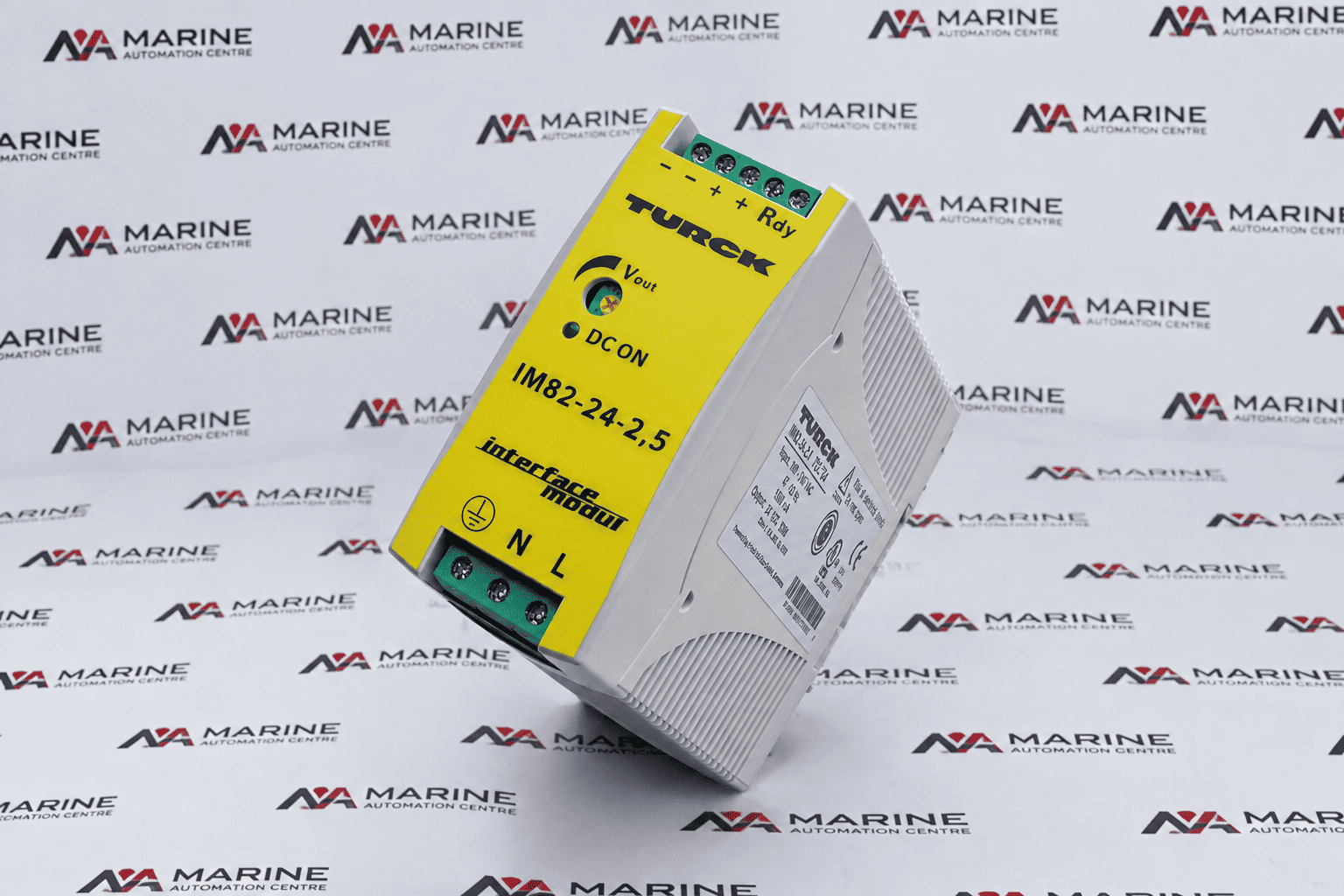

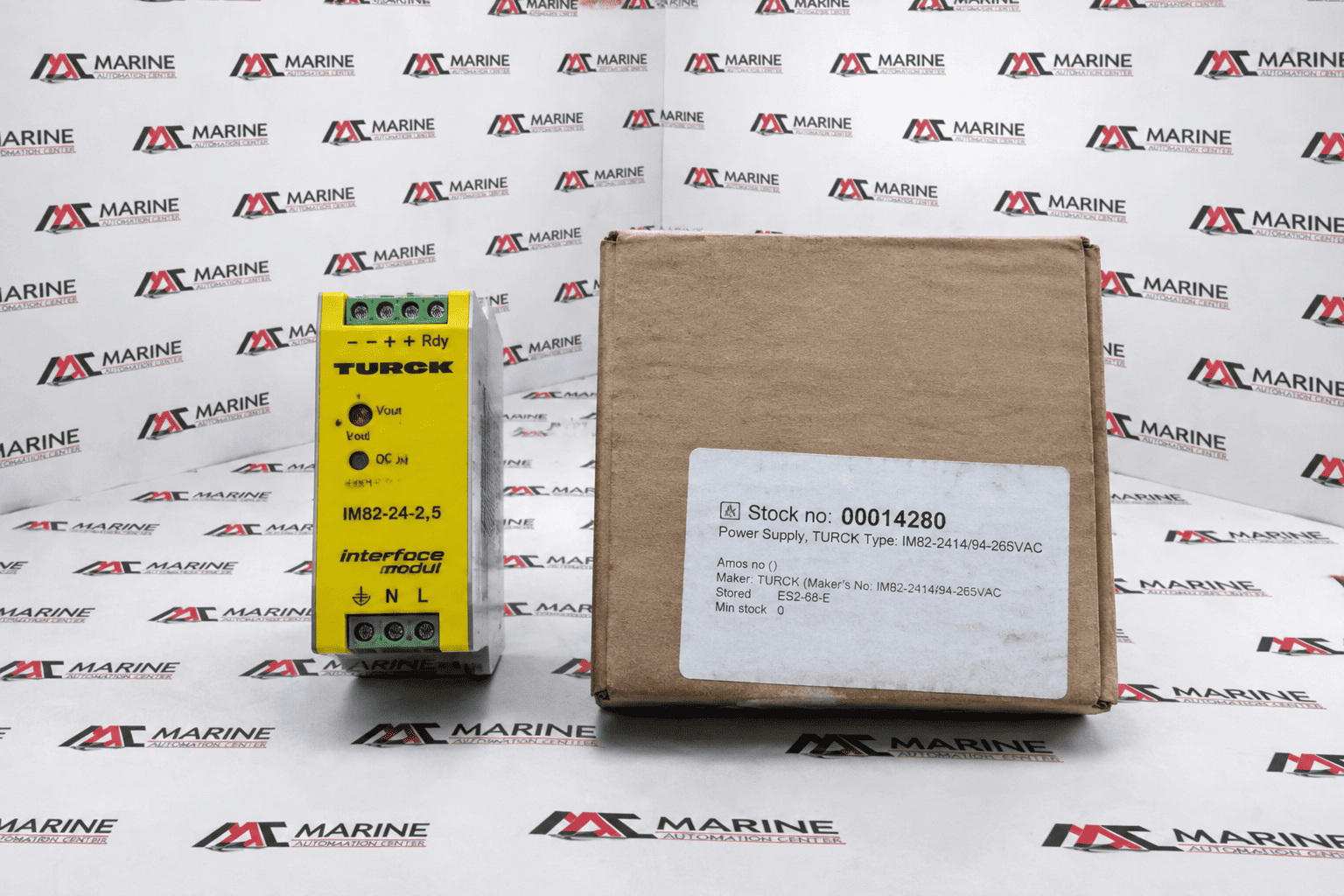

Turck IM82-24-2,5 Switching Power Supply Module
The Turck IM82-24-2,5 (Part Number: 7545041) is a robust, primary-switched DIN-rail power supply unit engineered by Hans Turck GmbH & Co. KG to provide a stable voltage supply for DC consumers, including their specialized switching devices. It features a wide-range input accepting 85–264 VAC or 90–375 VDC, delivering a constant 2.5 A output at 24 VDC (manually adjustable from 24 to 28 VDC). Designed with a compact 40.5 mm footprint, this German-made module supports both single and balanced paral
BRAND
TURCK
TYPE
Power Supply Unit
PART NO.
7545041
MODEL
IM82-24-2,5
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | TURCK |
| TYPE | Power Supply Unit |
| PART NO. | 7545041 |
| MODEL | IM82-24-2,5 |
| Voltage Rating | Input: 85...264 VAC / 90...375 VDC | Output: 24 VDC (Adjustable 24...28 VDC) |
| Application | Safe voltage supply for DC consumers, including TURCK IM, IME, IMS, and IMC switching devices |
| Catalog No. | IM82-24-2,5 / 7545041 |
| Output Current Profile | 2.5 A constant delivery at nominal 24 V DC |
| Output Adjustment Range | 24...28 V DC |
| Mains Failure Buffering | 20 to 30 ms |
| Operational Modes | Supports independent Single mode or balanced Parallel operation |
| Power Surge Protection | Heavily insulated surge suppression rated to handle temporary current demands up to 150% |
| Diagnostic Elements | Green "DC ON" LED front status indicator for continuous local loop tracking |
| Made In | Germany |
| REF NO | 148 |
