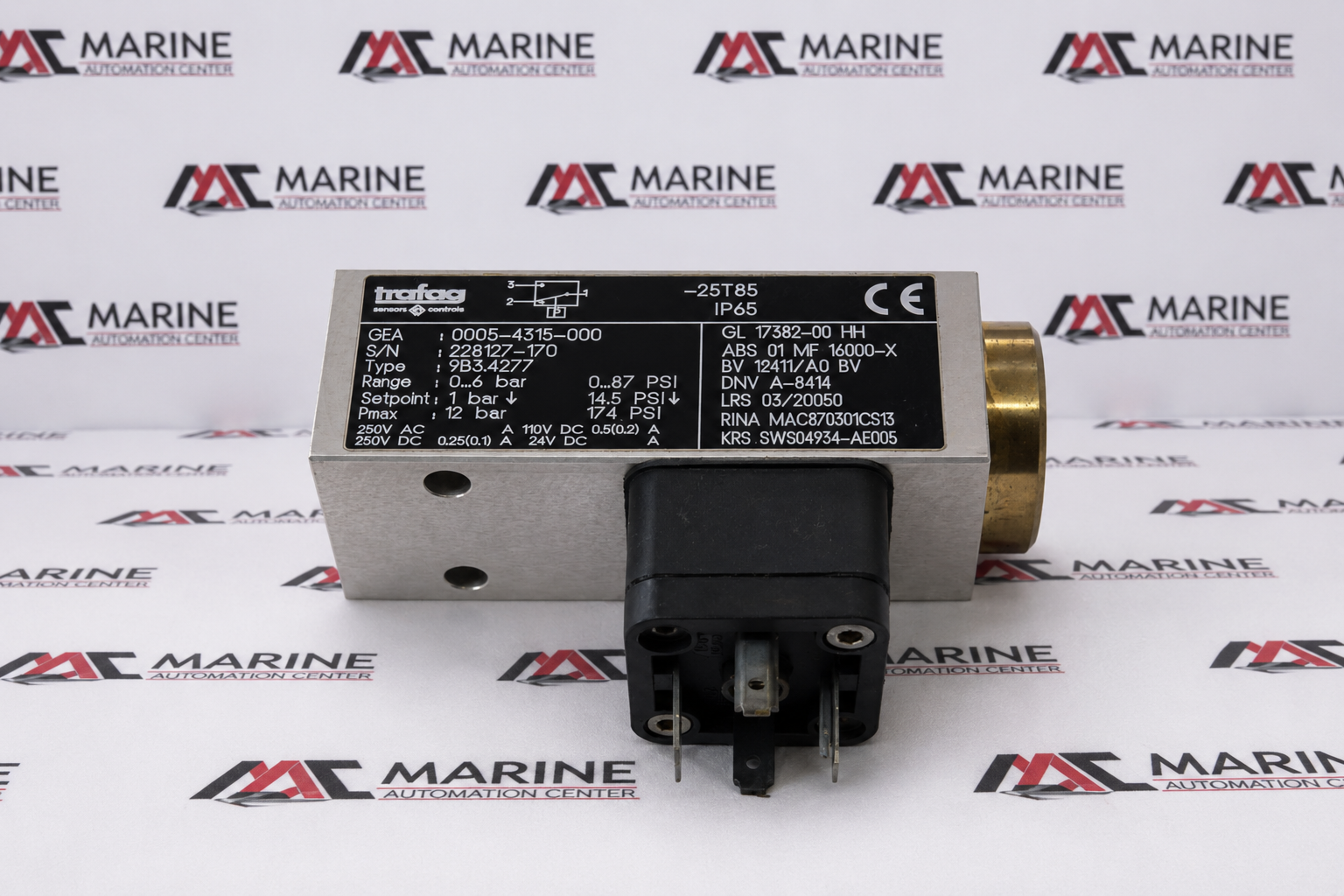

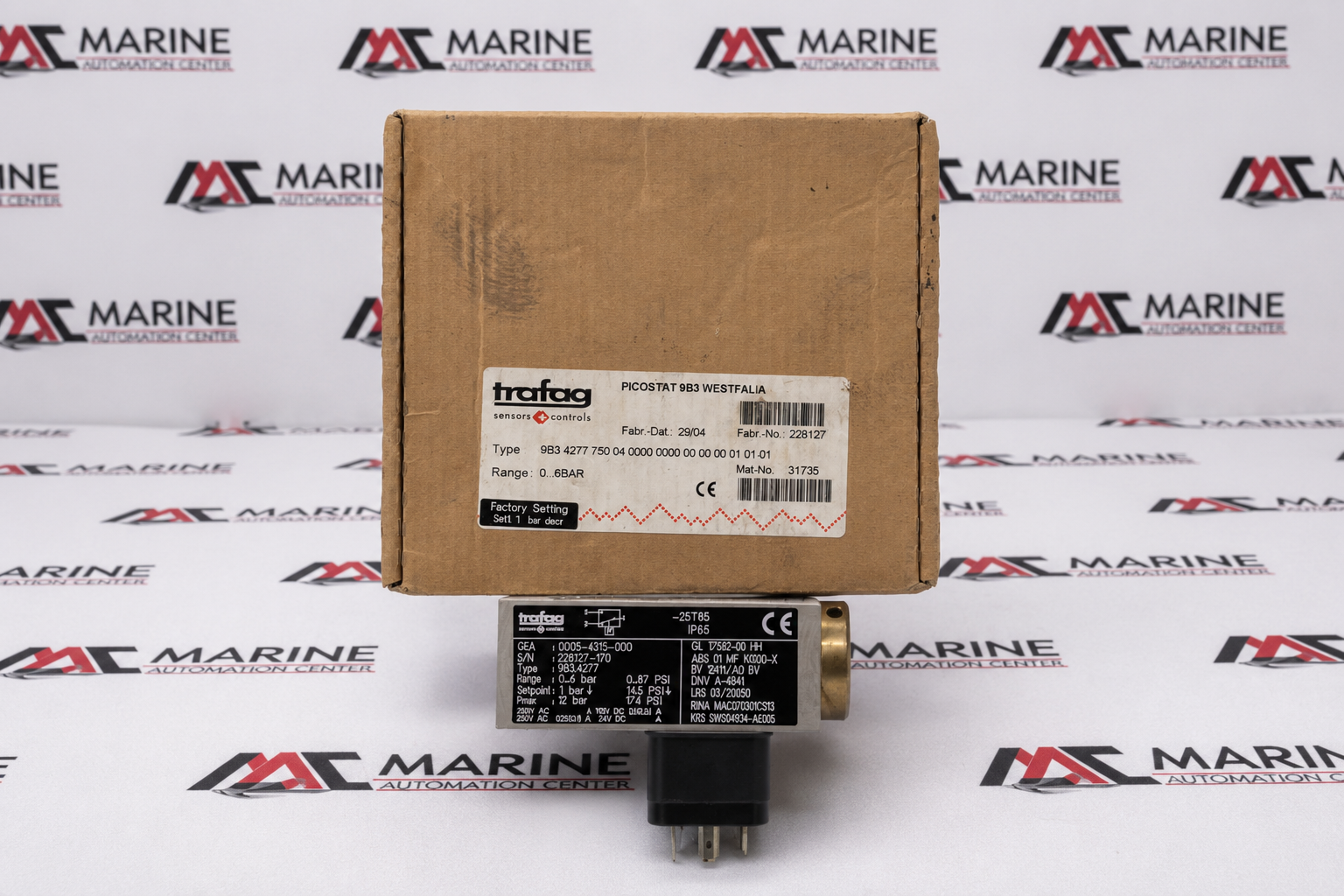

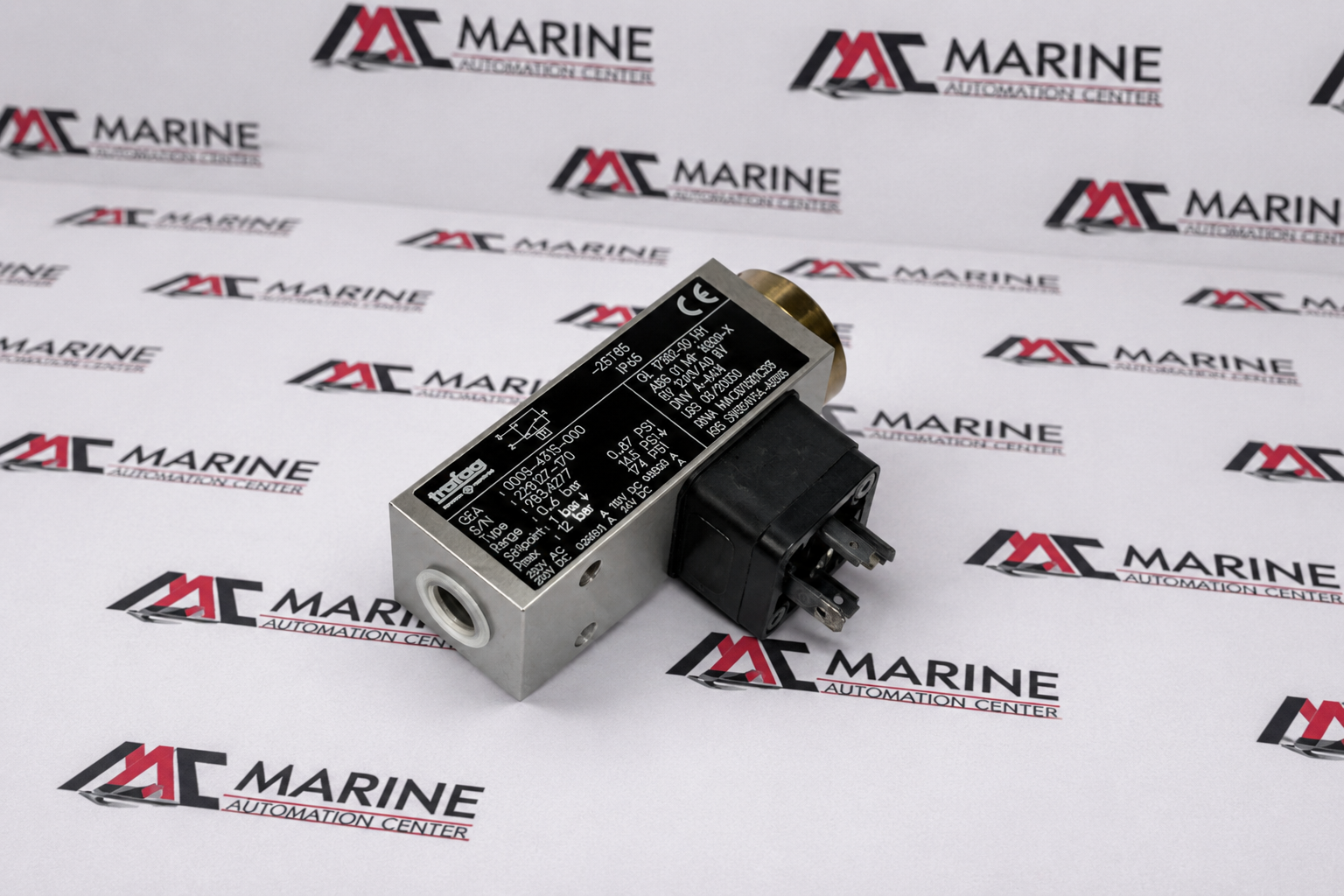

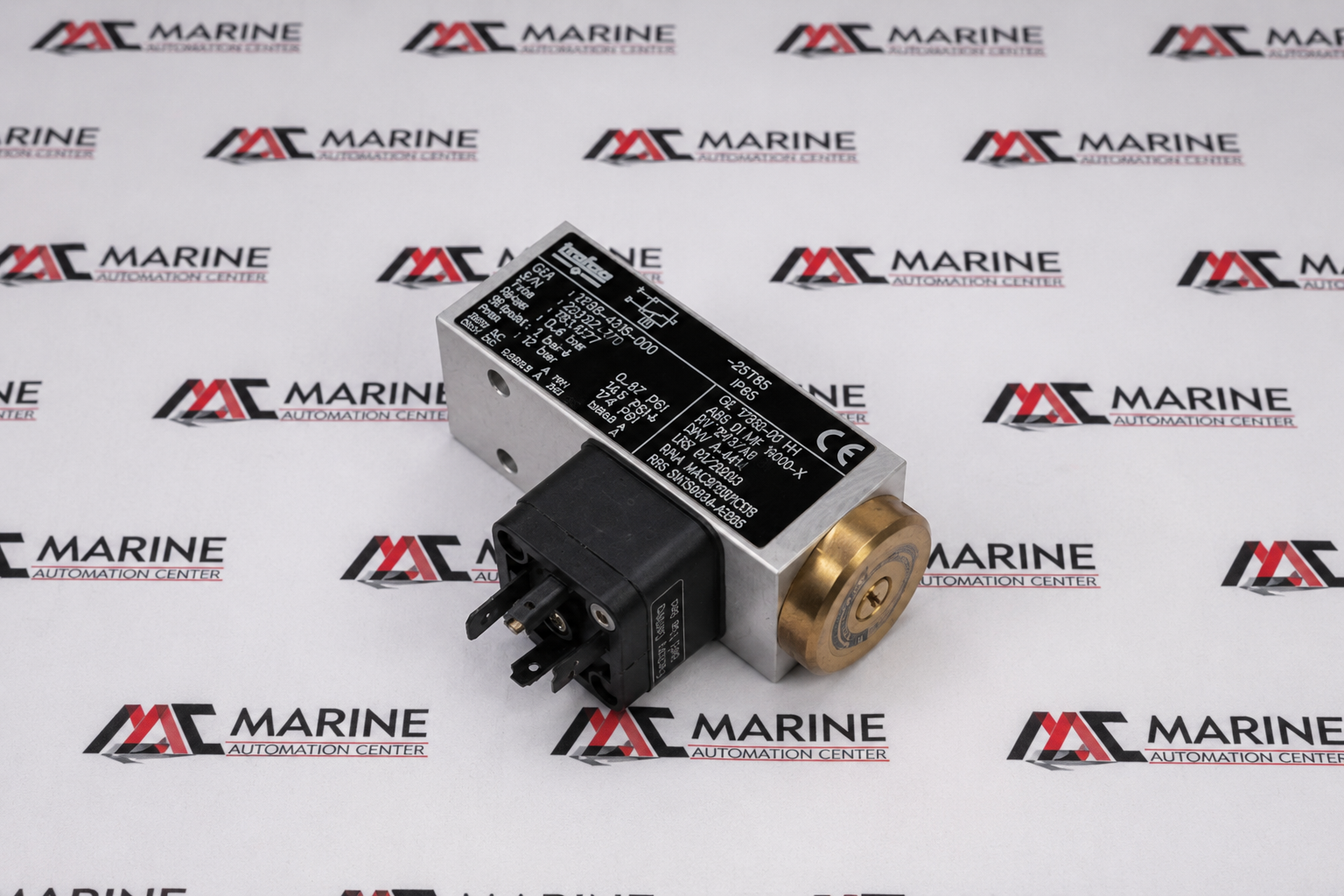

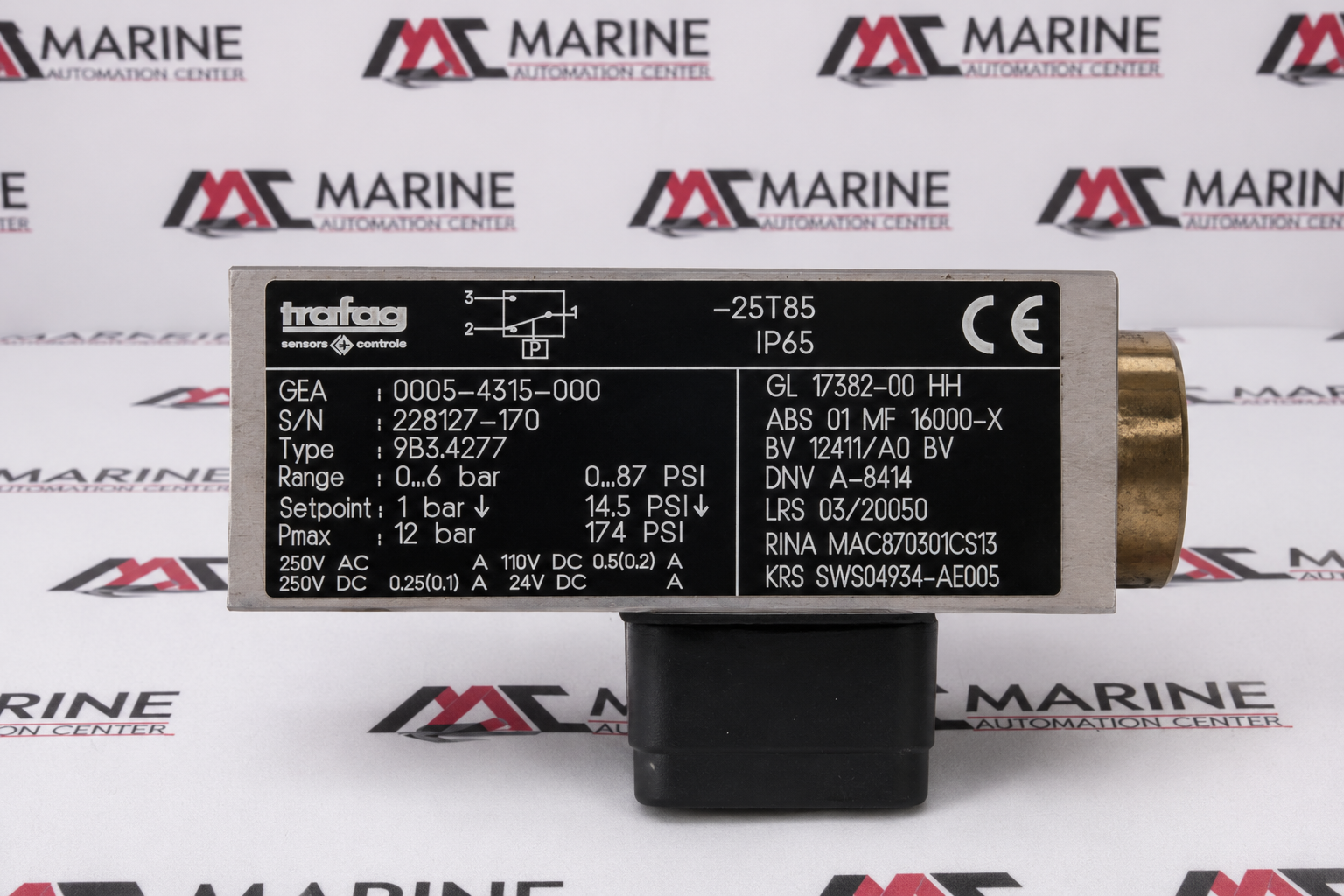

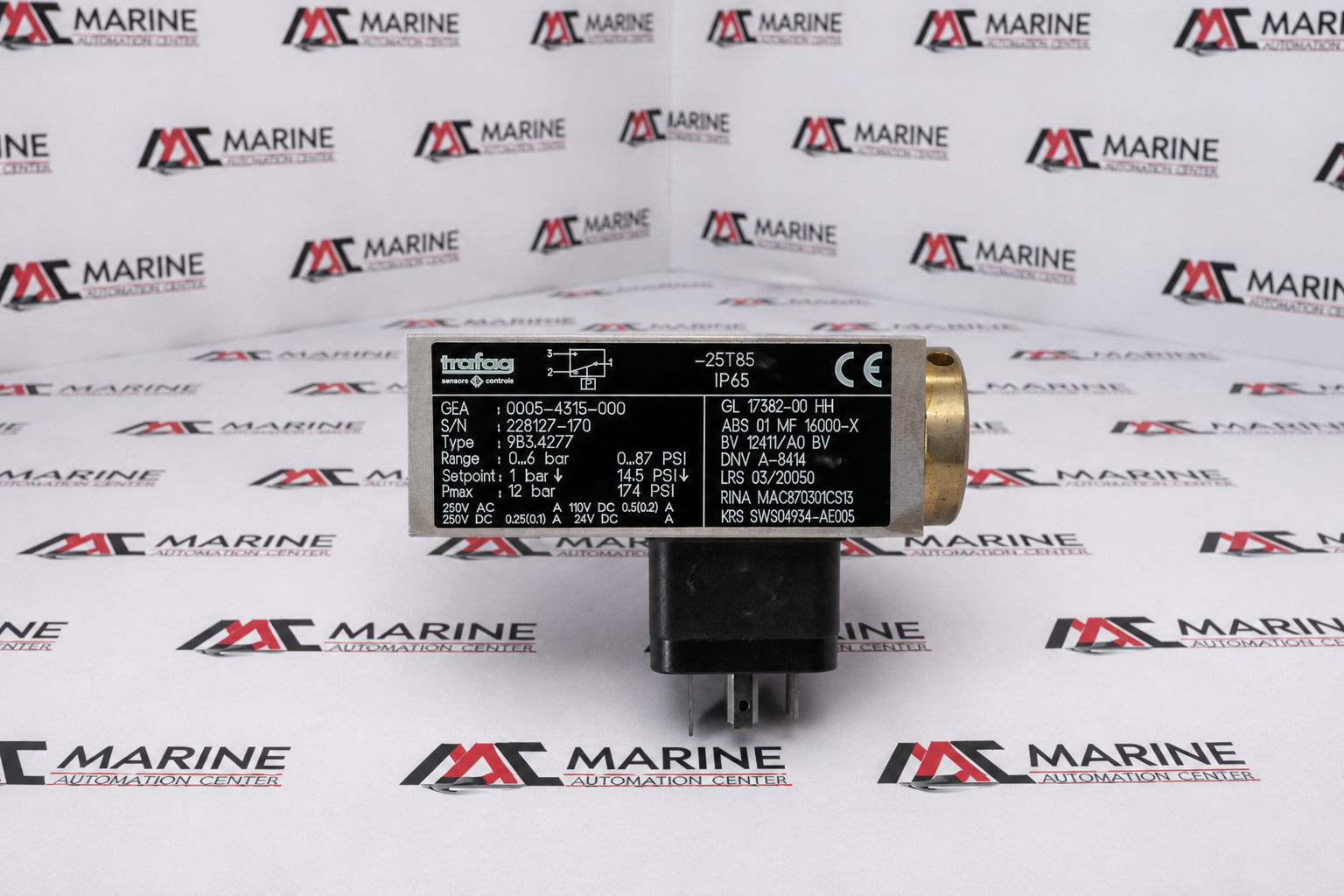

Trafag Sensors & Controls Mechanical Pressure Switch 9B3.4277
The Trafag Sensors & Controls 0005-4315-000 (Model: 9B3.4277) is a mechanical Picostat pressure switch designed for reliable pressure monitoring and switching in hydraulic, pneumatic, and industrial process systems. It provides accurate pressure-actuated switching for alarm, control, and safety functions, making it ideal for marine, oil & gas, power generation, and industrial automation applications. Its rugged construction ensures dependable operation in demanding environments.
BRAND
Trafag Sensors & Controls
TYPE
Mechanical Pressure Switch
PART NO.
0005-4315-000
MODEL
9B3.4277
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Trafag Sensors & Controls |
| TYPE | Mechanical Pressure Switch |
| PART NO. | 0005-4315-000 |
| MODEL | 9B3.4277 |
| Product Series | Picostat 9B3 |
| Pressure Range | 0 … 6 bar (0 … 87 PSI) |
| Factory Setpoint | 1 bar decreasing |
| Maximum Pressure | 12 bar (174 PSI) |
| Switch Type | SPDT |
| Electrical Rating (AC) | 250 VAC |
| Application | Pressure monitoring of lubrication oil, cooling water, hydraulic systems, marine engines, compressors, pumps and industrial process control |
| Made In | Switzerland |
| REF NO. | 356 |
