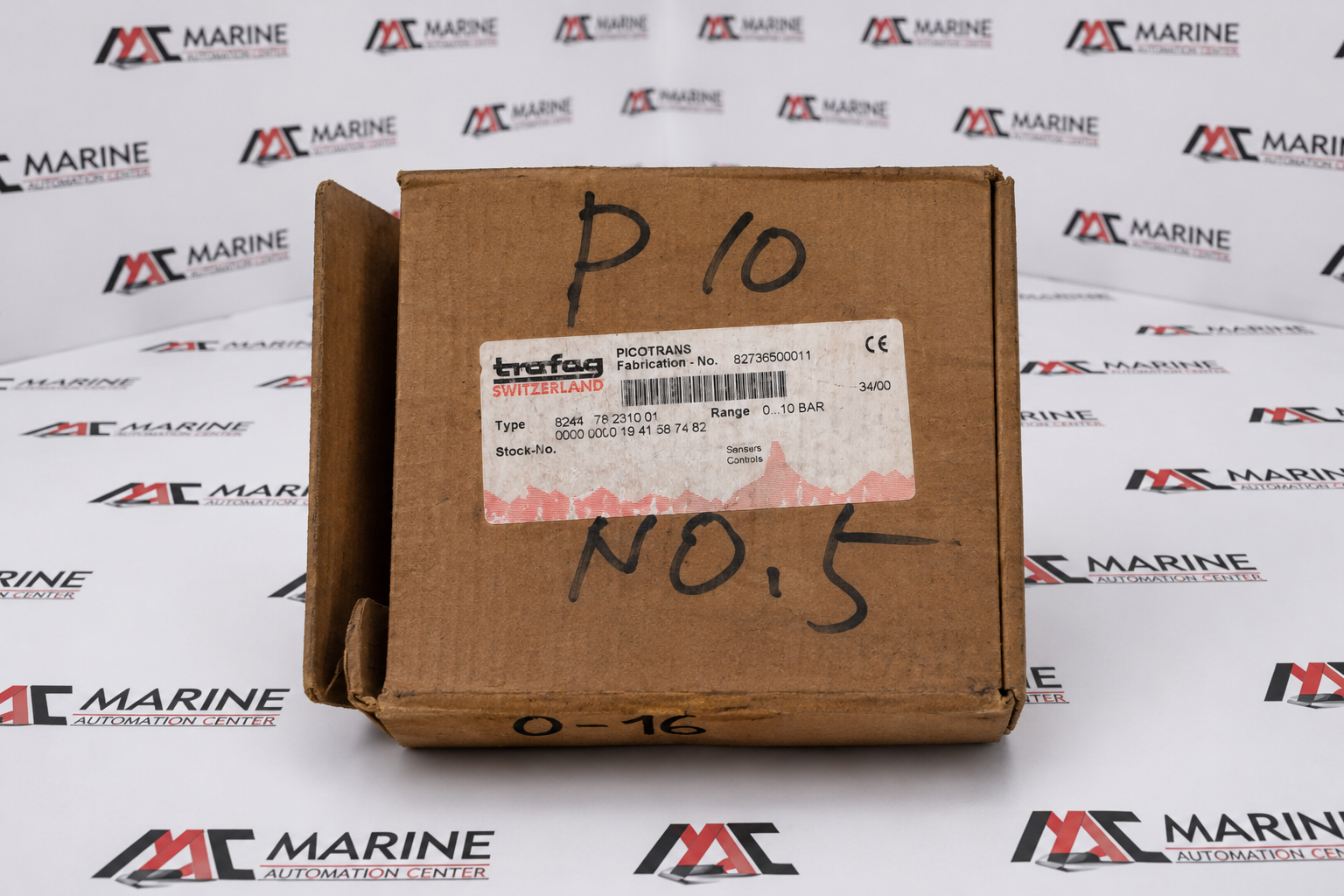

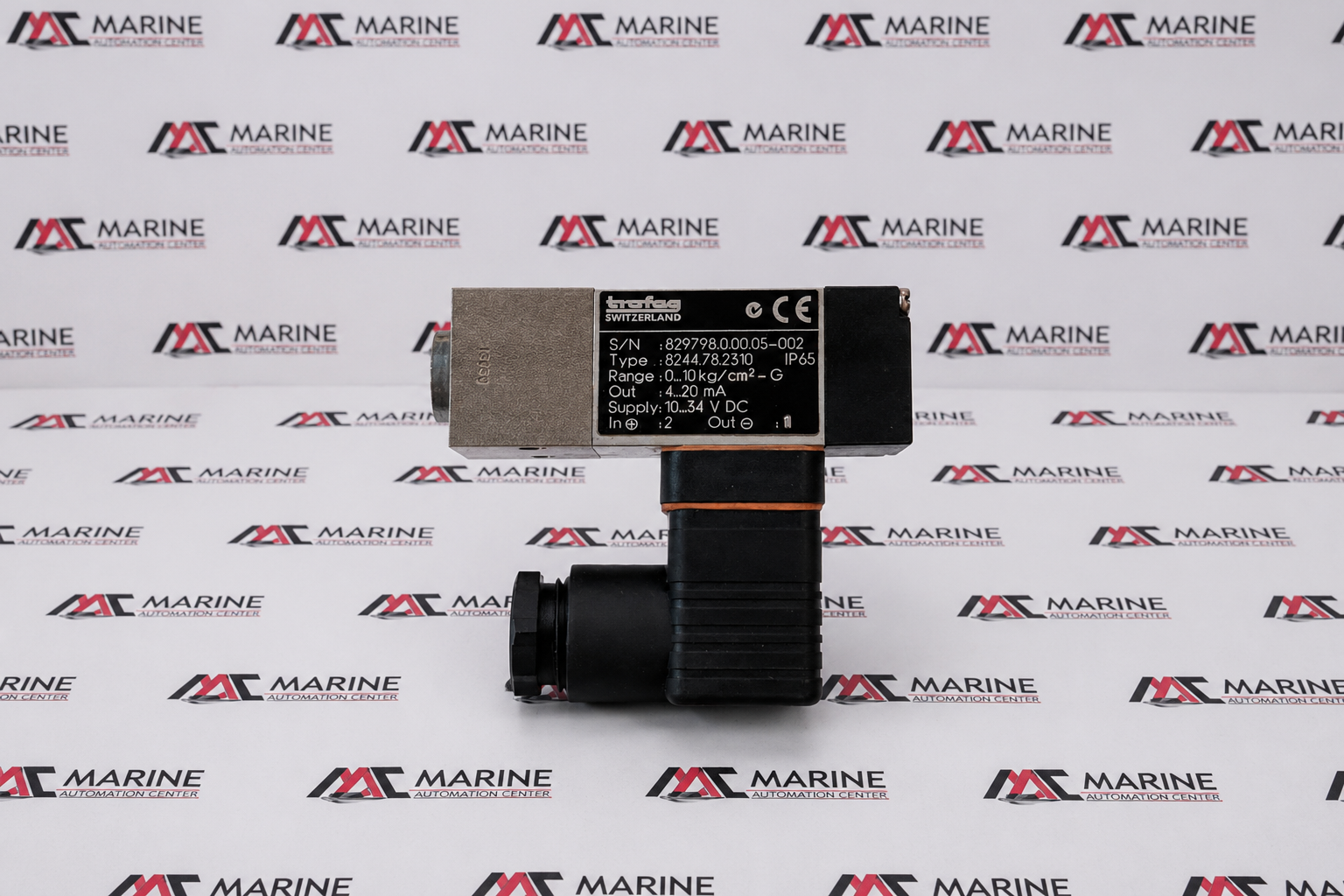

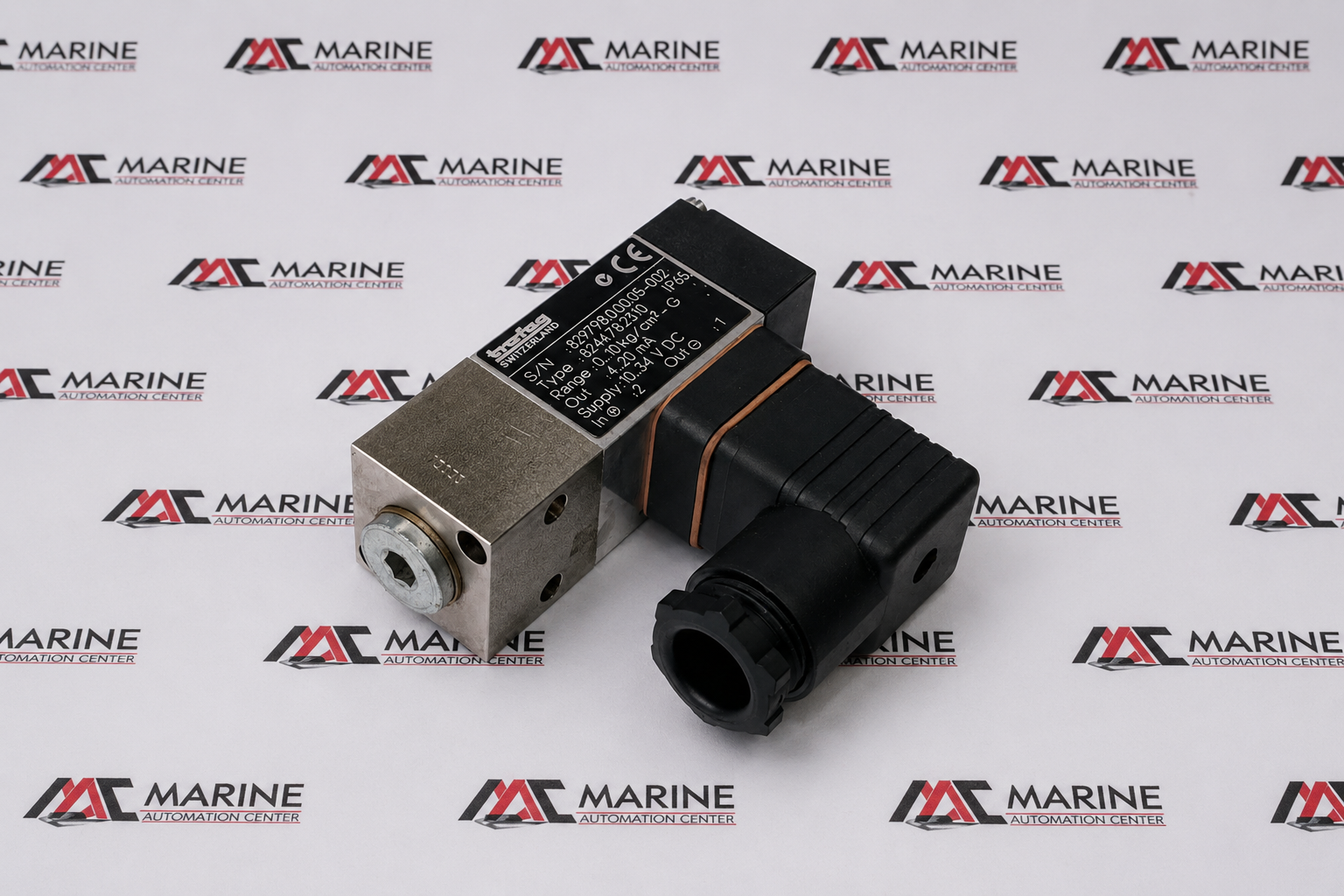

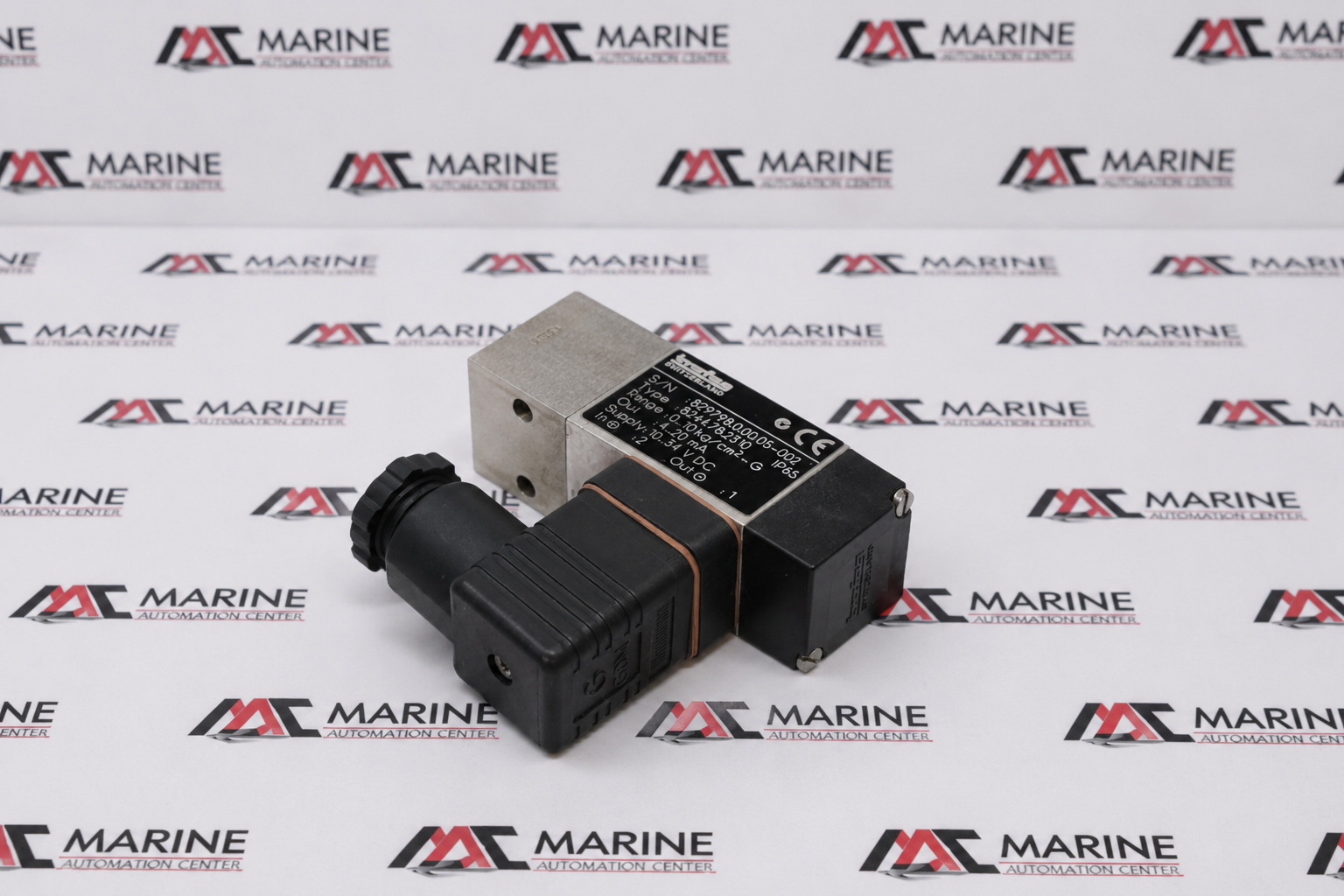

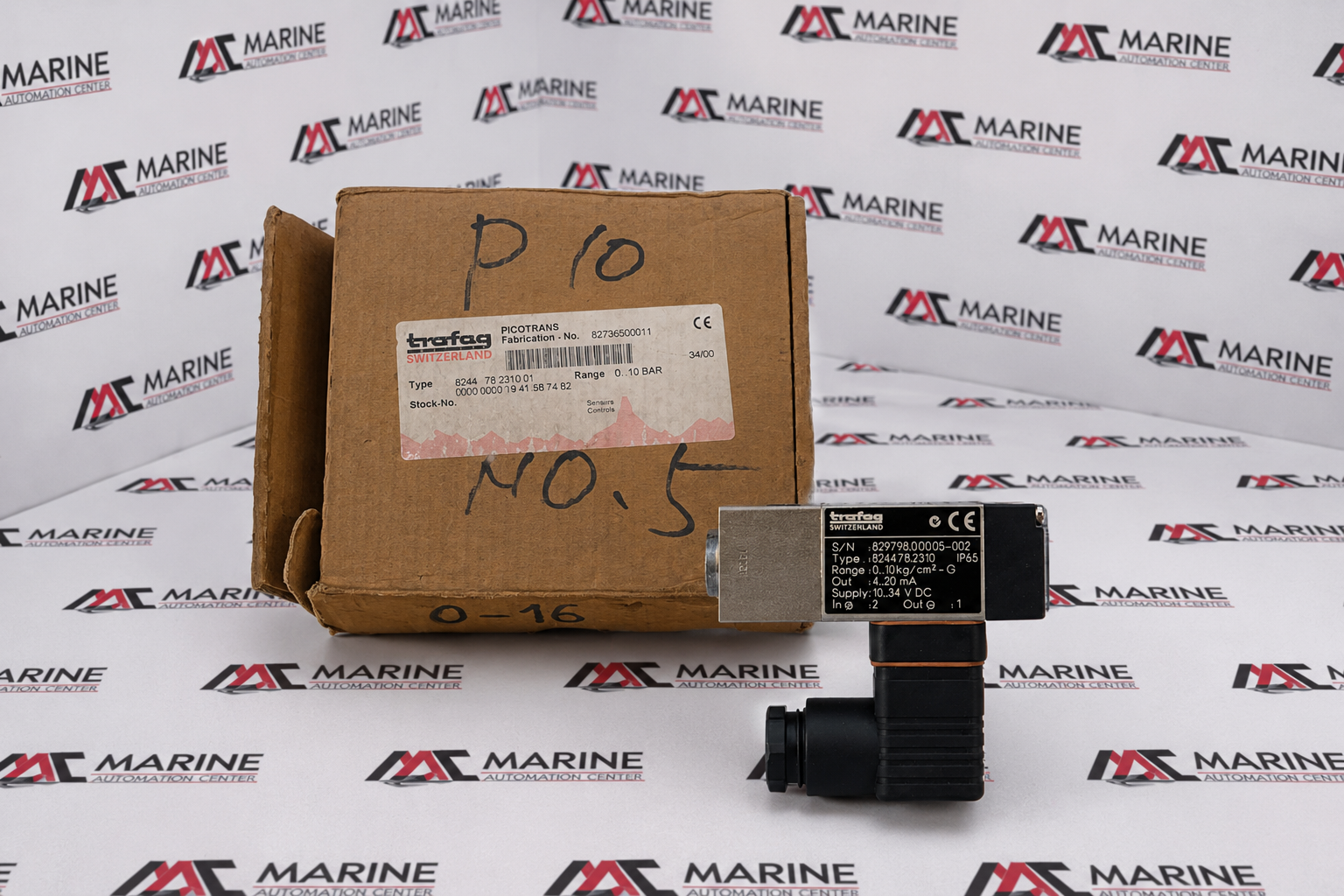

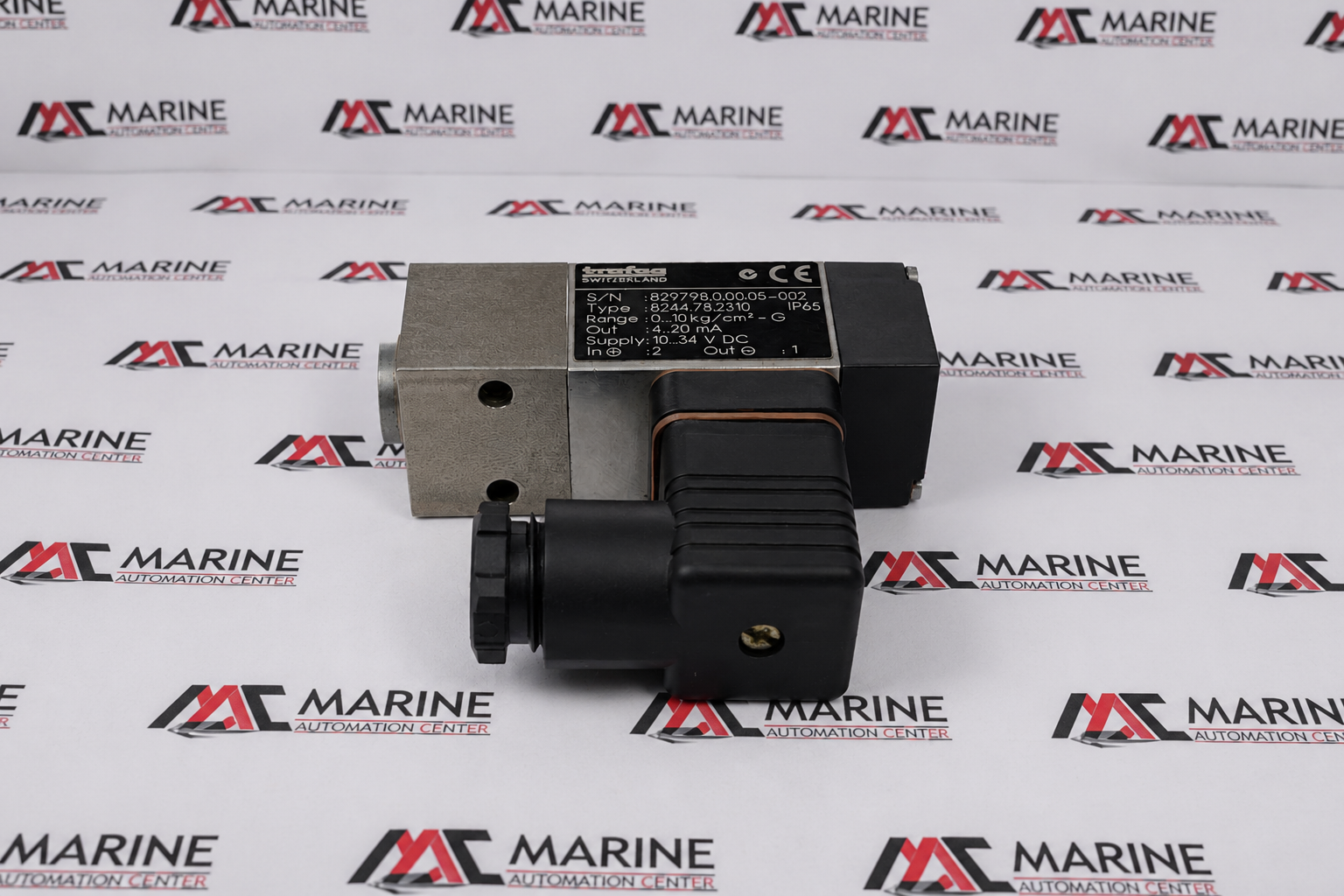

Trafag Pressure Transmitter Picotrans 8244
The Trafag Picotrans 8244 (P/N: 8244.78.2310) is a compact pressure transmitter designed for accurate and reliable pressure measurement in hydraulic, pneumatic, and industrial process systems. It converts process pressure into a stable electrical output signal for continuous monitoring and control. Built with rugged stainless-steel construction and high resistance to vibration and harsh environments, it is well suited for marine, oil & gas, power generation, and industrial automation application
BRAND
Trafag
TYPE
Pressure Transmitter
PART NO.
8244.78.2310
MODEL
Picotrans 8244
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Trafag |
| TYPE | Pressure Transmitter |
| PART NO. | 8244.78.2310 |
| MODEL | Picotrans 8244 |
| Pressure Measuring Principle | Thin-Film-on-Steel Pressure Transmitter |
| Pressure Range | 0…10 kg/cm² |
| Output Signal | 4…20 mA (2-wire) |
| Supply Voltage | 10…34 V DC |
| Electrical Connection | DIN EN 175301-803-A (DIN 43650-A) Connector |
| Pressure Connection | Flange / PICO Block Type Process Connection |
| Protection Class | IP65 |
| Accuracy | ±0.5% FS (Typical) |
| Response Time | Approx. 1 ms (Typical) |
| Housing Material | Stainless Steel |
| Application | Continuous pressure measurement for marine hydraulic systems, lubrication systems, compressors, pumps, engine automation, process control and industrial automation |
| Made In | Switzerland |
| REF NO. | 359 |
