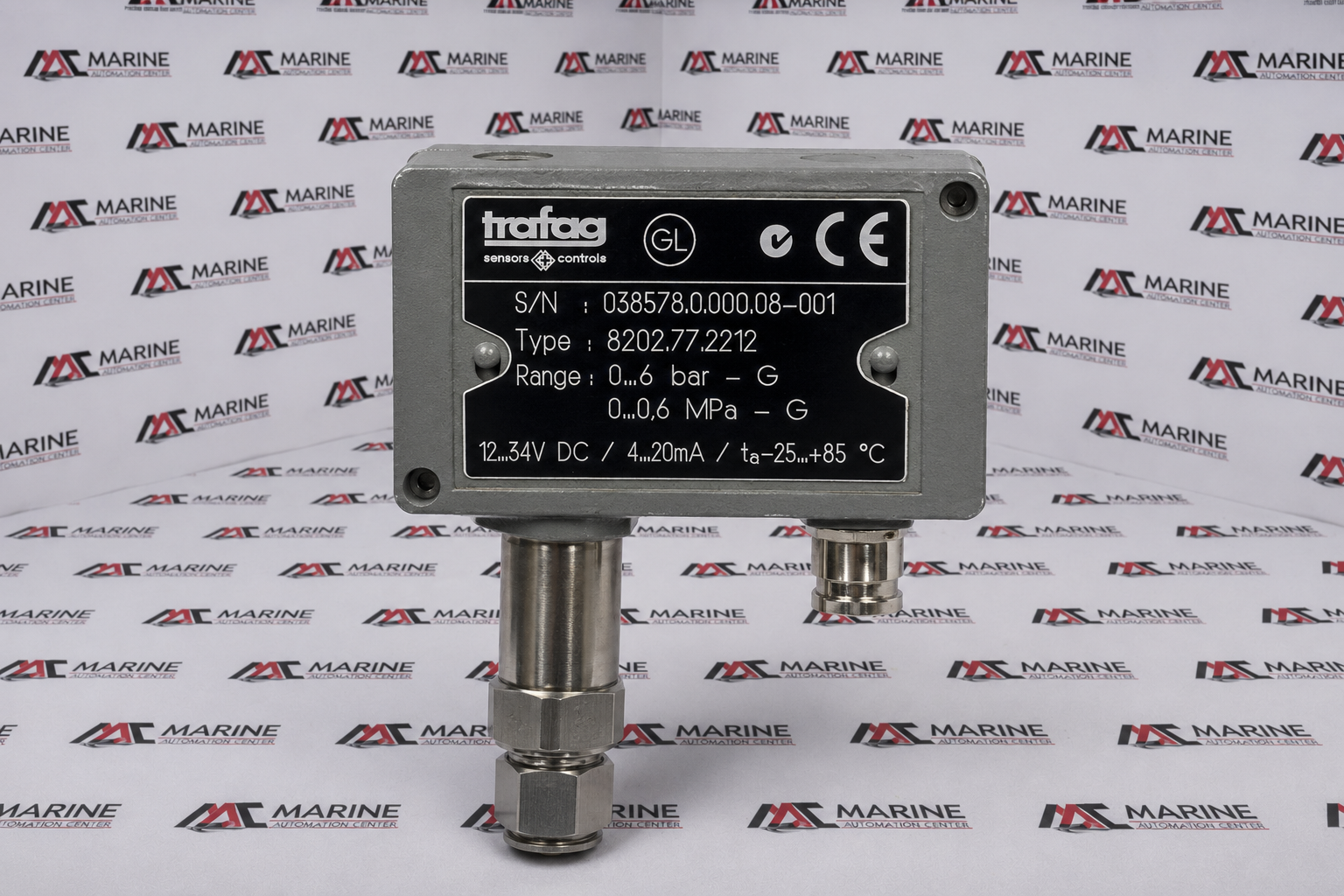

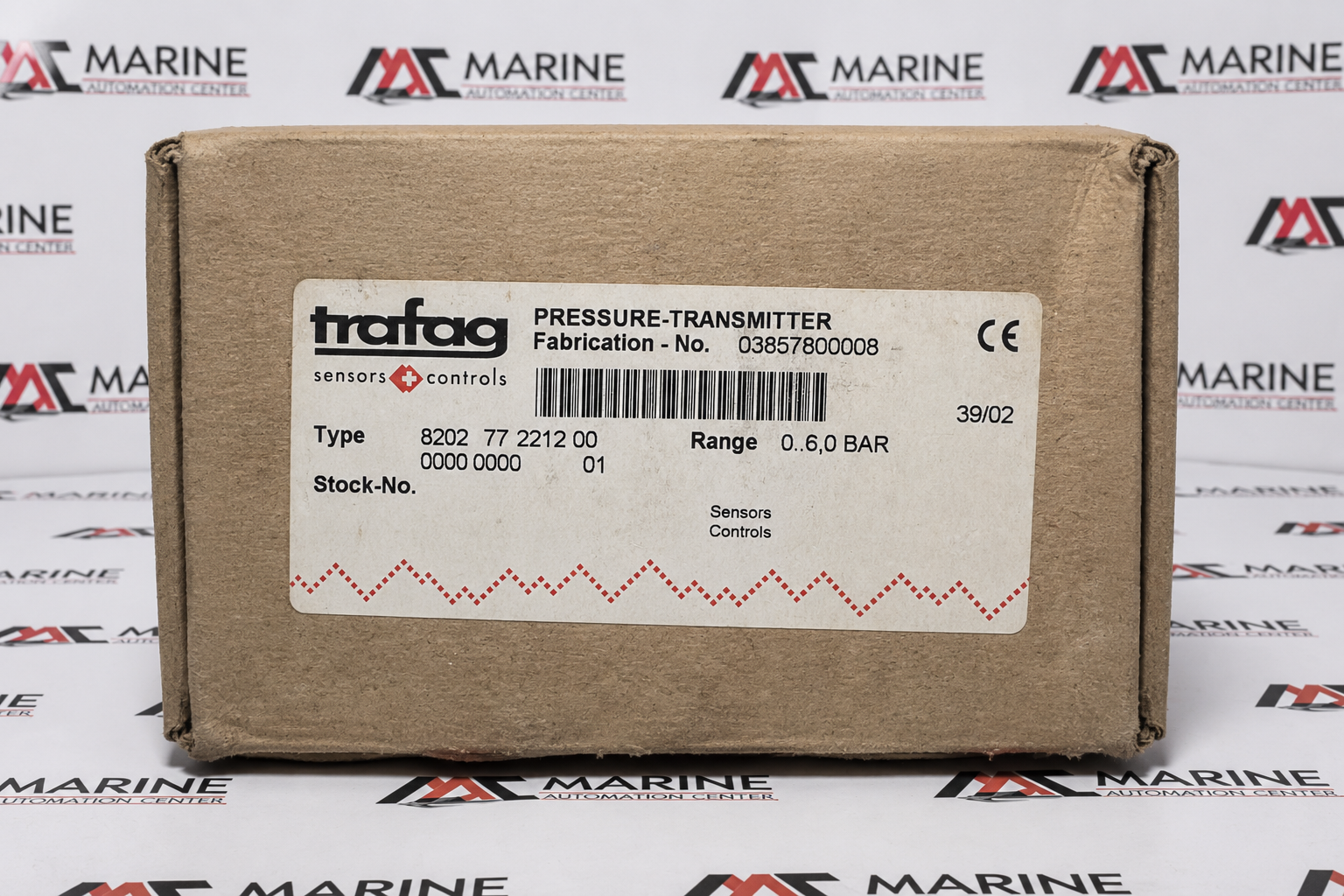

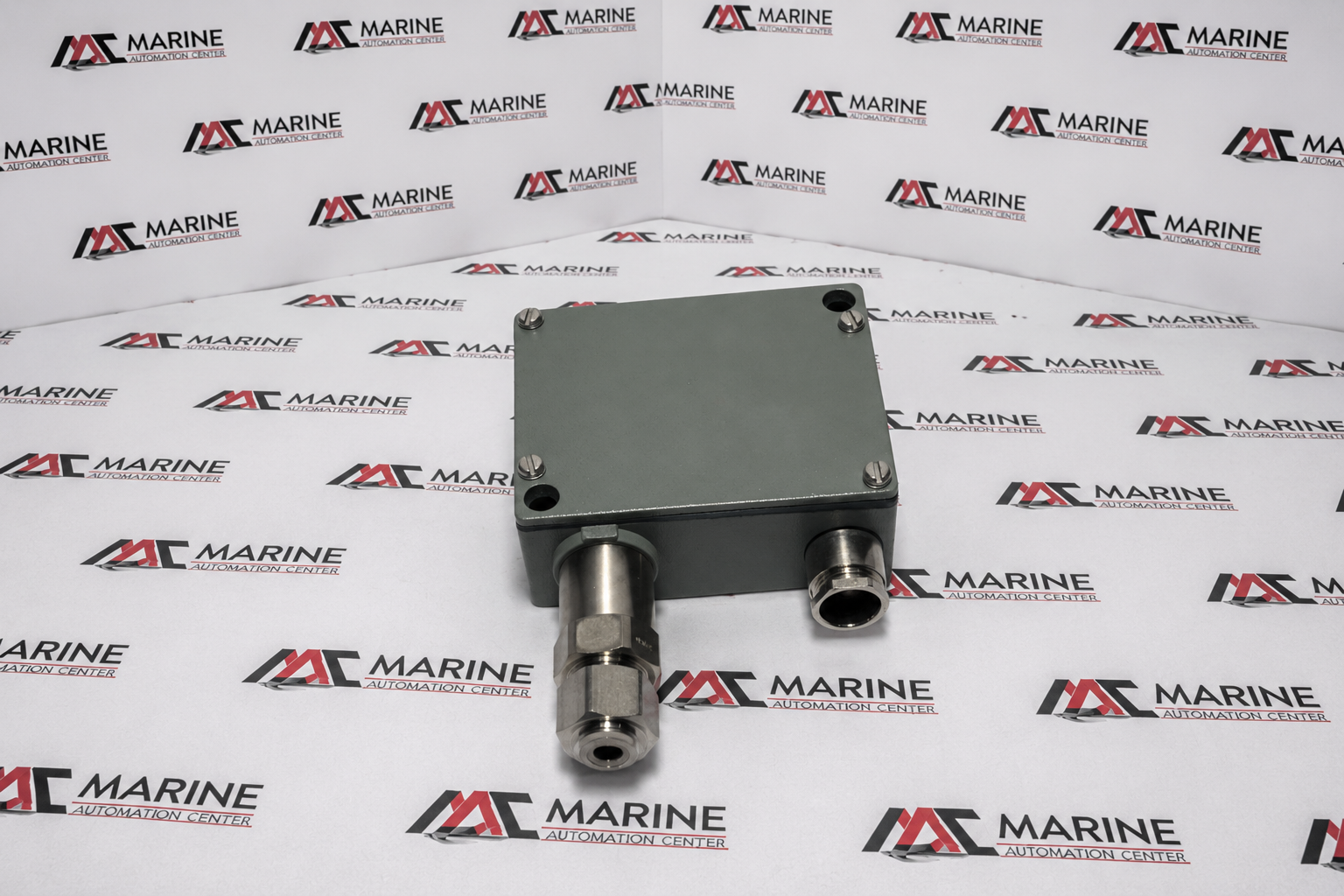

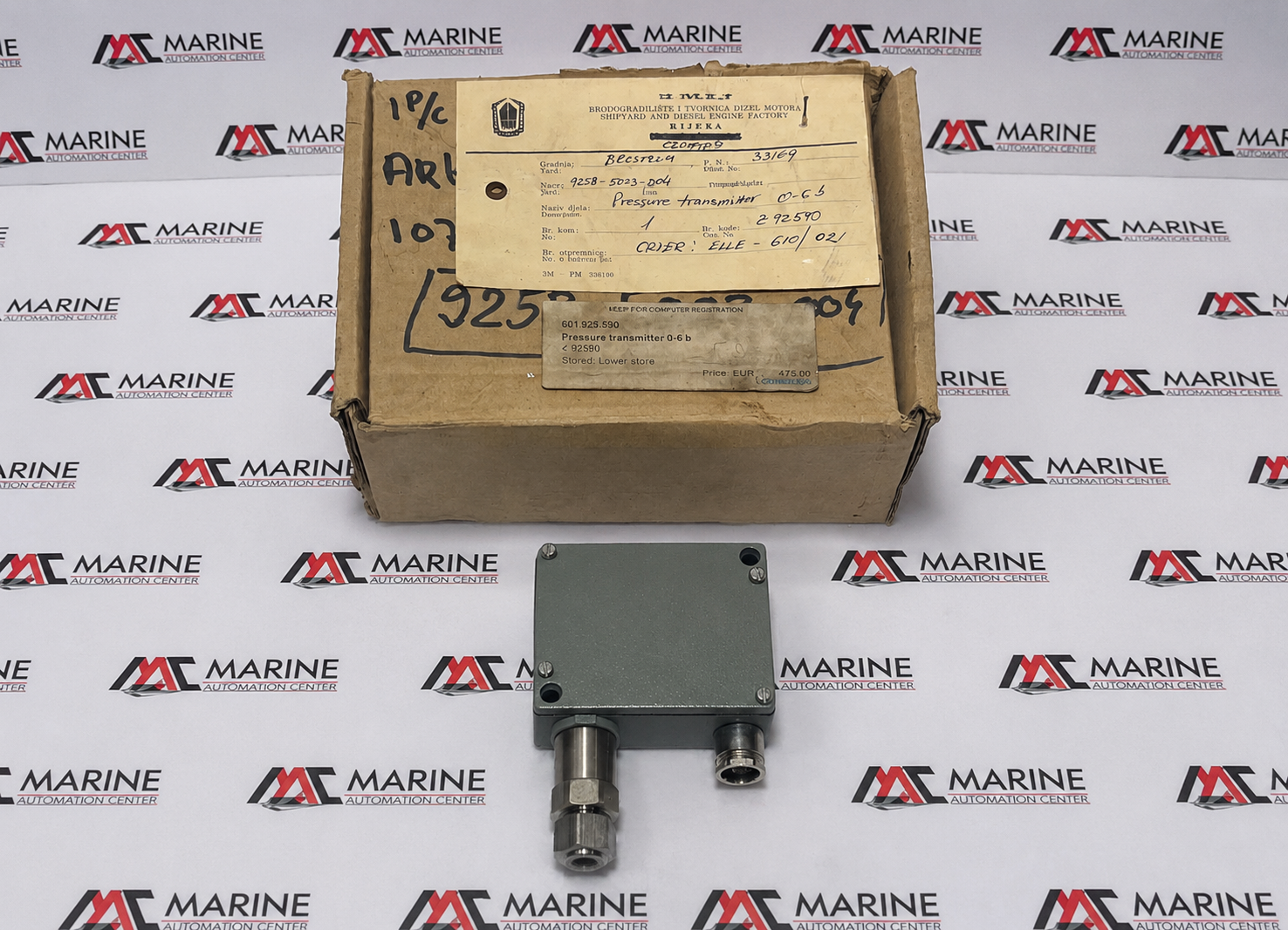

Trafag Pressure Transmitter
The Trafag Navitrag N 8202 Pressure Transmitter is a high-performance pressure sensing device designed for accurate and reliable pressure measurement in demanding marine and industrial environments. Built with rugged construction and excellent long-term stability, it delivers precise pressure monitoring for hydraulic, pneumatic, and process control applications, ensuring safe and efficient system performance.
BRAND
Trafag
TYPE
Pressure Transmitter
PART NO.
8202.77.2212
MODEL
Navitrag N 8202
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Trafag |
| TYPE | Pressure Transmitter |
| PART NO. | 8202.77.2212 |
| MODEL | Navitrag N 8202 |
| Voltage Rating | 12...34 V DC |
| Application | Marine and industrial pressure measurement applications |
| IEC | CE Compliant / Germanischer Lloyd (GL) Marine Approved |
| Pressure Range | 0...6 bar (Gauge) / 0...0.6 MPa (Gauge) |
| Output Signal | 4...20 mA Analog Current Loop |
| Ambient Operating Temperature | -25°C to +85°C |
| Compliance Certification | CE Marking and Germanischer Lloyd (GL) Marine Type Approval |
| Made In | Switzerland |
| REF NO | 1198 |
