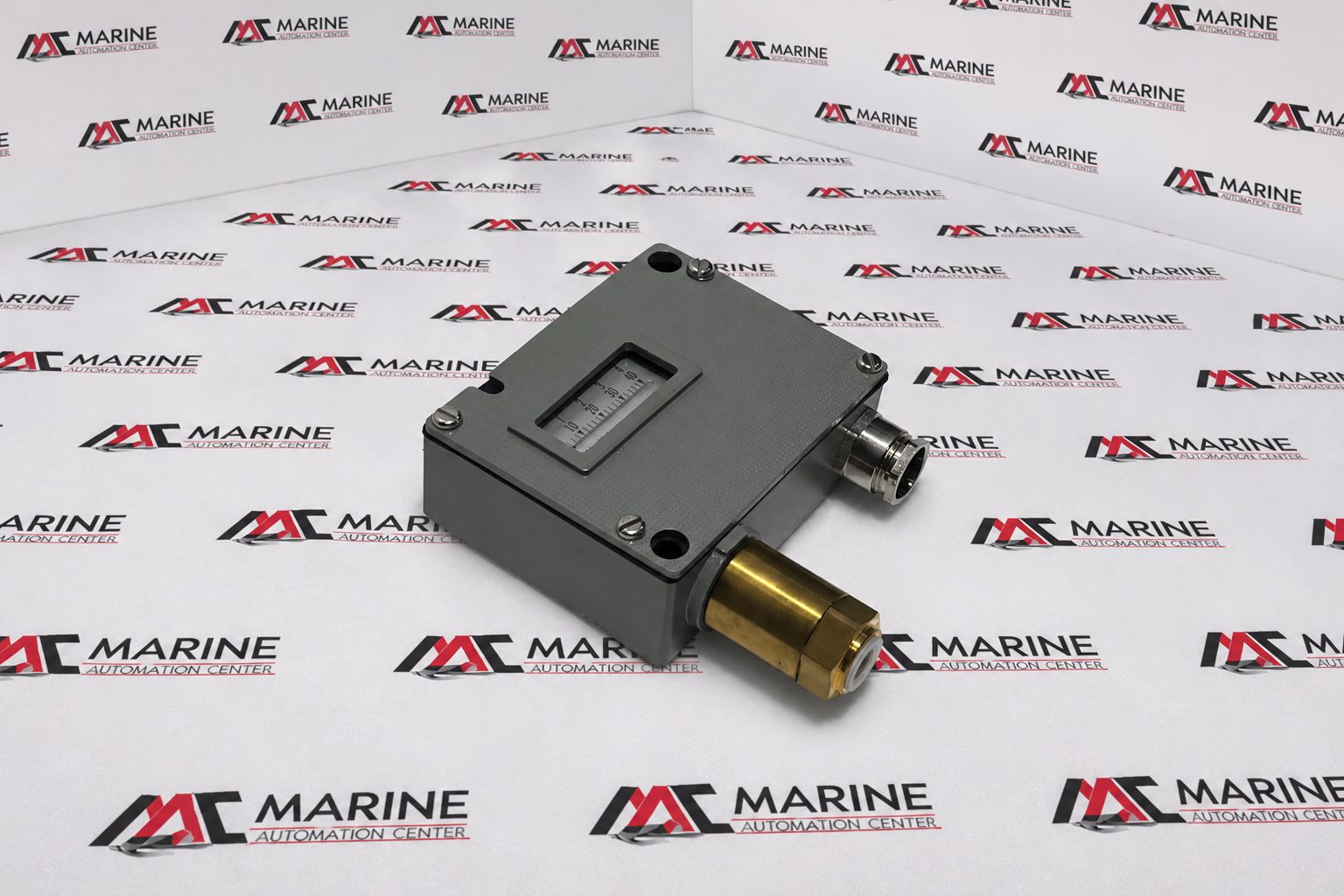

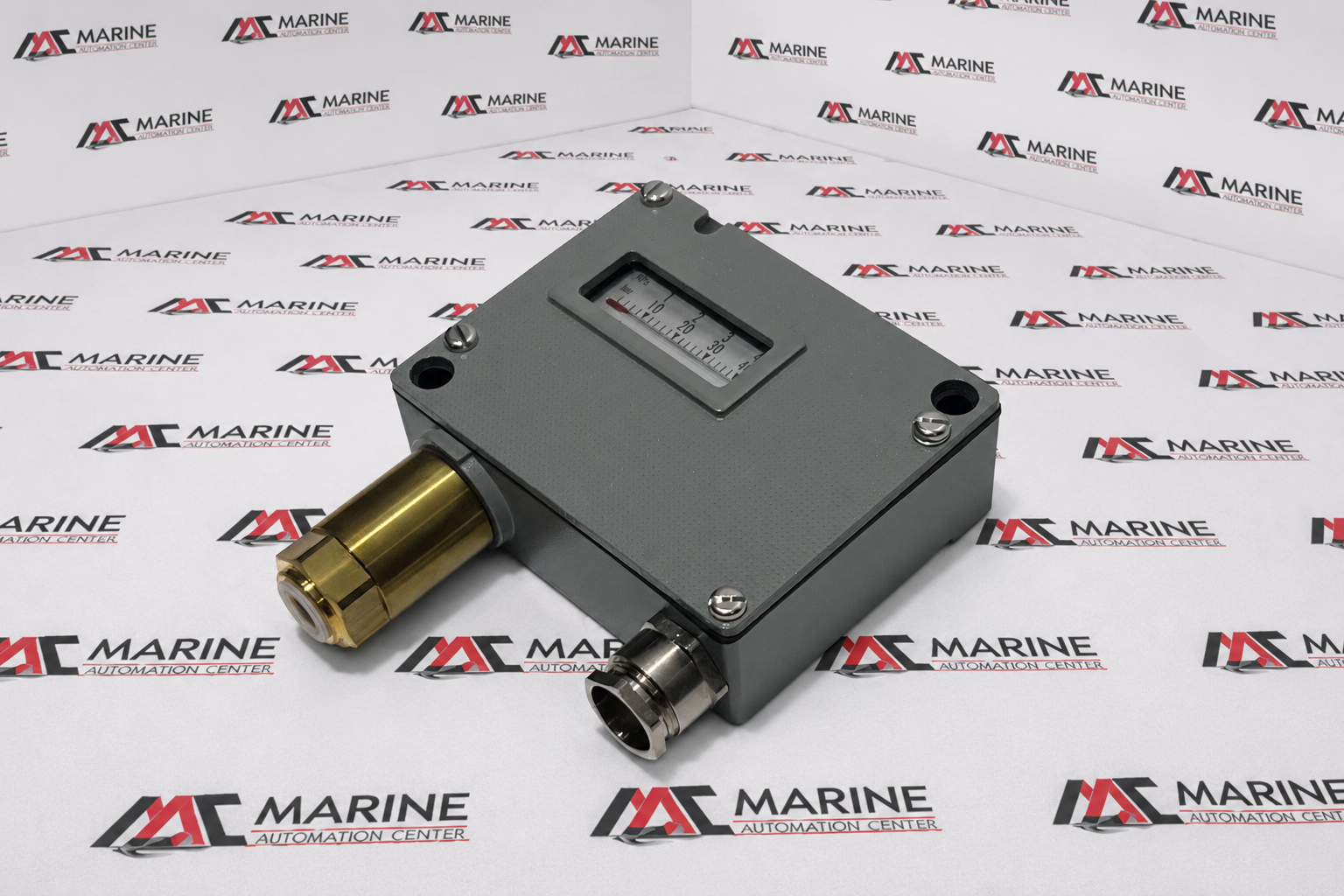

Trafag Pressure Switch (Pressostat)
The Trafag P40 PRESSOSTAT Pressure Switch is a rugged and reliable pressure control device designed for precise pressure monitoring in demanding marine and industrial applications. Engineered for accuracy and long service life, it provides dependable switching performance to protect equipment and maintain efficient operation in hydraulic, pneumatic, compressor, and process control systems.
BRAND
Trafag
TYPE
Pressure Switch
PART NO.
900.2381.907
MODEL
P40 PRESSOSTAT
Full Technical Specifications ▶

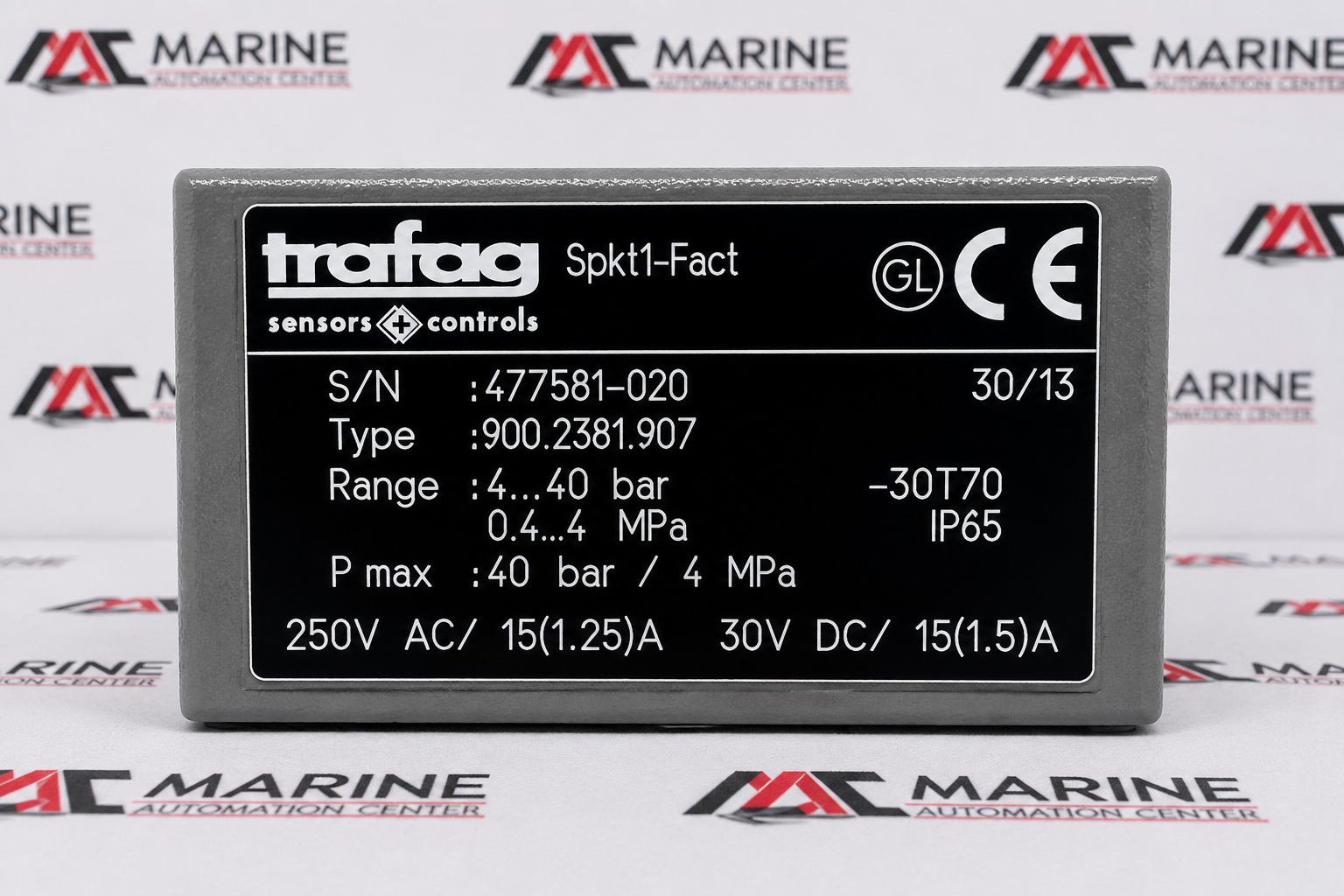

| Parameter | Value / Description |
|---|---|
| BRAND | Trafag |
| TYPE | Pressure Switch |
| PART NO. | 900.2381.907 |
| MODEL | P40 PRESSOSTAT |
| MANUFACTURER | Trafag AG – Sensors & Controls |
| Voltage Rating | 250 V AC / 15(1.25) A, 30 V DC / 15(1.5) A |
| Application | Marine and industrial pressure monitoring and switching applications |
| IEC | CE Compliant |
| Pressure Range | 4...40 bar (0.4...4 MPa) |
| Maximum Pressure (P max) | 40 bar / 4 MPa |
| Protection Class | IP65 |
| Compliance Certification | CE Marked, Germanischer Lloyd (GL) Marine Approved |
| Made In | Switzerland |
| REF NO | 1199 |
