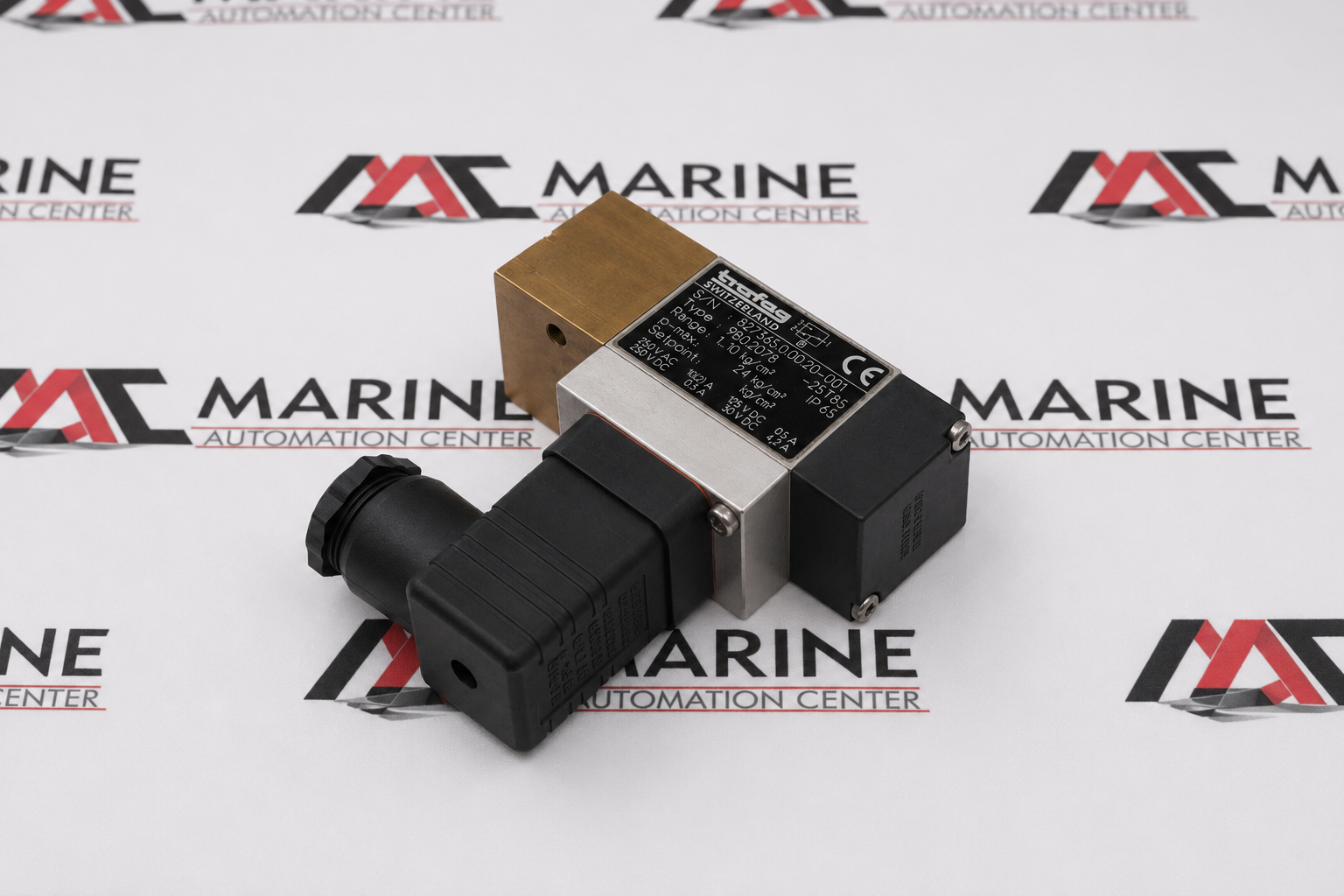

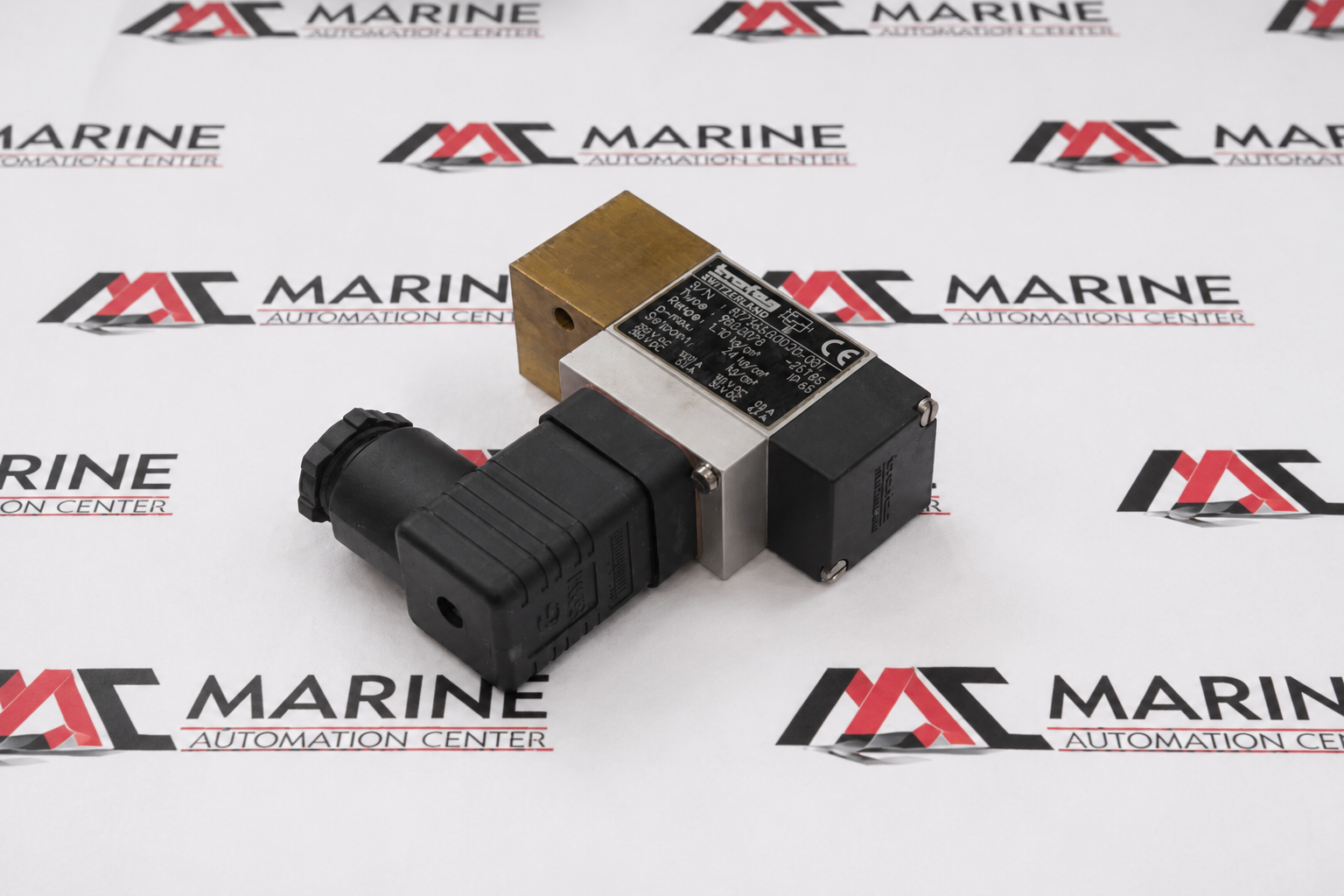

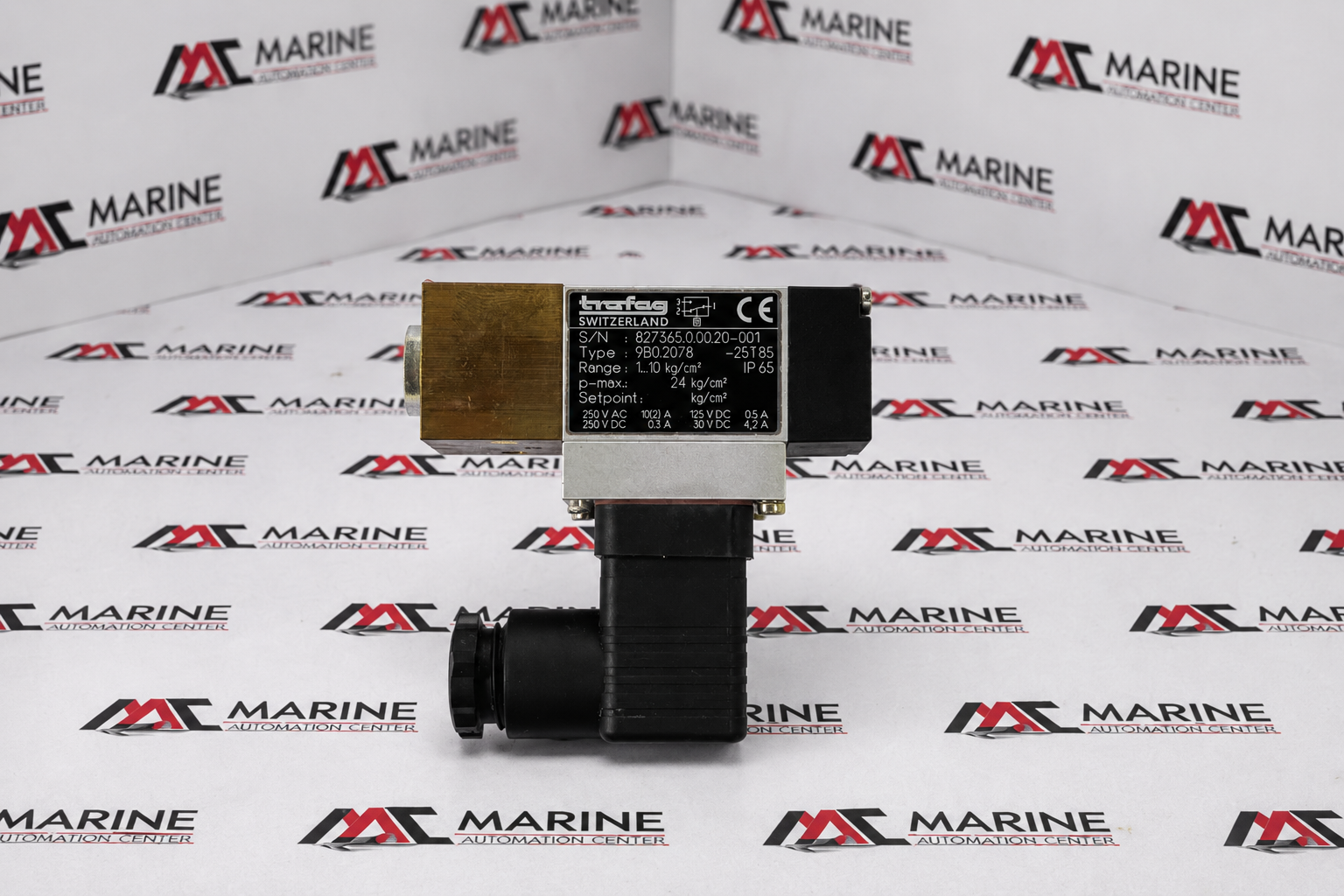

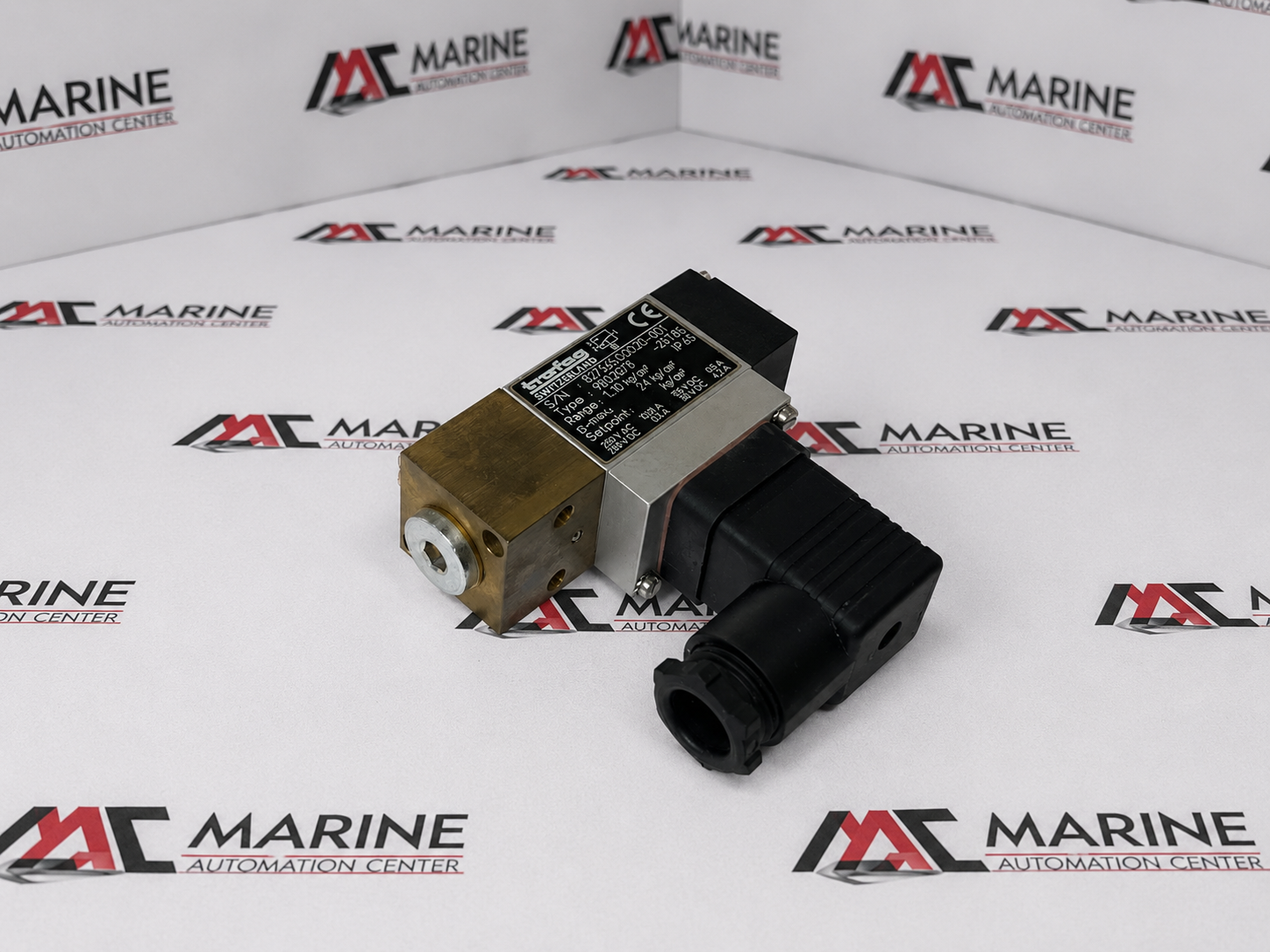

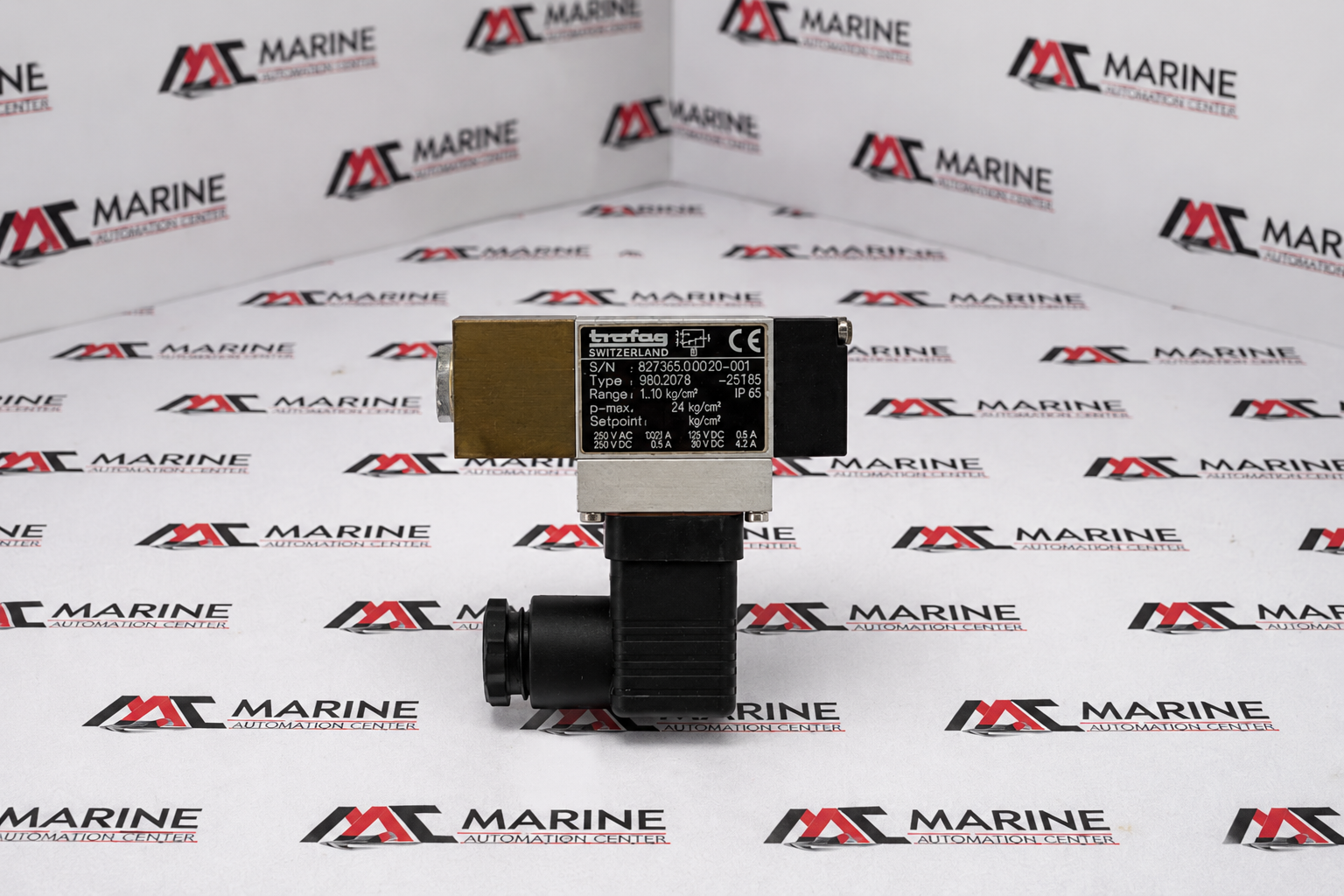

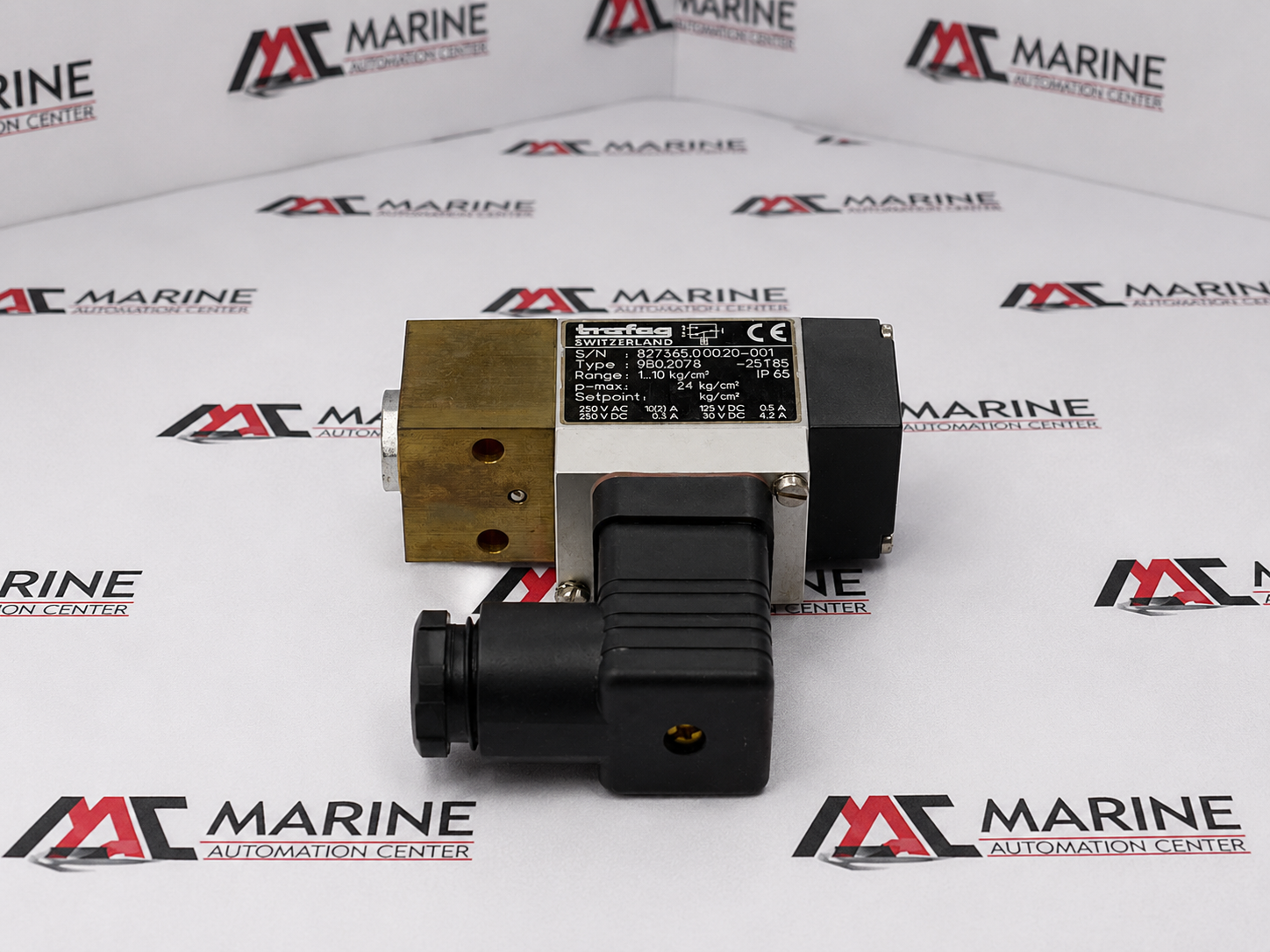

Trafag Pressure Switch 9B0 Picostat
The Trafag 9B0 Picostat (P/N: 9B0.2078-25185) is a bellows-type mechanical pressure switch designed for precise pressure monitoring and switching in hydraulic, pneumatic, and industrial process systems. It provides dependable pressure-actuated switching for control, alarm, and safety functions without requiring an external power supply. Its robust, compact design ensures reliable performance in harsh environments, making it ideal for marine, oil & gas, power generation, and industrial automation
BRAND
Trafag
TYPE
Pressure Switch
PART NO.
9B0.2078-25185
MODEL
9B0 Picostat
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Trafag |
| TYPE | Pressure Switch |
| PART NO. | 9B0.2078-25185 |
| MODEL | 9B0 Picostat |
| Product Series | Picostat |
| Measuring Principle | Bellows Pressure Switch |
| Pressure Range | 1…10 kg/cm² (Gauge) |
| Maximum Pressure | 24 kg/cm² |
| Electrical Rating (AC) | 250 VAC, 10(2) A |
| Electrical Rating (DC) | 250 VDC, 0.3 A |
| Protection Class | IP65 |
| Application | Pressure monitoring and switching in marine hydraulic systems, lubrication systems, compressors, pumps, diesel engines, process control and industrial automation |
| Made In | Switzerland |
| REF NO. | 358 |
