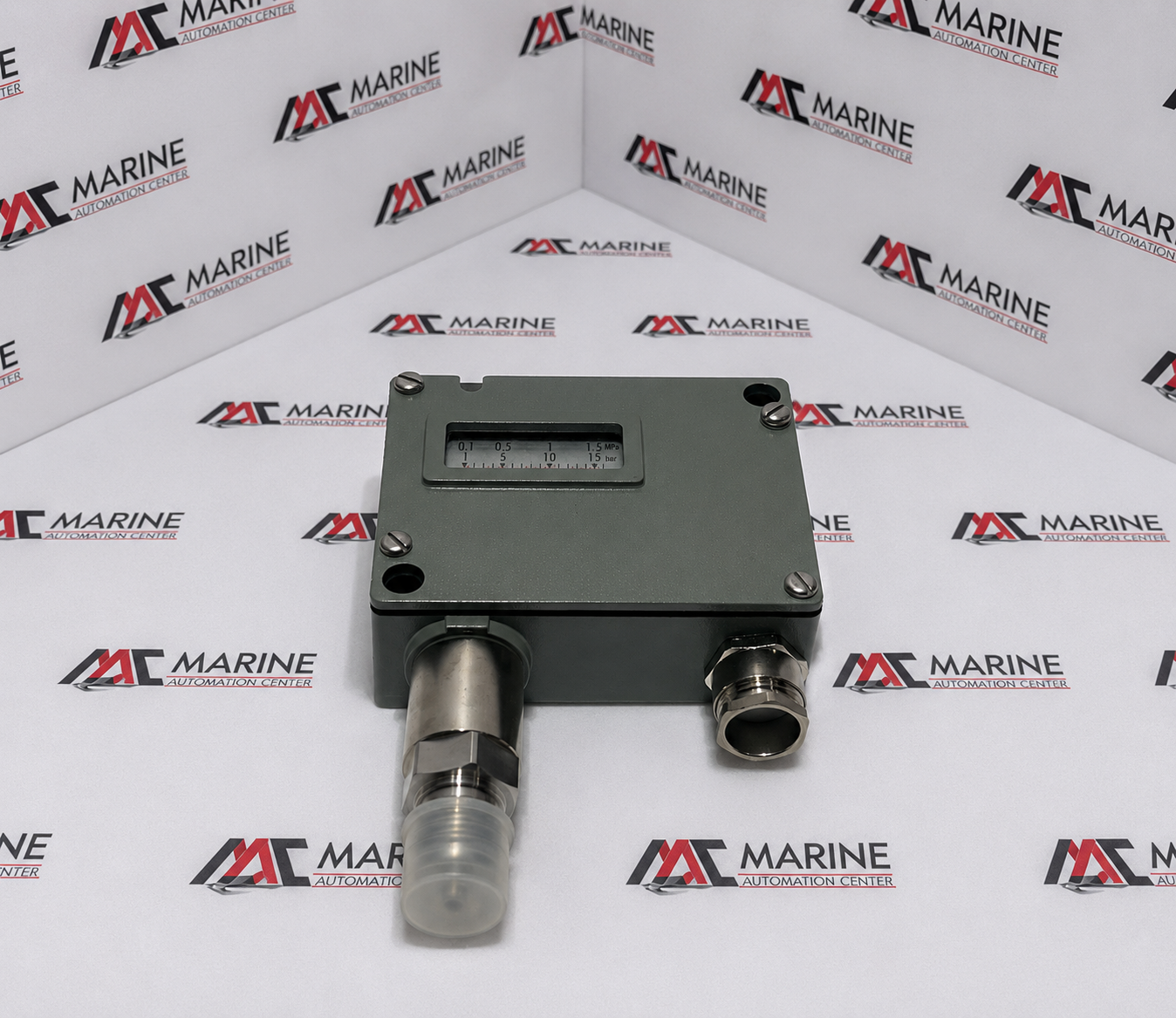

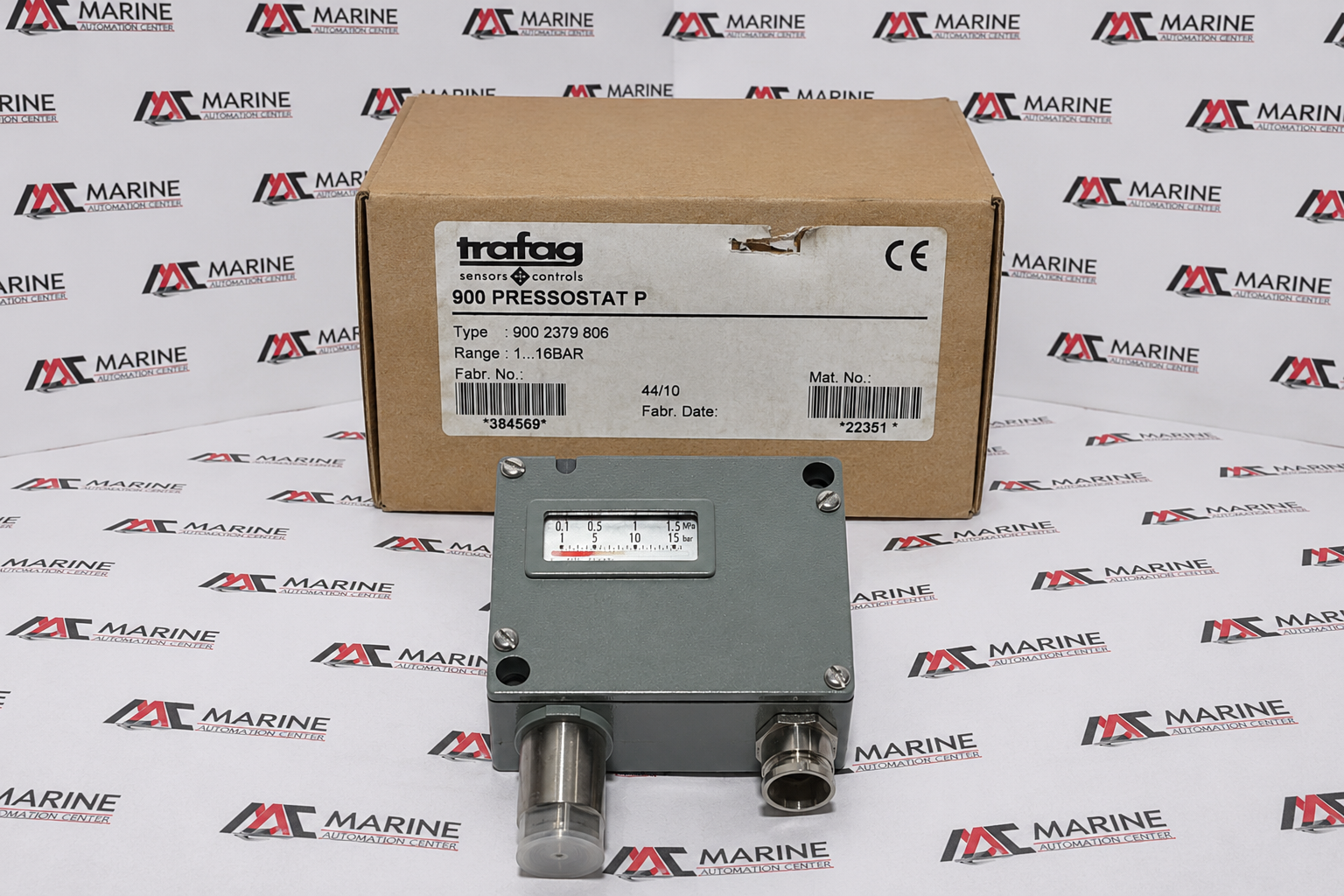

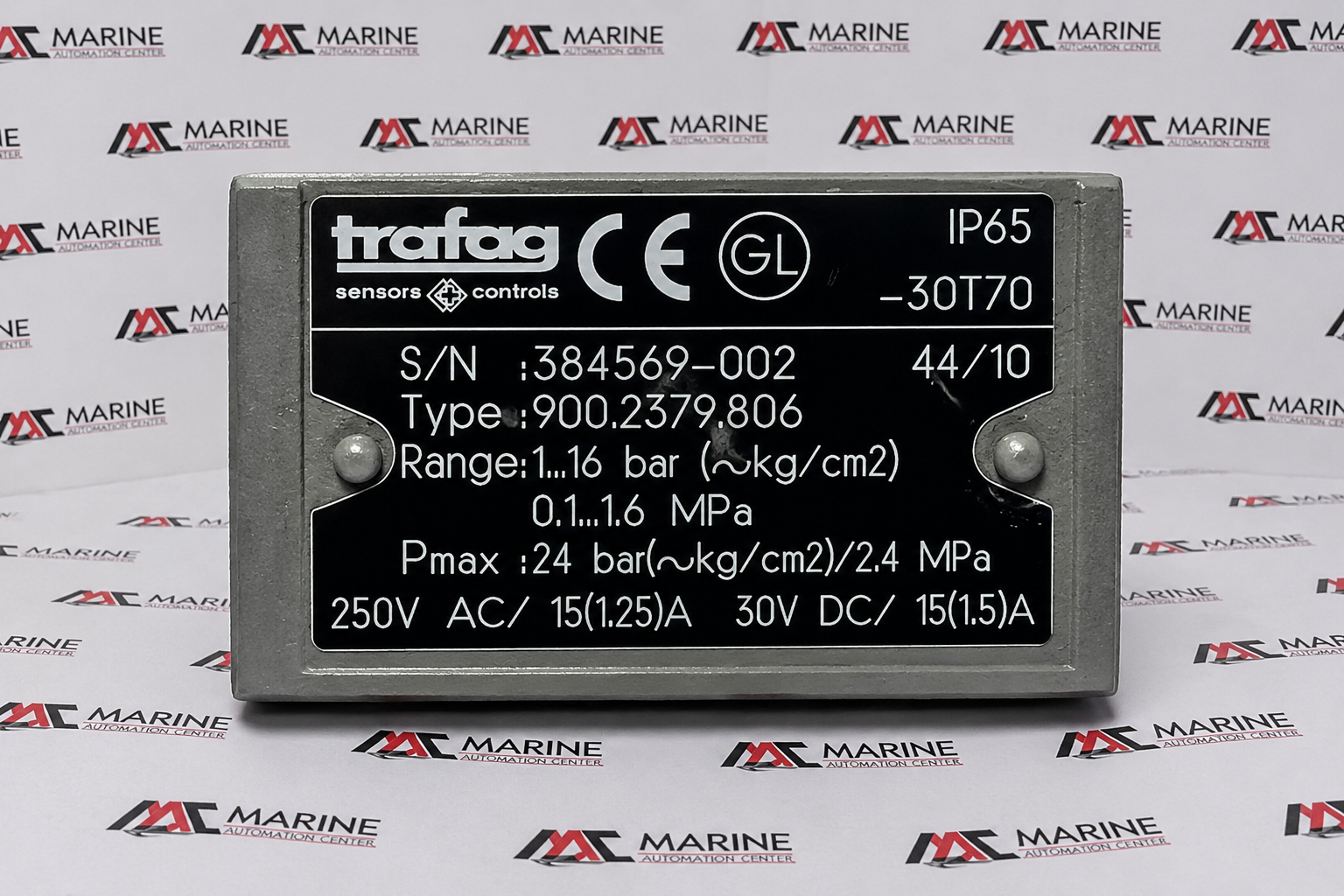

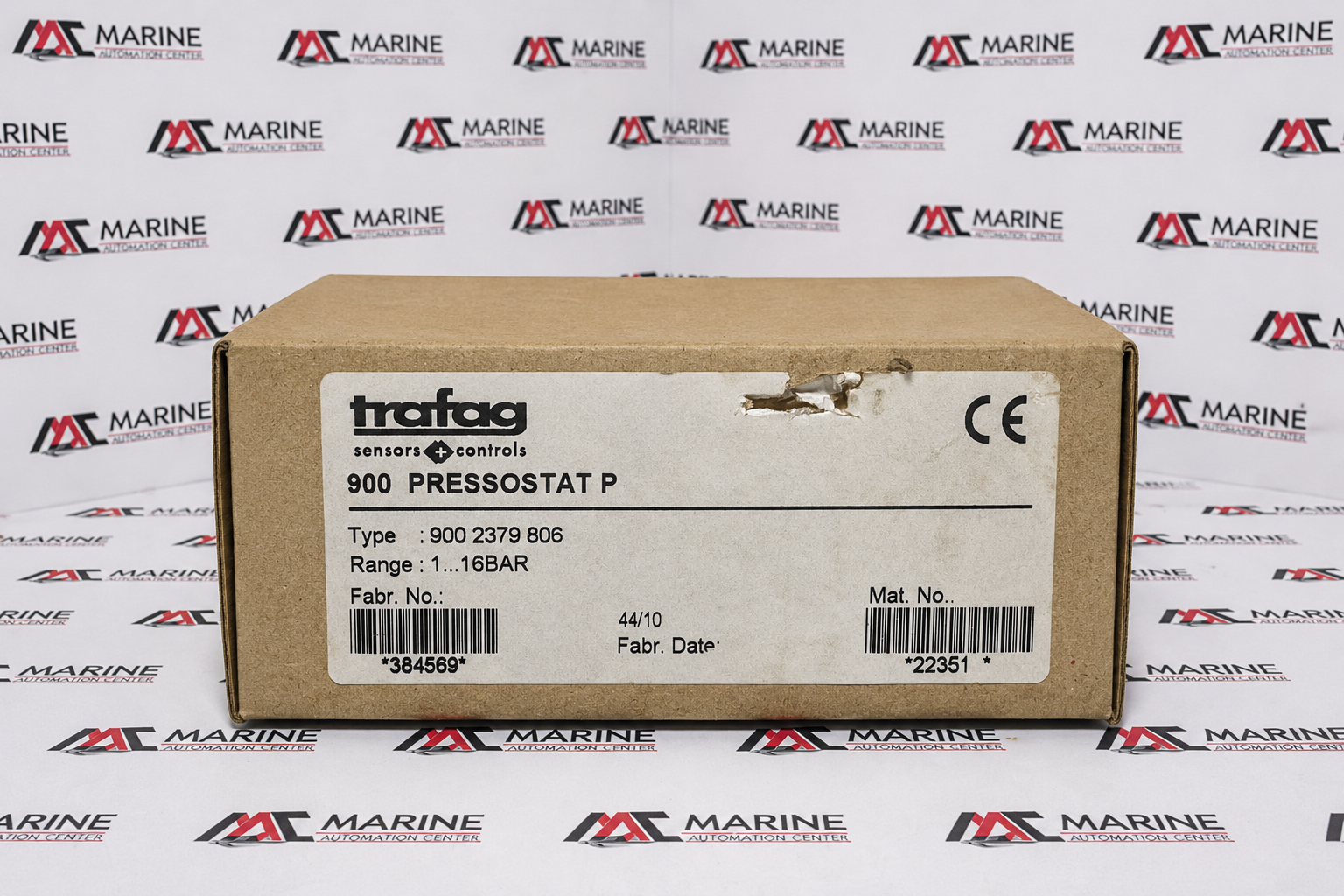

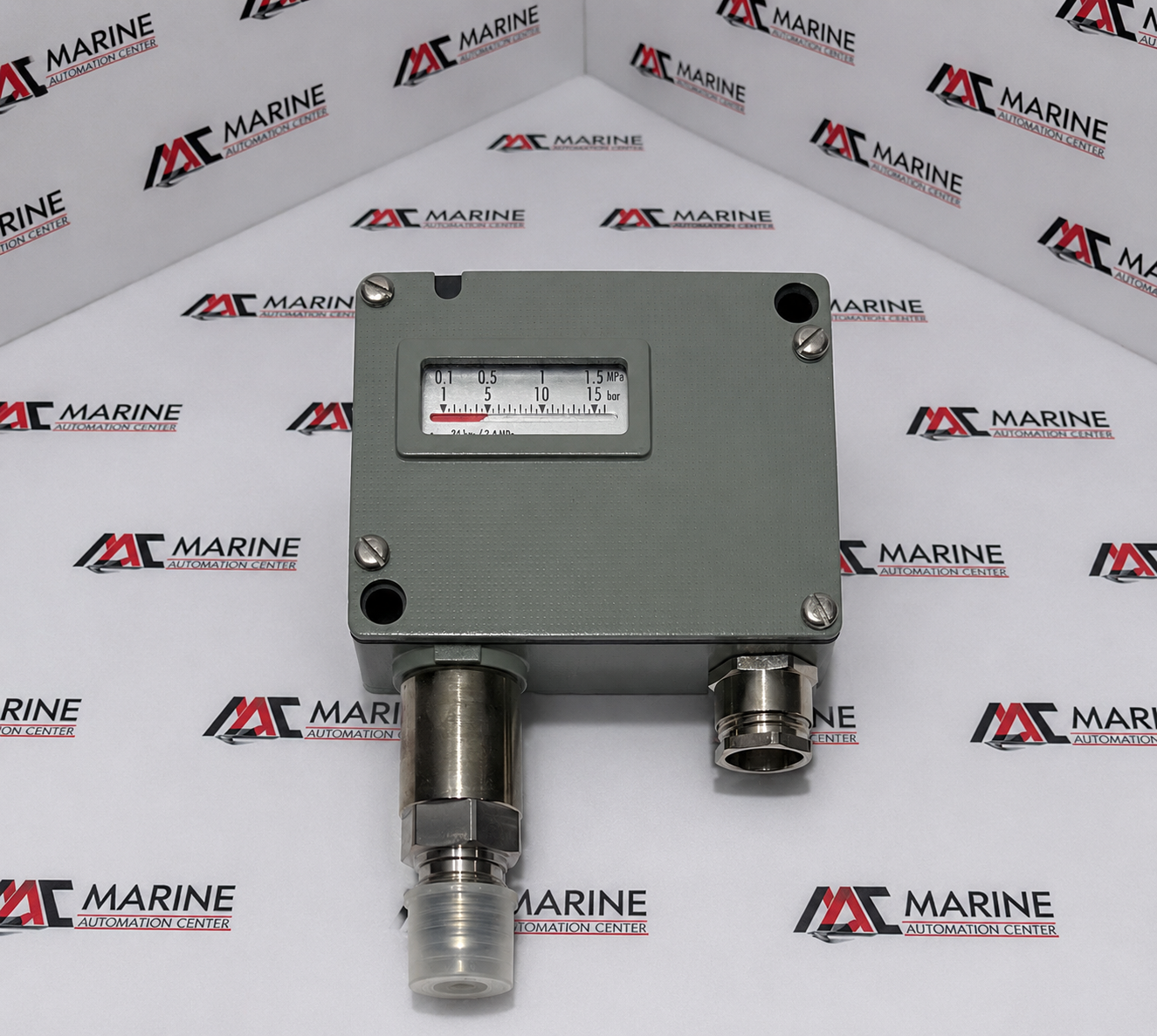

Trafag Pressure Switch (900 PRESSOSTAT P)
The Trafag 900 PRESSOSTAT P Pressure Switch is a robust and reliable pressure monitoring device designed for demanding industrial and marine applications. Engineered for precise pressure control and long-term durability, it ensures accurate switching performance to protect equipment and maintain efficient system operation. Ideal for use in hydraulic, pneumatic, compressor, and process control systems.
BRAND
Trafag
TYPE
Pressure Switch (900 PRESSOSTAT P)
PART NO.
900 2379 806
MODEL
900 PRESSOSTAT P
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Trafag |
| TYPE | Pressure Switch (900 PRESSOSTAT P) |
| PART NO. | 900 2379 806 |
| MODEL | 900 PRESSOSTAT P |
| Voltage Rating | 250V AC / 30V DC |
| Application | Pressure monitoring and control for marine, hydraulic, compressor and industrial automation systems |
| IEC | CE Compliant |
| Pressure Range | 1...16 bar (0.1...1.6 MPa) |
| Maximum Pressure (Pmax) | 24 bar (2.4 MPa) |
| Current Rating (AC) | 15(1.25)A @ 250V AC |
| Current Rating (DC) | 15(1.5)A @ 30V DC |
| Enclosure Protection | IP65 |
| Approval | CE, GL |
| Housing Material | Die-cast Metal Enclosure |
| Mounting Type | Panel / Surface Mount |
| Pressure Connection | Threaded Pressure Port |
| Electrical Connection | Industrial Cable Gland / Terminal Connection |
| Display | Mechanical Pressure Scale Window |
| Made In | Switzerland |
| Ref no | 1197 |
