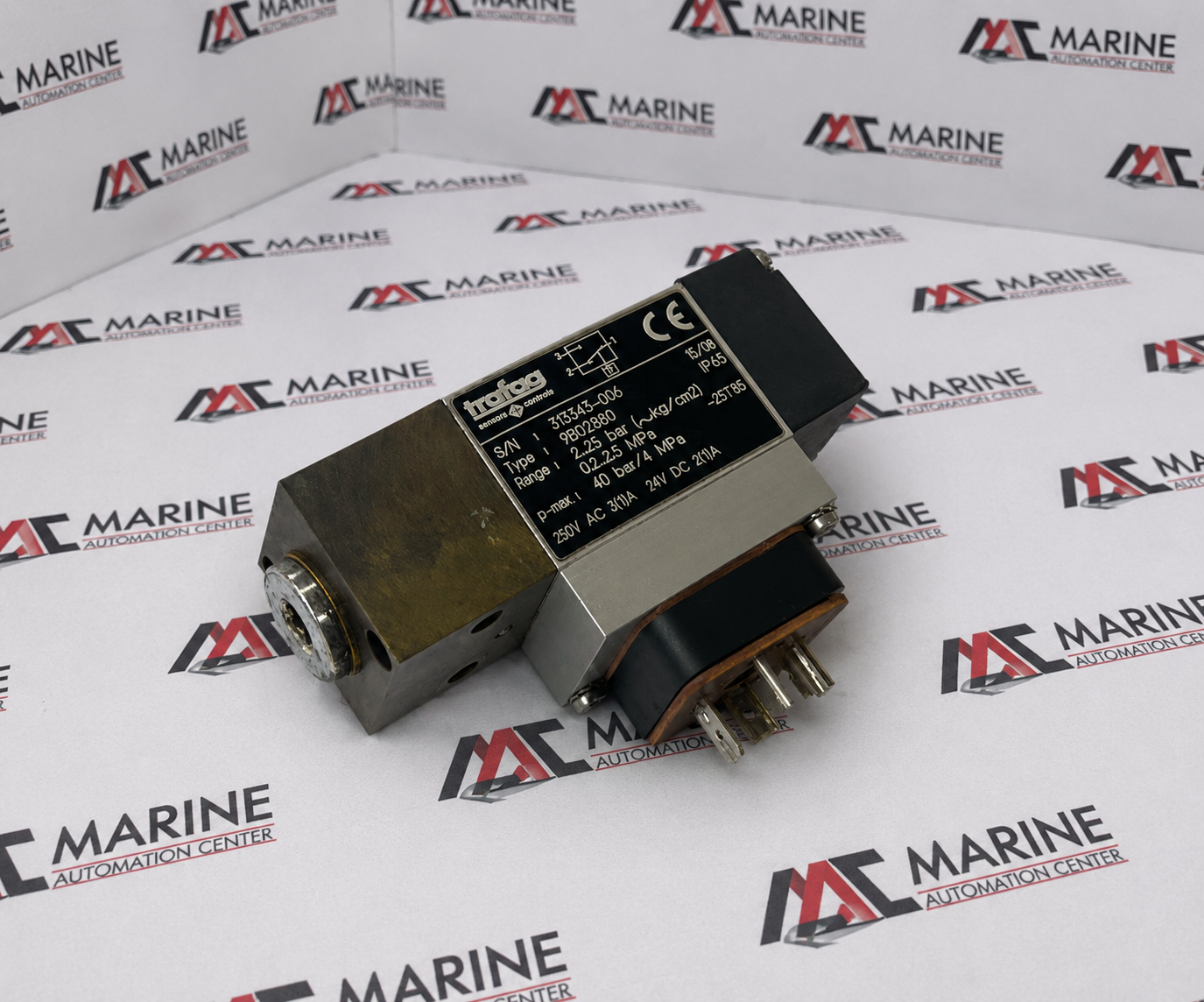

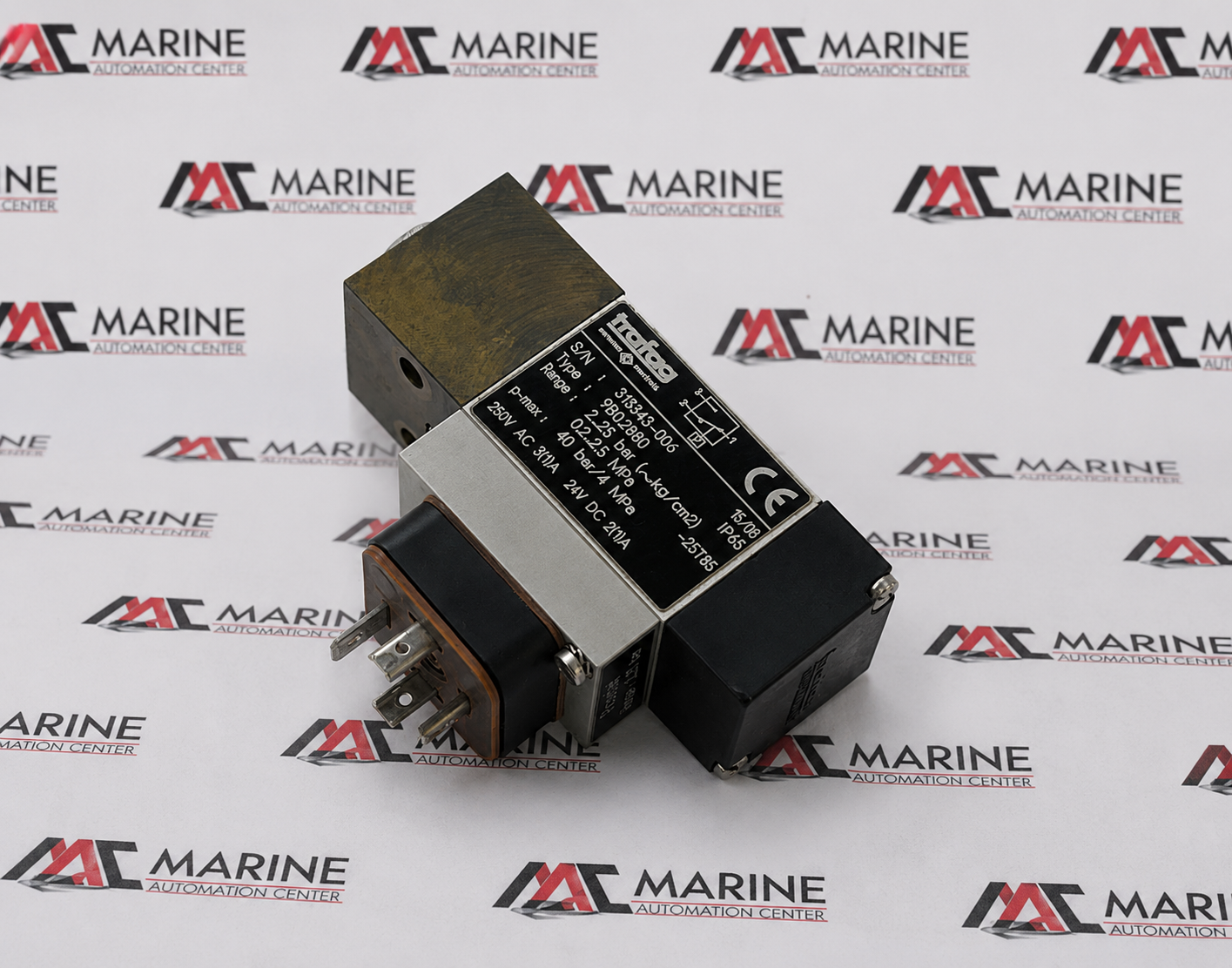

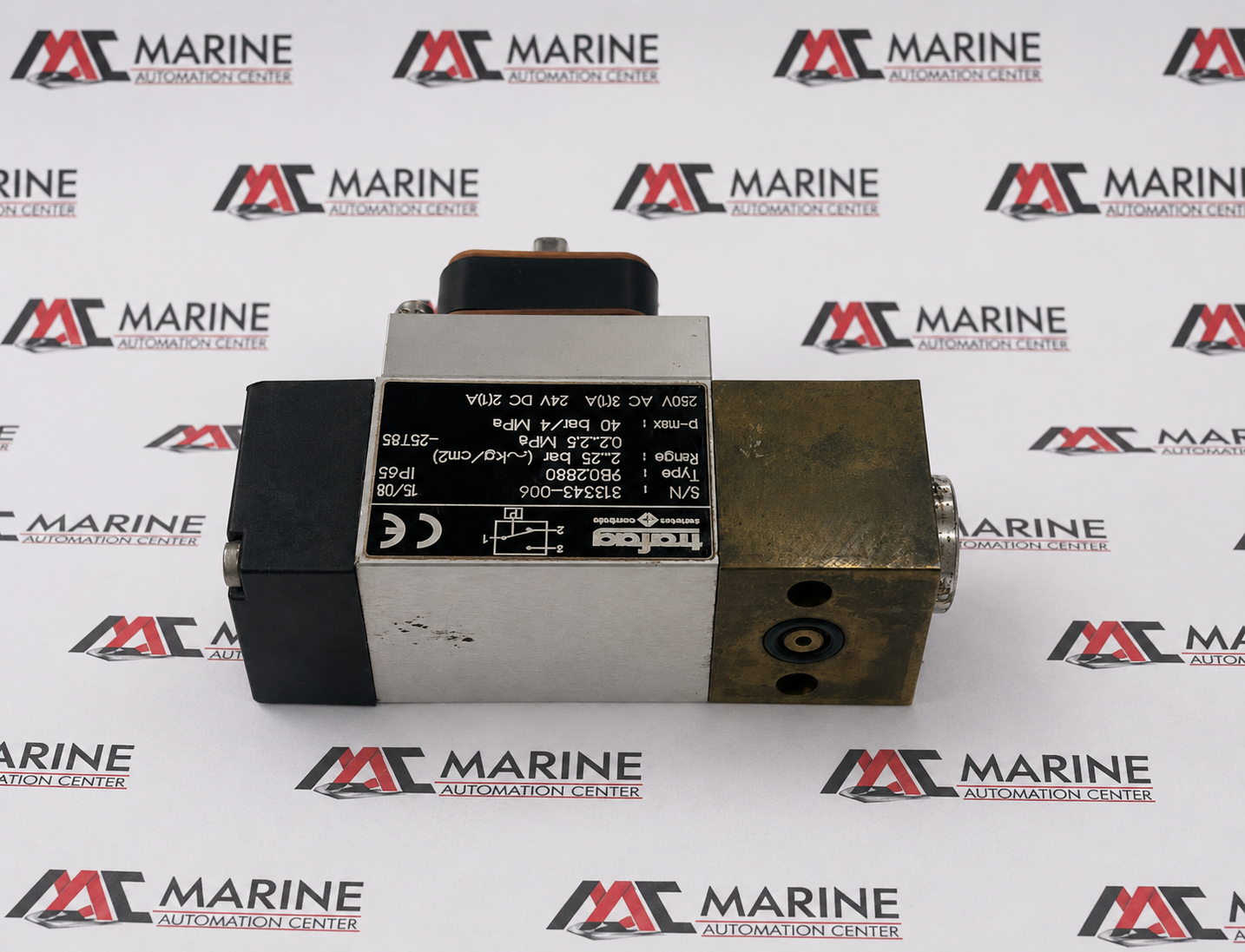

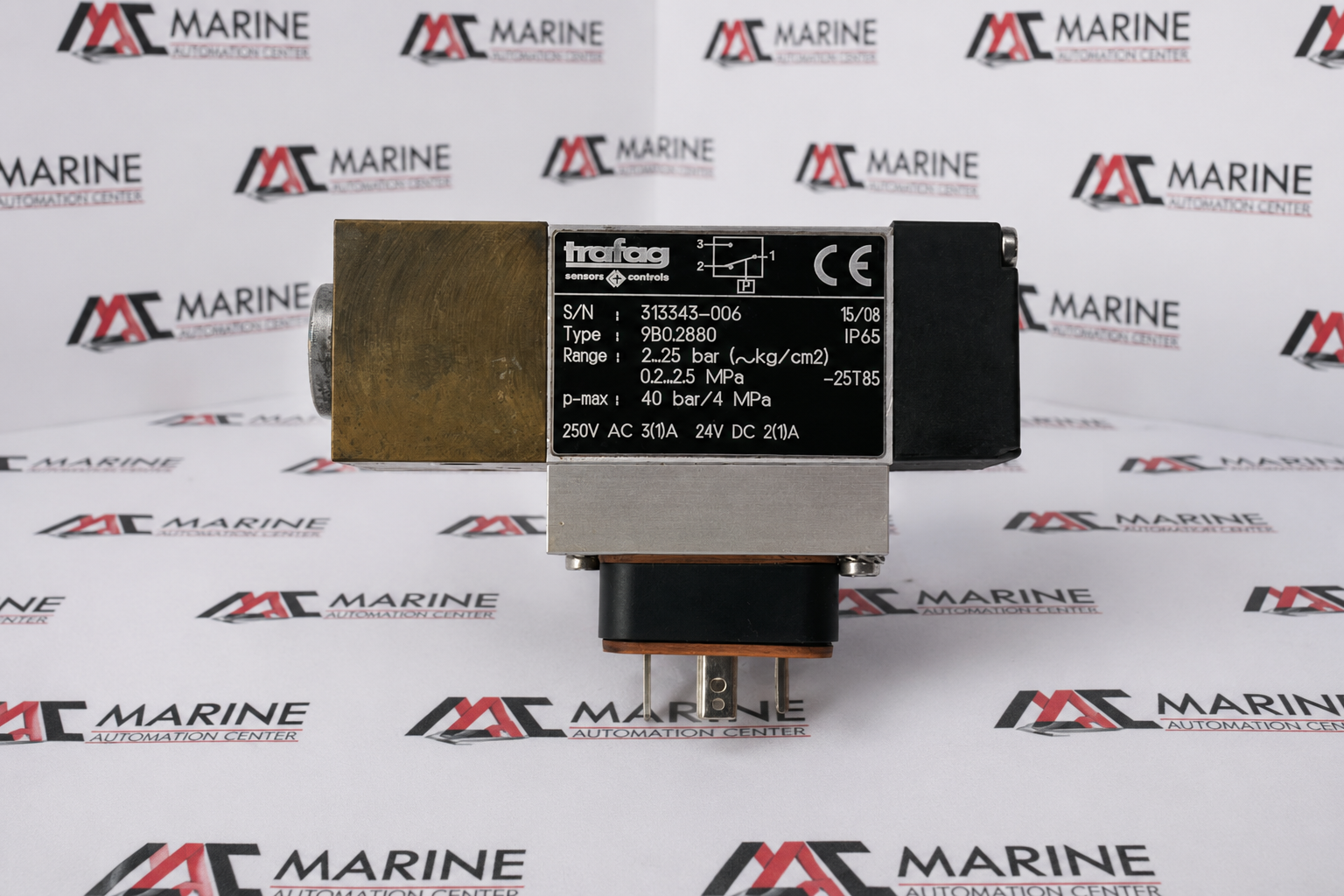

Trafag Picostat 9B0.2880 Industrial Pressure Switch
Trafag Picostat 9B0.2880 Industrial Pressure Switch is a compact, rugged electromechanical pressure switch designed for reliable pressure monitoring in industrial applications. Part of the Trafag Picostat 9B0 series, it features a durable IP65-rated housing, flexible mounting in any position, and dependable switching performance, making it ideal for hydraulics, machine tools, railways, engine manufacturing, and shipbuilding
BRAND
Trafag
TYPE
Industrial Pressure Switch (Picostat Series)
PART NO.
Industrial Pressure Switch 9B0.2880
MODEL
9B0.2880
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Trafag |
| TYPE | Industrial Pressure Switch (Picostat Series) |
| PART NO. | Industrial Pressure Switch 9B0.2880 |
| MODEL | 9B0.2880 |
| Voltage Rating | AC Rating: 250V AC, 3(1)A | DC Rating: 24V DC, 2(1)A |
| Application | Marine engineering, ship hydraulics, oil pressure tracking, and heavy industrial automation |
| IEC | Formulated to standard European industrial equipment specifications; CE marked |
| Pressure Measuring Range | Operates across an adjustable threshold spanning from 2...25 bar (~kg/cm²) or 0.2...2.5 MPa |
| Overpressure Safety Threshold | withstand max pressure limits up to 40 bar / 4 MPa |
| Environmental Sealing Index | IP65 |
| Thermal Operating Envelope | Rated for ambient handling and media transport processes tracking from -25°C to +85°C |

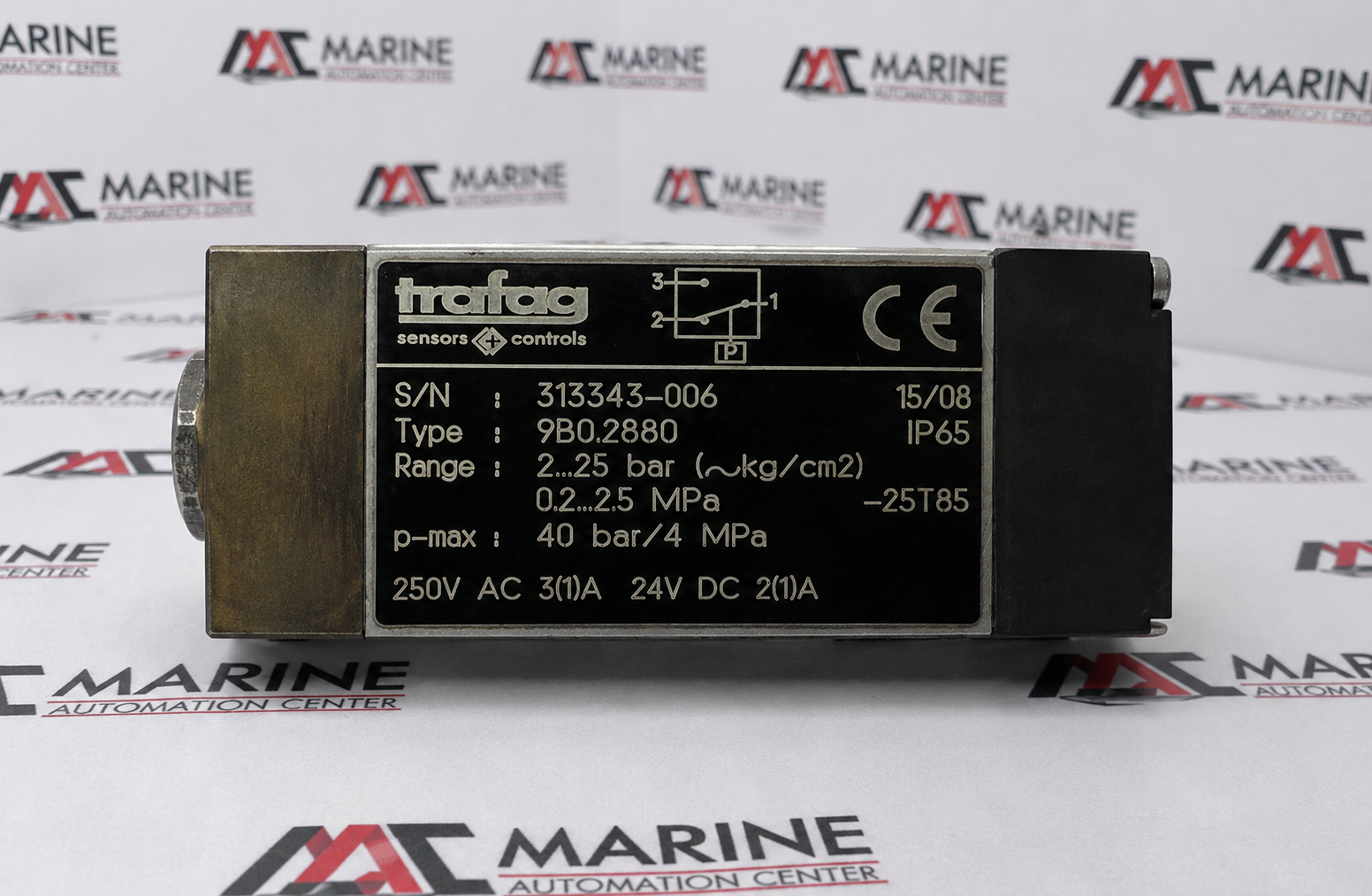

| Electrical Contact Block | Terminal 1 serves as common, Terminal 2 functions as Normally Closed (NC), and Terminal 3 functions as Normally Open (NO) |
| Production Traceability Matrix | Labeled with timestamp code 15/08 |
| S/N | 313343–006 |
| Made In | Switzerland |
| REF NO | 480 |
