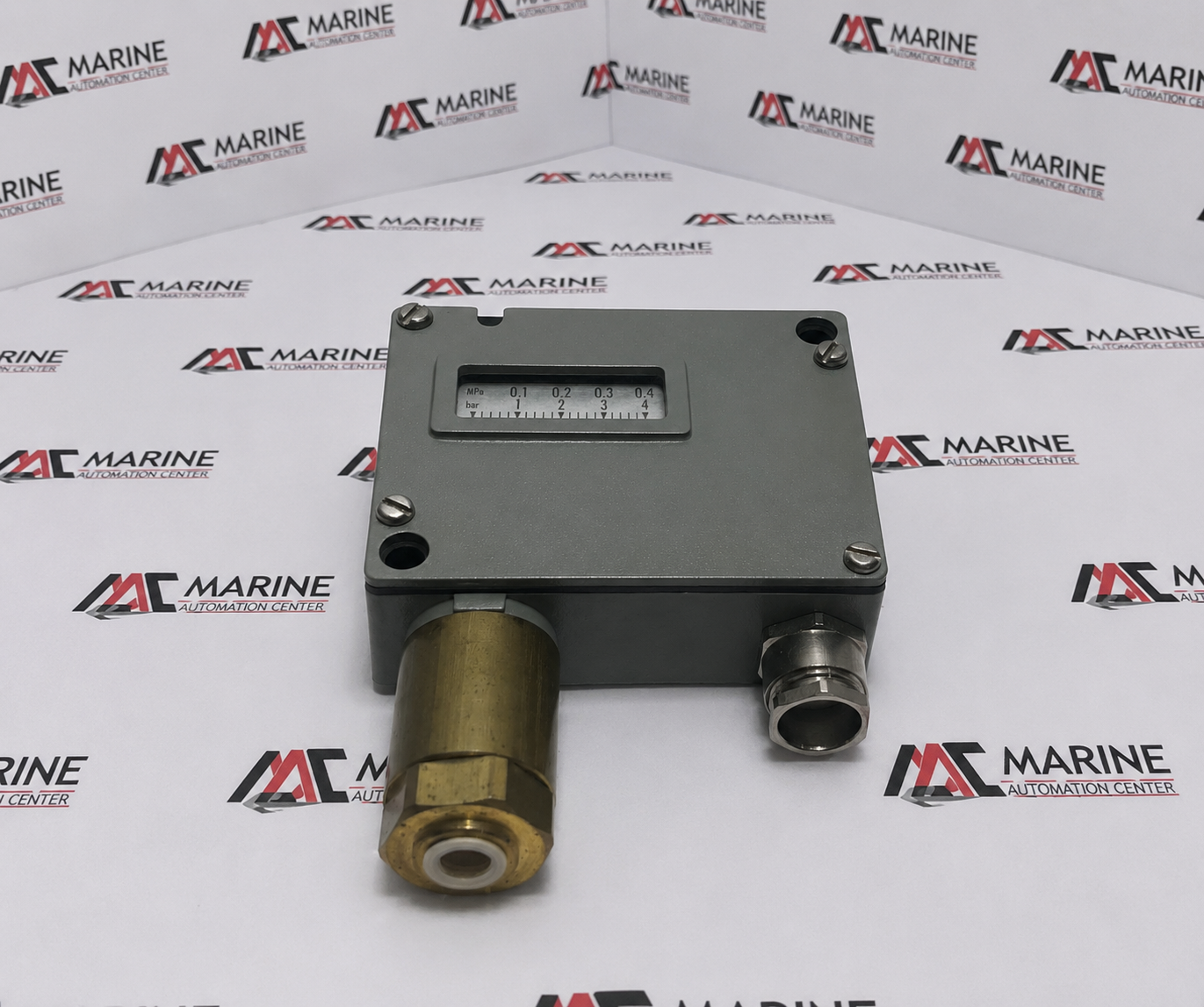

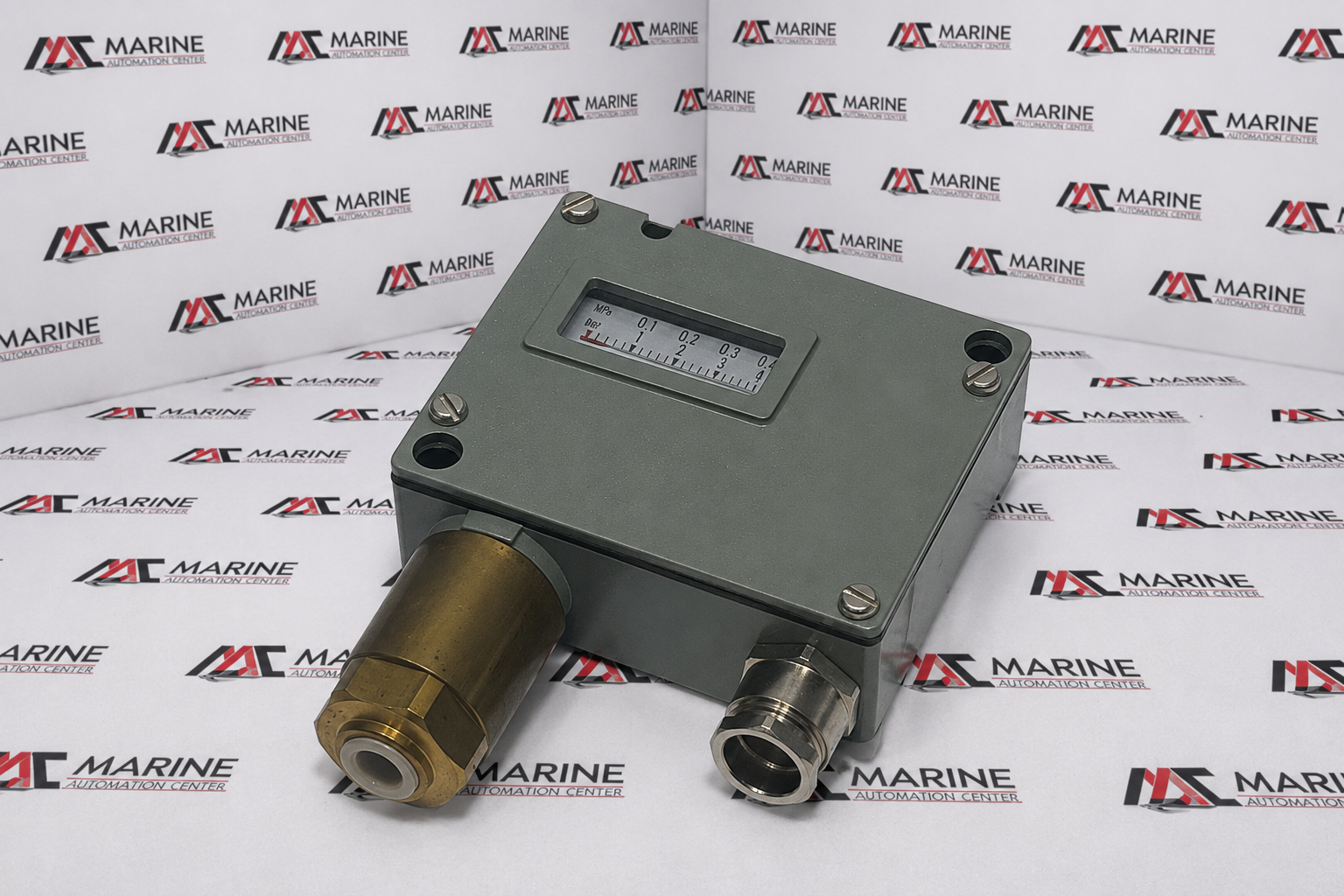

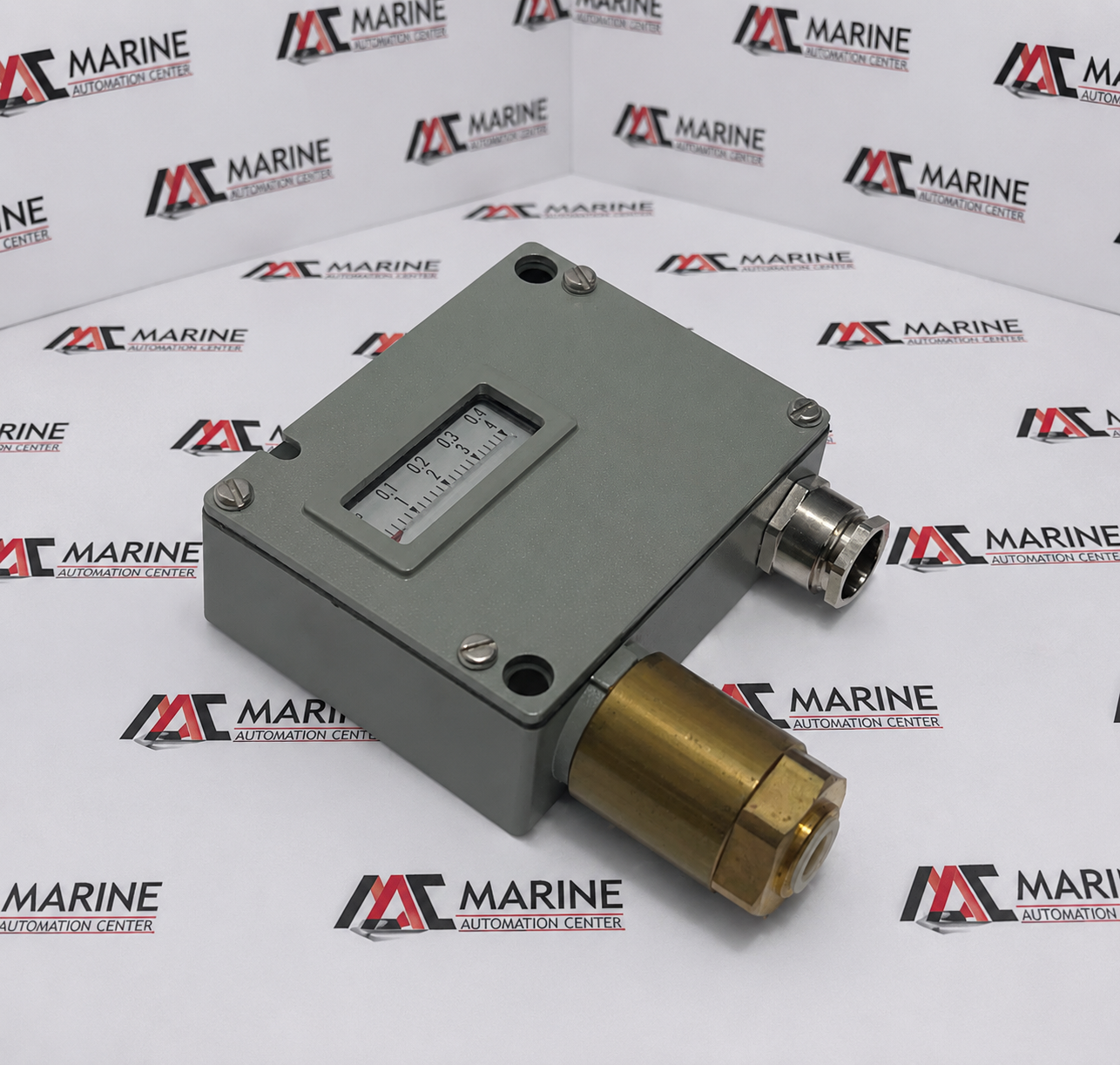

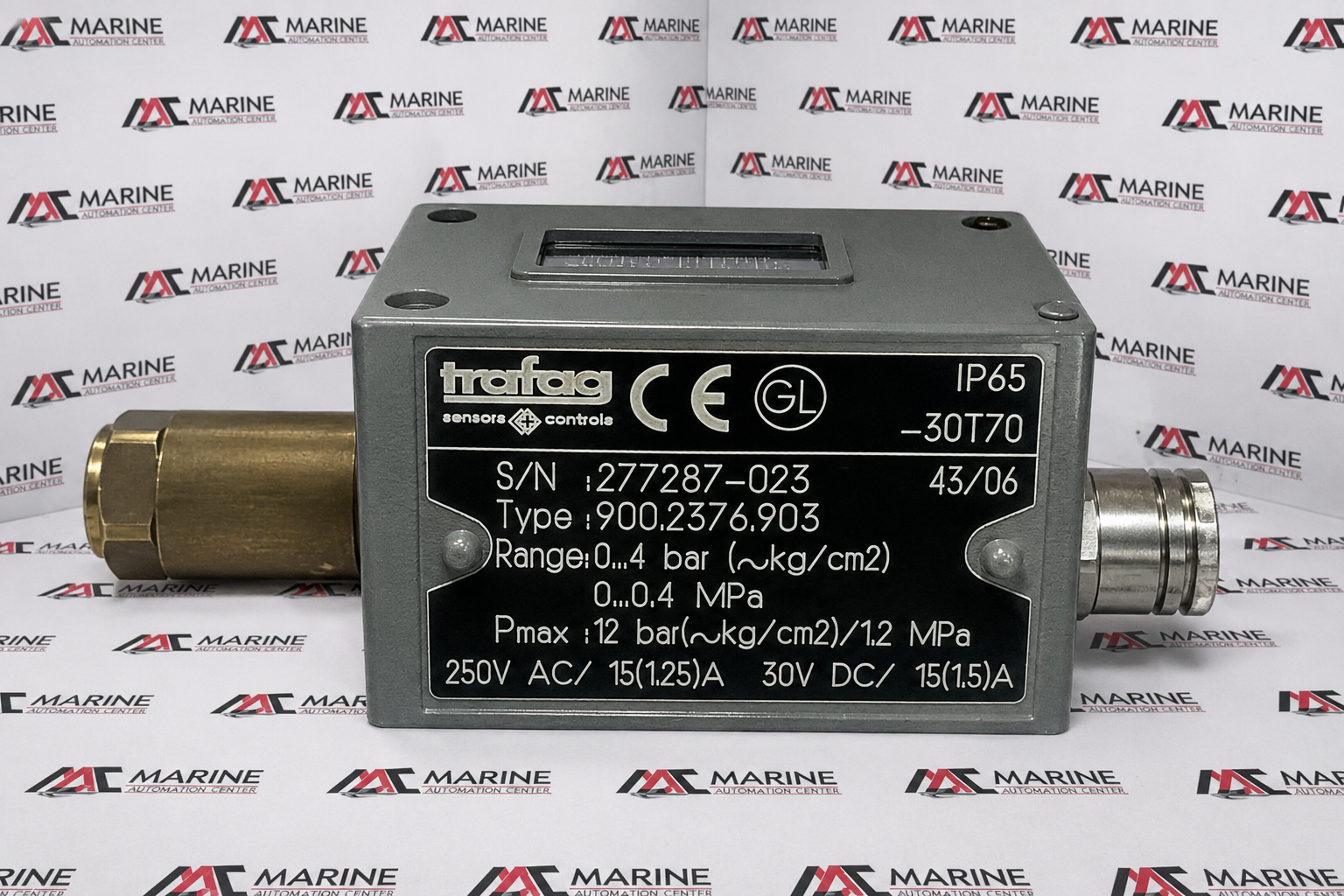

Trafag P4 Pressostat Pressure Switch 900.2376.903
The Trafag 900.2376.903 P4 Pressure Switch is a robust industrial pressostat designed for accurate pressure monitoring and control in hydraulic, pneumatic, and marine systems. Featuring a pressure range of 0–4 bar, an IP65-rated enclosure, and durable construction, it delivers reliable switching performance in demanding industrial environments.
BRAND
Trafag
TYPE
Pressure Switch
PART NO.
Trafag P4 Pressostat 900.2376.903
MODEL
900.2376.903
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Trafag |
| TYPE | Pressure Switch |
| PART NO. | Trafag P4 Pressostat 900.2376.903 |
| MODEL | 900.2376.903 |
| Series | 900 Series |
| Pressure Range | 0 to 4 bar |
| Pressure Setting | Adjustable by front display scale |
| Switching Differential | Approximately 0.2 bar (fixed) |
| Maximum Overpressure | 12 bar |
| Output Contact | SPDT (Single Pole Double Throw) Microswitch |
| Electrical Rating | 250 VAC, 6(2) A |
| DC Rating | 24 VDC, 6(3) A |
| Protection Class | IP65 |
| Pressure Connection | G1/4 BSP Female |
| Housing Materia | Epoxy-coated Aluminum |
| Connector | PG13.5 / DIN electrical connector |
| Operating Temperature (Sensor) | Up to +150 °C |
| Adjustment Method | Manual adjustment using built-in pressure display |
| Approvals | ABS, BV, DNV, GL, KRS, LR, PRS, RINA |
| Application | Marine engines, hydraulic systems, compressors, pumps, ship automation, industrial machinery |
| Made in | Switzerland |
| Ref no | 1203 |
