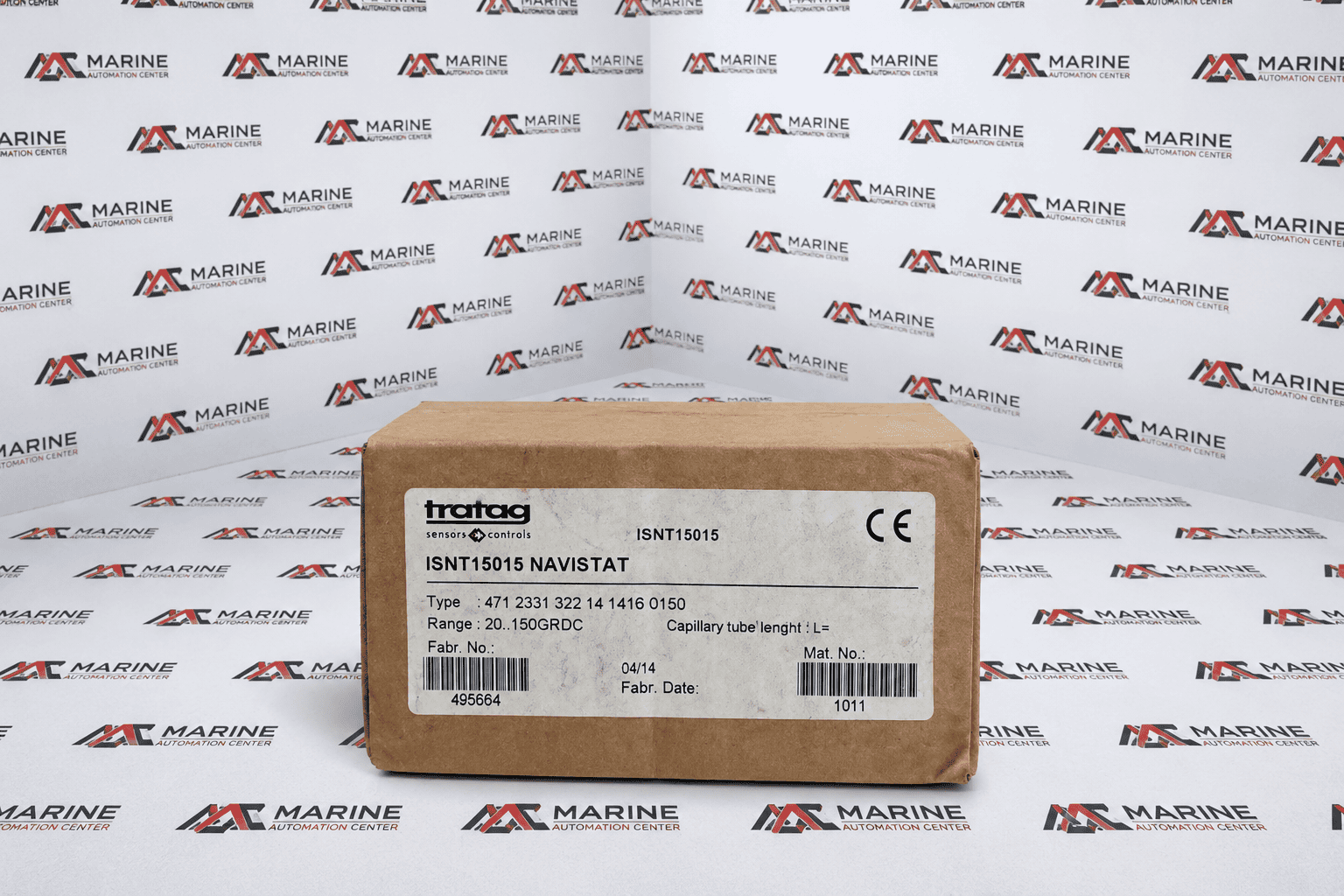

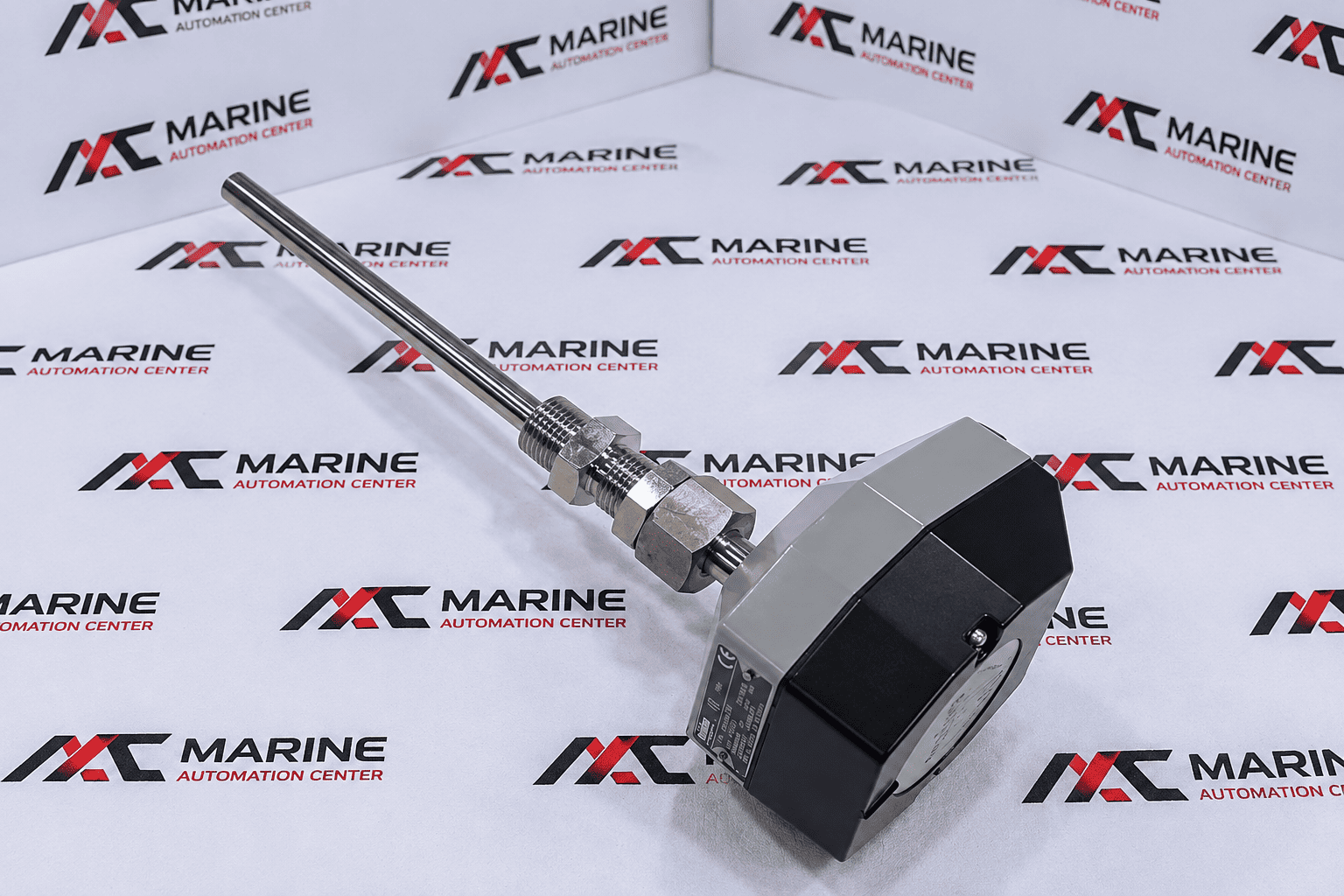

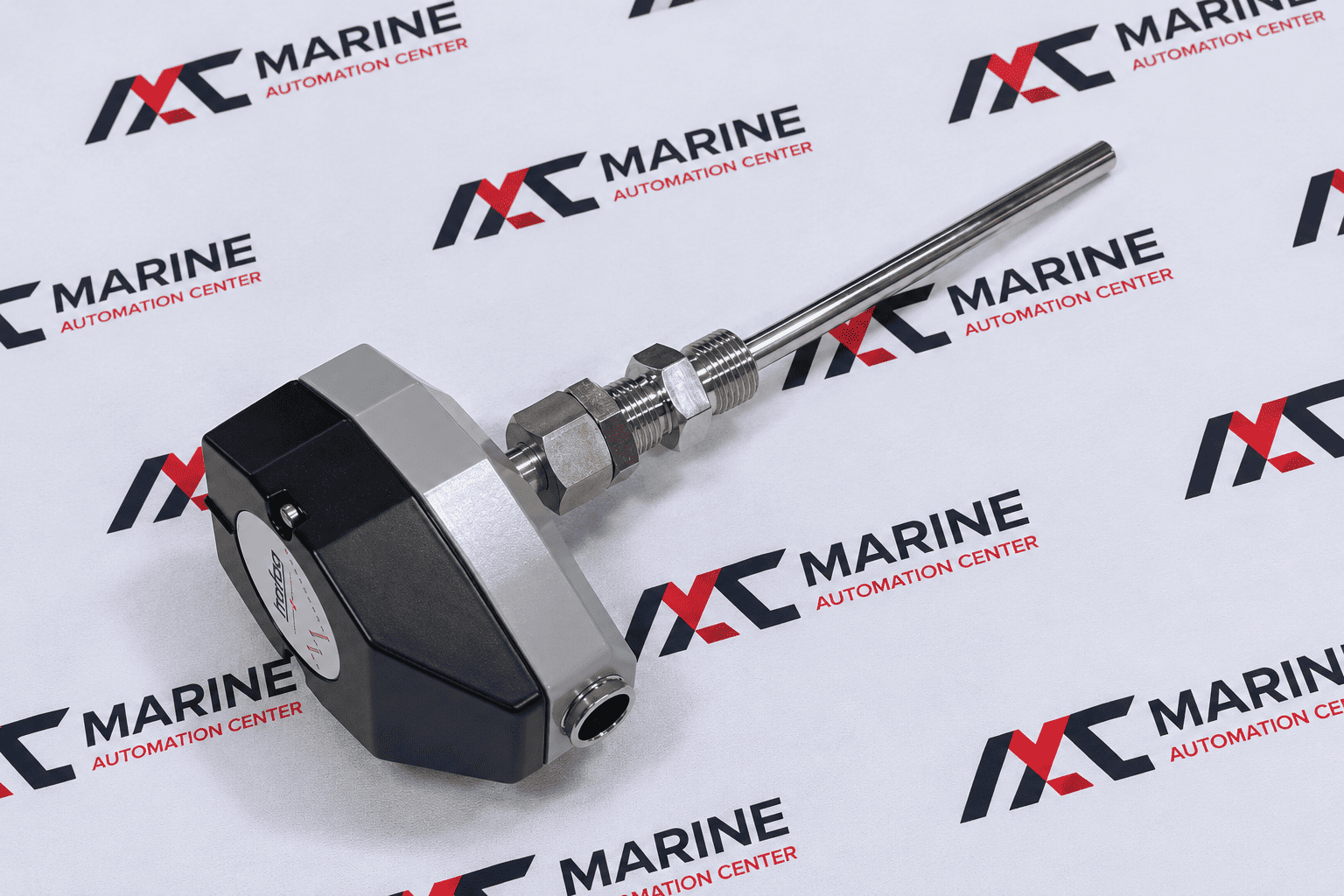

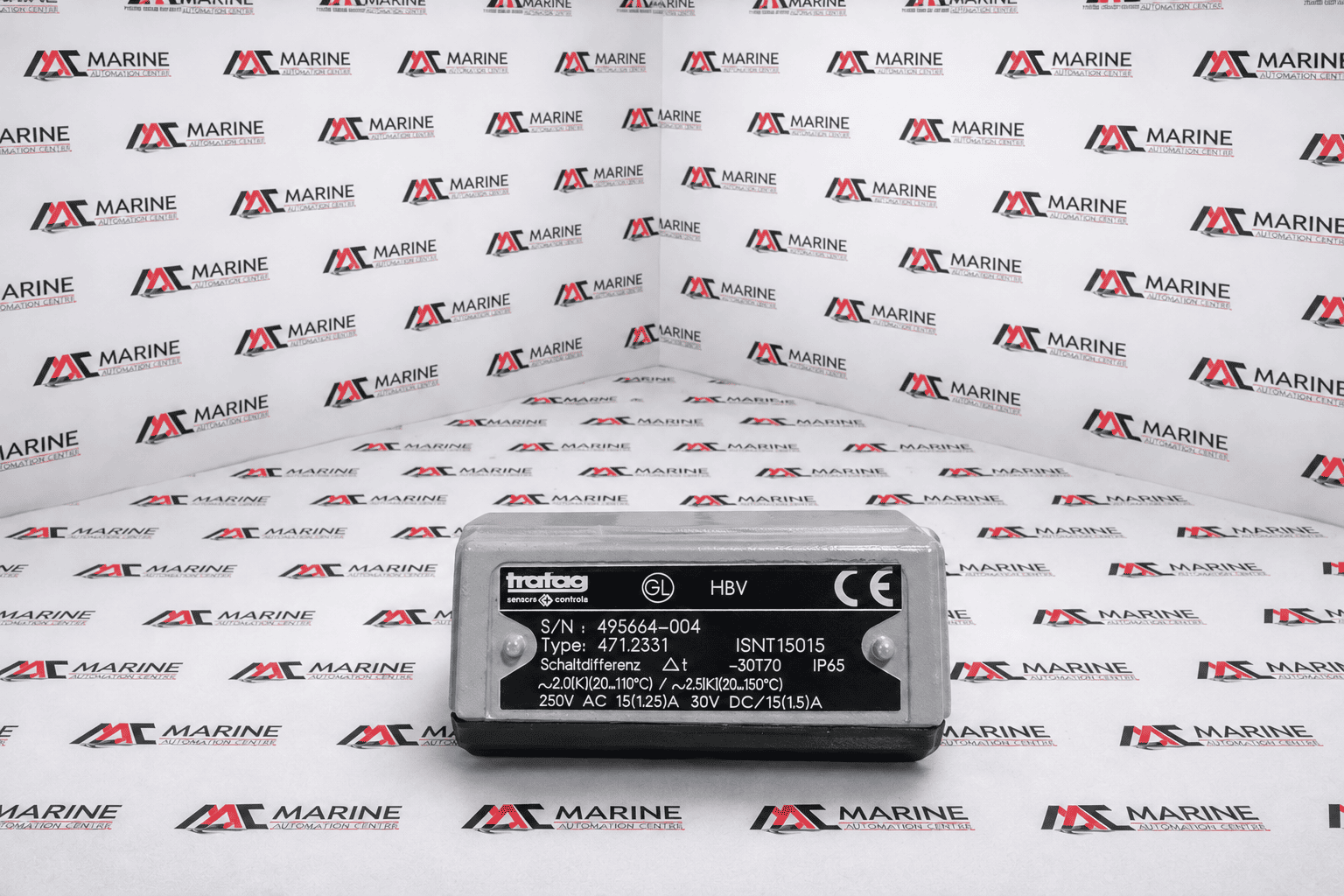

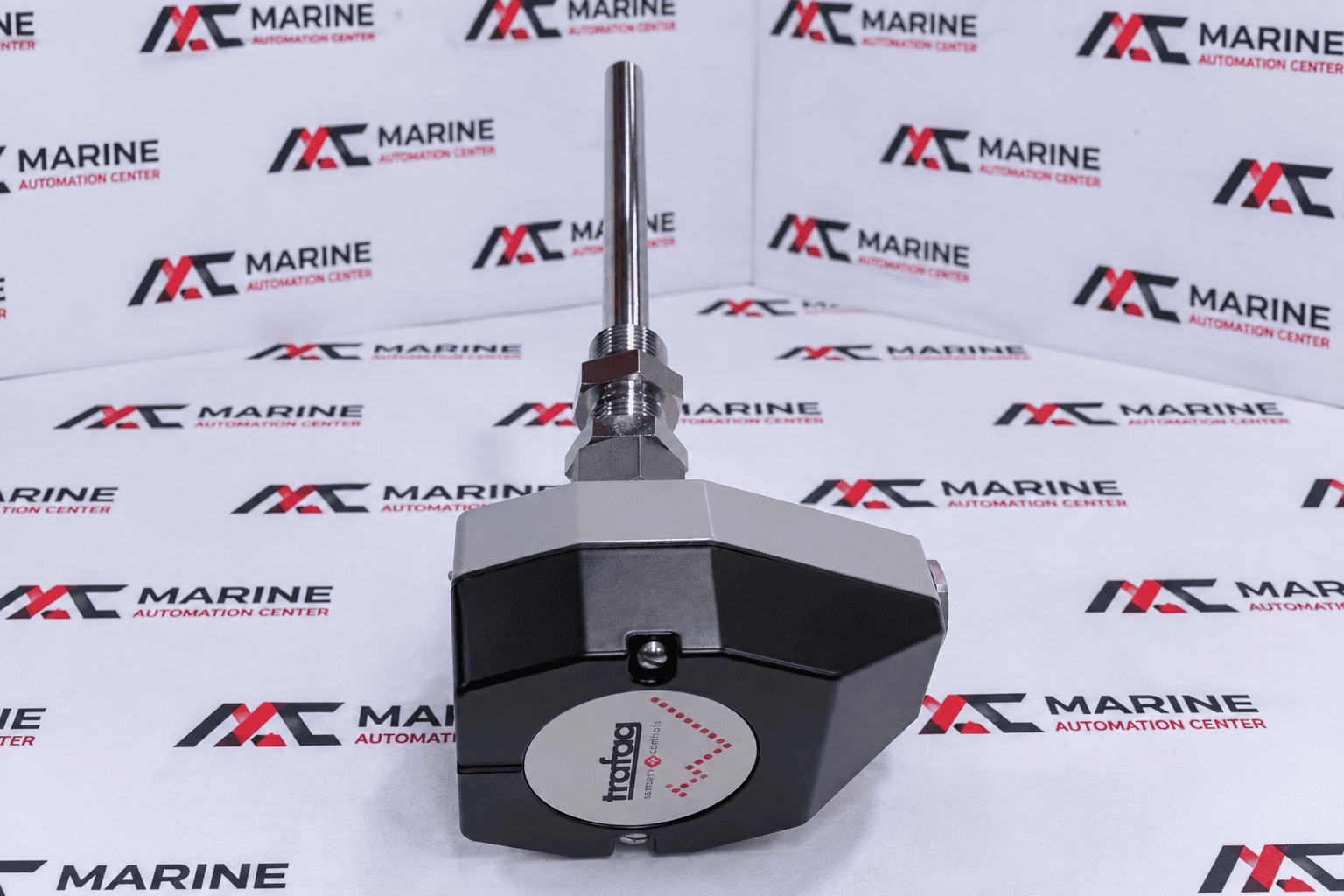

Trafag Navistat Thermostat Switch ISNT15015
AI Mode conversation: BRAND- Bender TYPE- Insulation Monitoring Device PART NUMBER- B91065004 MODEL- IRDH375B-435 Full Technical Specifications ▶ Parameter Value / Description MANUFACTURER Bender GmbH & Co. KG TYPE Insulation Monitoring Device PART NUMBER B91065004 MODEL IRDH375B-435 Voltage Rating AC 88–264 V / DC 77–286 V Catalog No. TGH 1352 Application Continuous insulation monitoring of unearthed AC, AC/DC and DC power systems in marine and industrial installations IEC IEC Insulation Monito
BRAND
Trafag
TYPE
Navistat Thermostat Switch
PART NO.
471.2331
MODEL
ISNT15015
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Trafag |
| TYPE | Navistat Thermostat Switch |
| PART NO. | 471.2331 |
| MODEL | ISNT15015 |
| Voltage Rating | 250 V AC / 30 V DC |
| Application | Temperature monitoring and switching for marine engines, boilers, cooling systems and industrial process control |
| IEC | Industrial Temperature Control Standards |
| Product Name | ISNT Navistat Thermostat Switch |
| Temperature Range 1 | 20°C to 110°C |
| Temperature Range 2 | 20°C to 150°C |
| Switching Differential | Approx. 2.0 K (20–110°C), 2.5 K (20–150°C) |
| AC Contact Rating | 250 VAC, 15 A (Resistive) / 1.25 A (Inductive) |
| DC Contact Rating | 30 VDC, 15 A (Resistive) / 1.5 A (Inductive) |
| Primary Function | Monitors process temperature and switches electrical contacts when the preset temperature threshold is reached |
| Typical Applications | Marine engines, boilers, cooling water systems, lubricating oil systems, hydraulic equipment, industrial process control and machinery protection |
| Made In | Switzerland |
| REF NO | 65 |
