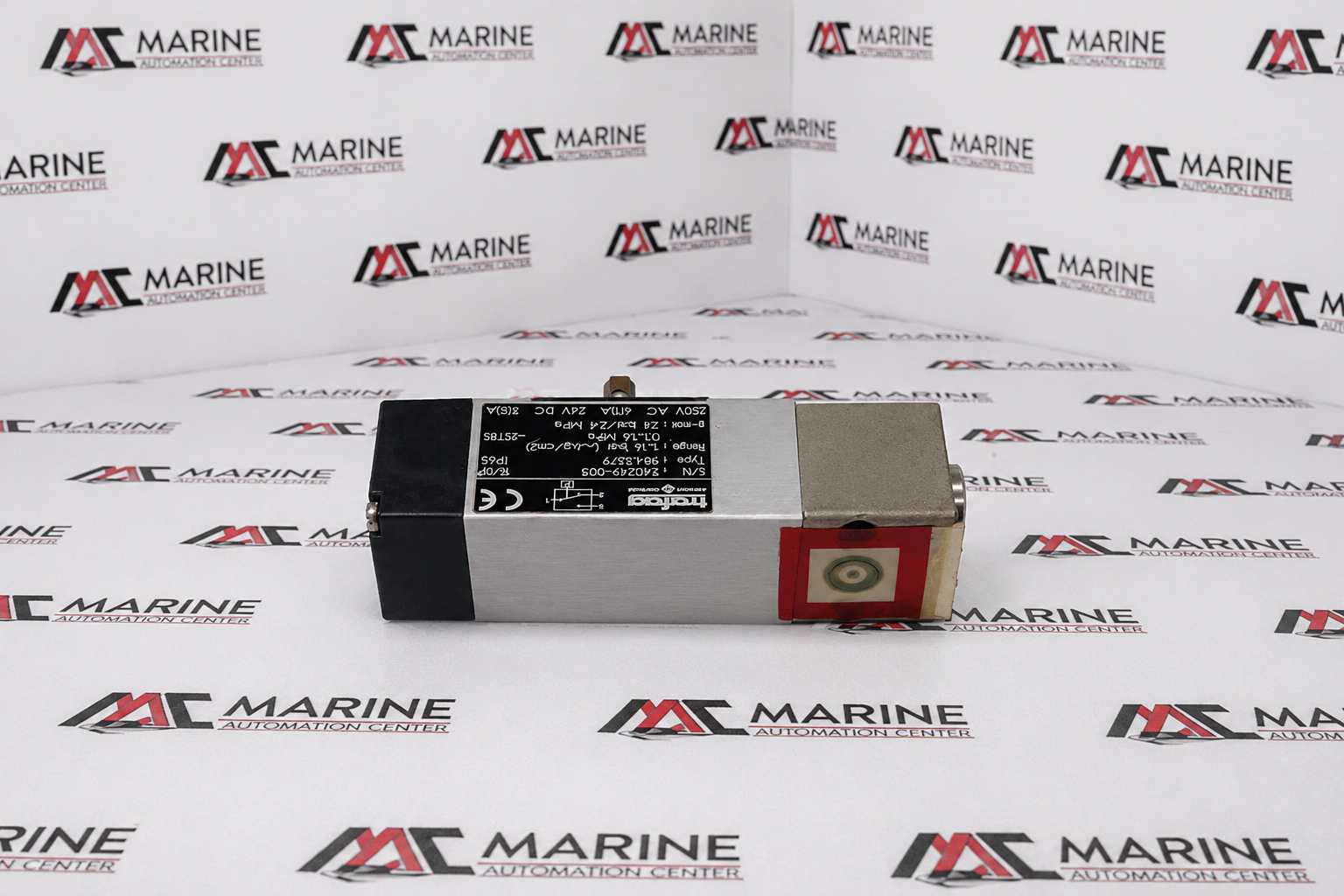

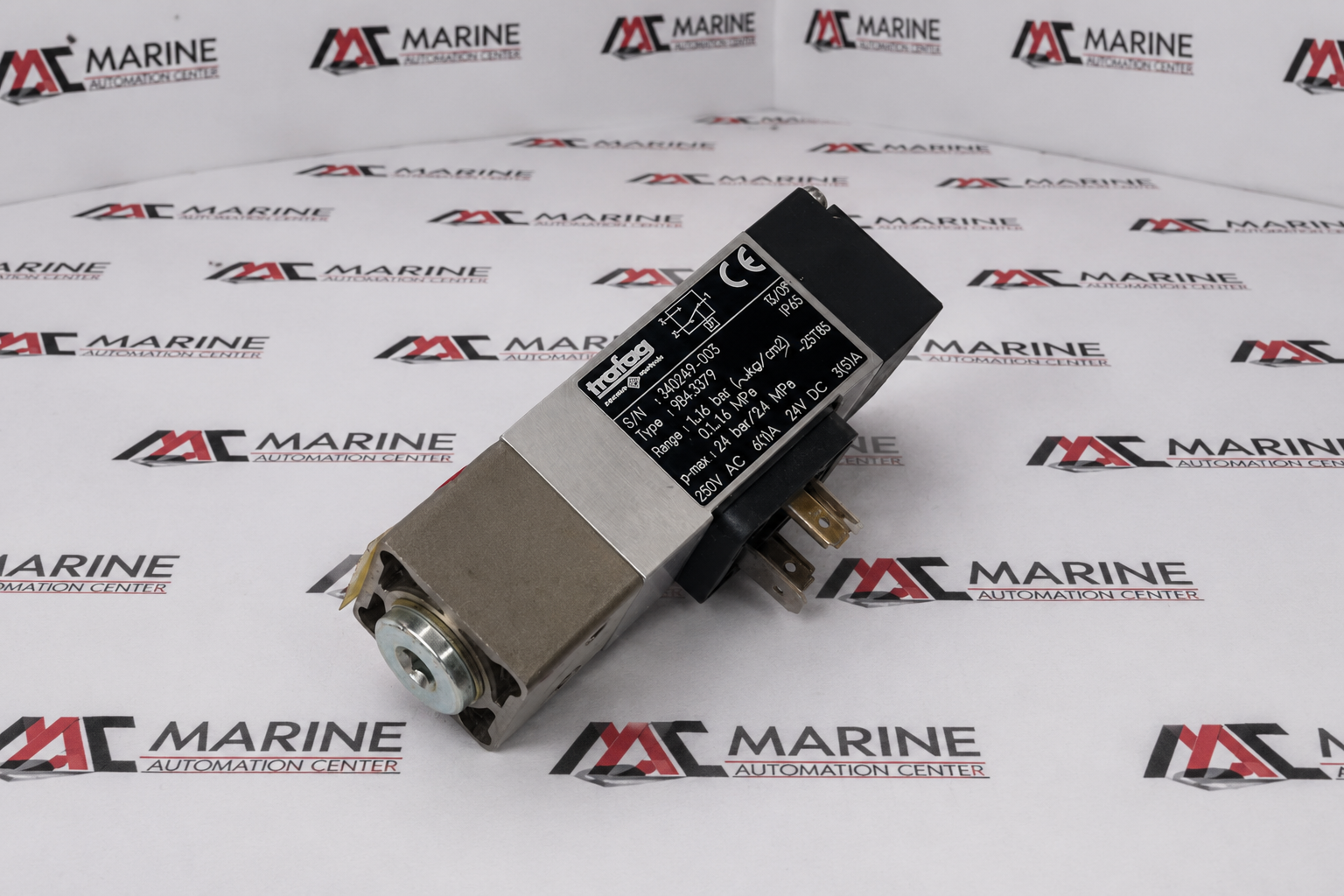

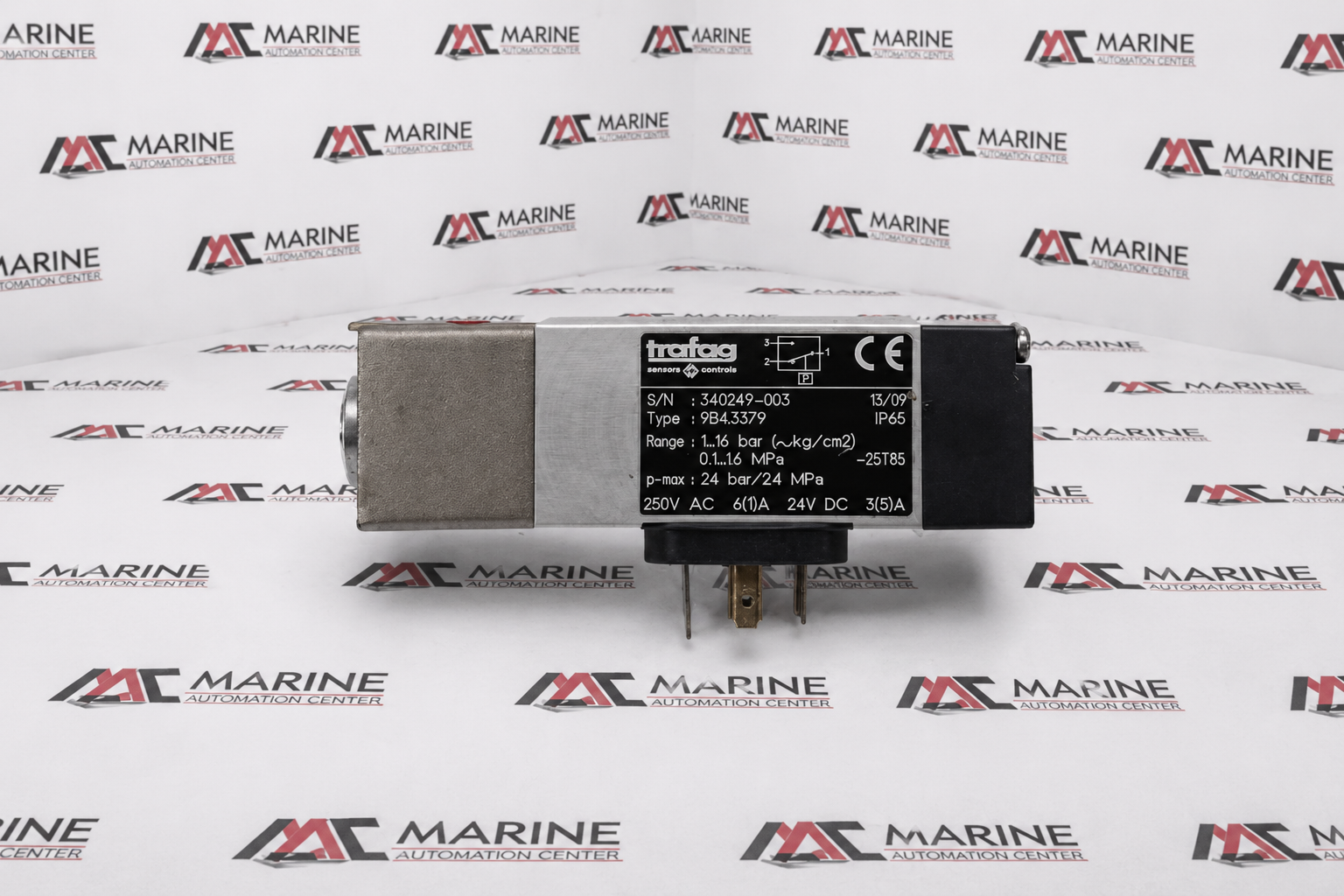

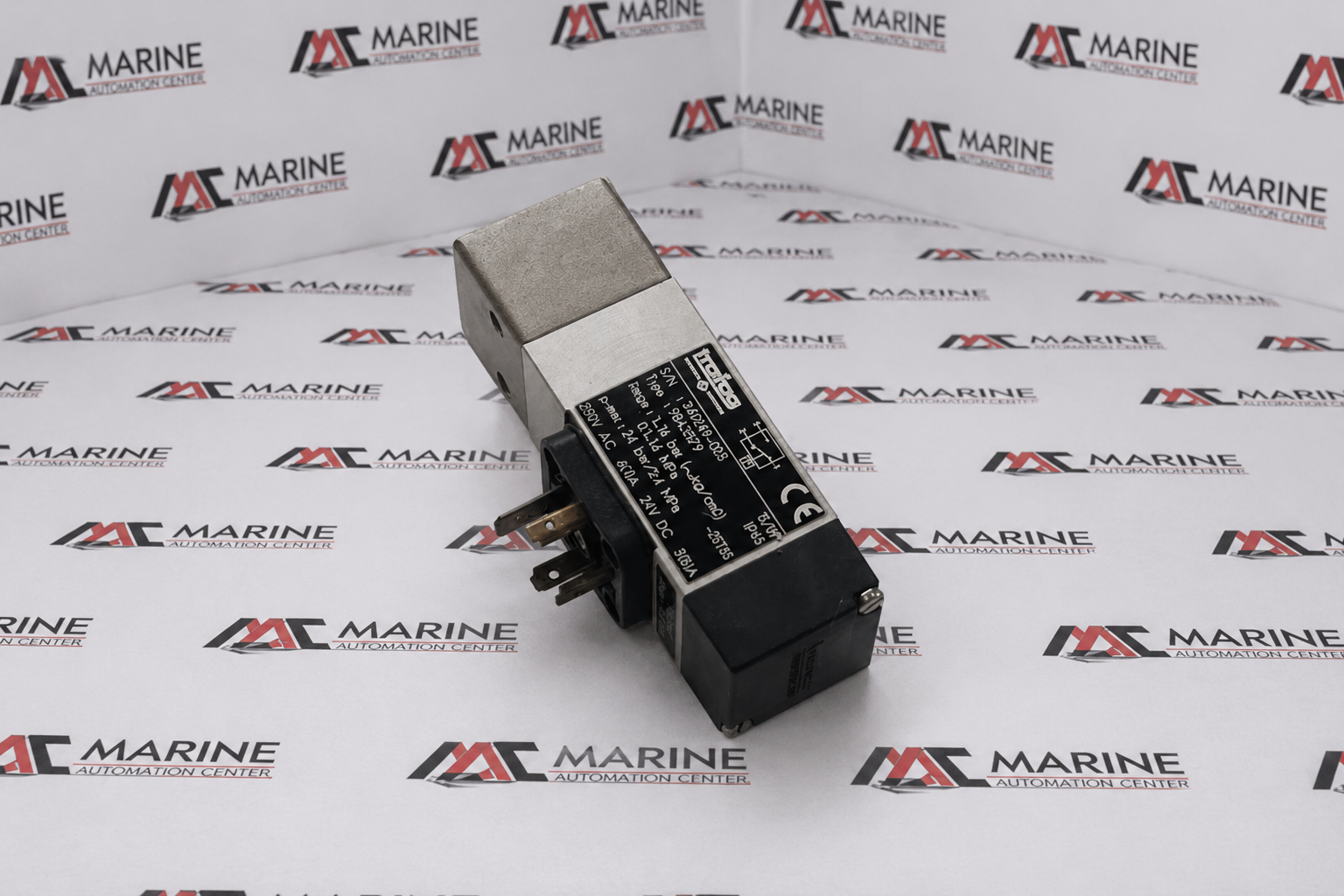

Trafag NAV 16 Industrial Pressure Switch
Trafag NAV 16 (9B4.3379) is a rugged industrial pressure switch designed for reliable pressure monitoring and control in hydraulic, pneumatic, and process applications. It provides accurate switching, durable mechanical construction, and dependable performance in demanding industrial environments
BRAND
Trafag
TYPE
Industrial Pressure Switch
PART NO.
Industrial Pressure Switch 9B4.3379
MODEL
9B4.3379
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Trafag |
| TYPE | Industrial Pressure Switch |
| PART NO. | Industrial Pressure Switch 9B4.3379 |
| MODEL | 9B4.3379 |
| Voltage Rating | AC Rating: 250V AC, 6(1)A | DC Rating: 24V DC, 3(5)A |
| Application | Shipbuilding, marine hydraulics, engine rooms, and heavy industrial machinery pressure monitoring |
| IEC Standards | Built to international industrial machinery benchmarks; CE certified |
| S/N | 340249–003 |
| Measurement Tracking Envelopes | Integrates a calibrated fluid pressure threshold range scanning from 1...16 bar or 0.1...1.6 MPa |
| Environmental Sealing Threshold | IP65 |
| Operational Temperature Range | Rated for an ambient and fluid working storage range designated between -25°C to +85°C |

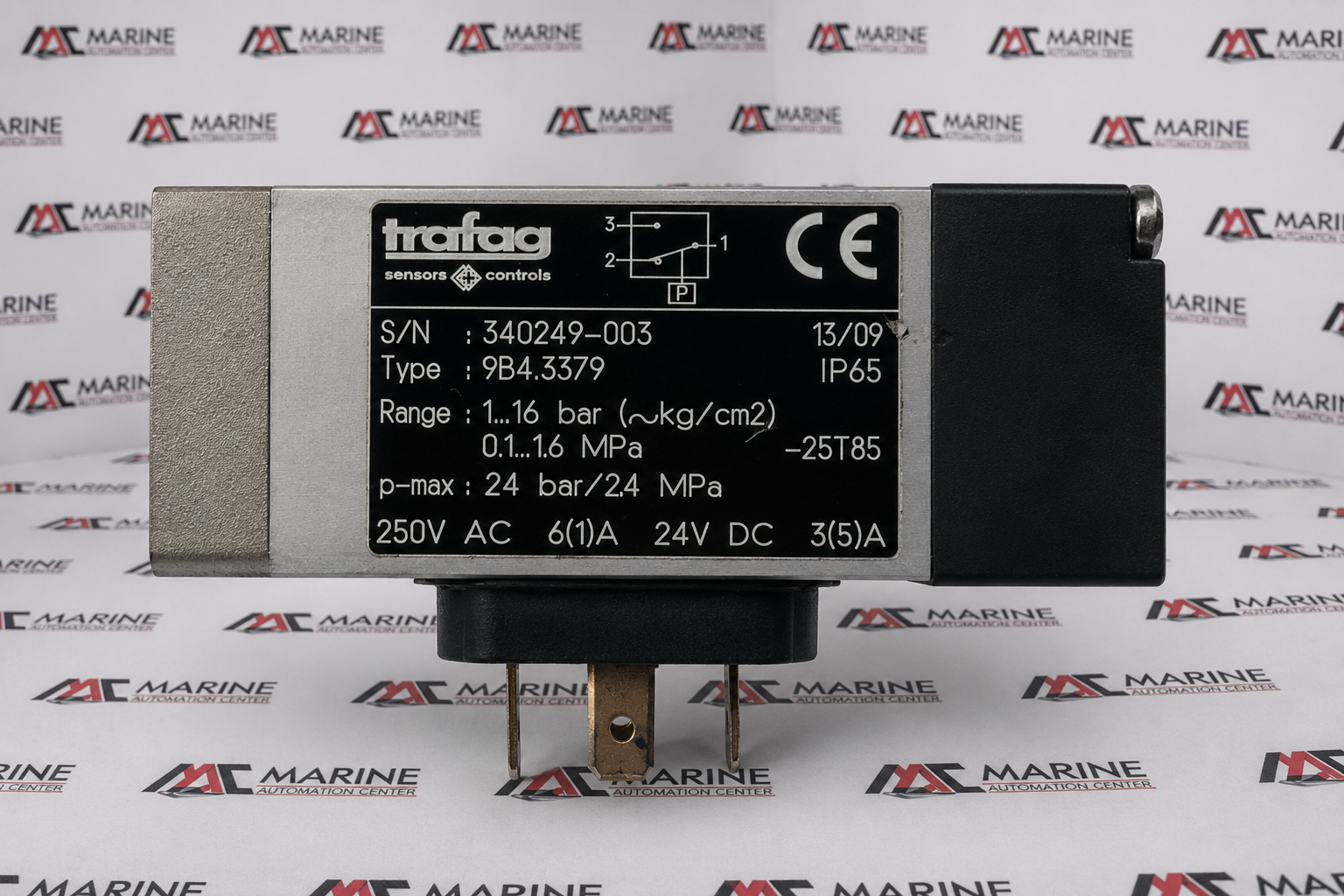

| Switching Elements & Contact Map | Pin 1 serves as common, Pin 2 is Normally Closed (NC), and Pin 3 acts as Normally Open (NO) |
| Made In | Switzerland |
| REF NO | 479 |
