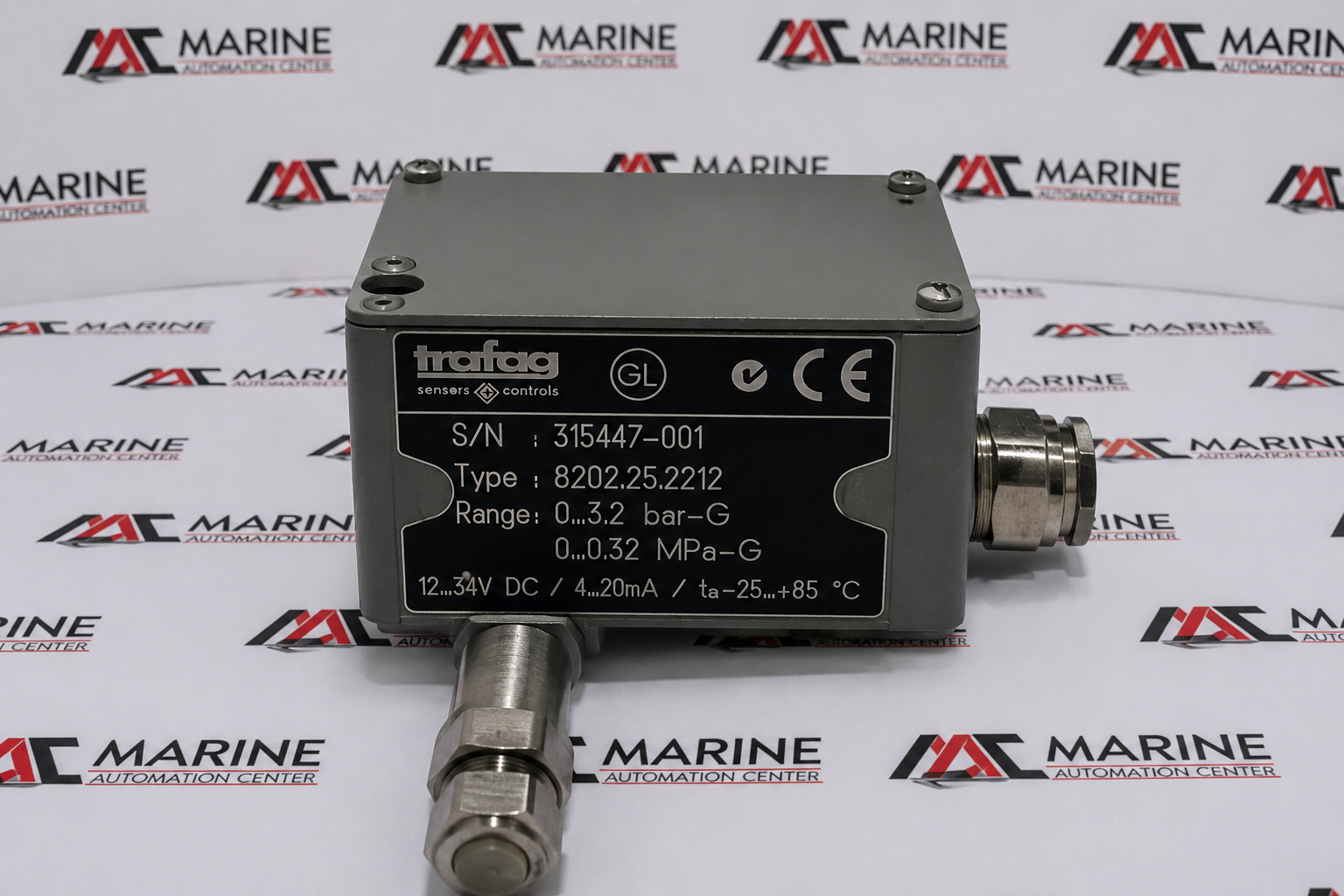

Trafag NAT 8252 / 8202 Pressure Transmitter
TRAFAG NAT 8252 / 8202 Pressure Transmitter (P/N 8202.25.2212) is a high-performance industrial pressure transmitter designed for accurate pressure measurement in hydraulic, pneumatic, and process control applications. It delivers reliable pressure monitoring, stable signal output, and long-term durability in demanding industrial environments.
BRAND
TRAFAG
TYPE
PRESSURE TRANSMITTER
PART NO.
TRAFAG PRESSURE TRANSMITTER 8202.25.2212
MODEL
8202.25.2212
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | TRAFAG |
| TYPE | PRESSURE TRANSMITTER |
| PART NO. | TRAFAG PRESSURE TRANSMITTER 8202.25.2212 |
| MODEL | 8202.25.2212 |
| Voltage Rating | 12 to 34 V DC |
| Application | Heavy-duty industrial, marine engines, hydraulics, shipbuilding, and water treatment systems. |
| IEC | Compliant (typically built to industrial safety standards for automation and sensing) |
| Output Signal | 4 to 20 mA |
| Pressure Measurement Ranges | 0 to 0.32 MPa-G (Relative/Gauge Pressure) |
| Ambient Temperature | -25 °C to +85 °C |
| Certifications & Marine Approvals | GL (Germanischer Lloyd Marine Certification) CE Mark (European Conformity) |
| Made In | Switzerland / South Korea |
| REF NO | 1267 |
