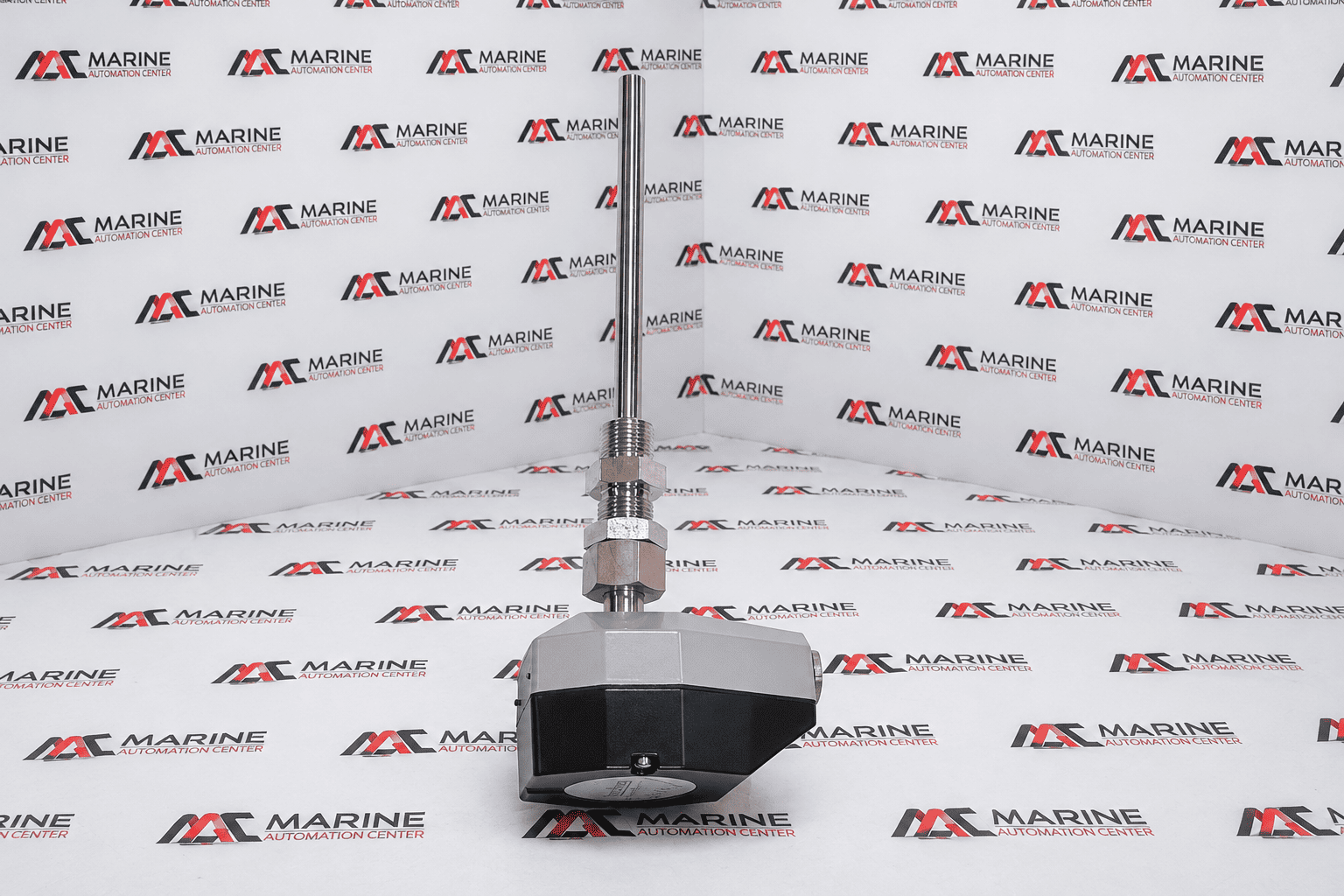

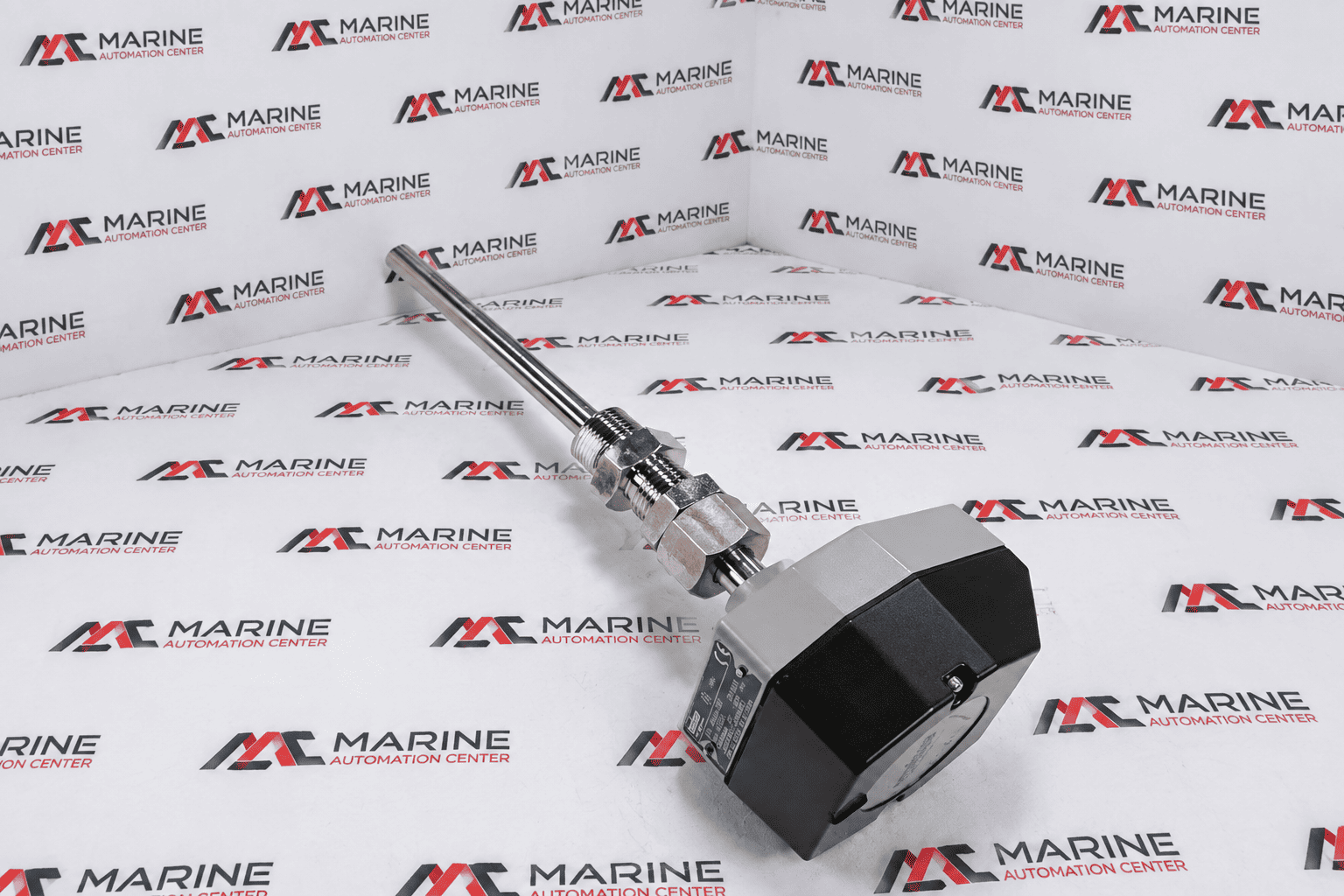

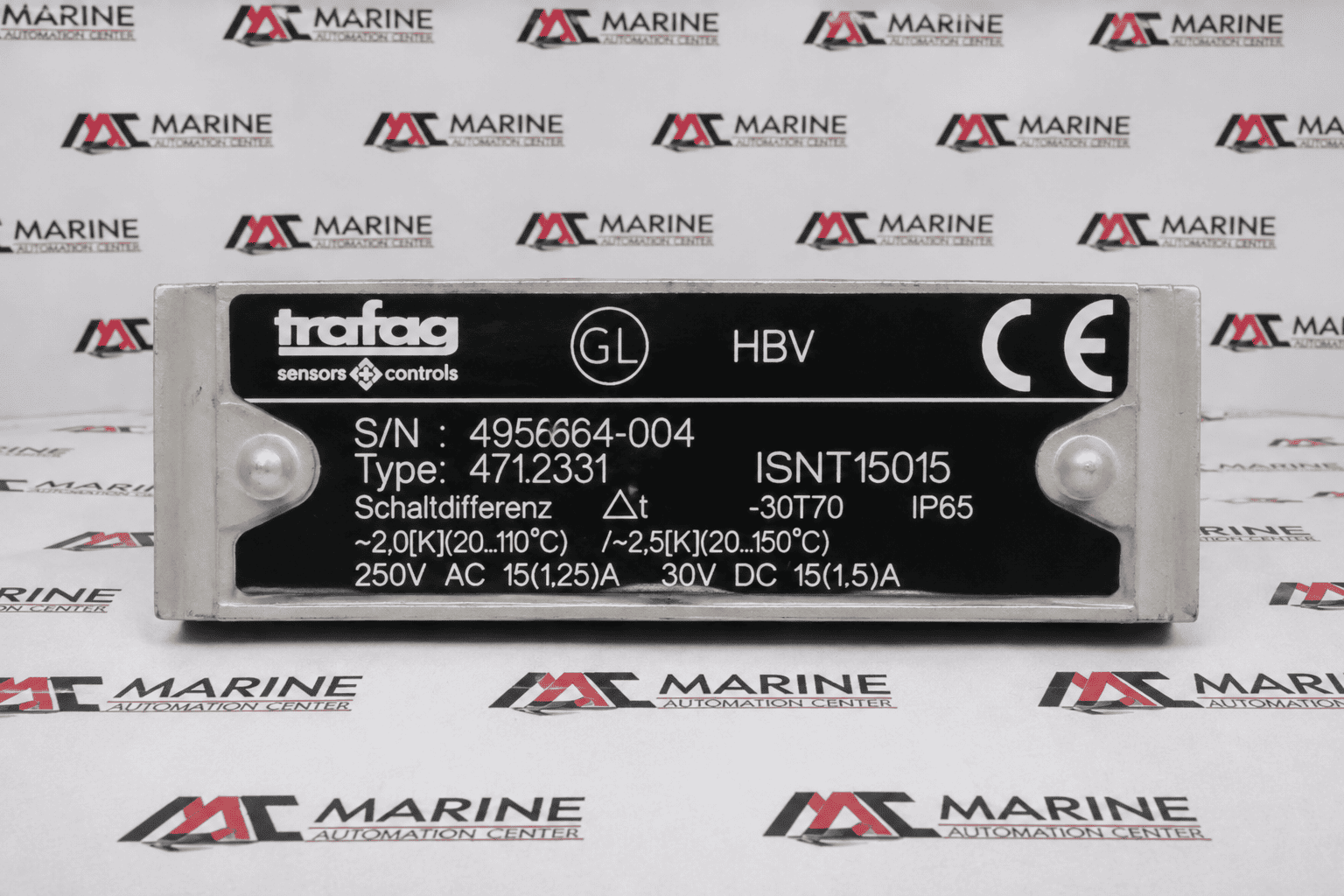

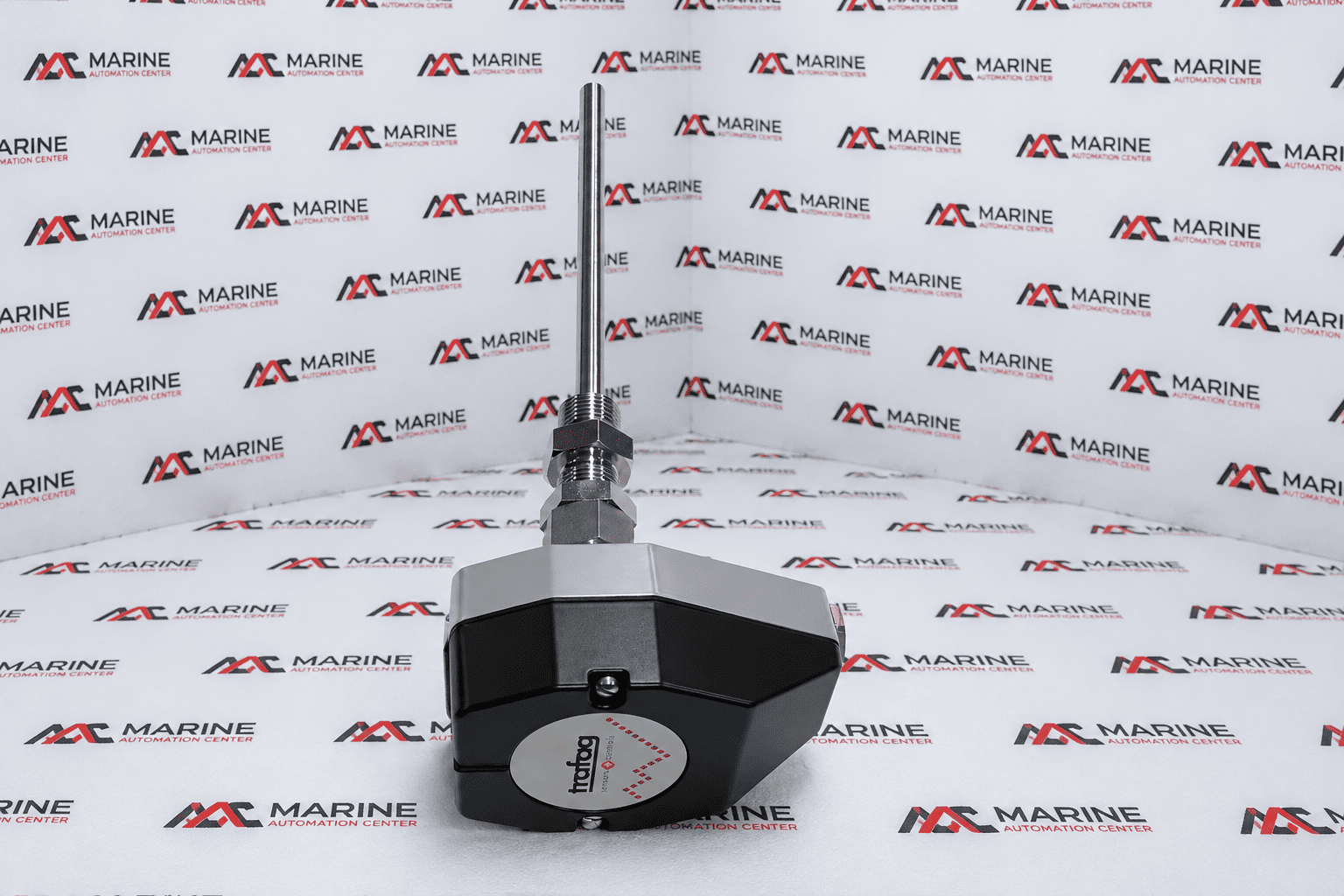

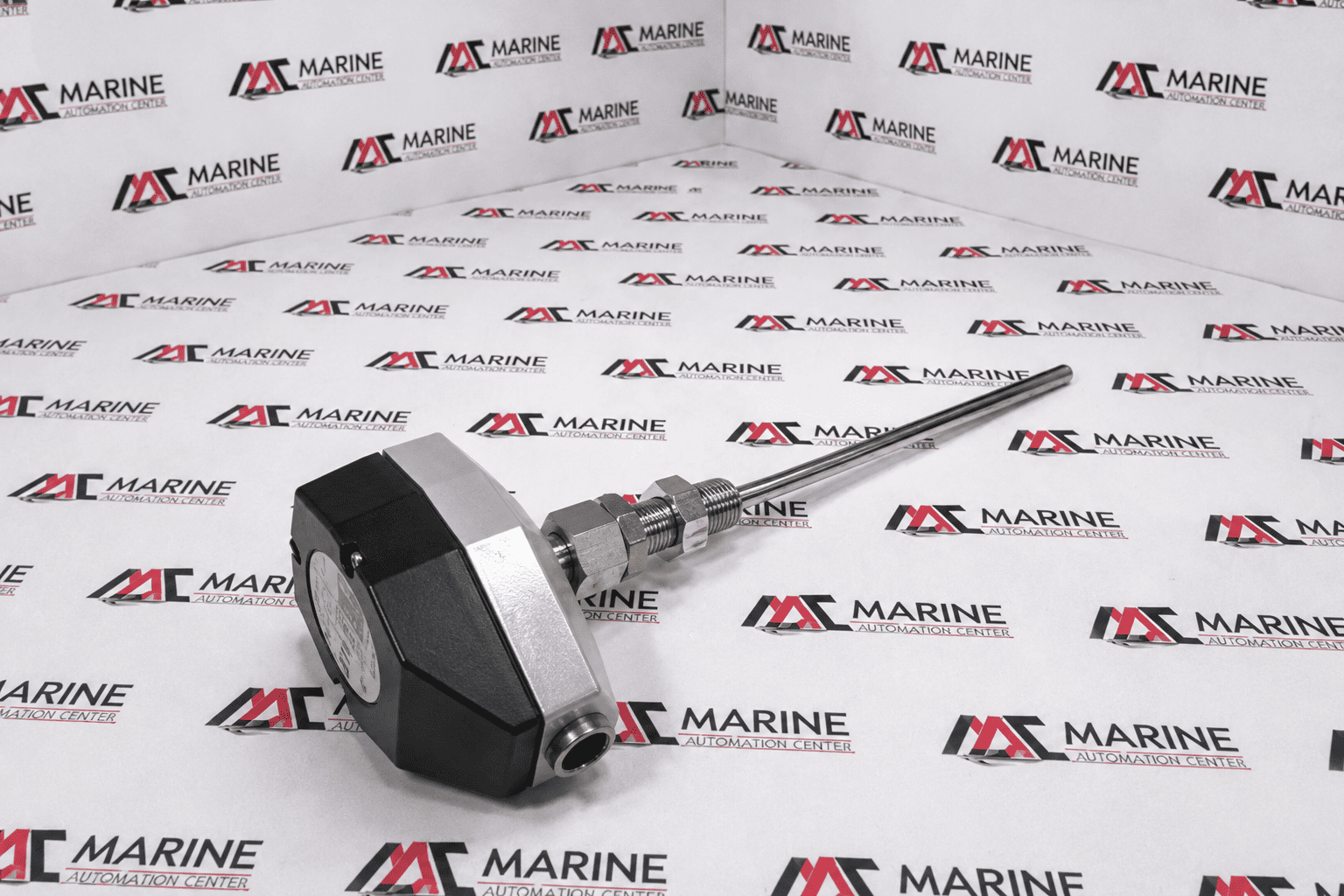

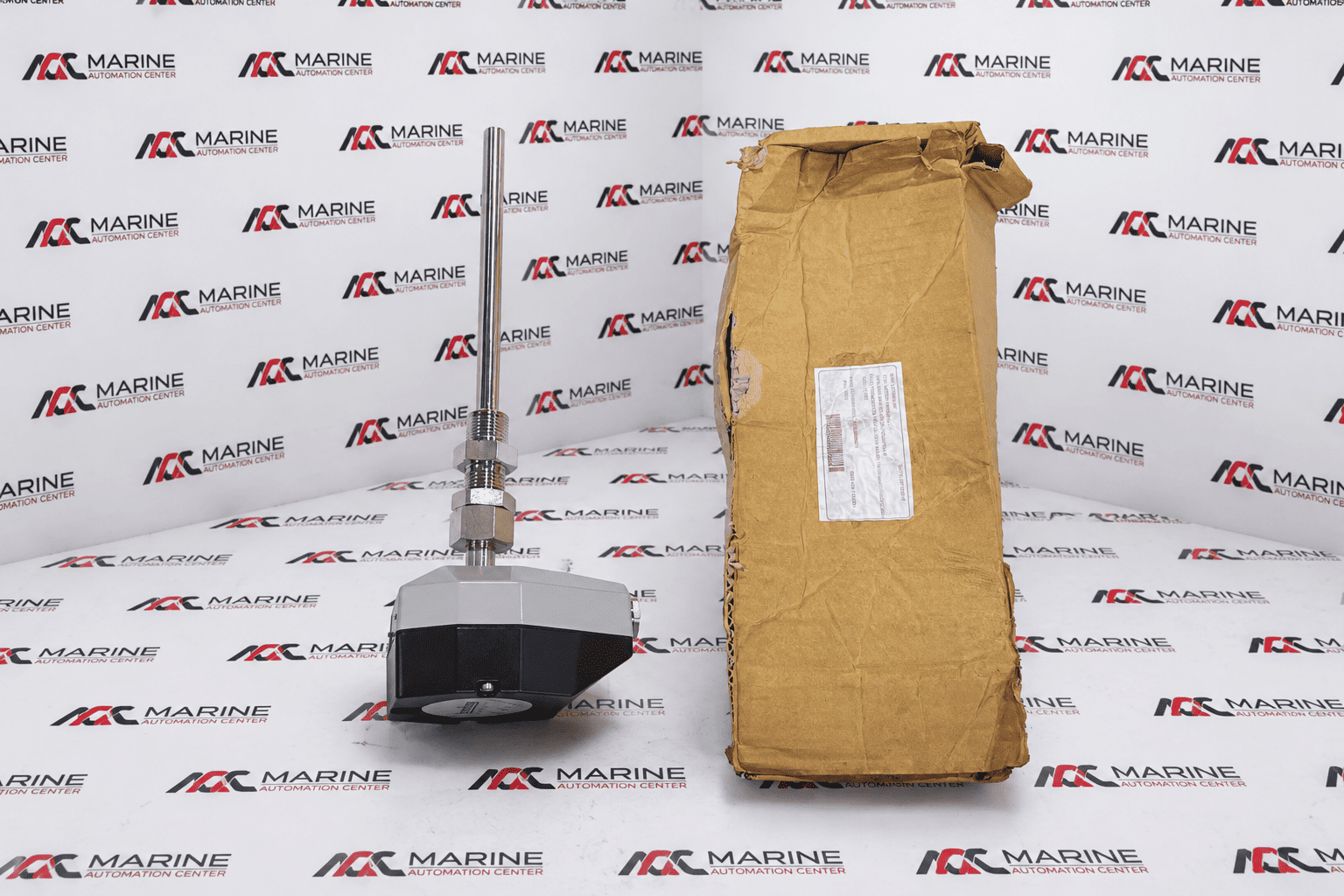

Trafag Industrial Thermostat ISNT15015
The Trafag NAVISTAT ISNT15015 (Part Number: 471 2331 322 14 1416 0150) is a heavy-duty Industrial Thermostat engineered for reliable temperature monitoring and switching in harsh industrial and marine environments. Operating over a wide temperature range of 20°C to 150°C, it features a rigid metal immersion probe to actuate switching contacts when preset temperature limits are reached.
BRAND
Trafag
TYPE
Industrial Thermostat
PART NO.
471 2331 322 14 1416 0150
MODEL
ISNT15015
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Trafag |
| TYPE | Industrial Thermostat |
| PART NO. | 471 2331 322 14 1416 0150 |
| MODEL | ISNT15015 |
| Voltage Rating | 250 V AC / 30 V DC (Switch Rating) |
| Application | Industrial and marine temperature monitoring and switching |
| Product Name | NAVISTAT Industrial Thermostat |
| Product Line | NAVISTAT |
| Temperature Range | 20°C to 150°C |
| Sensor Type | Capillary Tube Temperature Thermostat |
| Sensing Element | Rigid Metal Immersion Probe |
| Process Connection | Threaded Compression Fitting with Hex Adapter |
| Housing Material | Die-Cast Aluminum |
| Protection Rating | IP65 |
| Manufacturing Batch | 495664 |
| Made In | Switzerland |
