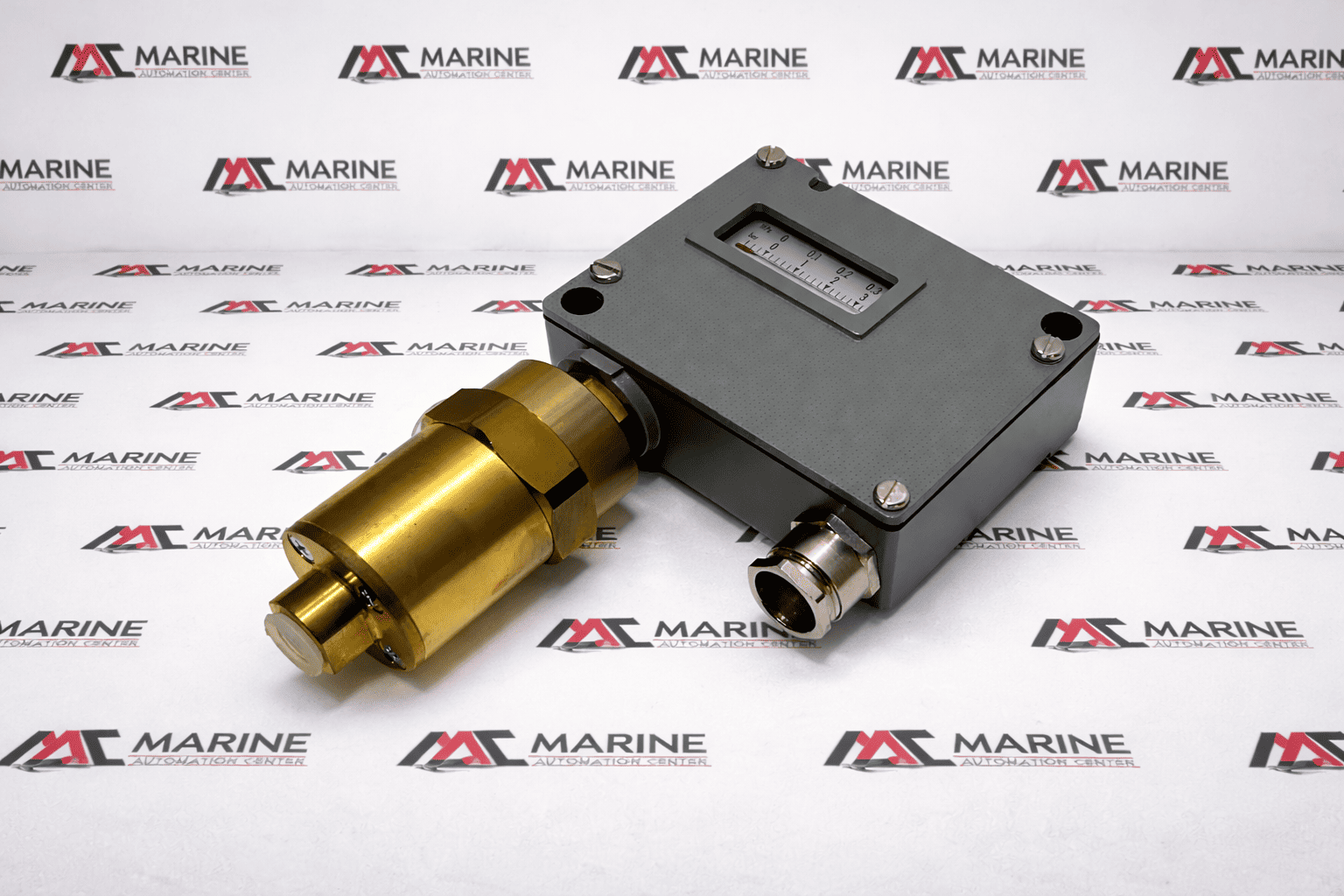

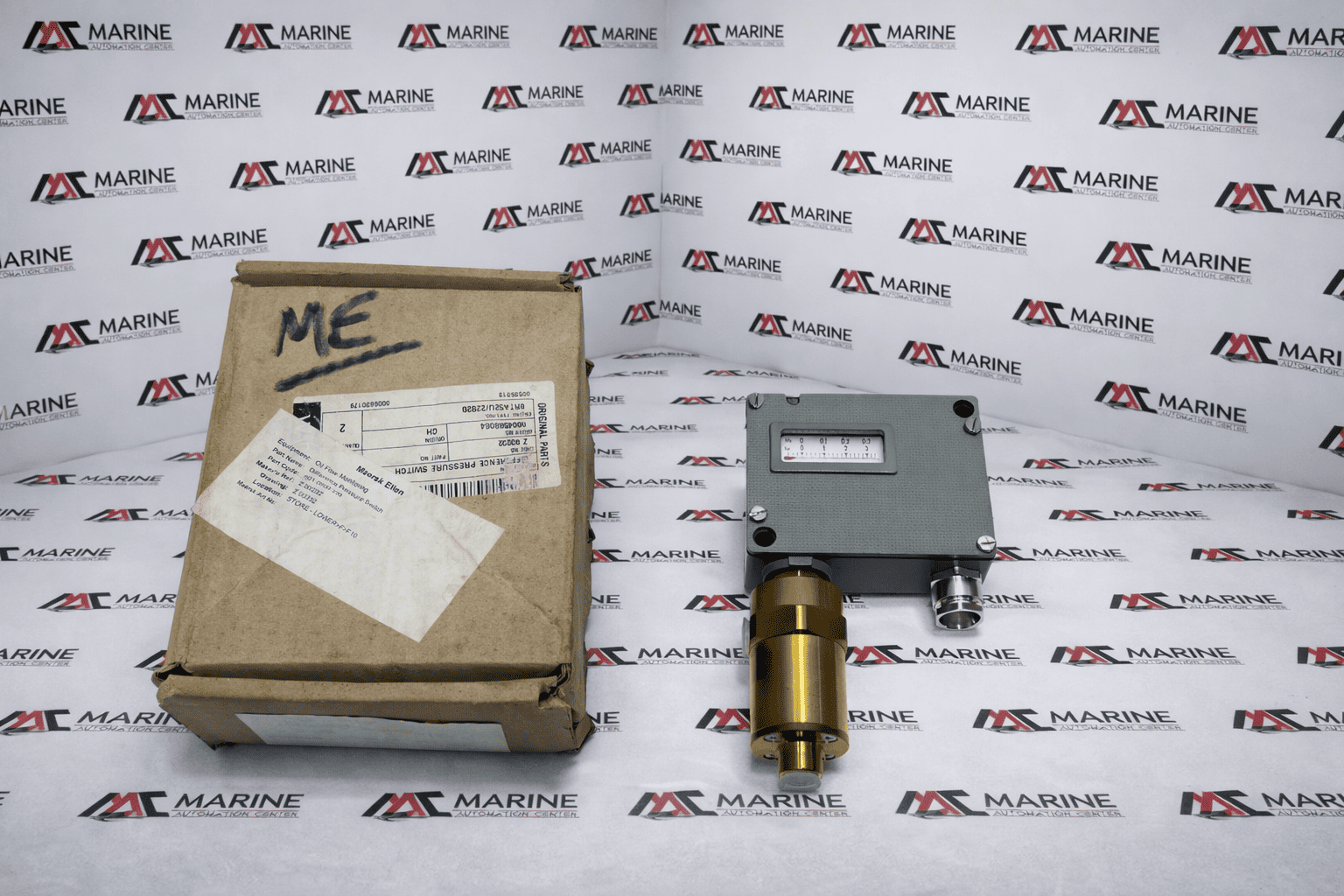

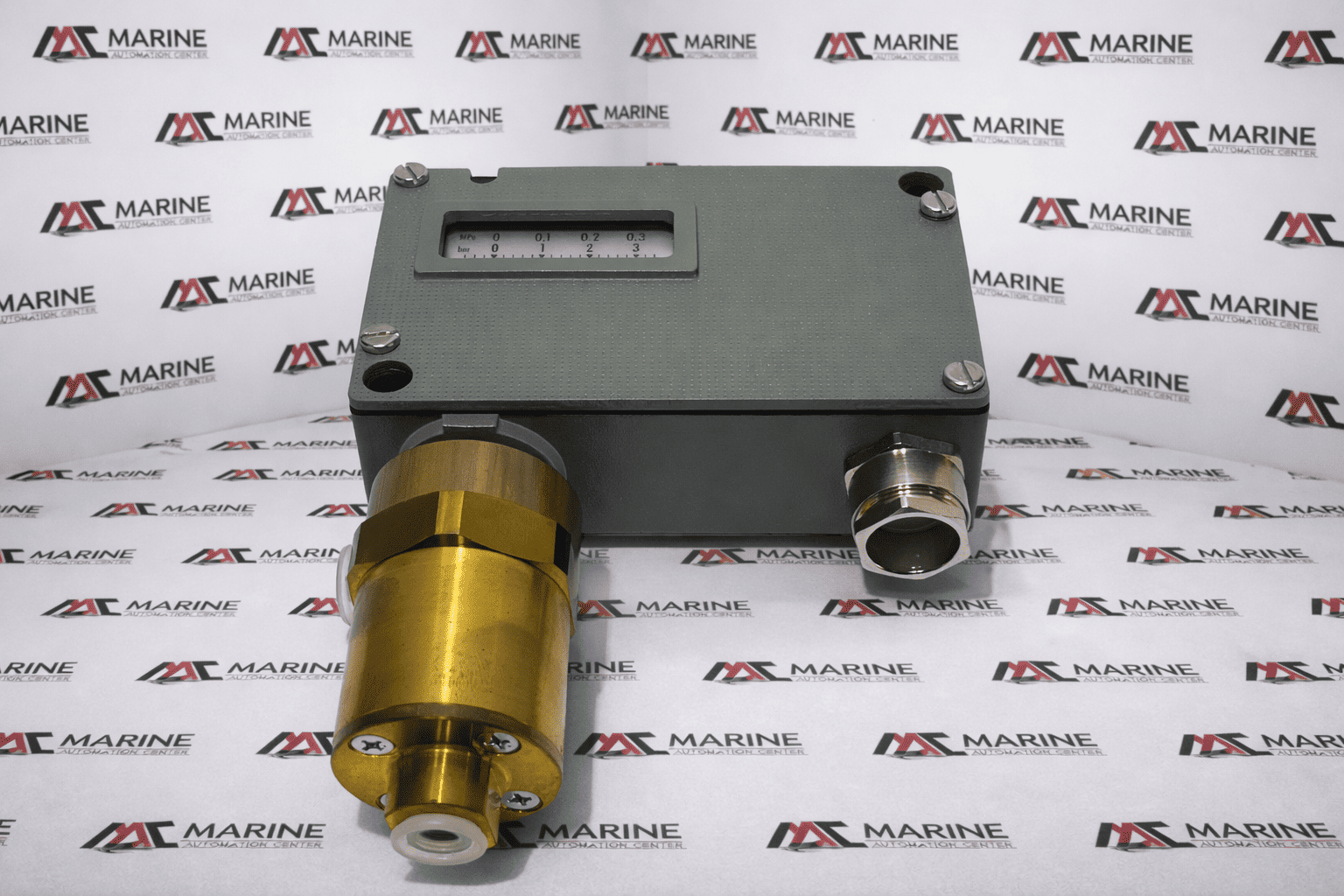

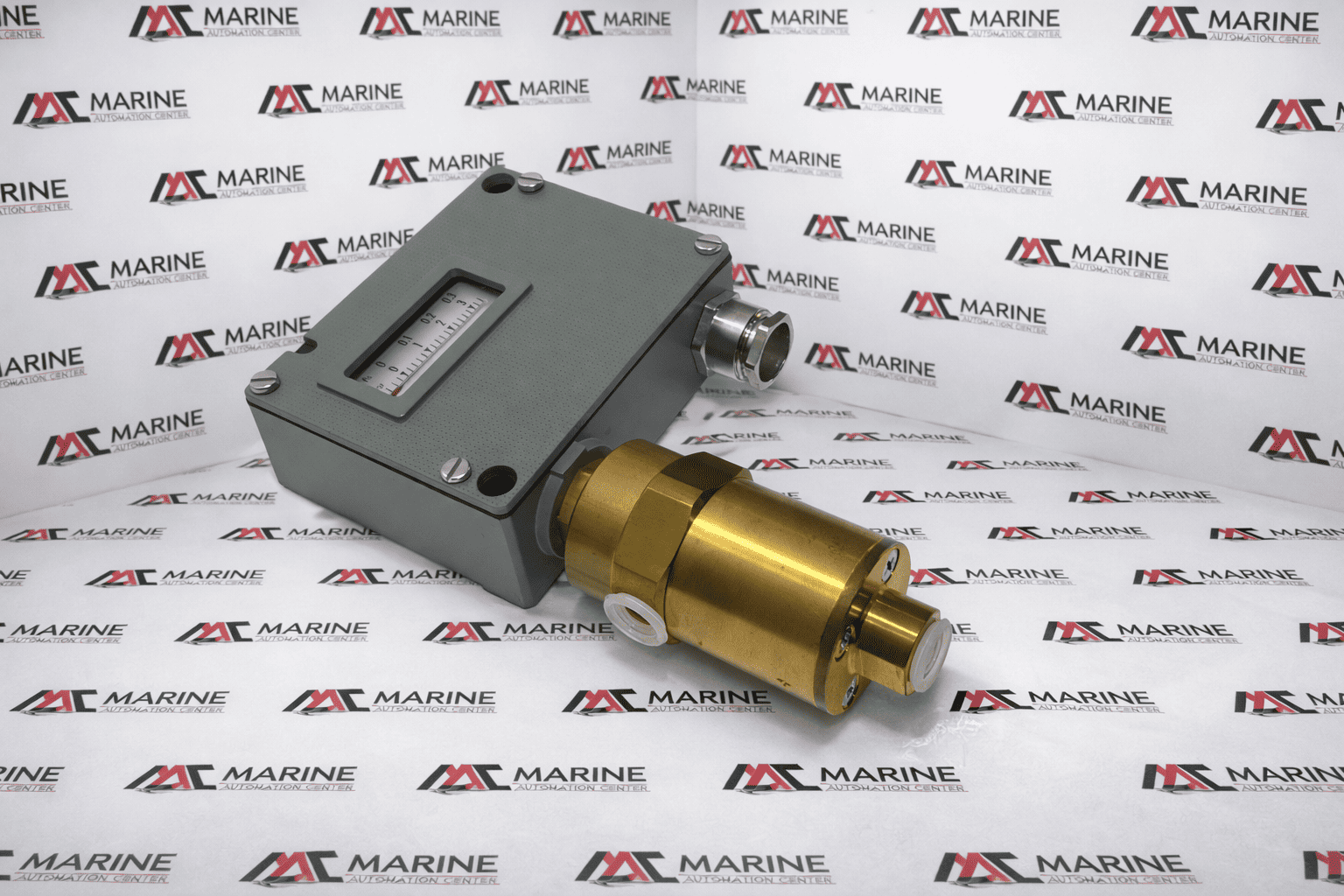

Trafag 920.2374.931 Pressure Switch 12Bar
Safeguard your systems with the Trafag 920.2374.931 Pressure Switch (12 Bar). Engineered for precision and durability, it ensures reliable high-pressure monitoring and optimal industrial process control.
BRAND
Trafag
TYPE
Pressure Switch
PART NO.
920.2374.931
MODEL
PD3.4 DIFF.PERSSO
Full Technical Specifications ▶

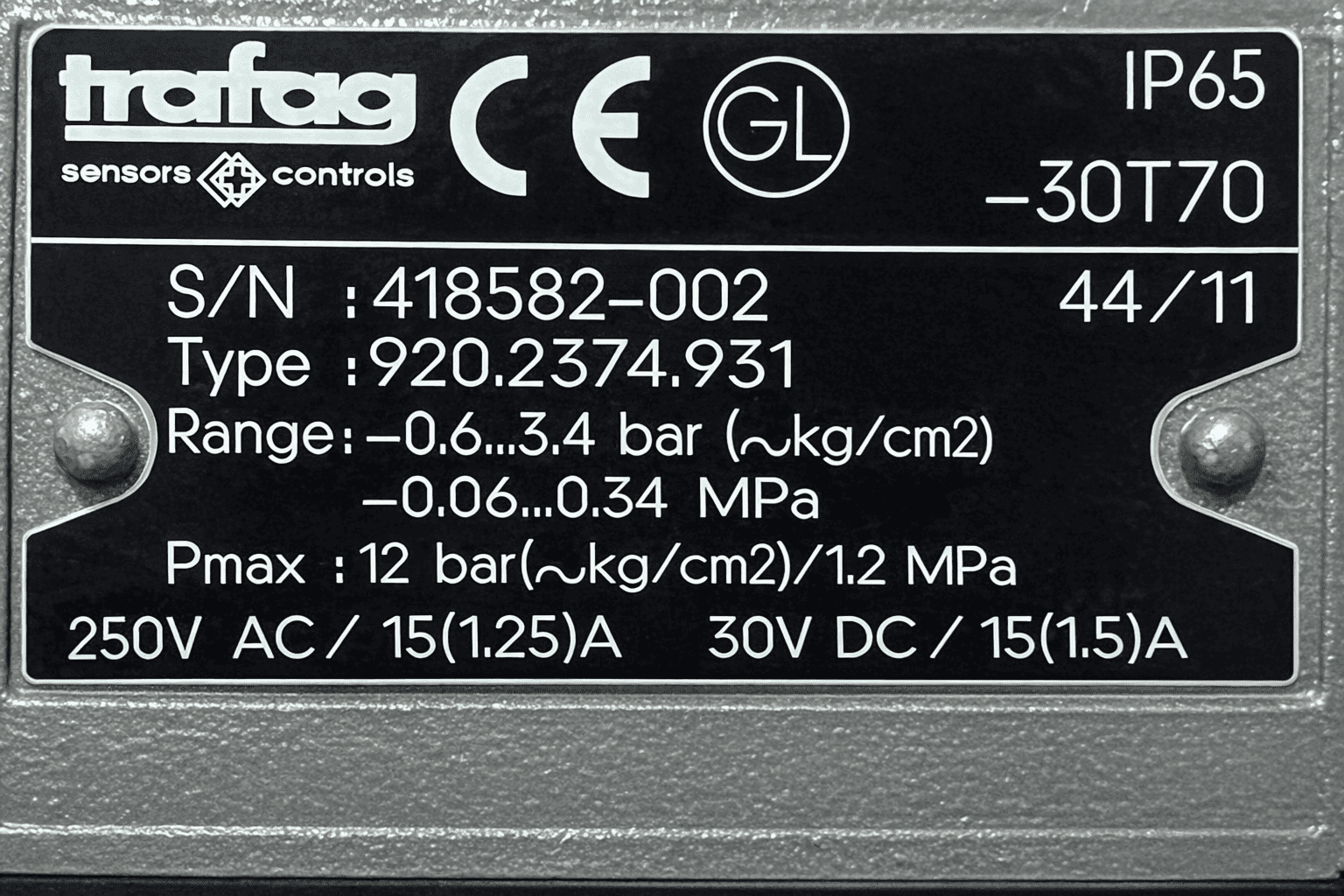

| Parameter | Value / Description |
|---|---|
| BRAND | Trafag |
| TYPE | Pressure Switch |
| PART NO. | 920.2374.931 |
| MODEL | PD3.4 DIFF.PERSSO |
| S/N | 418582-002 |
| Range | -0.6...3.4 Bar (~Kg/cm2)-0.06...0.34 Mpa |
| Pmax | 12Bar (~Kg/cm2)/1.2Mpa |
| : | 250V Ac/ 15(1.25)A 30V Dc/ 15(1.5)A |
| : | Pd3.4 Diff.Presso |
| Fabr No | 418582 |
| Mat No | 5005 |
| Equipment | Oil Flow Monitoring |
| Part Name | Difference Pressure Switch |
| Part Code | 601.0932.232 |
| IP | Ip65-30T70 |
| Country of origin | Switzerland |
| Reference No | 666 |
