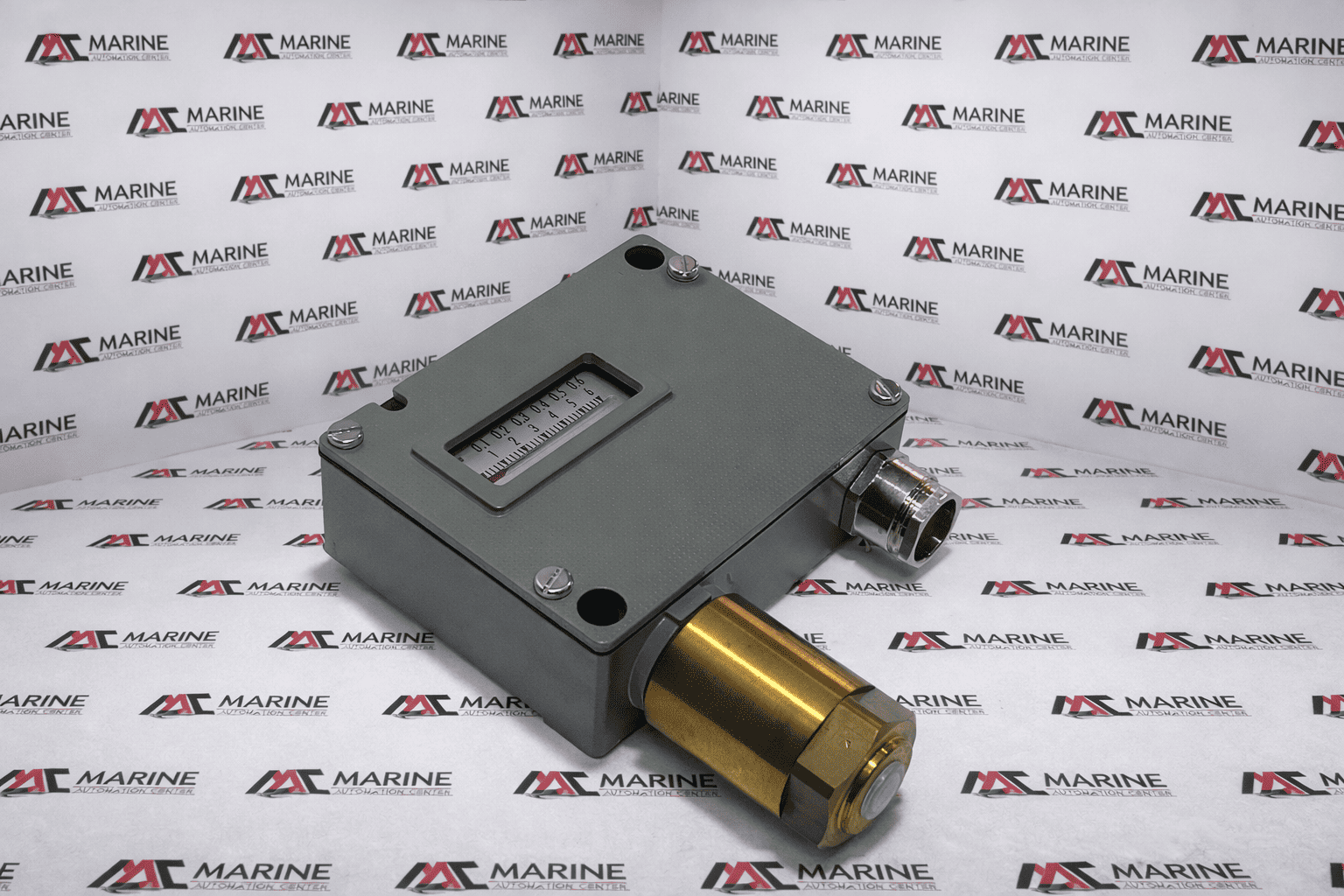

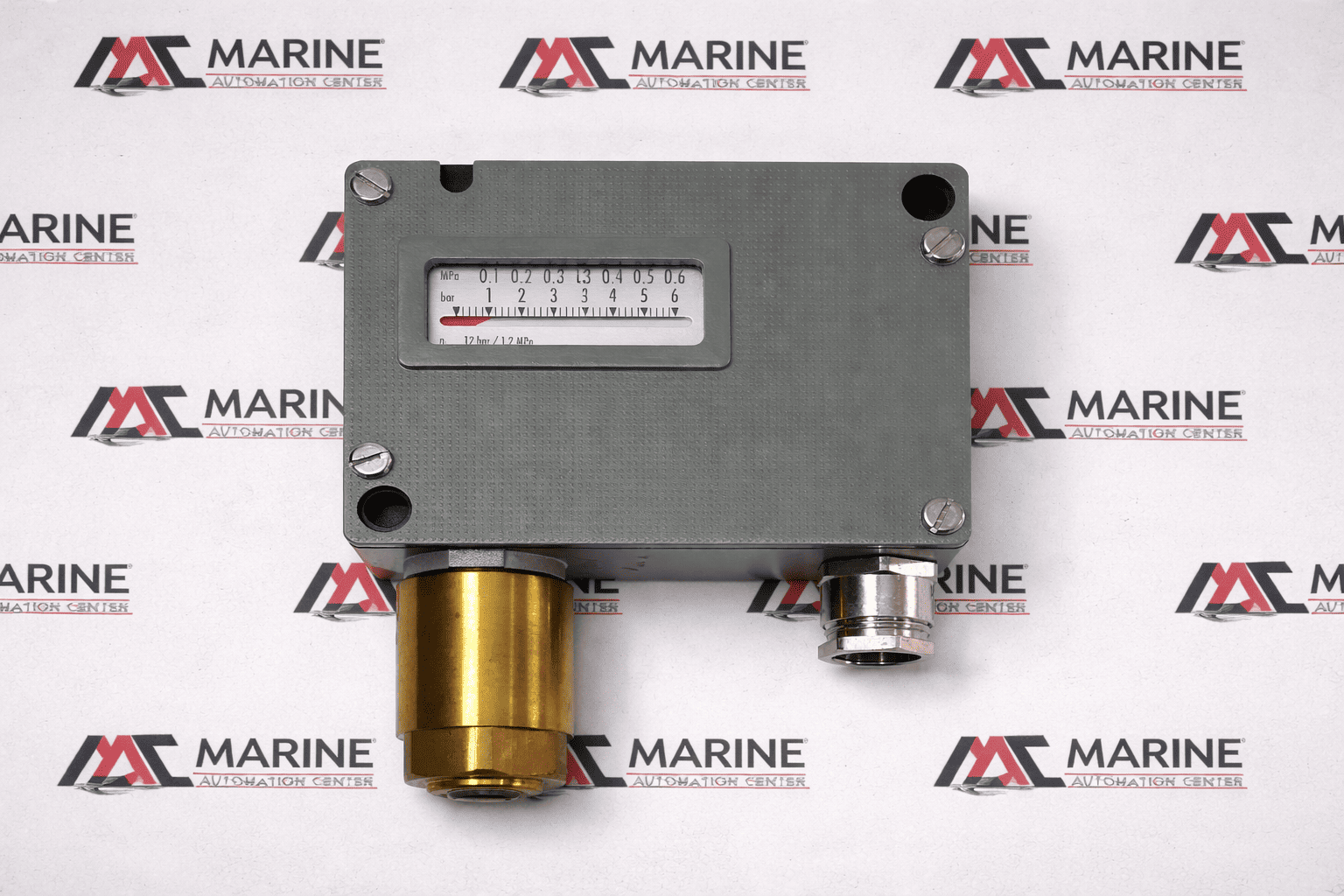

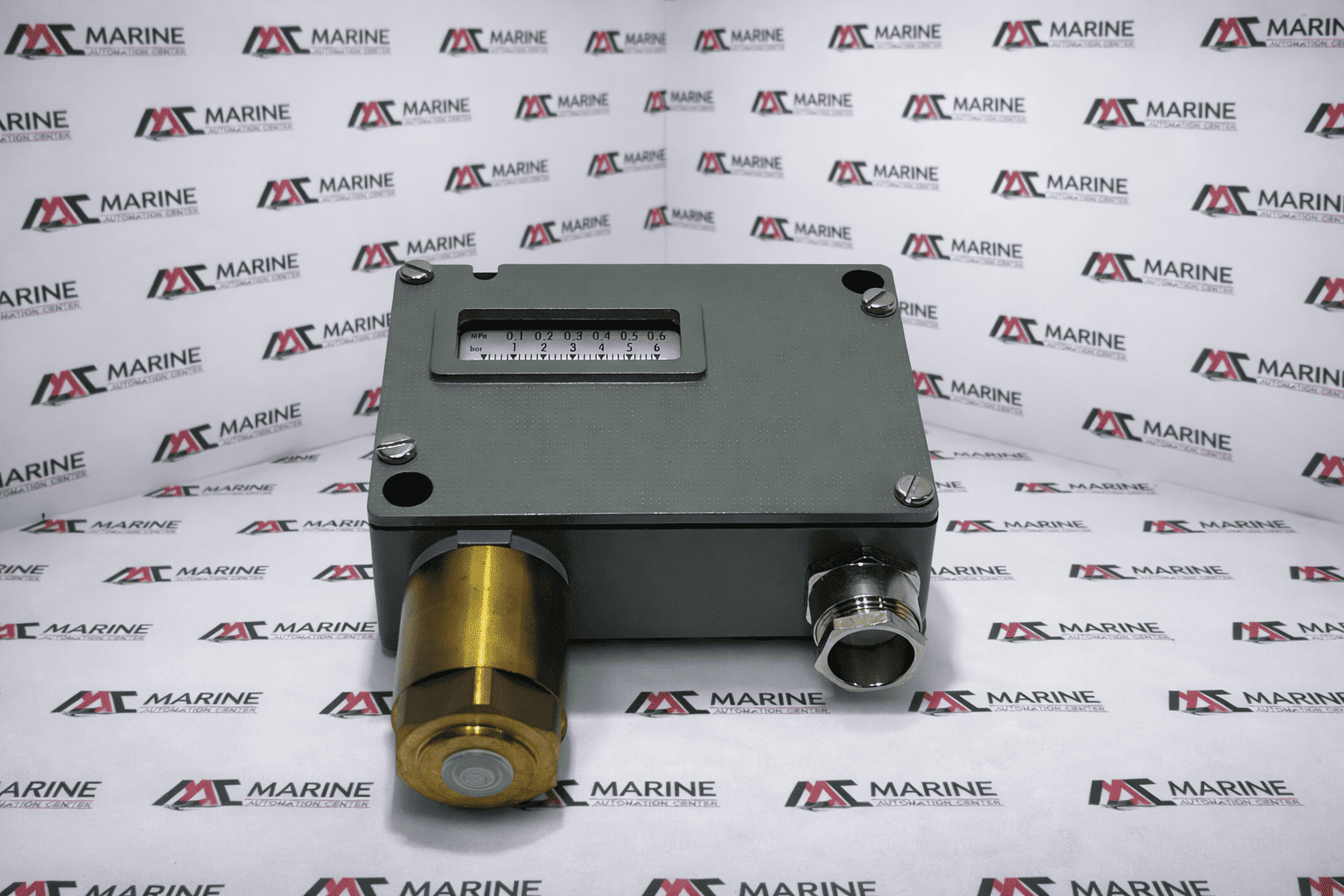

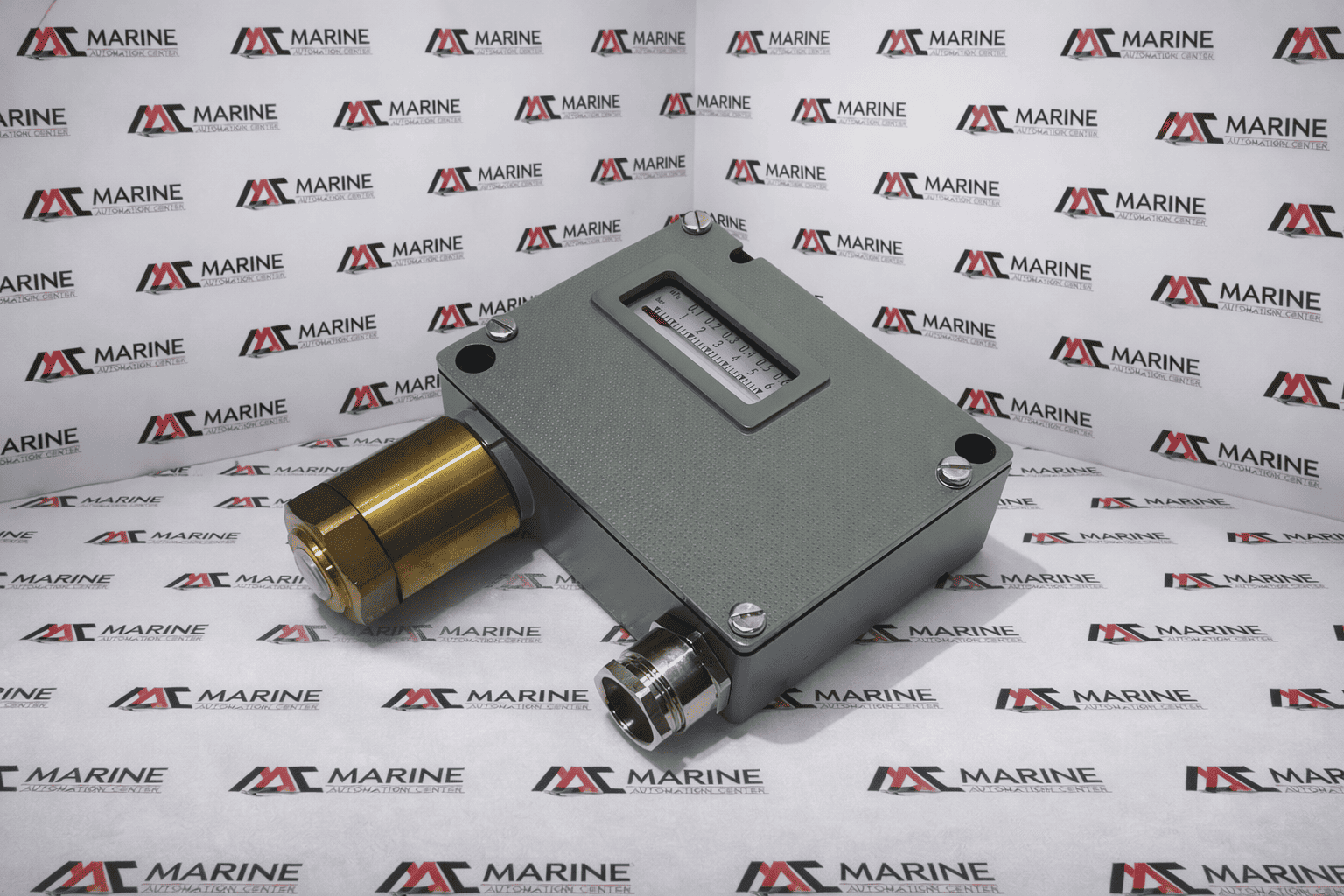

Trafag 900.2377.903 Pressure Transmitter 12bar
Trafag 900.2377.903 pressure transmitter with 12 bar range for precise and reliable pressure measurement. Ideal for industrial automation and process control applications.
BRAND
Trafag
TYPE
Pressure Transmitter
PART NO.
900.2377.903
MODEL
Trafag 900.2377.903 Pressure Transmitter 12bar
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Trafag |
| TYPE | Pressure Transmitter |
| PART NO. | 900.2377.903 |
| MODEL | Trafag 900.2377.903 Pressure Transmitter 12bar |

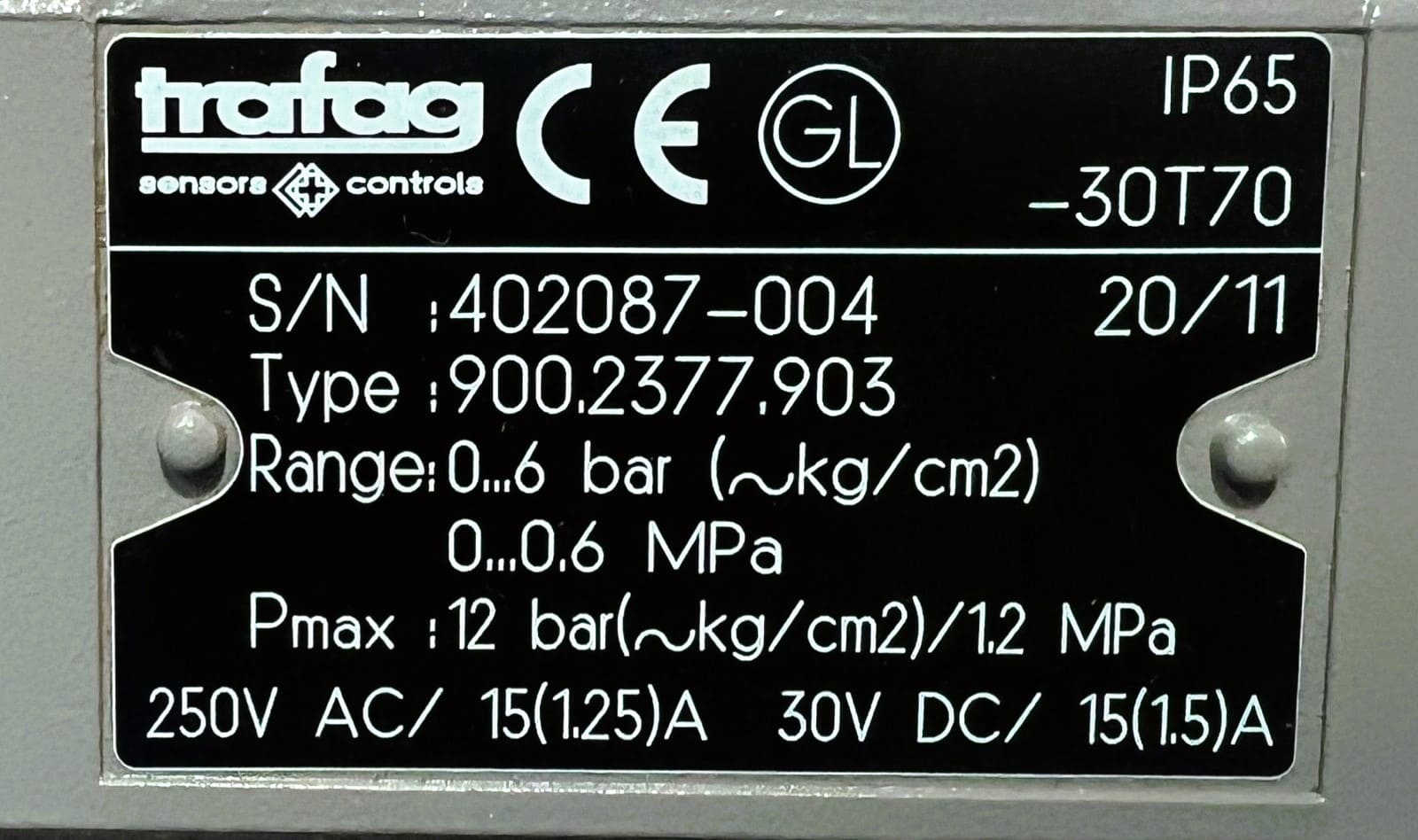

| Serial No | 402087-004 |
| Type | 900.2377.903 |
| Range | 0...6 bar (~kg/cm2) |
| : | 0...0.6 mpa |
| Pmax | 12 bar(~kg/cm2)/1.2mpa |
| : | 250v ac/15(1.25)a |
| : | 30v dc/15(1.5)a |
| : | -30t70 |
| IP | Ip65 |
| Reference No | 735 |
