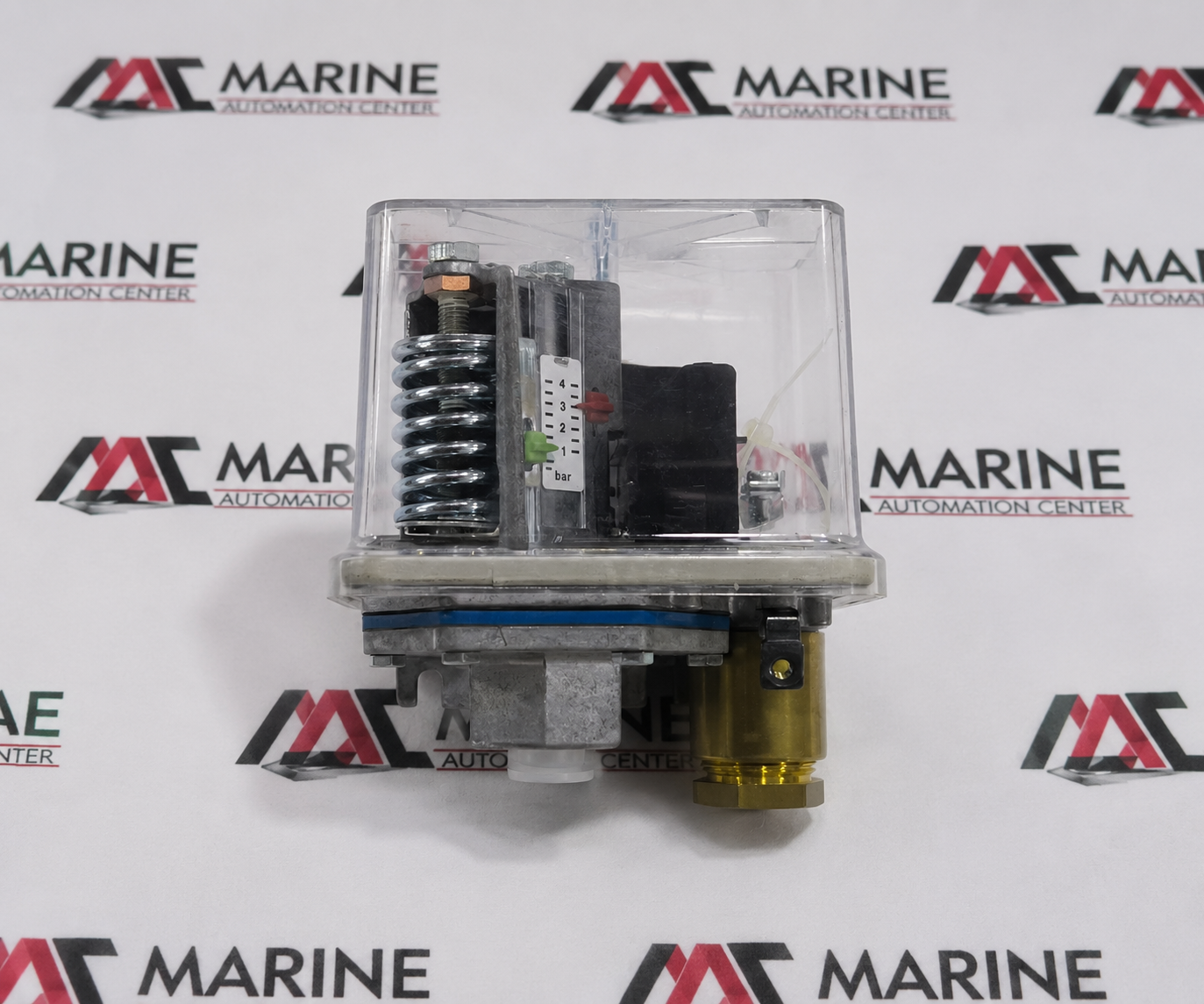

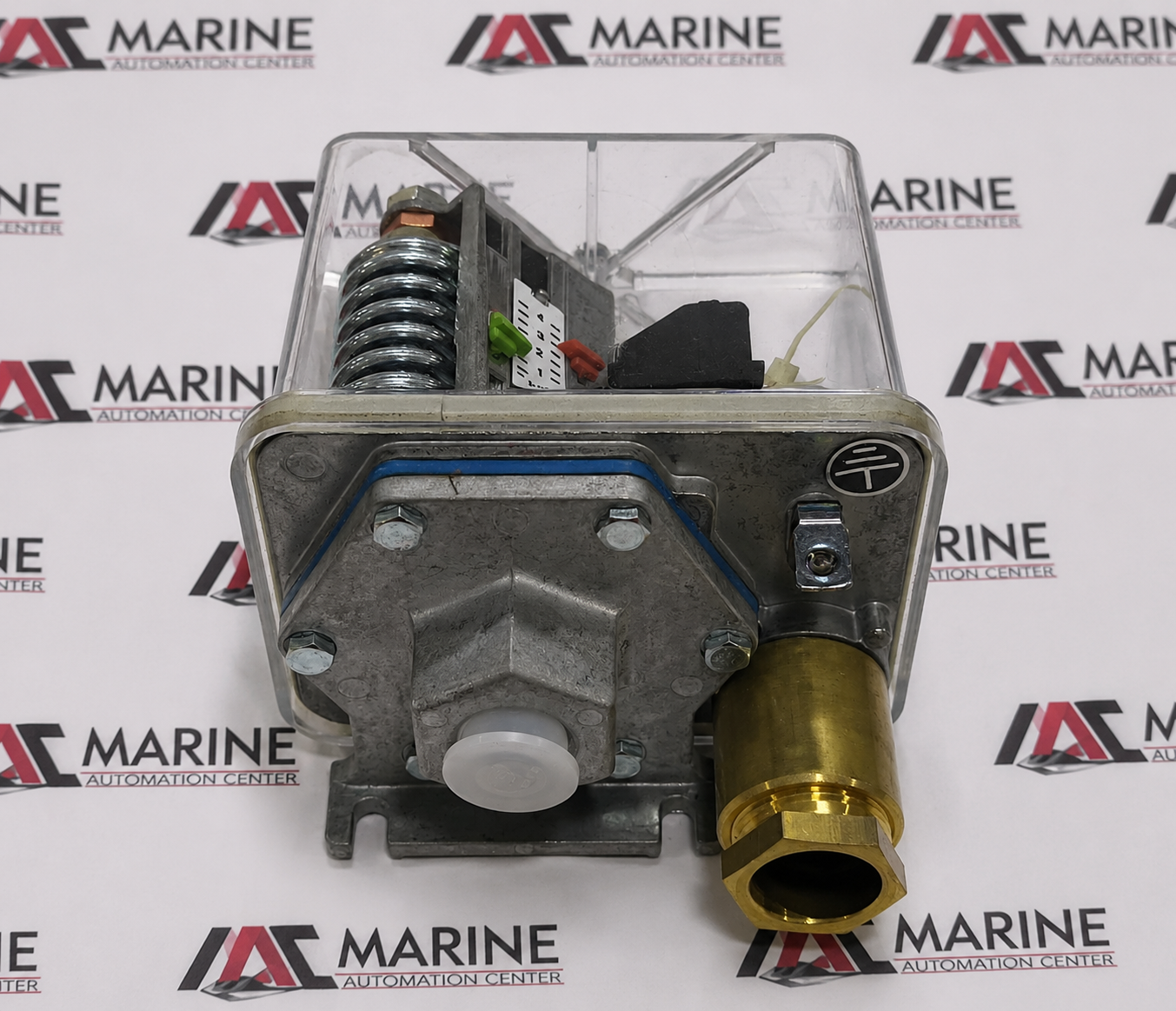

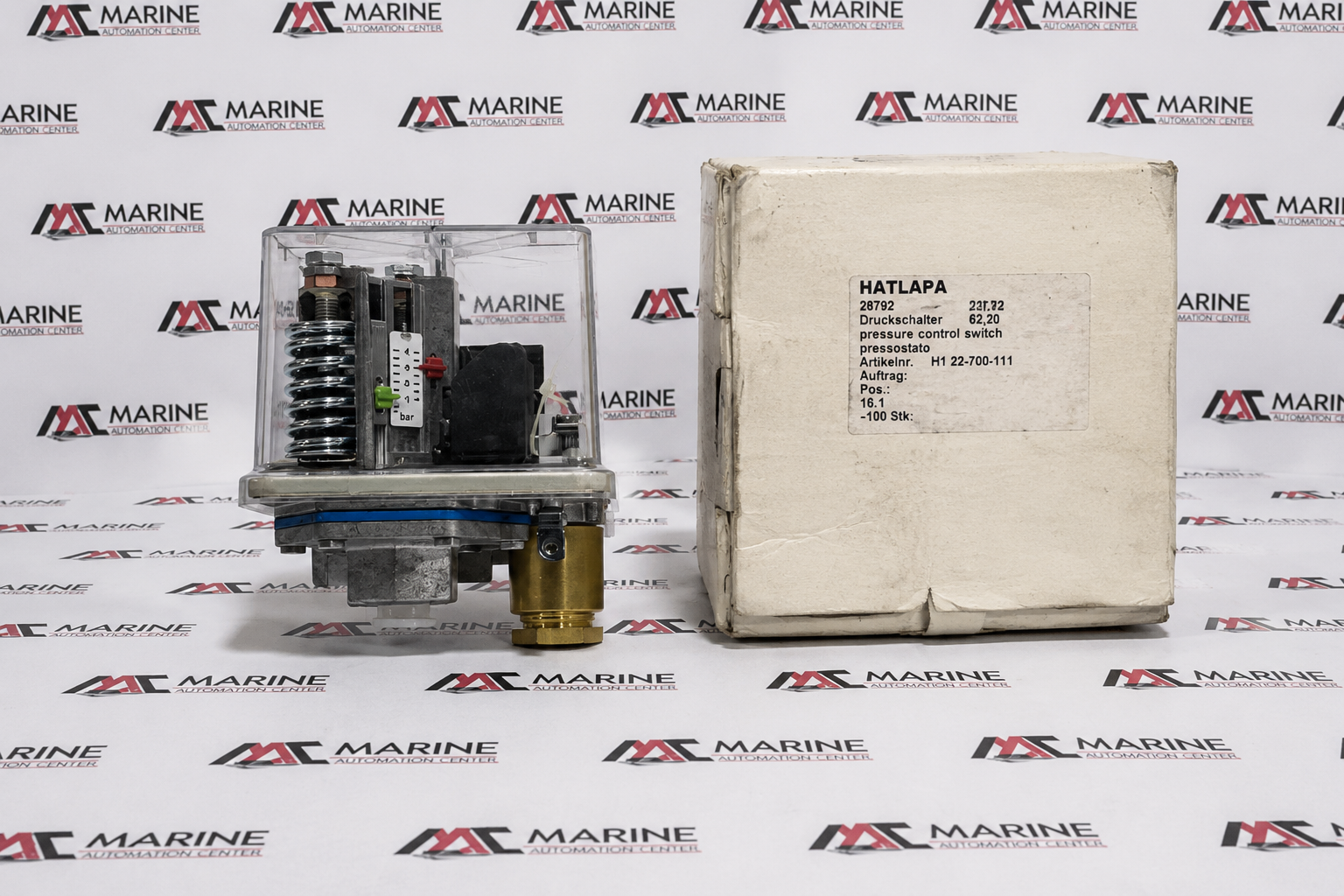

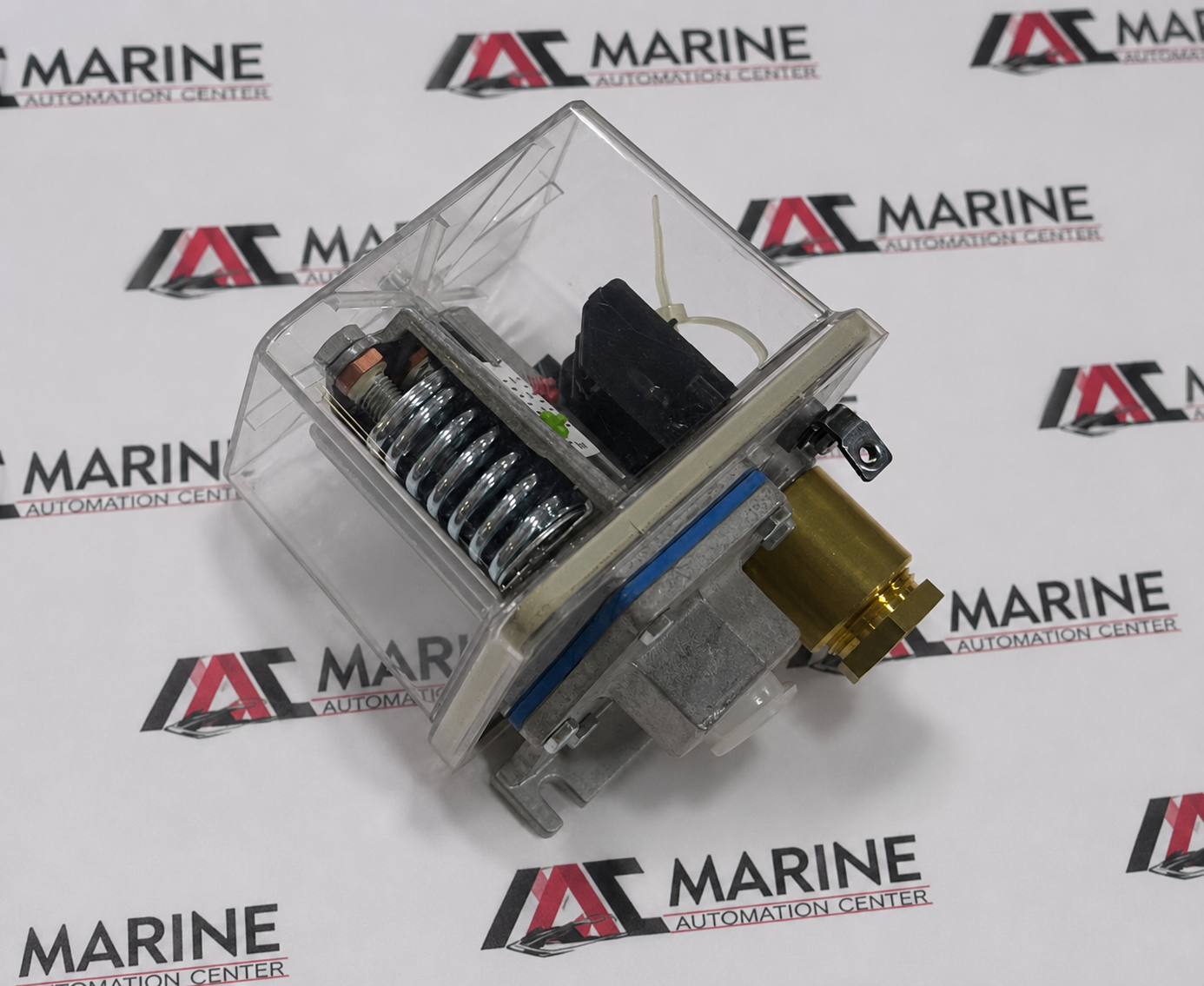

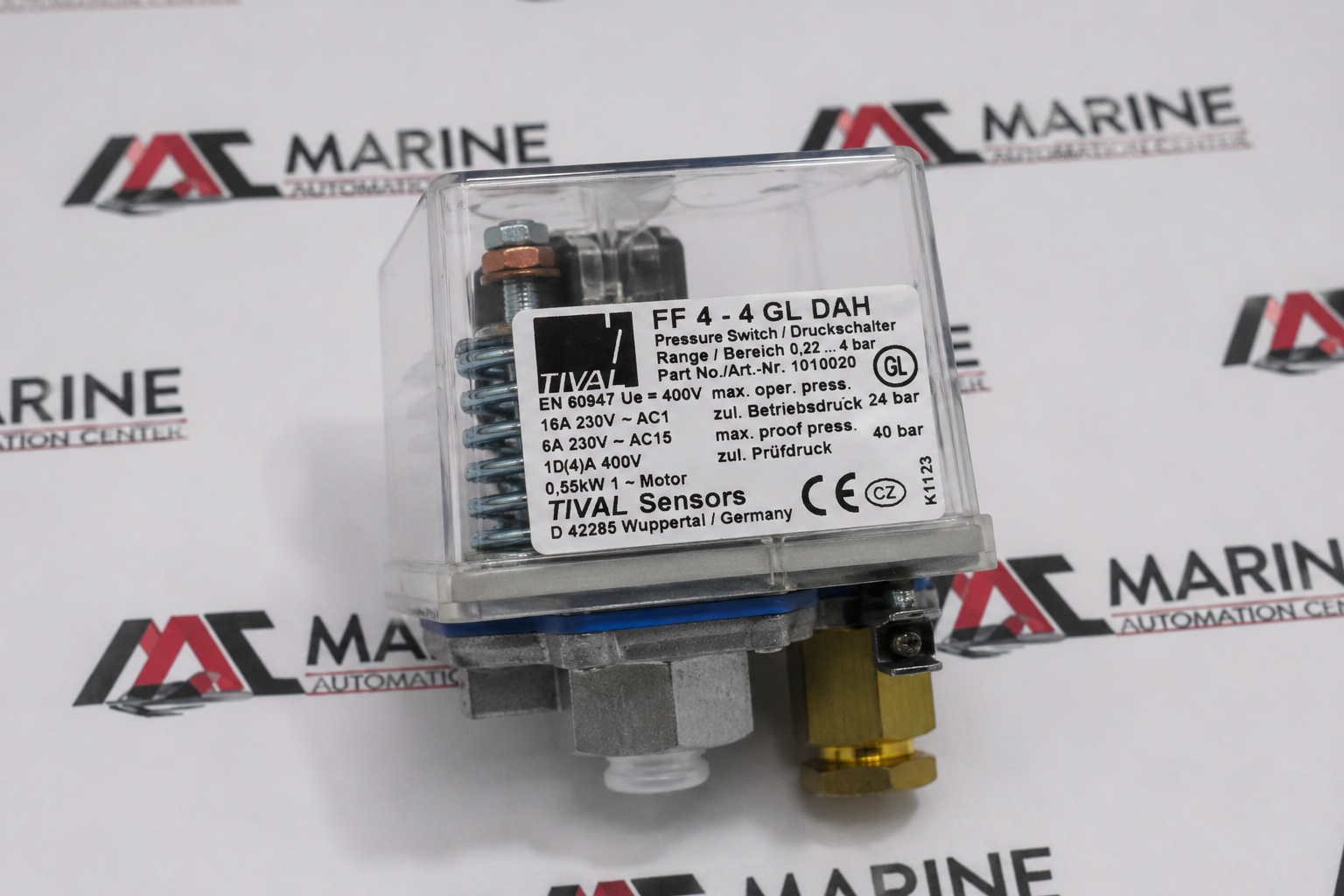

TIVAL Sensors FF 4 - 4 GL DAH Pressure Control Switch
TIVAL Sensors FF 4 - 4 GL DAH Pressure Control Switch is a robust industrial pressure switch designed for precise pressure monitoring and control in demanding applications. It features adjustable switching points, high vibration resistance, and reliable snap-action contacts for dependable operation in marine, hydraulic, lubrication, and industrial process systems. Ideal for machinery protection, engine monitoring, and automation control applications.
BRAND
TIVAL
TYPE
Pressure Control Switch
PART NO.
Pressure Control Switch FF 4 - 4 GL DAH
MODEL
FF 4 - 4 GL DAH
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | TIVAL |
| TYPE | Pressure Control Switch |
| PART NO. | Pressure Control Switch FF 4 - 4 GL DAH |
| MODEL | FF 4 - 4 GL DAH |
| MANUFACTURER | TIVAL Sensors |
| Voltage Rating | Up to 400 V AC |
| Application | Pressure monitoring and control for mineral oils, lube oils, water, compressed air systems, marine engines, and industrial automation |
| Base Material | Die-Cast Aluminum Alloy |
| Housing Material | Transparent Polycarbonate Cover |
| Marine Configuration | Brass Cable Gland with External Copper Ground Clamp |
| Maximum Continuous Pressure | 24 bar |
| Contact Mechanism | Snap-Action Cascade Change-Over |
| Ambient Temperature | -20°C to +70°C |
| Motor Rating | 0.55 kW Single-Phase |
| Maximum Medium Temperature | +70°C |
| Ingress Protection | IP65 (with marine cable gland) |
| Vibration Resistance | Up to 4 g (10 Hz to 1000 Hz) |
| Mounting Type | Direct Process Mount |
| Made In | Germany |
| REF NO | 526 |
