Texmate Bargraph Meter FX-B101Q
The Texmate FX-B101Q is a bargraph panel meter engineered for precise monitoring and visual display of analog process signals in industrial automation systems. Featuring a bright LED bargraph display, fast response, and high reliability, it enables quick assessment of system status and process variables. It is widely used in control panels, power distribution systems, marine automation, process control, and industrial instrumentation applications.
BRAND
Texmate
TYPE
Bargraph Meter
PART NO.
Texmate Bargraph Meter FX-B101Q
MODEL
FX-B101Q
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Texmate |
| TYPE | Bargraph Meter |
| PART NO. | Texmate Bargraph Meter FX-B101Q |
| MODEL | FX-B101Q |
| SERIES | Lynx Series |

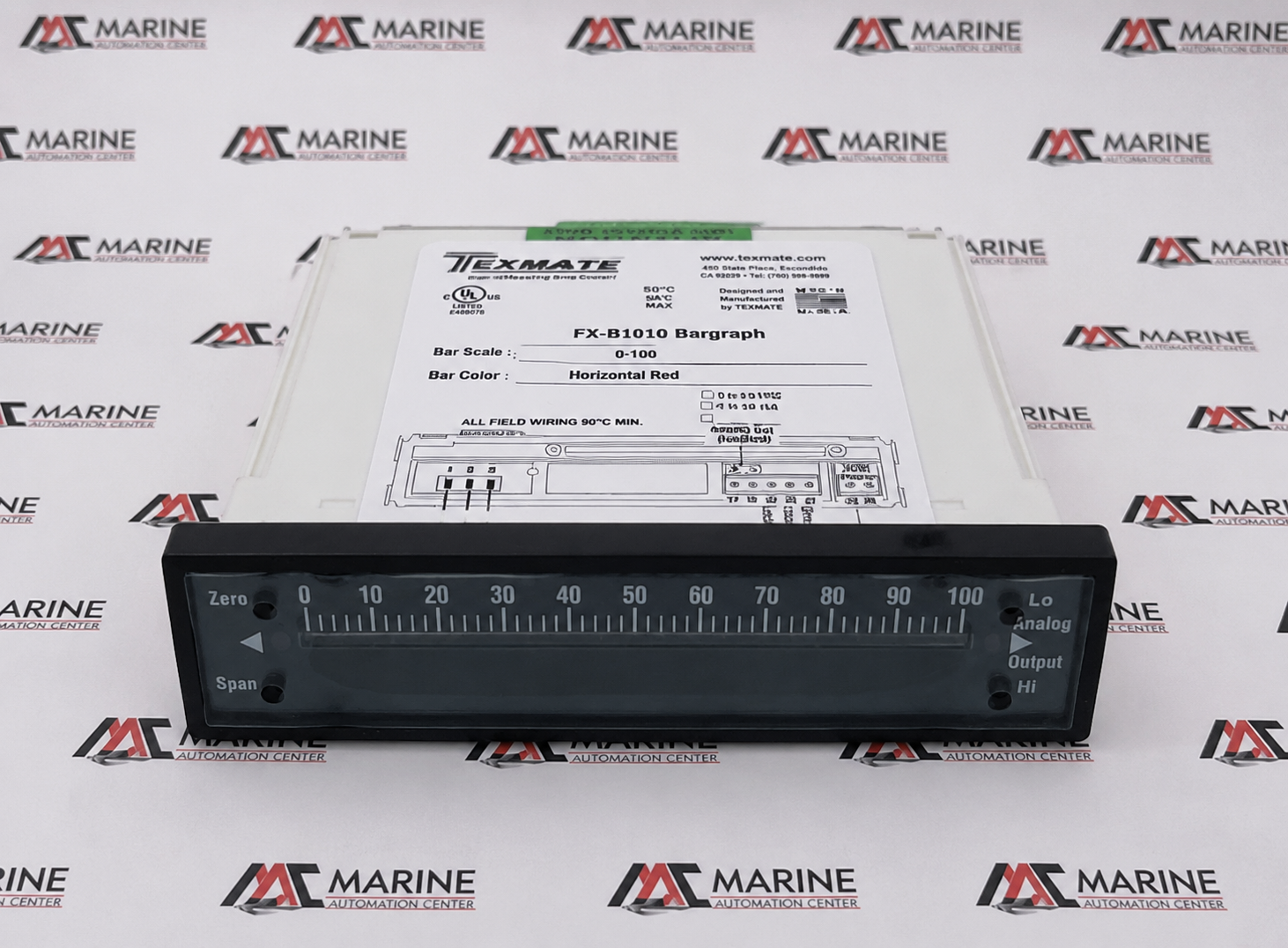

| DISPLAY TYPE | 101-Segment LED Horizontal Bargraph |
| INPUT TYPE | DC Process Signal |
| POWER SUPPLY INSTALLED | PS2 |
| POWER SUPPLY RANGE | 15–48 VAC / 10–72 VDC |
| ANALOG OUTPUT | Provision for Isolated Analog Output |
| OPTIONAL ANALOG OUTPUT | 0–10 VDC or 4–20 mA |

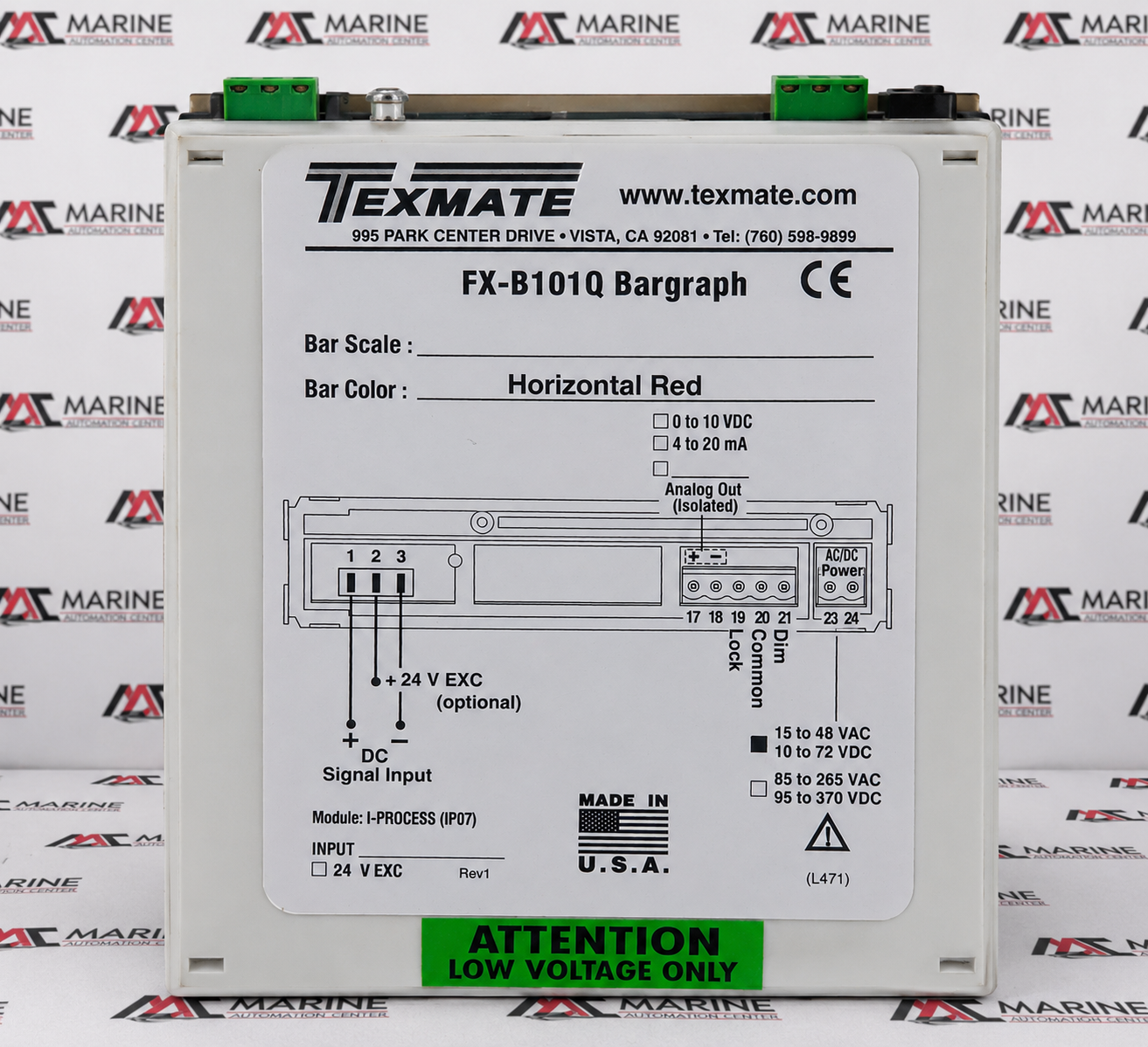

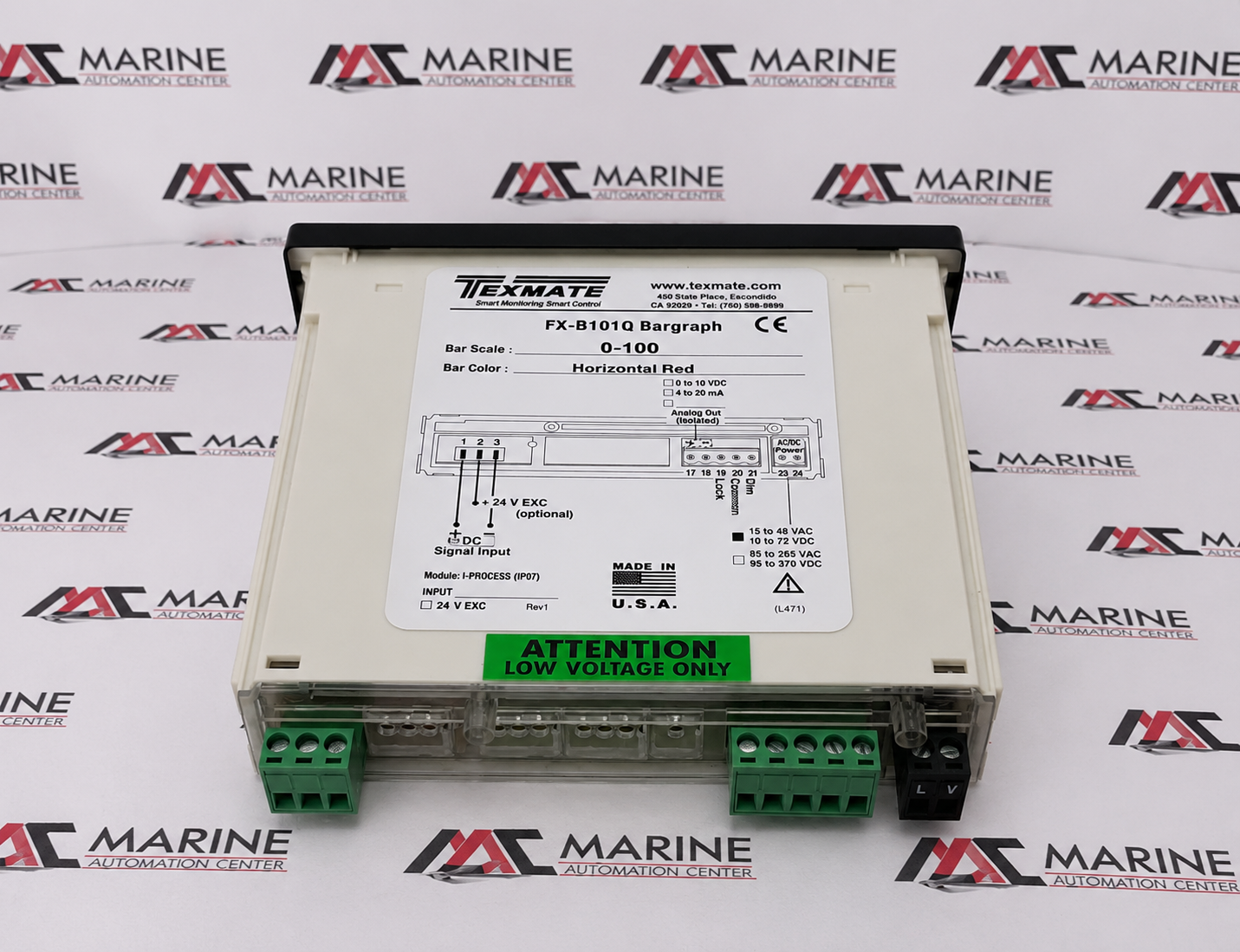

| SIGNAL INPUT TERMINALS | 1 (+), 2 (+24 V Exc Optional), 3 (−) |
| APPLICATION | Industrial automation, process indication, PLC analog signal monitoring, marine control panels, OEM equipment, instrumentation, voltage/process signal display, control systems. |
| MADE IN | U.S.A. |
| REF NO | 432 |
