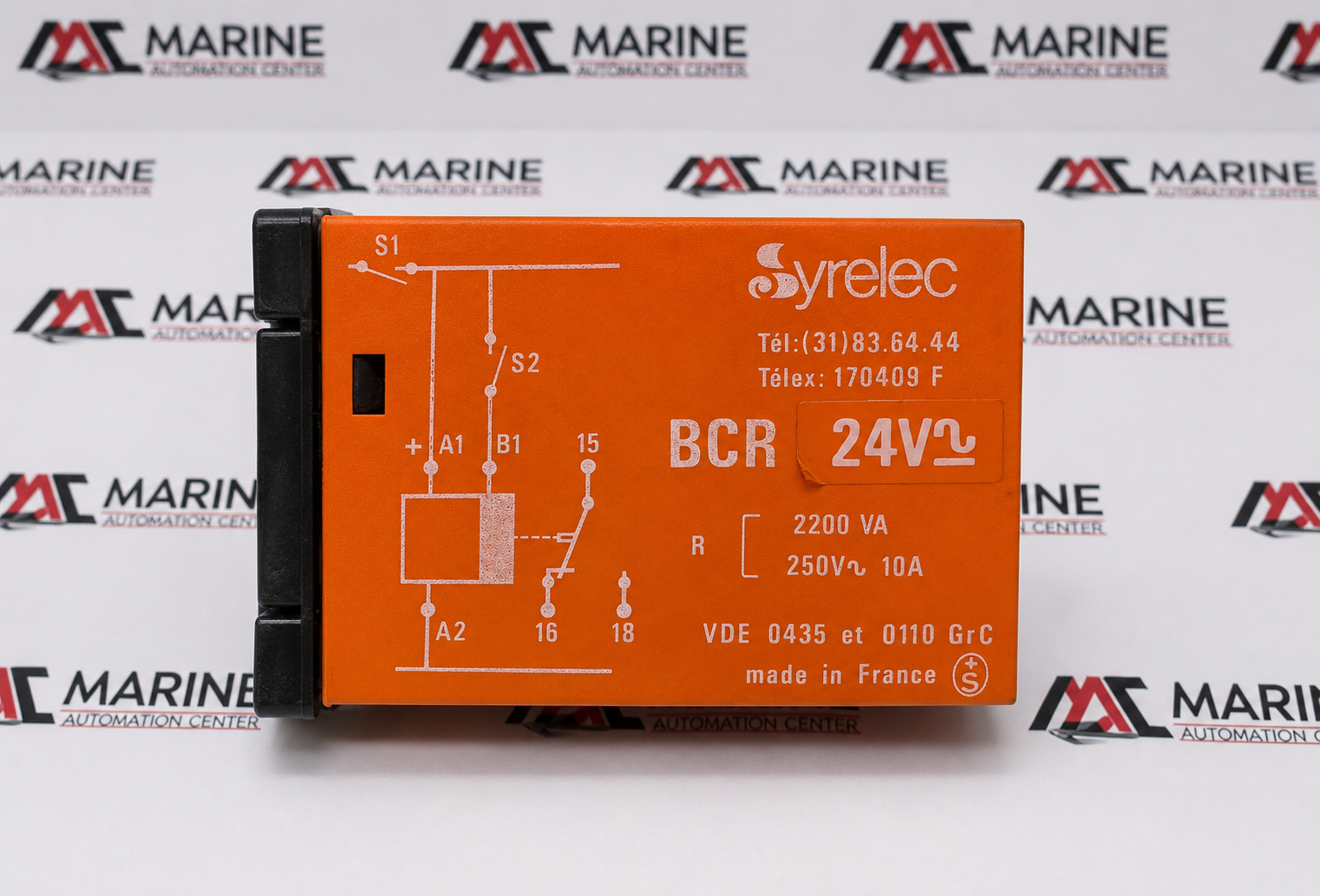

Syrelec BCR 24V Time Delay Relay
Syrelec BCR 24V Time Delay Relay is a dependable control relay designed to provide accurate and adjustable time-delay functions in industrial automation and control systems. Operating on a 24V supply, it ensures reliable timing, switching, and sequence control for machinery, process equipment, and electrical control panels
BRAND
Syrelec (Crouzet)
TYPE
Time Delay Relay / Control Relay
PART NO.
BCR 24V
MODEL
BCR
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Syrelec (Crouzet) |
| TYPE | Time Delay Relay / Control Relay |
| PART NO. | BCR 24V |
| MODEL | BCR |
| Voltage Rating | 24V AC/DC |
| Application | Industrial automation automation panels, machine timing sequencing, delay-on-break controls, and signal switching logic |
| IEC | Conforms to VDE 0435 and VDE 0110 Group C safety/insulation standards |
| Maximum Switching Capacity | 2200 VA max |
| Contact Rating | 10A at 250V AC resistive load |
| Terminal Interface | Standard screw-type terminal connections integrated on a plug-in octal/undecal base socket layout |
| Control Inputs | External initiate loop triggers across control lines S₁ and S₂ mapped to contact terminals A₁, B₁, and A₂ |
| Made In | France |
| REF NO | 1392 |
