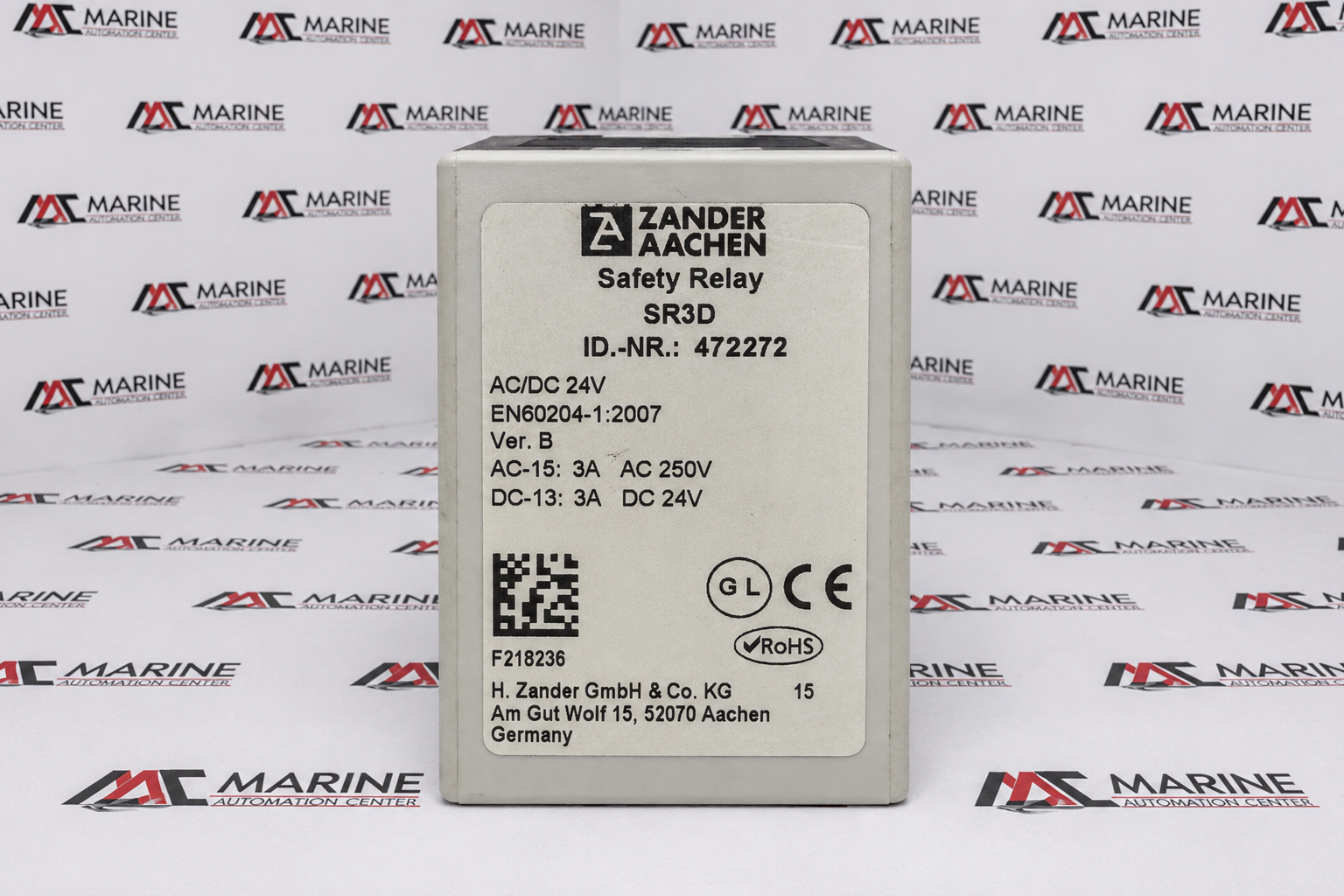

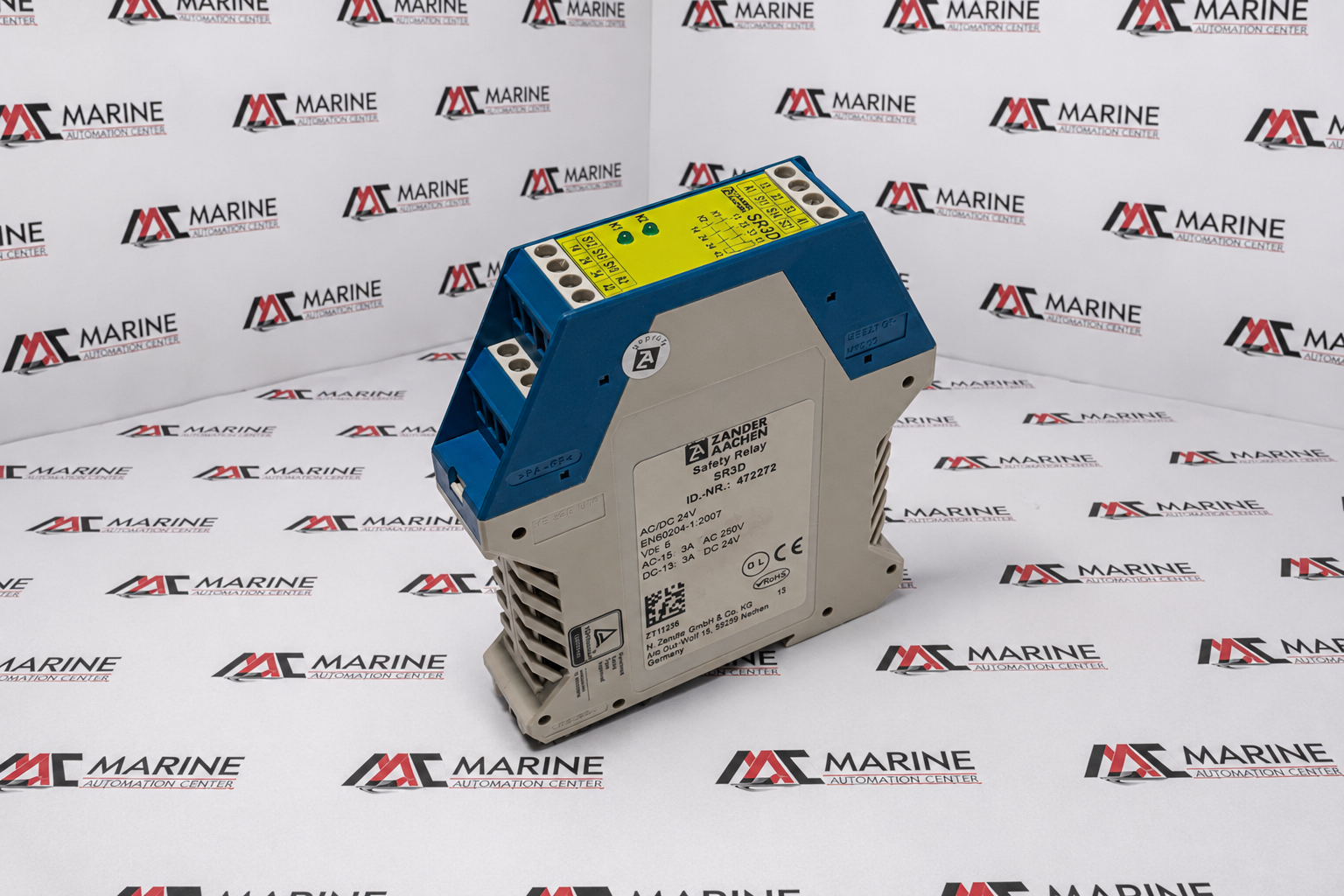

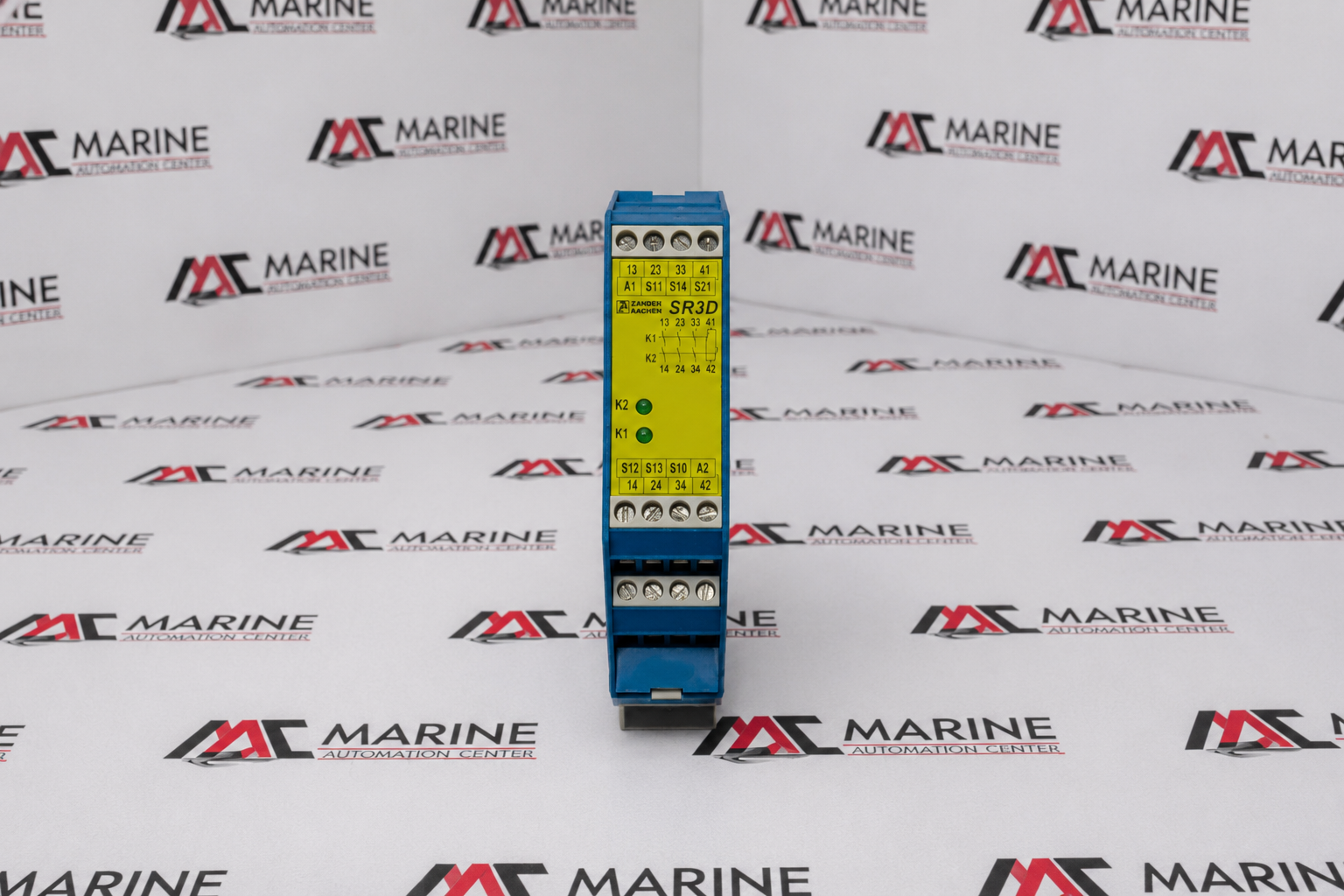

SR3D Safety Relay
Zander Aachen SR3D Safety Relay (Part No. 472272) is a high-reliability safety relay designed to monitor and control emergency stop circuits, safety gates, and other machine safety functions. It provides dependable safety switching, fast response, and enhanced protection for personnel and equipment. Ideal for industrial automation, machinery safety, and process control applications.
BRAND
Zander Aachen
TYPE
Safety Relay
PART NO.
472272
MODEL
SR3D
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Zander Aachen |
| TYPE | Safety Relay |
| PART NO. | 472272 |
| MODEL | SR3D |
| MANUFACTURER | Zander Aachen |
| Operating Supply Voltage | AC/DC 24 V |
| Available Supply Voltages | AC/DC 24 V (ID-No. 472272), AC 230 V 50/60 Hz (ID-No. 472270) |
| Safe Relay Outputs | 3 Normally Open (NO) Safety Outputs |
| Auxiliary Output | 1 Normally Closed (NC) Monitoring Output |
| AC Contact Rating | Ie 8 A at 250 V AC |
| DC Contact Rating | 3 A at 24 V DC-13 |
| Total Current Capacity (Σ Ie) | 15 A |
| AC-15 Utilization Category | 3 A at 250 V AC |
| Standards Compliance | EN 60204-1:2007, EN 50156-1, up to PL e / SIL 3 |
| Application | Emergency stop circuits, safety gates, machine safety monitoring, furnace safety systems, and industrial automation |
| IEC | EN 60204-1:2007, EN 50156-1 |
| Made In | Germany |
| REF NO | 1439 |
