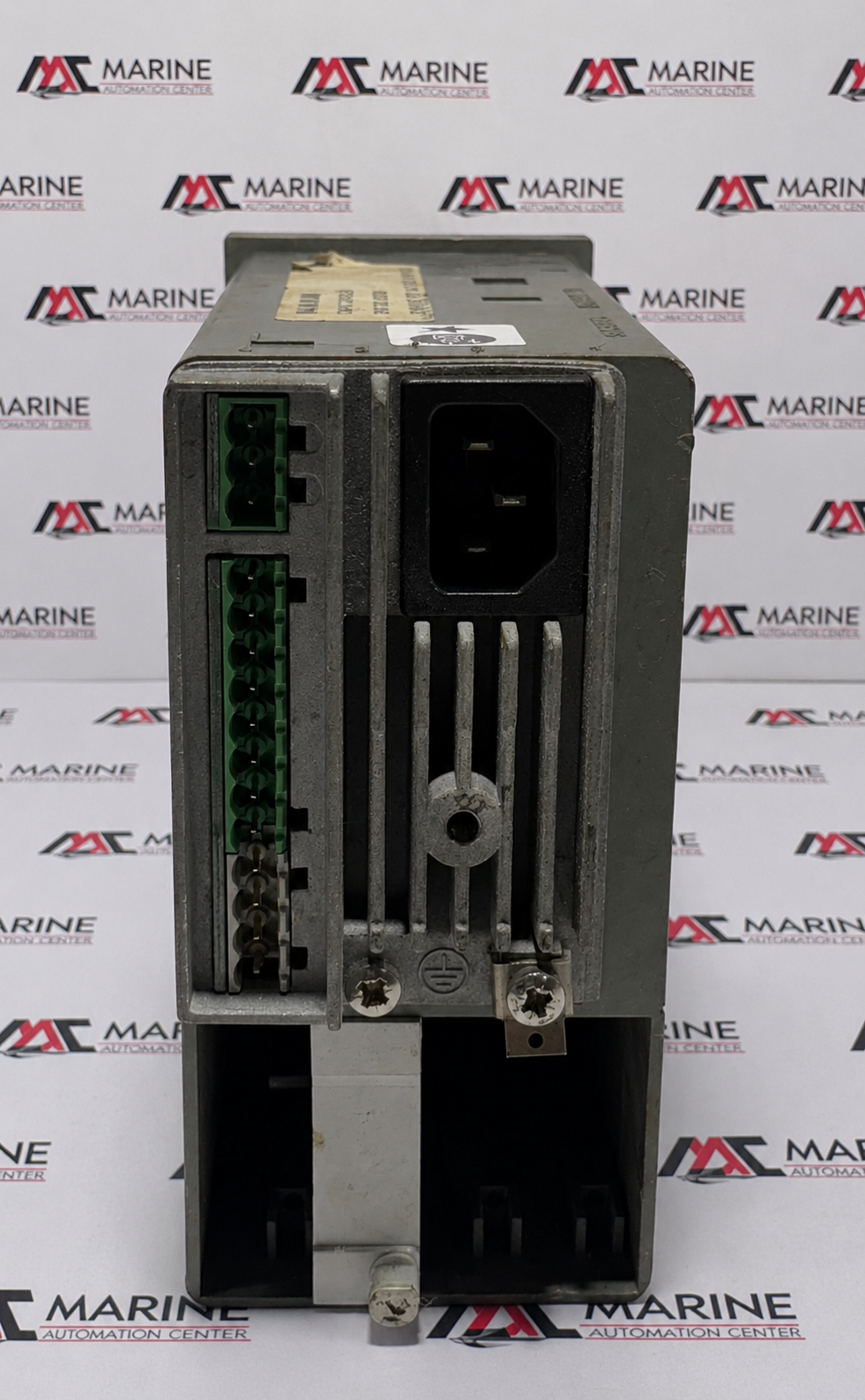

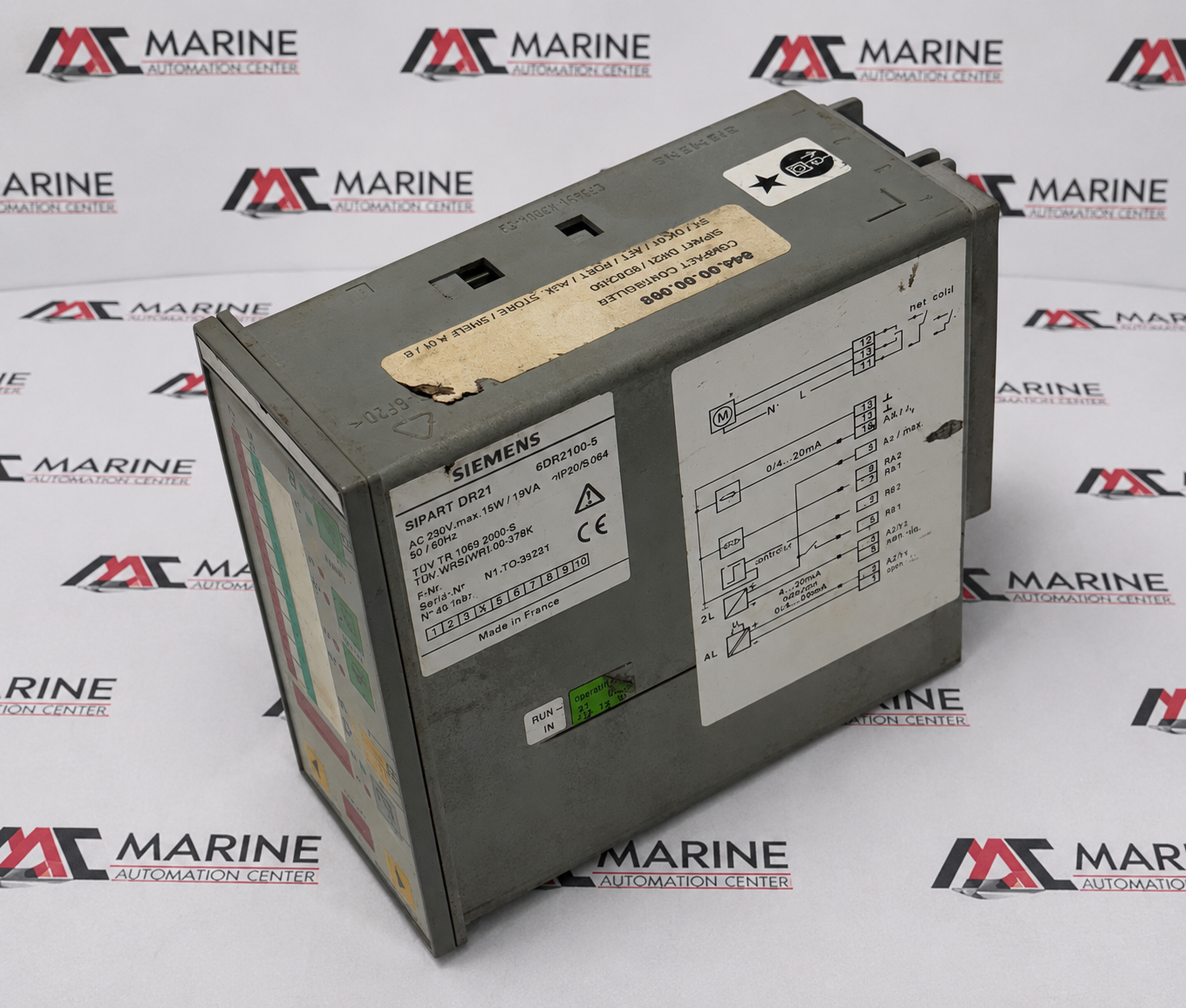

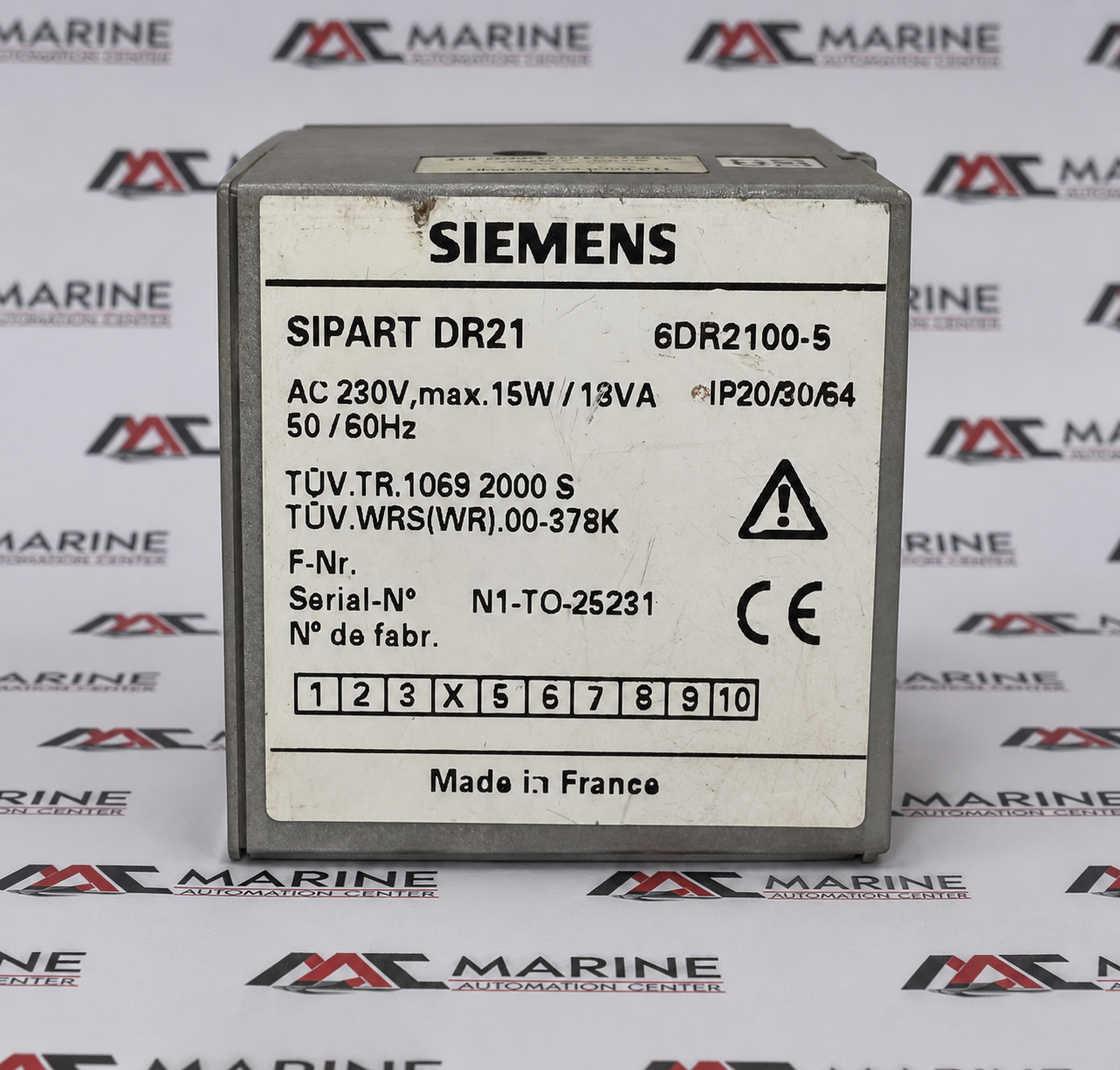

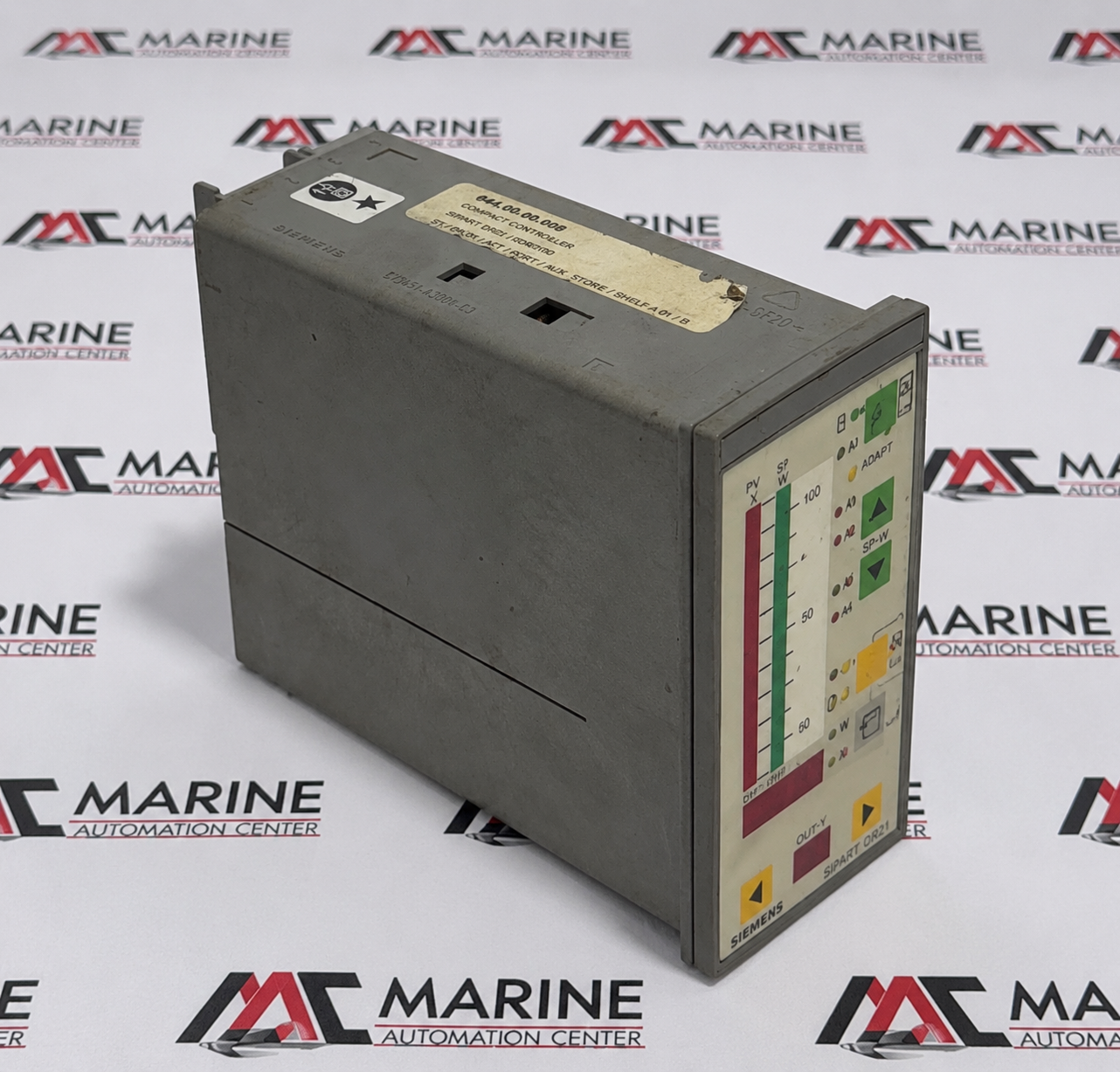

Siemens Temperature Controller SIPART DR21
The Siemens SIPART DR21 Temperature Controller (P/N: 6DR2100-5) is a microprocessor-based industrial temperature controller designed for precise monitoring and control of temperature in process automation systems. It supports various temperature sensor inputs and provides accurate PID control, making it ideal for industrial manufacturing, marine applications, furnaces, HVAC systems, and other temperature-critical processes.
BRAND
Siemens
TYPE
Temperature Controller
PART NO.
6DR2100-5
MODEL
SIPART DR21
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Siemens |
| TYPE | Temperature Controller |
| PART NO. | 6DR2100-5 |
| MODEL | SIPART DR21 |
| SERIES | SIPART DR21 |
| Power Supply | AC 230 V (Switchable to 115 V AC) |
| Power Consumption | Max. 15 W / 13 VA |
| Frequency | 50 / 60 Hz |
| Controller Type | PID Digital Process Controller |
| Inputs | 2 Analog Inputs (Standard), 2 Digital Inputs (Expandable) |
| Outputs | 1 Analog Output, 2 Relay Outputs, 2 Digital Outputs (Expandable) |
| Application | Industrial process control, temperature control, pressure control, flow control, level control, marine automation, boiler systems, HVAC, and process automation. |
| Made In | France |
| REF NO | 1426 |
