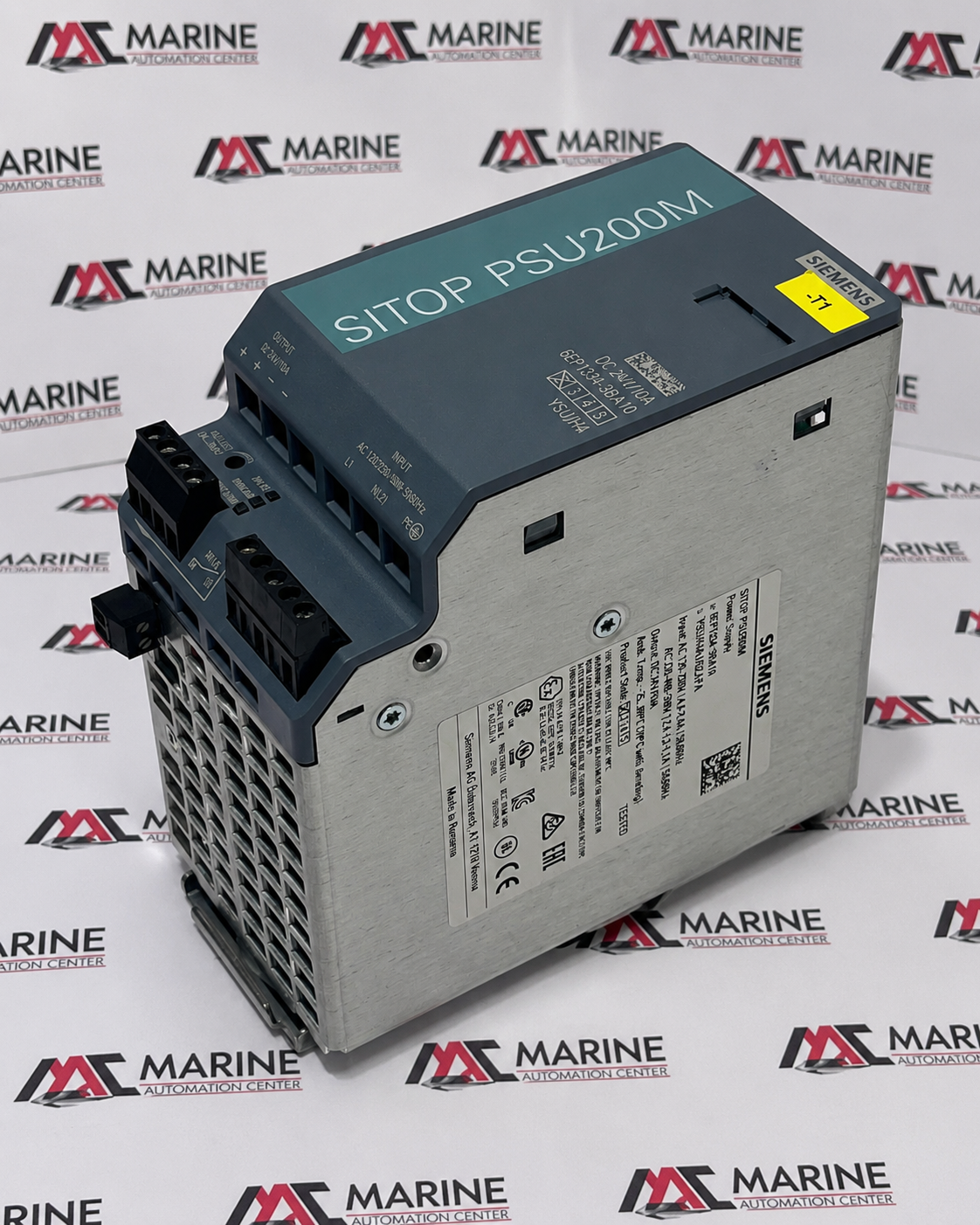

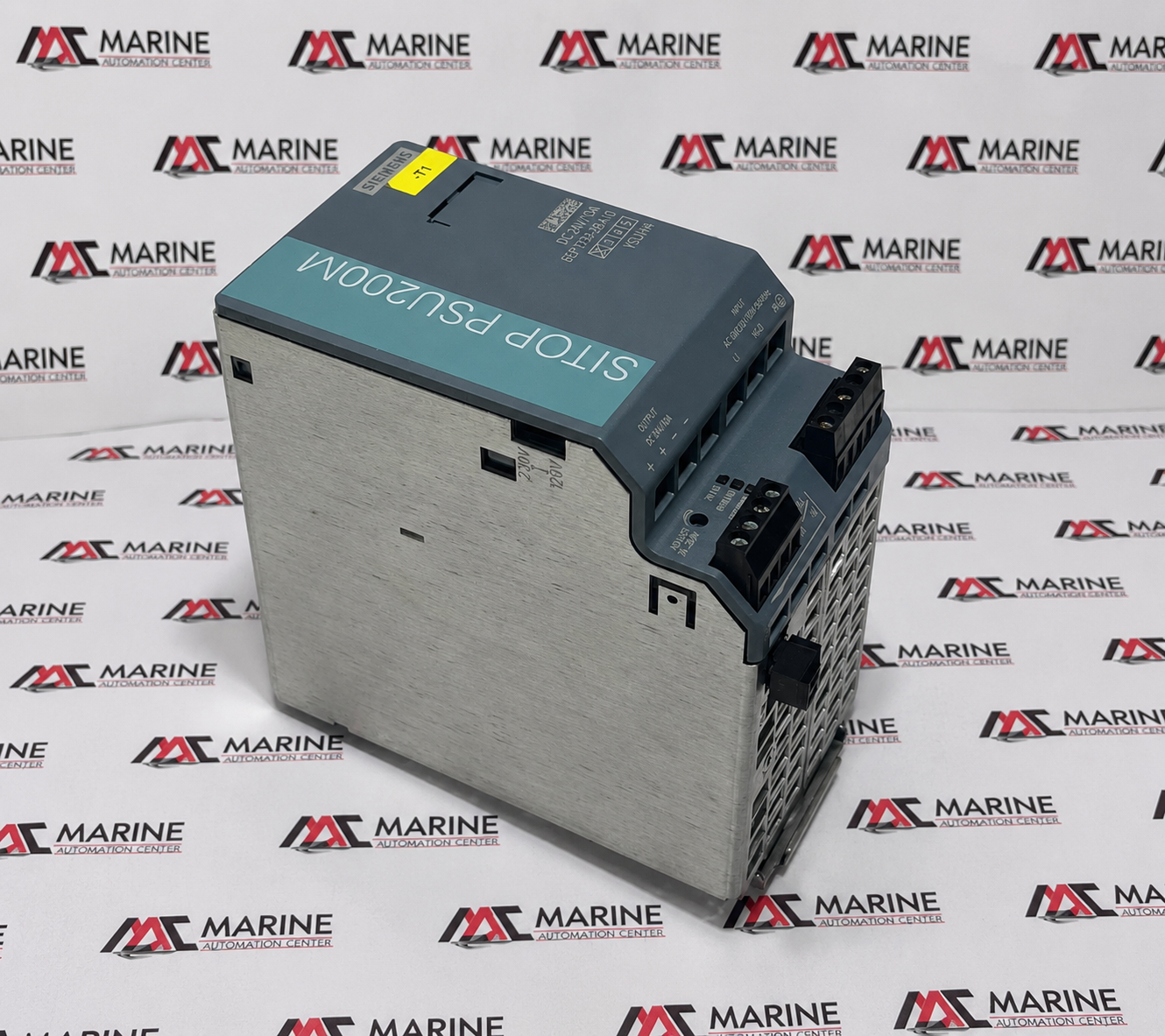

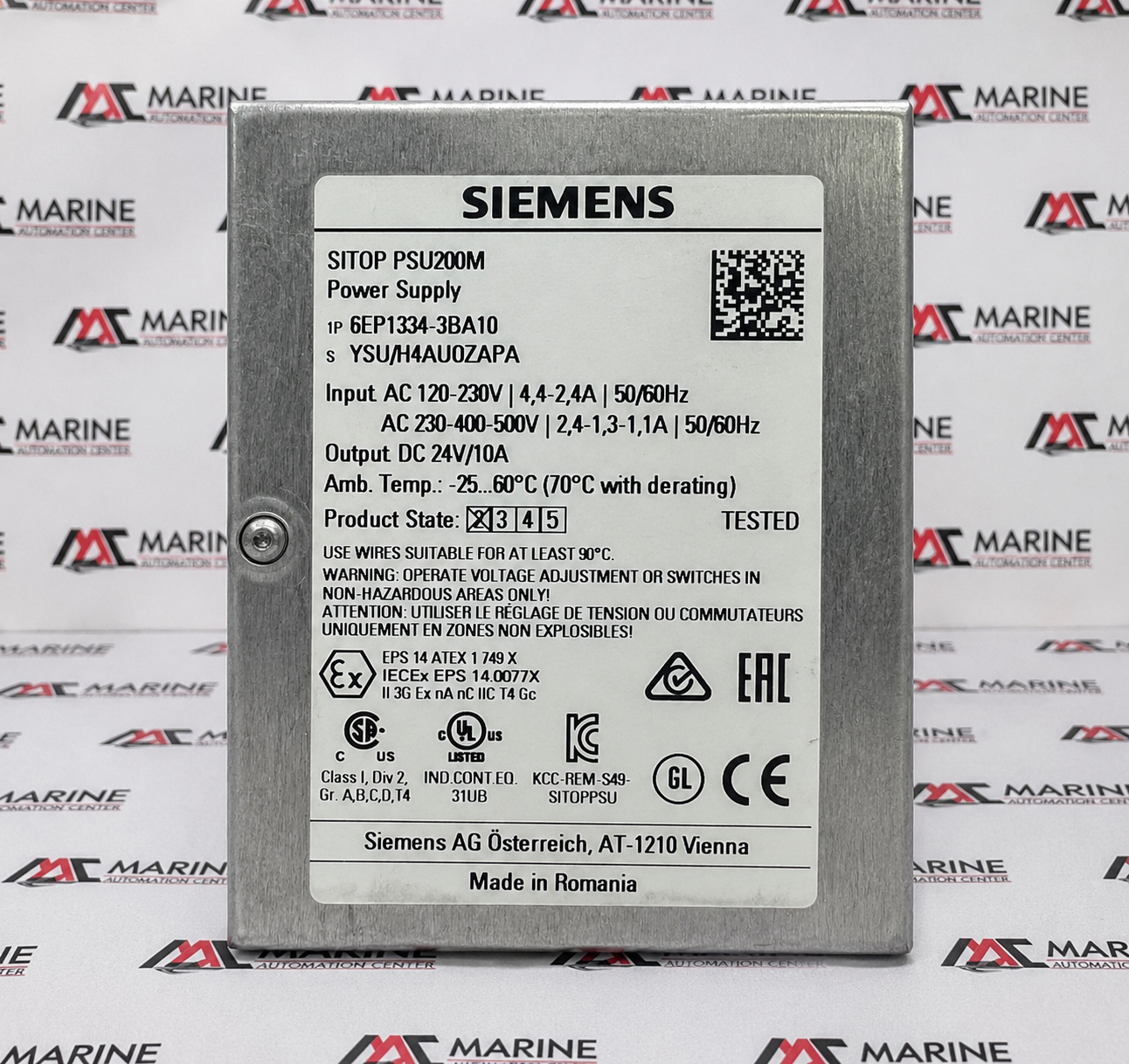

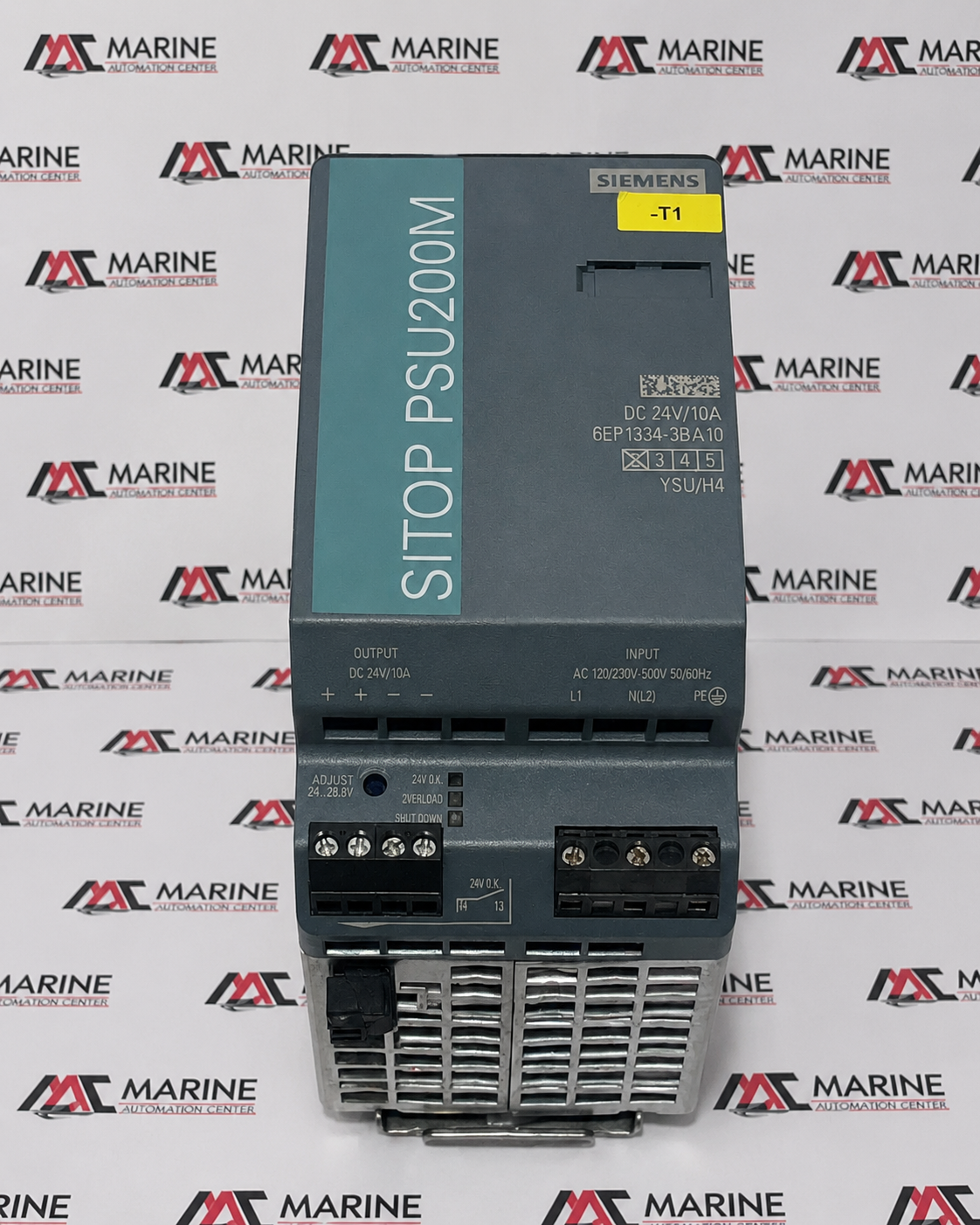

Siemens SITOP PSU200M Stabilized Power Supply
Siemens SITOP PSU200M Stabilized Power Supply (Part No. 6EP1334-3BA10) is a high-performance DIN rail-mounted power supply designed to deliver stable and reliable 24 V DC output for industrial automation systems. It features high efficiency, overload protection, and a rugged design, making it ideal for PLCs, control panels, machinery, and process automation applications.
BRAND
Siemens
TYPE
Stabilized Power Supply
PART NO.
6EP1334-3BA10
MODEL
SITOP PSU200M
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Siemens |
| TYPE | Stabilized Power Supply |
| PART NO. | 6EP1334-3BA10 |
| MODEL | SITOP PSU200M |
| Voltage Rating | Input Range 1: 120 V – 230 V AC (4.4 A – 2.4 A) Input Range 2: 230 V – 500 V AC (2.4 A – 1.1 A) Output: 24 V DC / 10 A |
| Application | Demanding automated industrial machines, control cabinets, marine applications, and SIMATIC programmable logic controller (PLC) environments. |
| IEC | EN 60947 series and EN 61000-6 compliance certifications |
| Rated Output Power | 240 Watts |
| Line Frequency Range | 50 / 60 Hz (Tolerance limits: 47 Hz to 63 Hz) |
| Input Voltage Phase Compatibility | Universal 1-phase and 2-phase AC network connection. |
| Input Selection Selector Switch | 120V and 230V–500V |
| Output Voltage Adjustment Range | 24 V to 28.8 V DC |
| Power Efficiency Performance | Highly optimized conversion reaching up to 91% |
| Mains Fault Buffering Time | Keeps steady regulation for minimum 25 ms at full load |
| Power Boost Technology | Delivers up to 3 times nominal current (30 A) for 25 ms or 1.5 times |
| Overvoltage Resistance Rating | 1300 Vpeak over a 1.3 ms duration |
| Operating Ambient Temperature | Operational between -25°C to +60°C without adjustment; up to +70°C with linear thermal derating |
| Safety Class Certifications | ATEX, IECEx, cULus Listed, CE, EAC, KC, and GL |
| Enclosure Sealing Specification | IP20 protection class ranking. |
| Made In | Romania |
| REF NO | 1324 |
