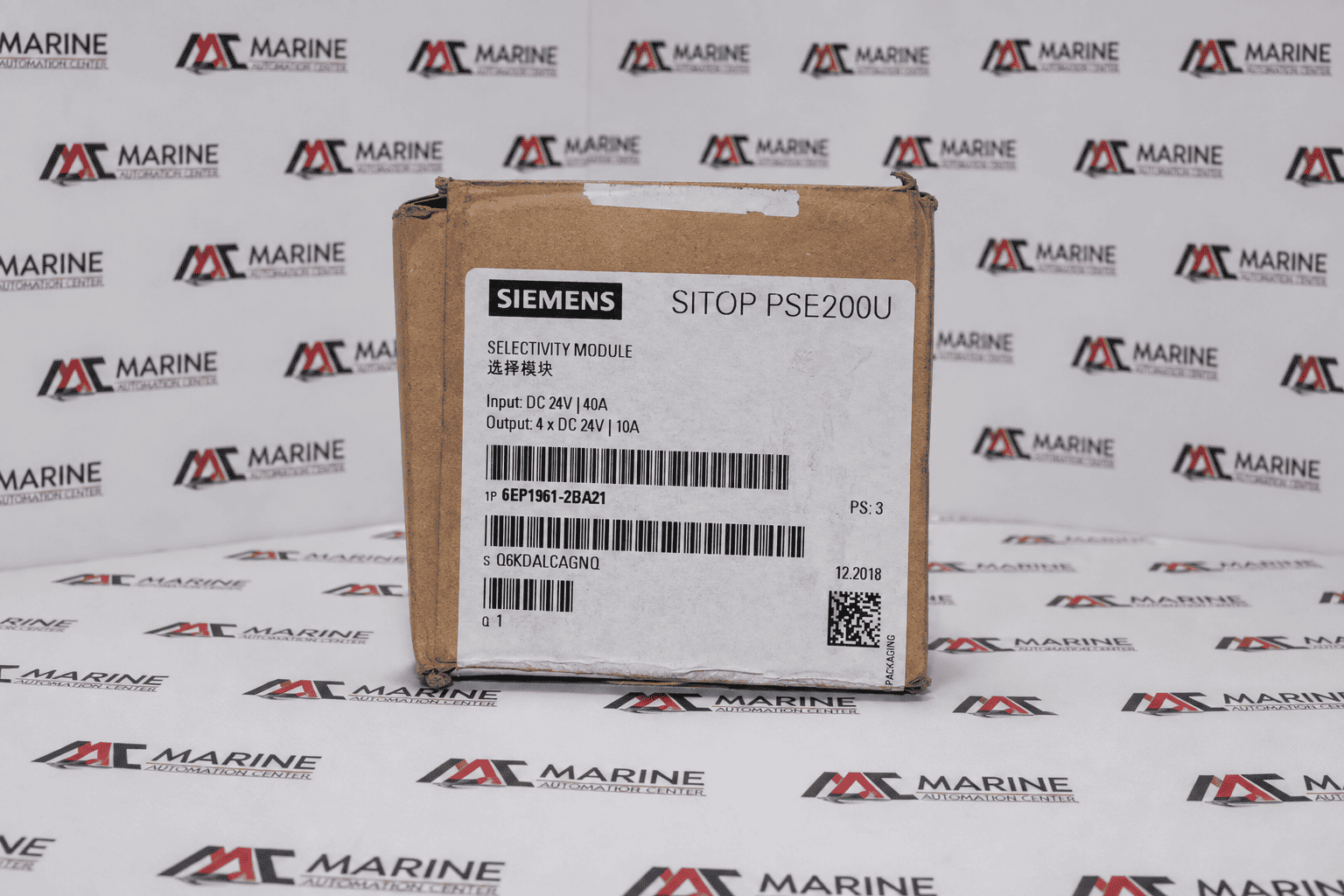

Siemens SITOP PSE200U Selectivity Module
The Siemens SITOP PSE200U (Part Number: 6EP1961-2BA21) is an efficient 4-channel electronic selectivity module designed for the controlled distribution and overload protection of 24V DC load circuits. It accepts a maximum input current of 40 A DC and splits it into 4 independently monitored channels, each adjustable from 3 A to 10 A. Featuring a 97% efficiency rating, an IP20 finger-safe design, and multi-color status LEDs, this DIN-rail mounted module reliably protects automated systems by sele
BRAND
SIEMENS
TYPE
Module
PART NO.
- 6EP1961-2BA21
MODEL
SITOP PSE200U (24V / 10A)
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | SIEMENS |
| TYPE | Module |
| PART NO. | - 6EP1961-2BA21 |
| MODEL | SITOP PSE200U (24V / 10A) |
| Voltage Rating | Input: 24 V DC (22 ... 30 V DC) | Output: 4 x 24 V DC |
| Application | Controlled distribution and selective short-circuit/overload protection of 24V load circuits |
| Total Input Current | Max. 40 A DC |
| Output Channels | 4 channels with independent electronic trip monitoring |
| Adjustable Current Range | 3 A to 10 A per channel |
| Status Indicator | Multi-color LED per channel: Green (Normal) | Red (Tripped/Overload) | Off (Manual Switched Off) |
| Remote Signaling Output | Single group signaling contact |
| Degree of Protection | IP20 finger-safe terminal array conforming to EN 60529 standards |
| Mounting Format | 35 mm DIN rail (EN 60715) |
| Operating Ambient Temp. | -25°C to +60°C |
| Made In | Austria |
| REF NO | 143 |
