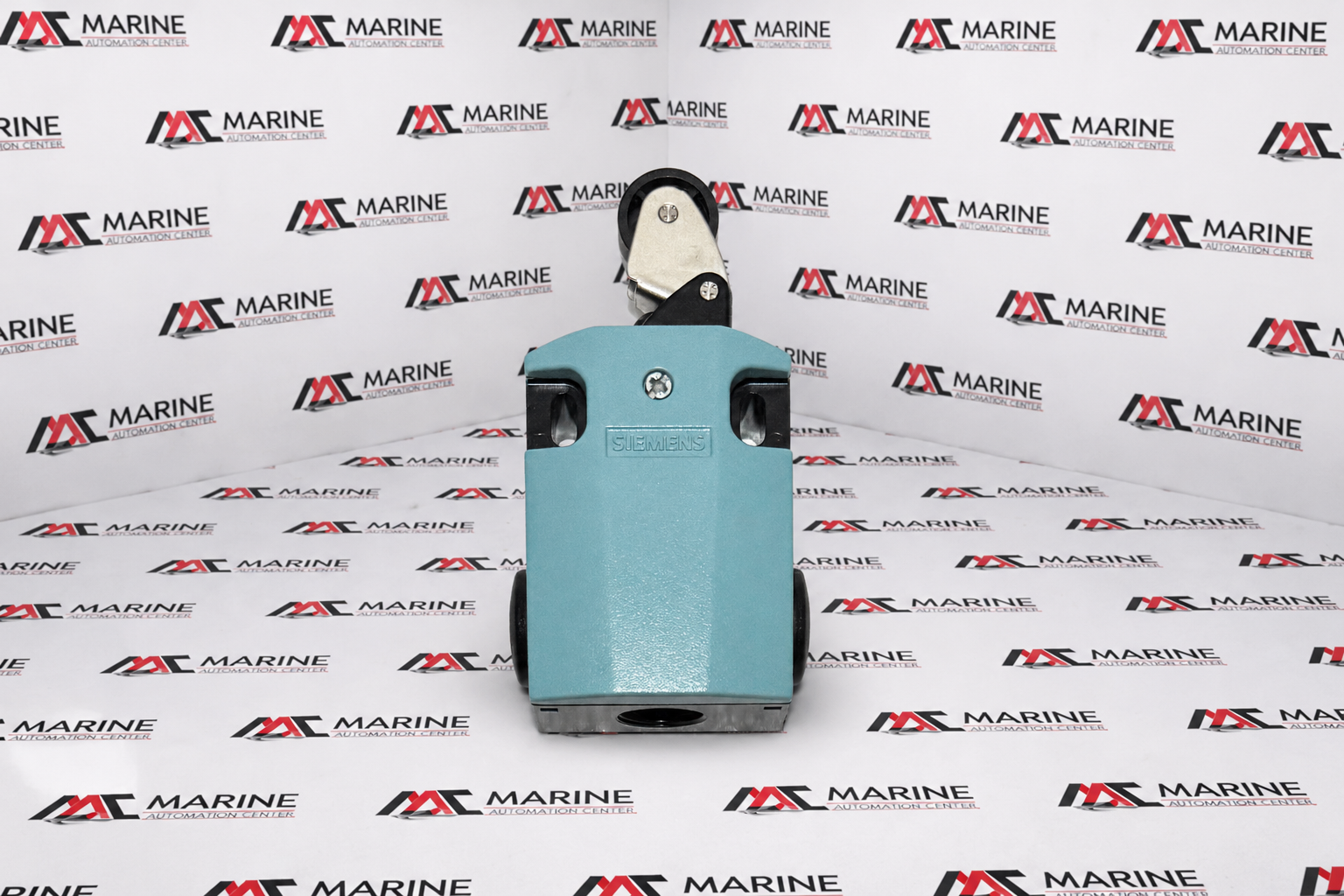

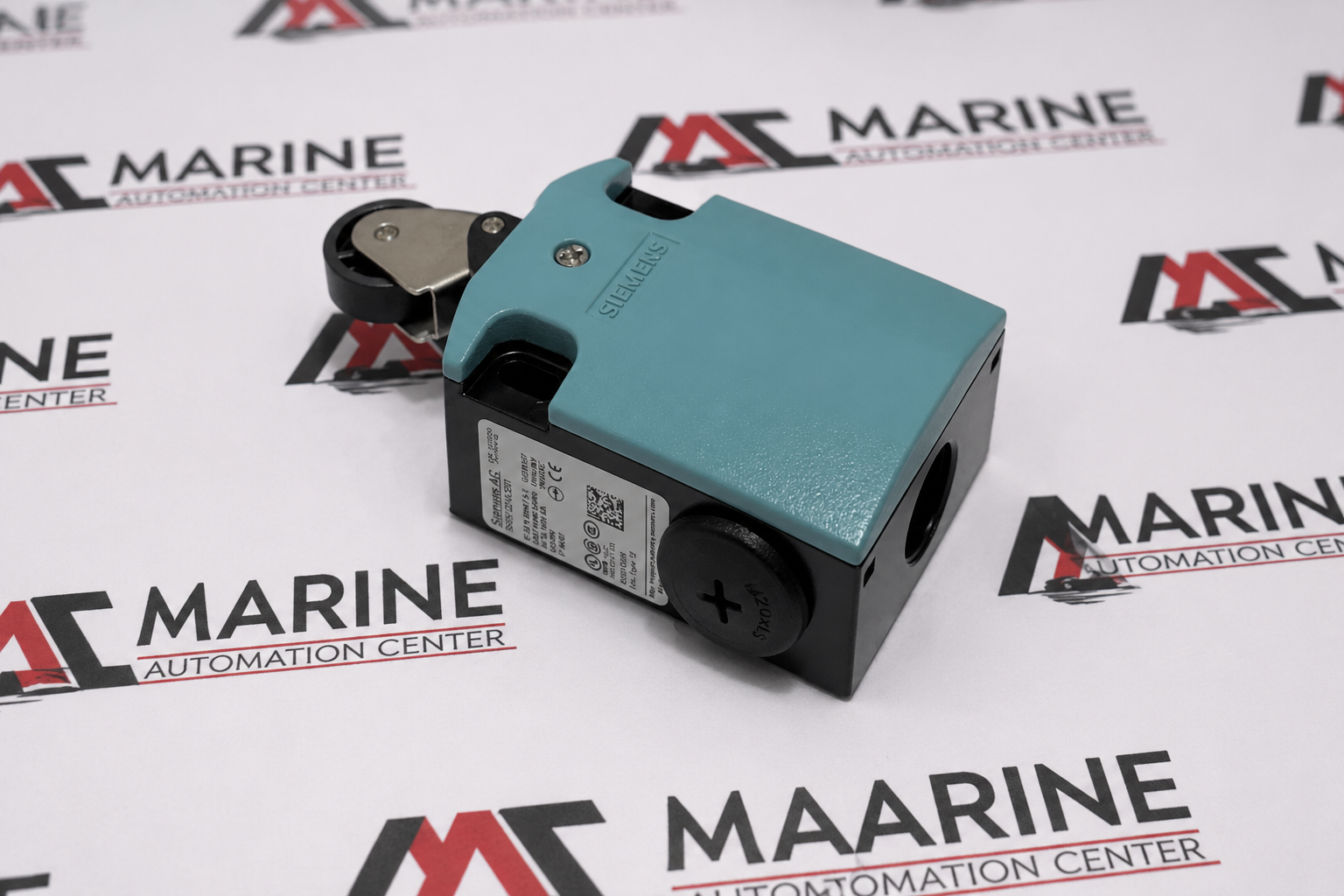

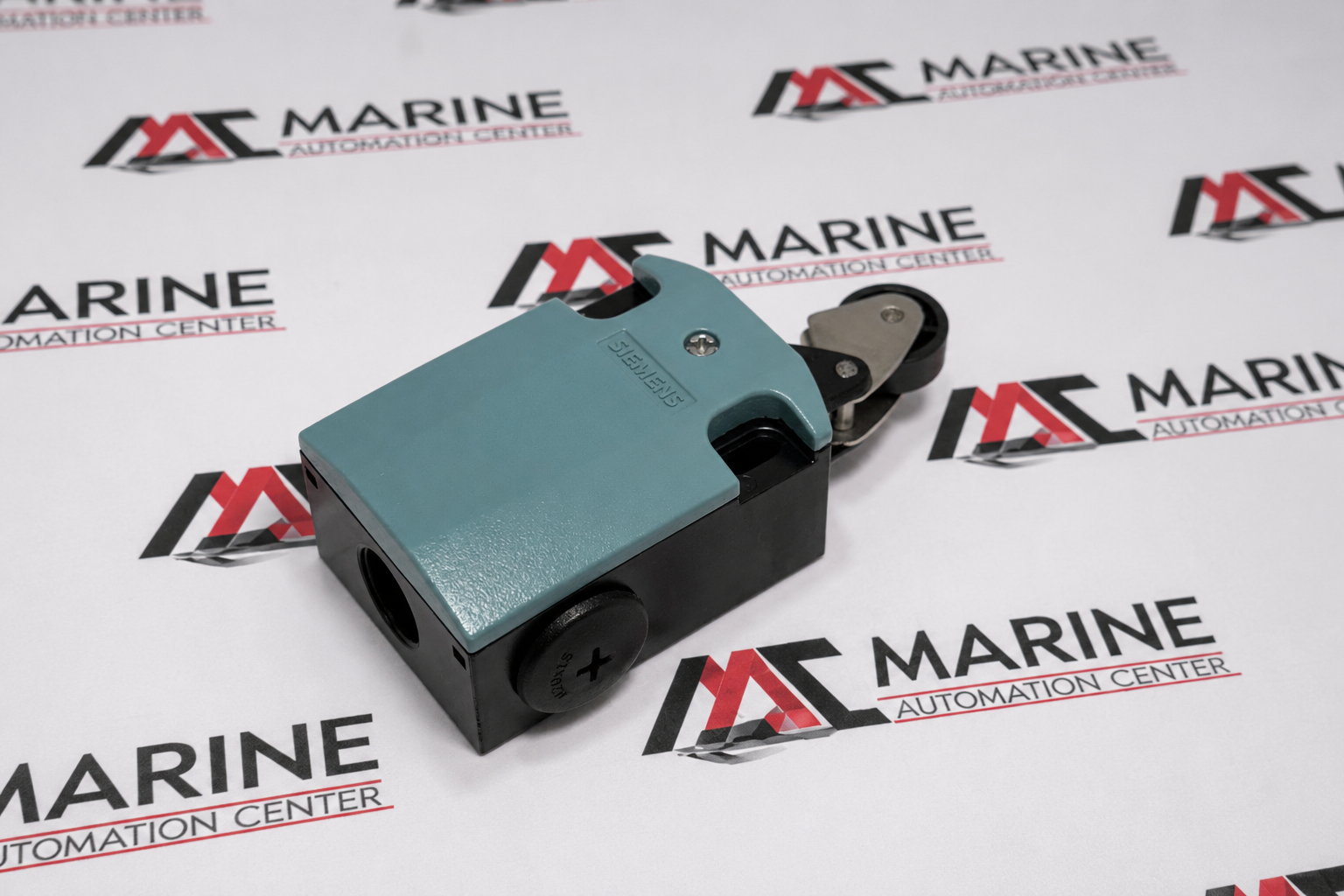

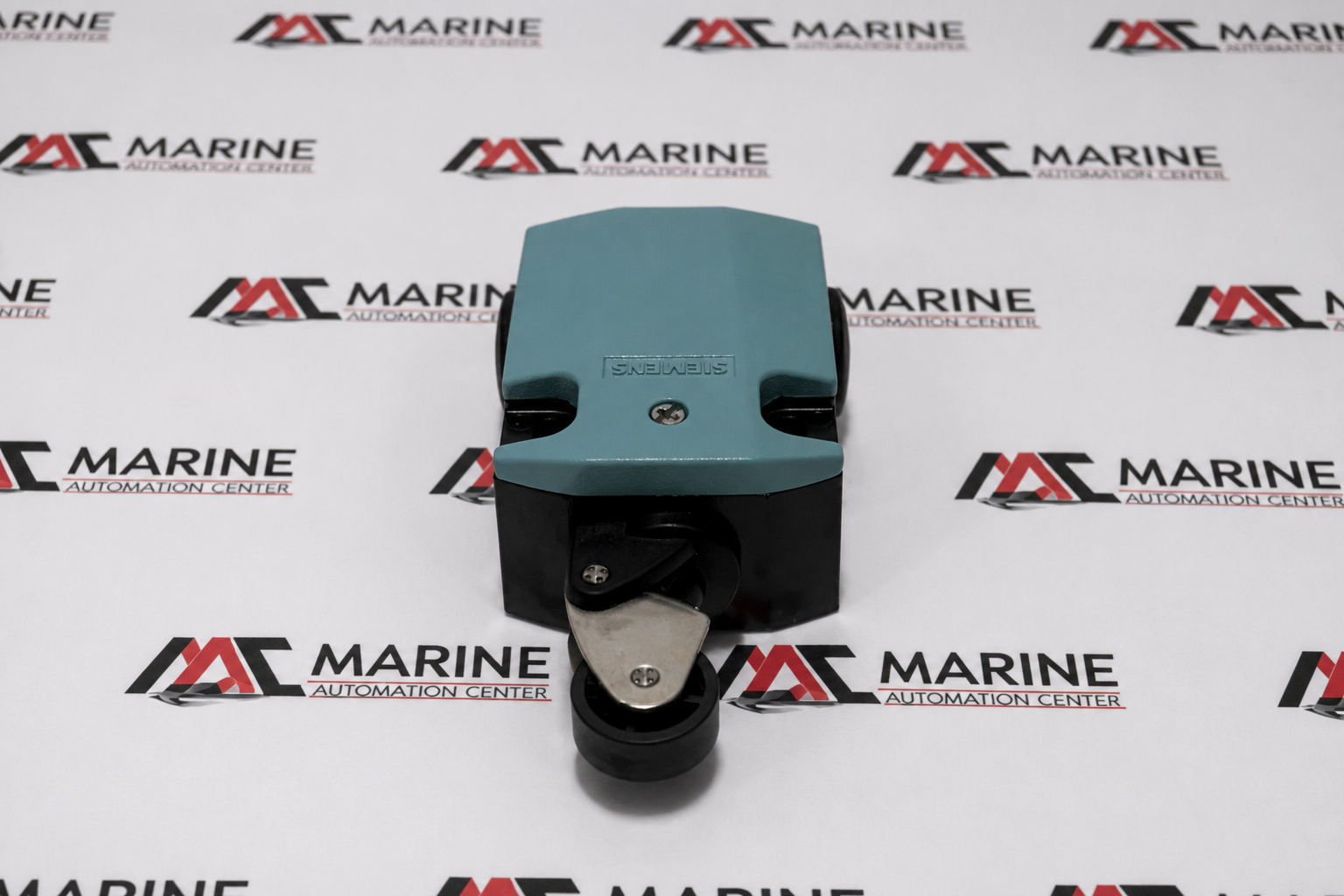

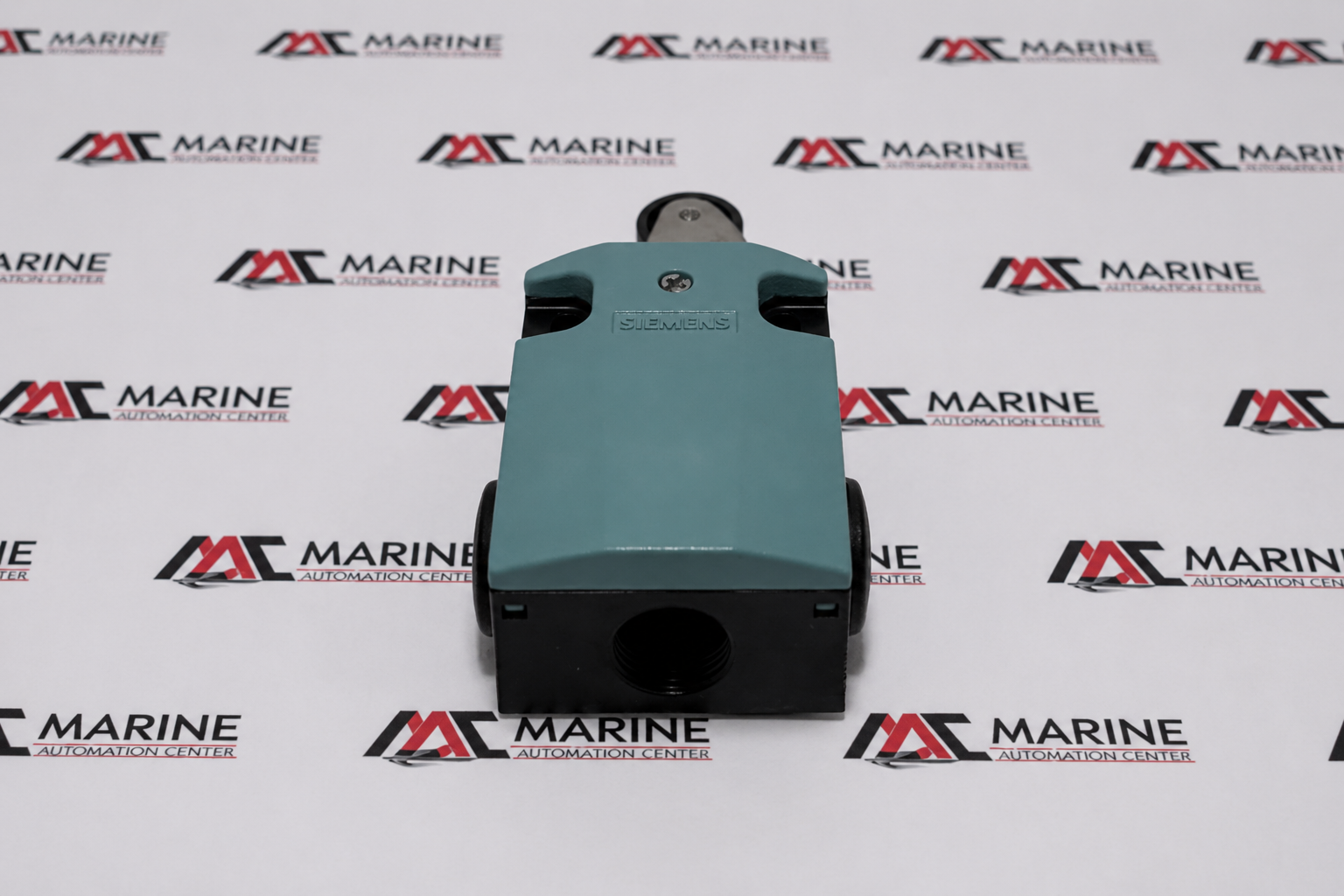

Siemens SIRIUS 3SE5122-0CE01 Position Switch
Siemens SIRIUS 3SE5122-0CE01 is a SIRIUS position switch designed for reliable position detection and limit monitoring in industrial automation systems. Its rugged construction ensures dependable operation in demanding environments, making it ideal for machine safety, conveyor systems, and production line control applications
BRAND
SIEMENS
TYPE
SIRIUS Position Switch
PART NO.
SIRIUS Position Switch 3SE5122-0CE01
MODEL
SIRIUS 3SE5122-0CE01
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | SIEMENS |
| TYPE | SIRIUS Position Switch |
| PART NO. | SIRIUS Position Switch 3SE5122-0CE01 |
| MODEL | SIRIUS 3SE5122-0CE01 |

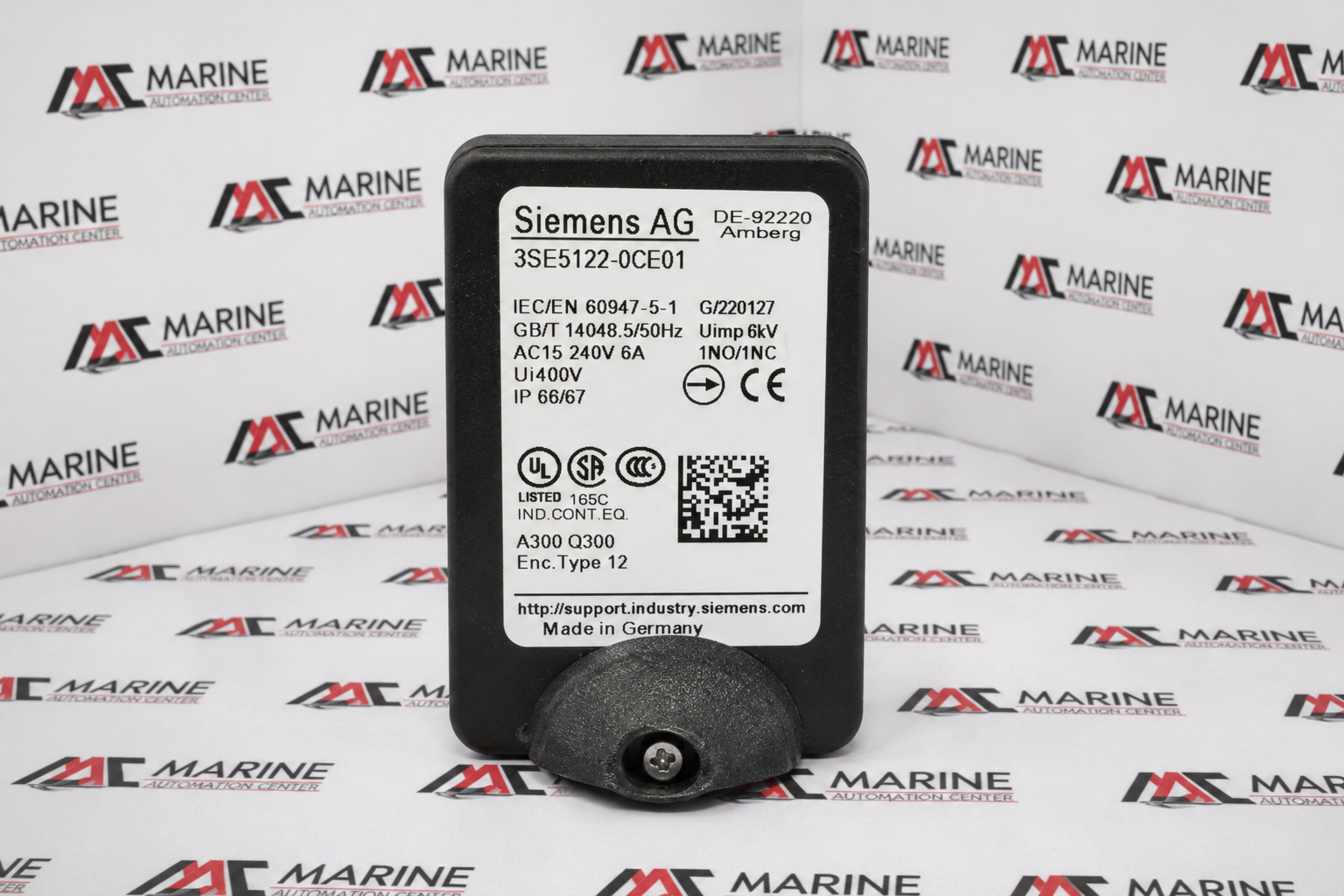

| Voltage Rating | Insulation Voltage (Ui): 400 V AC | Rated Operating Voltage: 240 V AC (at AC-15) |
| Application | Machine automation, safety gate interlocking, and industrial position tracking loop systems to process physical boundary limit signals. |
| IEC | Conforms to IEC/EN 60947-5-1, GB/T 14048.5/50Hz control switch standard codes. |
| Contact Configuration | 1 NO (Normally Open) / 1 NC (Normally Closed) quick action snap contacts with positive opening function |
| Enclosure Specifications | Heavy-duty metal construction (56 mm width), featuring an IP66/IP67 ingress protection rating and a NEMA Type 12 rating |
| Wiring Interface | Triple cable entry ports designed for standard M20 x 1.5 thread specifications |
| AC-15 (Alternating Current Control Circuits) | Rated for 6 A at 240 V |
| DC-13 (Direct Current Control Circuits) | Rated for 3 A at 24 V and 0.27 A at 230 V |
| Broad Temperature Tolerance | -25°C to +85°C |
| Extensive Service Life | Built for long-term cycling with a mechanical durability rating of up to 15,000,000 switching operations |
| Made In | Germany |
| REF NO | 1508 |
