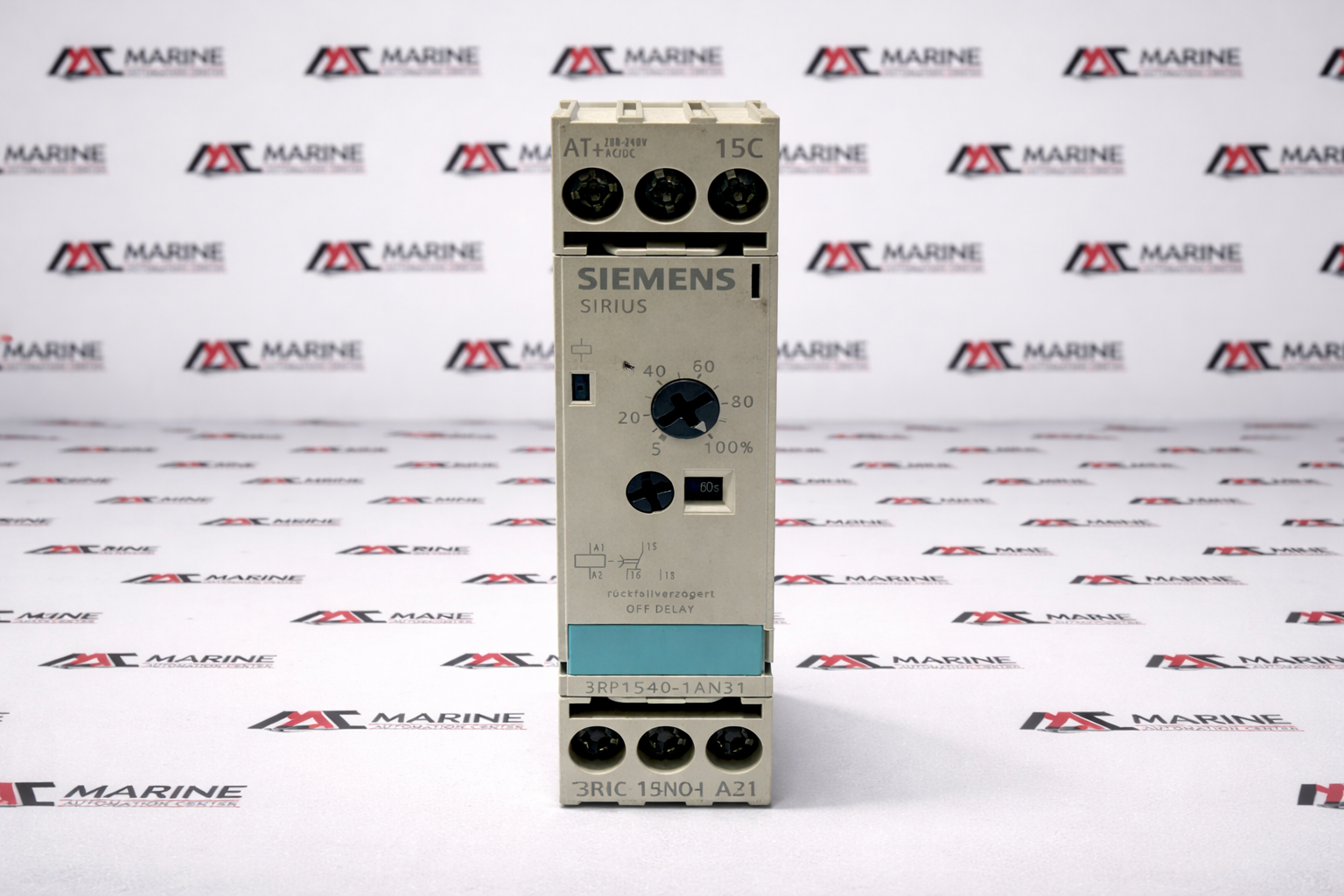

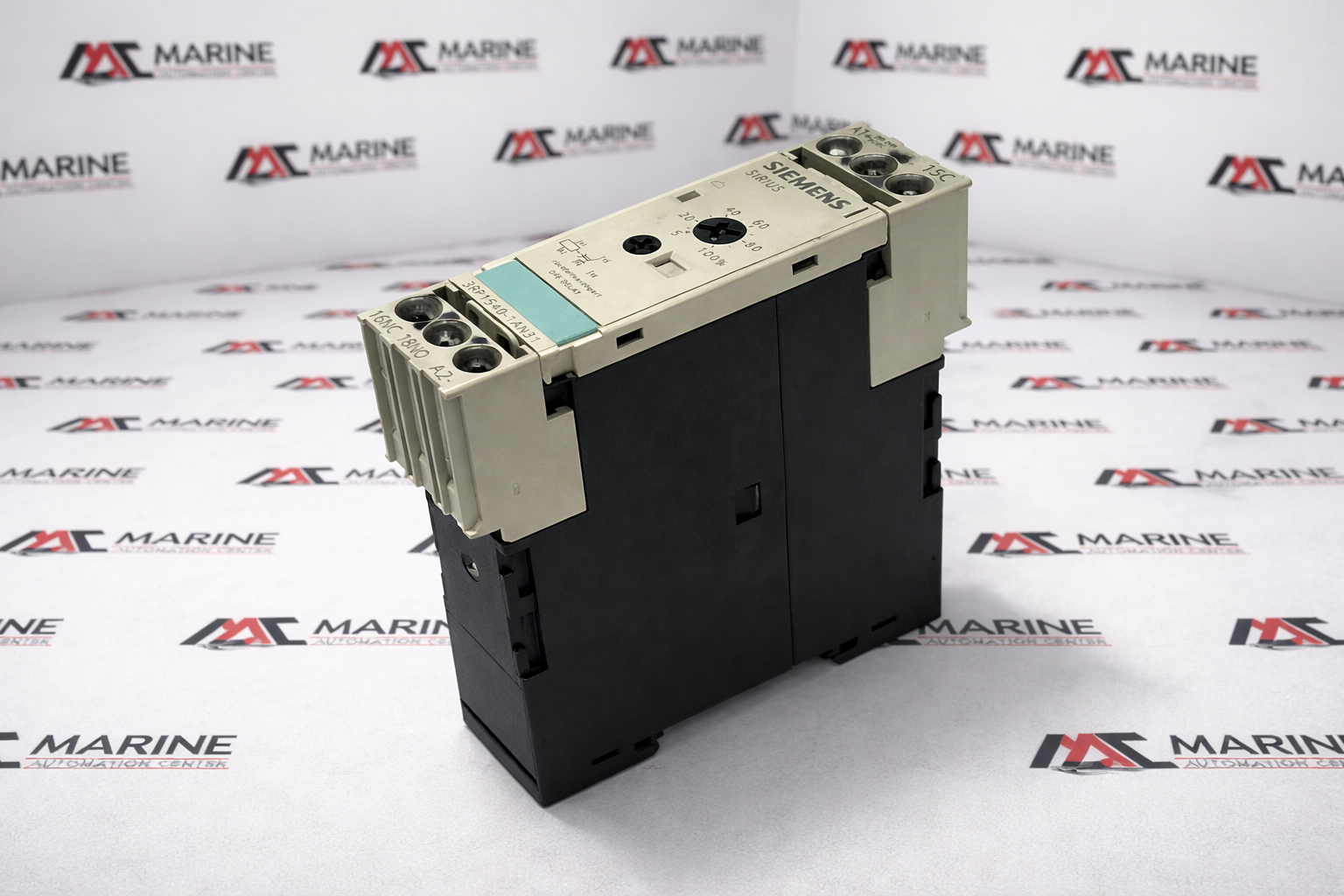

Siemens SIRIUS 3RP1540-1AN31 Time Relay | Off Delay Timer
Buy Siemens SIRIUS 3RP1540-1AN31 time relay with off-delay function. Adjustable timing, 24–240V AC/DC supply, DIN rail mounting—ideal for industrial control panels and automation systems.
BRAND
Siemens
TYPE
Time Relay
PART NO.
Siemens SIRIUS 3RP1540-1AN31 Time Relay | Off Delay Timer
MODEL
3RP1540-1AN31
Full Technical Specifications ▶

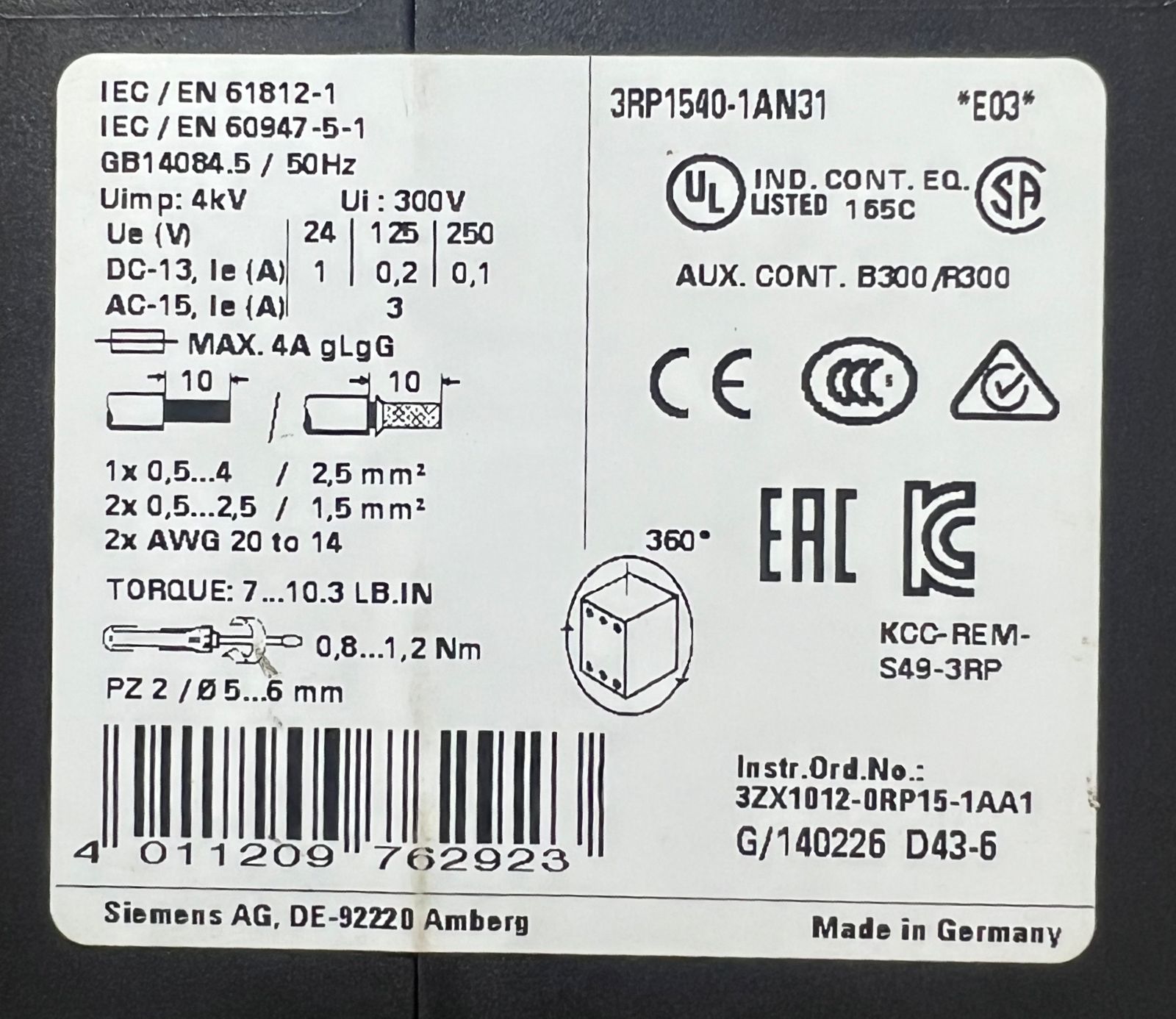

| Parameter | Value / Description |
|---|---|
| BRAND | Siemens |
| TYPE | Time Relay |
| PART NO. | Siemens SIRIUS 3RP1540-1AN31 Time Relay | Off Delay Timer |
| MODEL | 3RP1540-1AN31 |
| Supply Voltage | 24–240 V AC/DC |
| Frequency | 50 Hz (as per label) |
| Ui | 300 V |
| Uimp | 4 kV |
| Current Rating | AC-15: 3 A |
| DC Rating (DC-13) | 1 A (24V), 0.2 A (125V), 0.1 A (250V) |
| Terminal Capacity | 0.5–4 mm² (single wire), 0.5–2.5 mm² (two wires) |
| Made in | Germany |
| Reference No | 894 |
