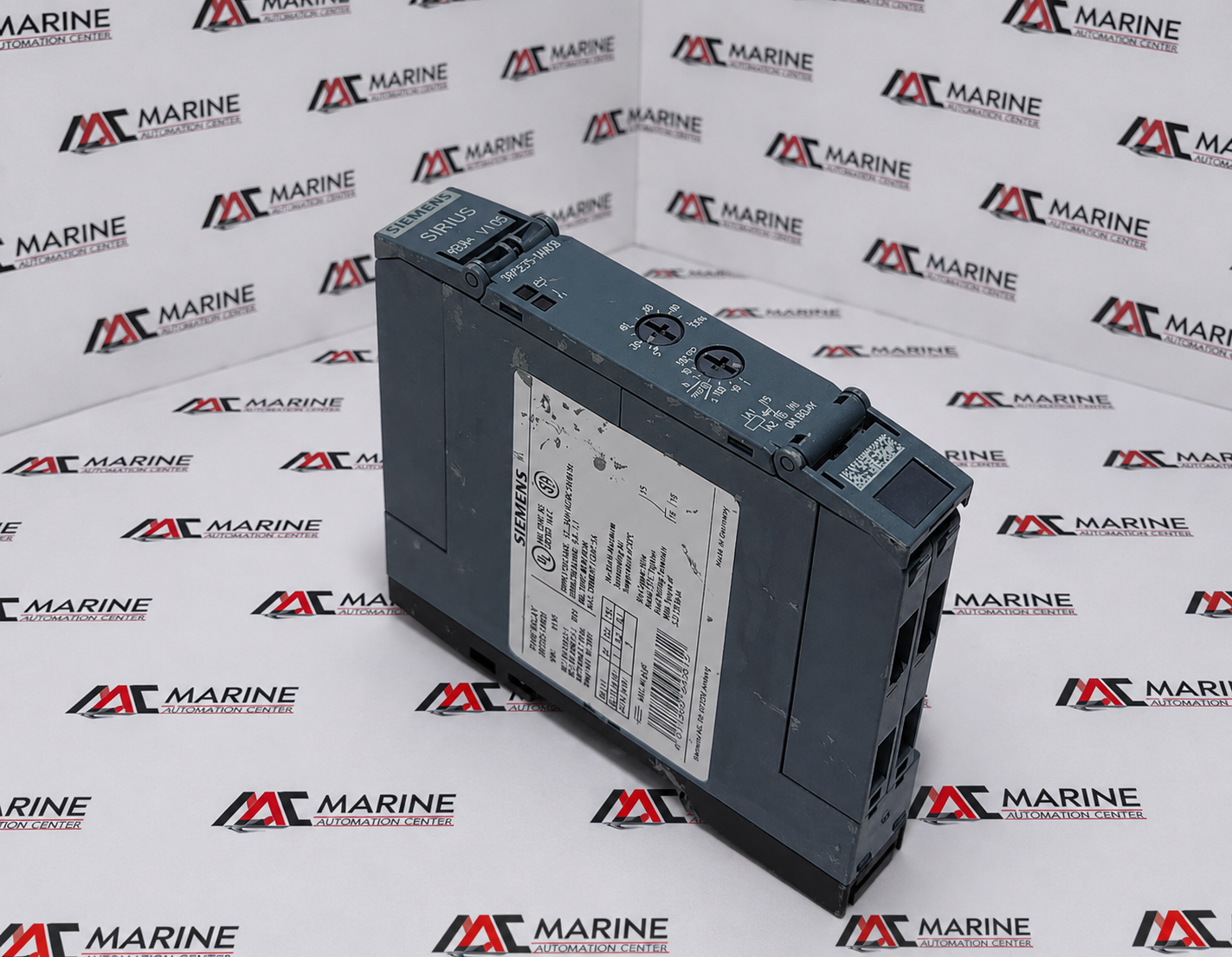

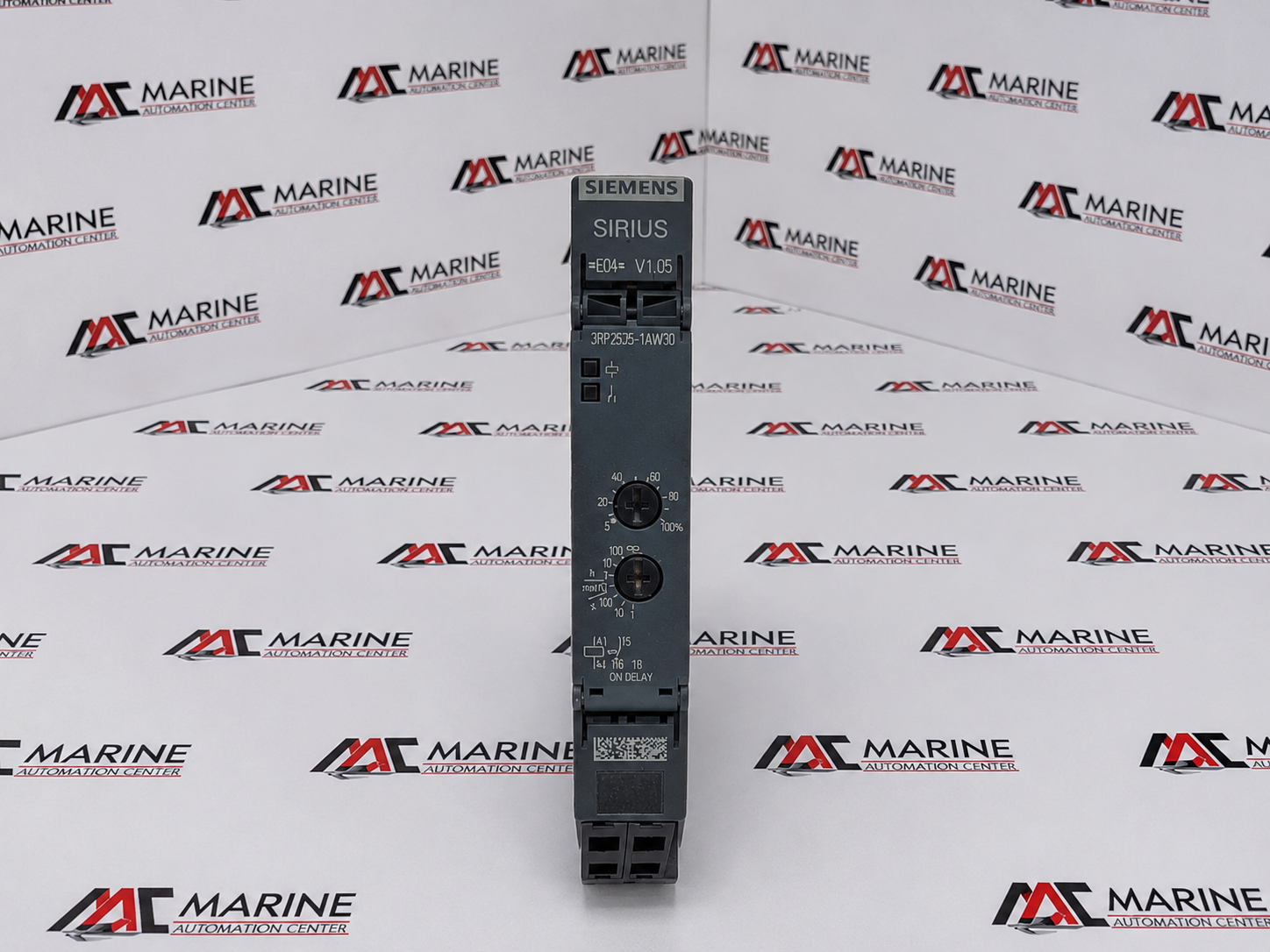

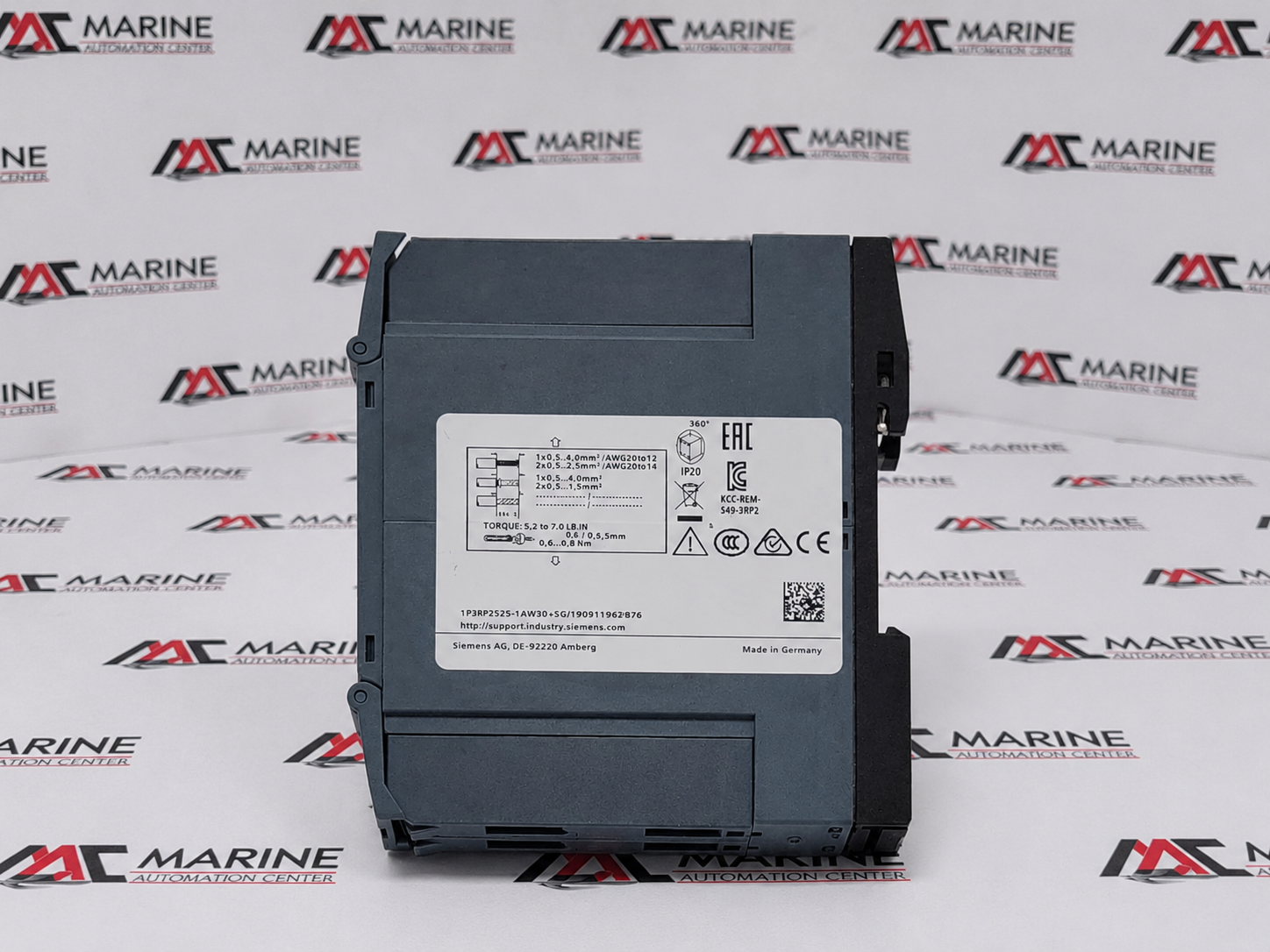

Siemens Electronic Time Relay 3RP2525-1AW30
The Siemens SIRIUS 3RP2525-1AW30 is a compact electronic on-delay time relay designed for precise timing control in industrial automation systems. Featuring a 12–240 V AC/DC universal supply voltage, adjustable time range, and DIN-rail mounting, it provides reliable delayed switching for motor control, process automation, machine sequencing, and control panel applications.
BRAND
Siemens
TYPE
Electronic Time Relay
PART NO.
3RP2525-1AW30
MODEL
SIRIUS 3RP25
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Siemens |
| TYPE | Electronic Time Relay |
| PART NO. | 3RP2525-1AW30 |
| MODEL | SIRIUS 3RP25 |
| Timing Function | ON-Delay |
| Time Setting Range | 0.05 seconds to 100 hours (7 selectable ranges) |
| Supply Voltage | 12–240 V AC/DC, 50/60 Hz |
| Operating Voltage Range | 0.8...1.1 × Rated Supply Voltage |
| Contact Configuration | 1 Changeover Contact (SPDT / 1 CO) |
| Contact Rating (AC-15) | 3 A |
| Contact Rating (DC-13) | 1 A @ 24 VDC, 0.2 A @ 125 VDC, 0.1 A @ 250 VDC |
| Continuous Contact Current | 5 A Maximum |
| Rated Insulation Voltage | 300 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Application | Industrial automation, motor control, machine sequencing, pump control, HVAC systems, conveyor systems, marine automation and process control |
| Standards | IEC/EN 61812-1, IEC/EN 60947-5-1, UL Listed, CSA |
| Made In | Germany |
| REF NO. | 1373 |
