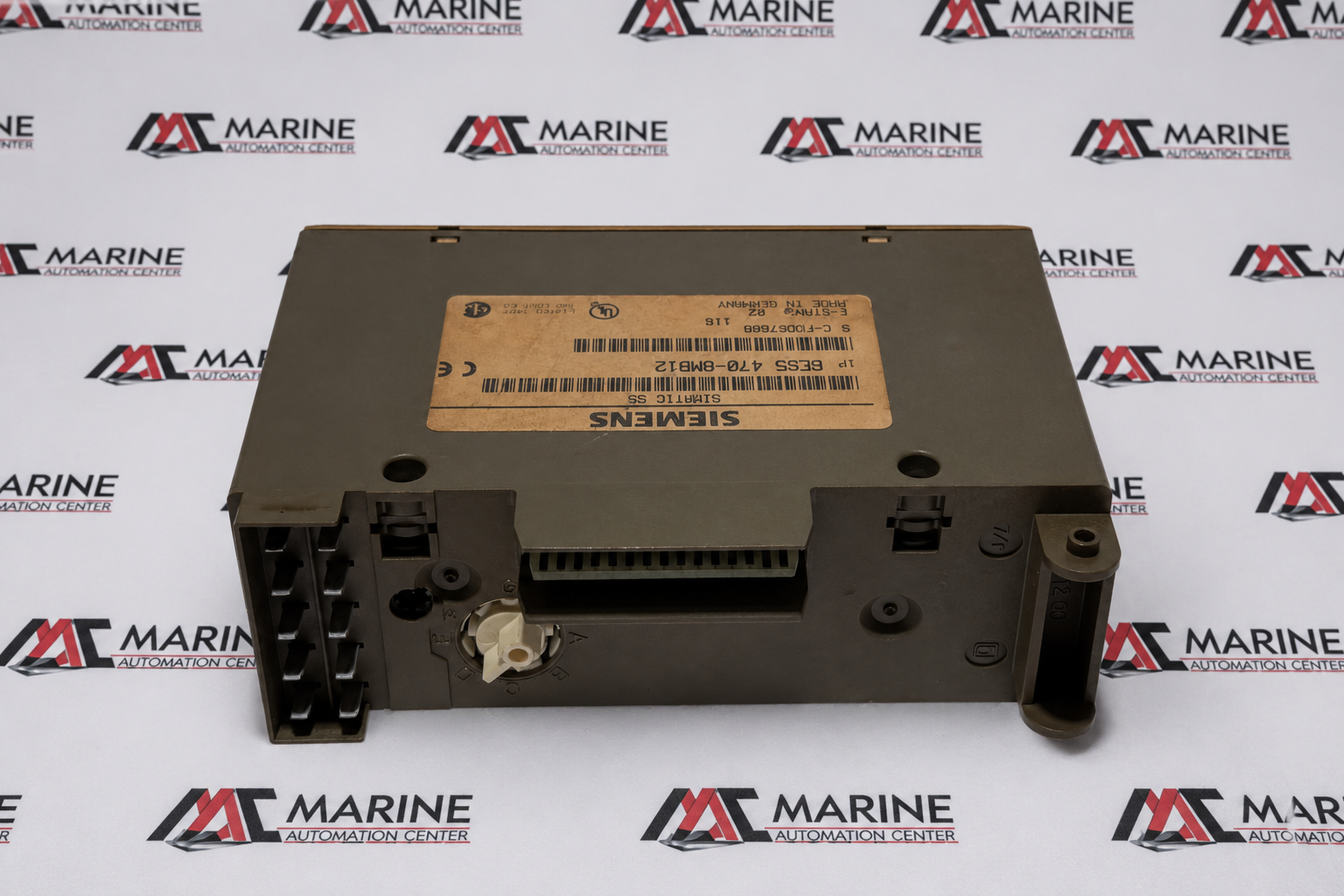

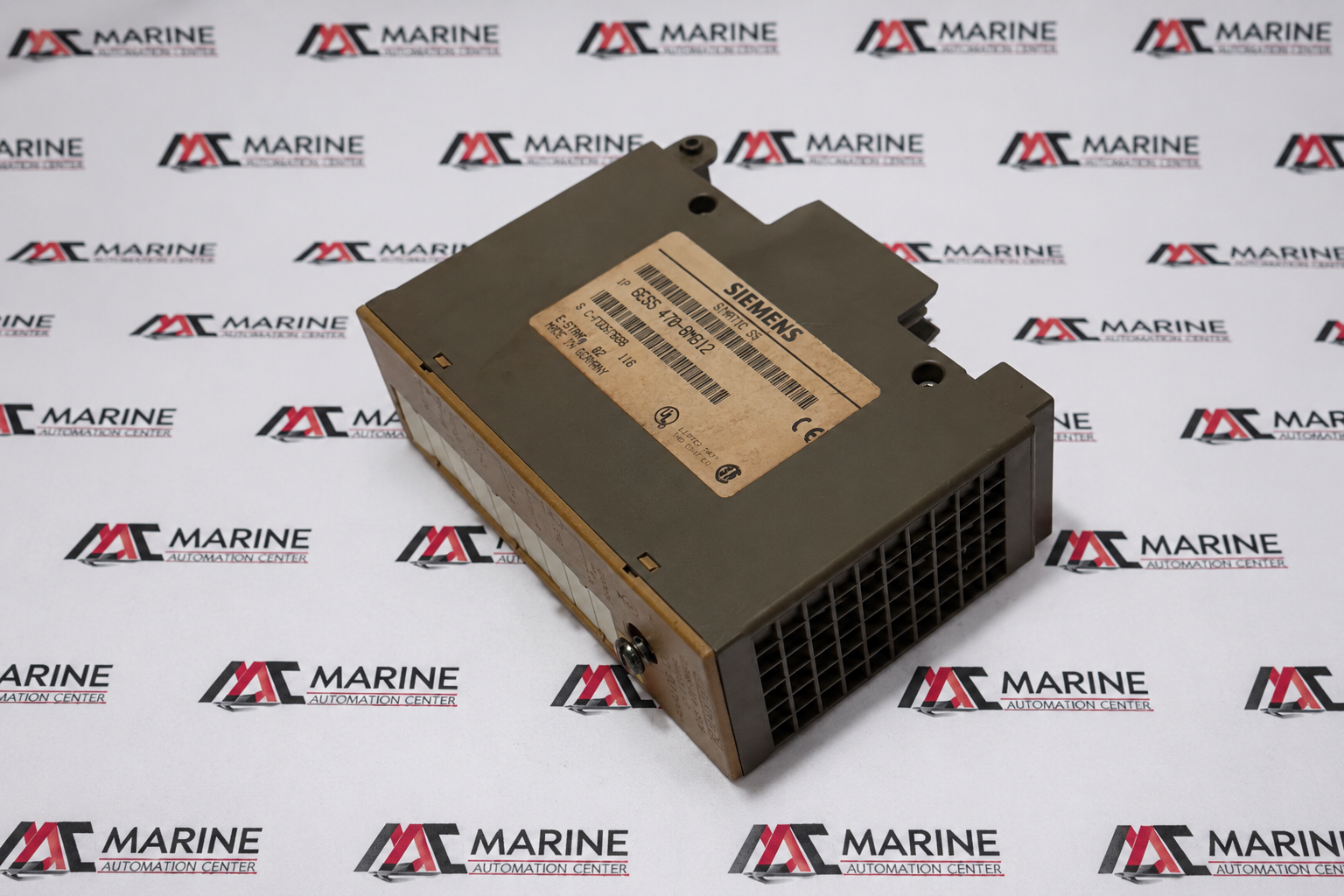

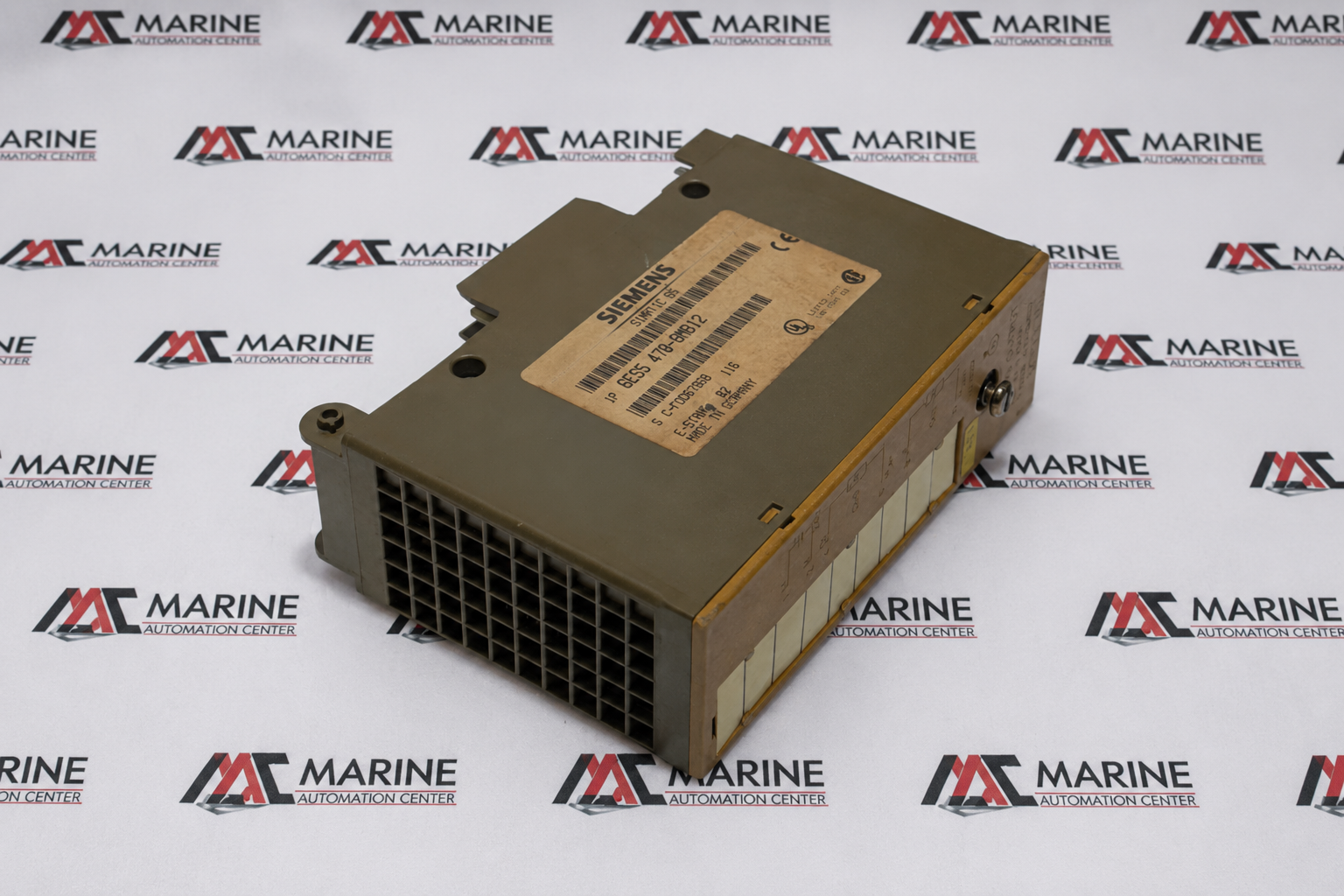

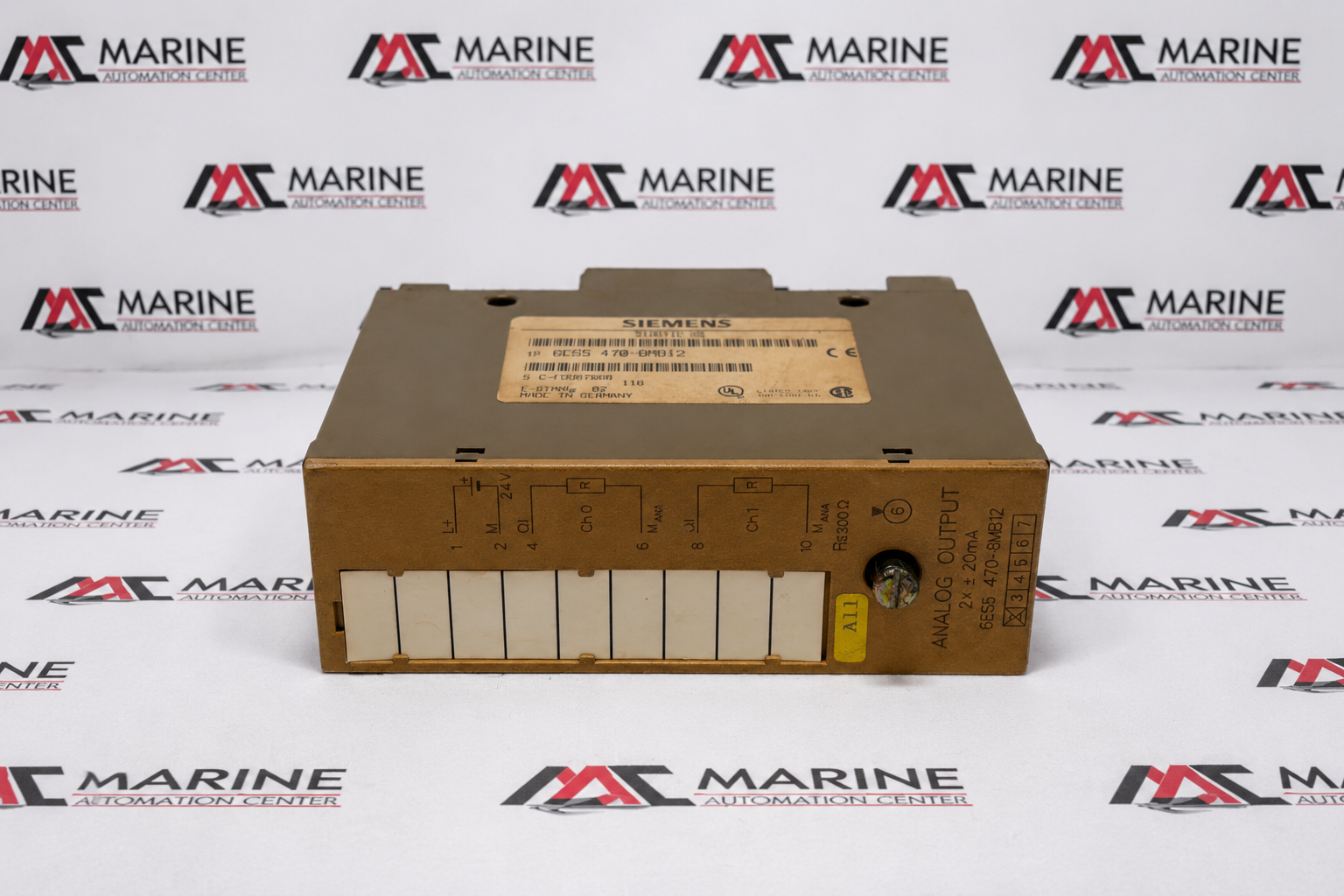

Siemens Analog Output Module SIMATIC S5
The Siemens SIMATIC S5 6ES5 470-8MB12 is an analog output module designed for the SIMATIC S5 PLC system. It provides two analog current outputs (±20 mA) for precise control of industrial field devices such as control valves, actuators, variable speed drives, and process instrumentation in factory and process automation applications.
BRAND
Siemens
TYPE
Analog Output Module
PART NO.
6ES5 470-8MB12
MODEL
SIMATIC S5
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Siemens |
| TYPE | Analog Output Module |
| PART NO. | 6ES5 470-8MB12 |
| MODEL | SIMATIC S5 |
| MANUFACTURER | Siemens AG |
| Module Function | Analog Output Module |
| Output Channels | 2 Analog Outputs |
| Output Signal | 2 × ±20 mA Current Output |
| Voltage Rating | 24 V DC Supply |
| Current Consumption | Approx. 130 mA from L+; 170 mA from CPU (+9 V) |
| Power Consumption | Approx. 3.8 W |
| Load Resistance | 300 Ω |
| Digital Resolution | 11-bit + Sign |
| Conversion Time | Max. 0.15 ms |
| Application | Industrial PLC analog current signal output for process automation, marine automation, machine control, drives, instrumentation and process control systems. |
| IEC | IEC Compliant Industrial PLC Module |
| Made In | Germany |
| REF NO | 1518 |
