Siemens 3rp2512-1aw30 Time Relay
Buy Siemens 3RP2512-1AW30 Time Relay (12-240V AC/DC) – Efficient and reliable time relay with a voltage range of 12-240V AC/DC, featuring a Ui of 300V and B300/R300 relay contact rating. Ideal for industrial control applications. Made in Germany. Part No: 11010 3RP2512-1AW30.
BRAND
Siemens
TYPE
Time Relay
PART NO.
Siemens 3rp2512-1aw30 Time Relay
MODEL
3rp2512-1aw30
Full Technical Specifications ▶

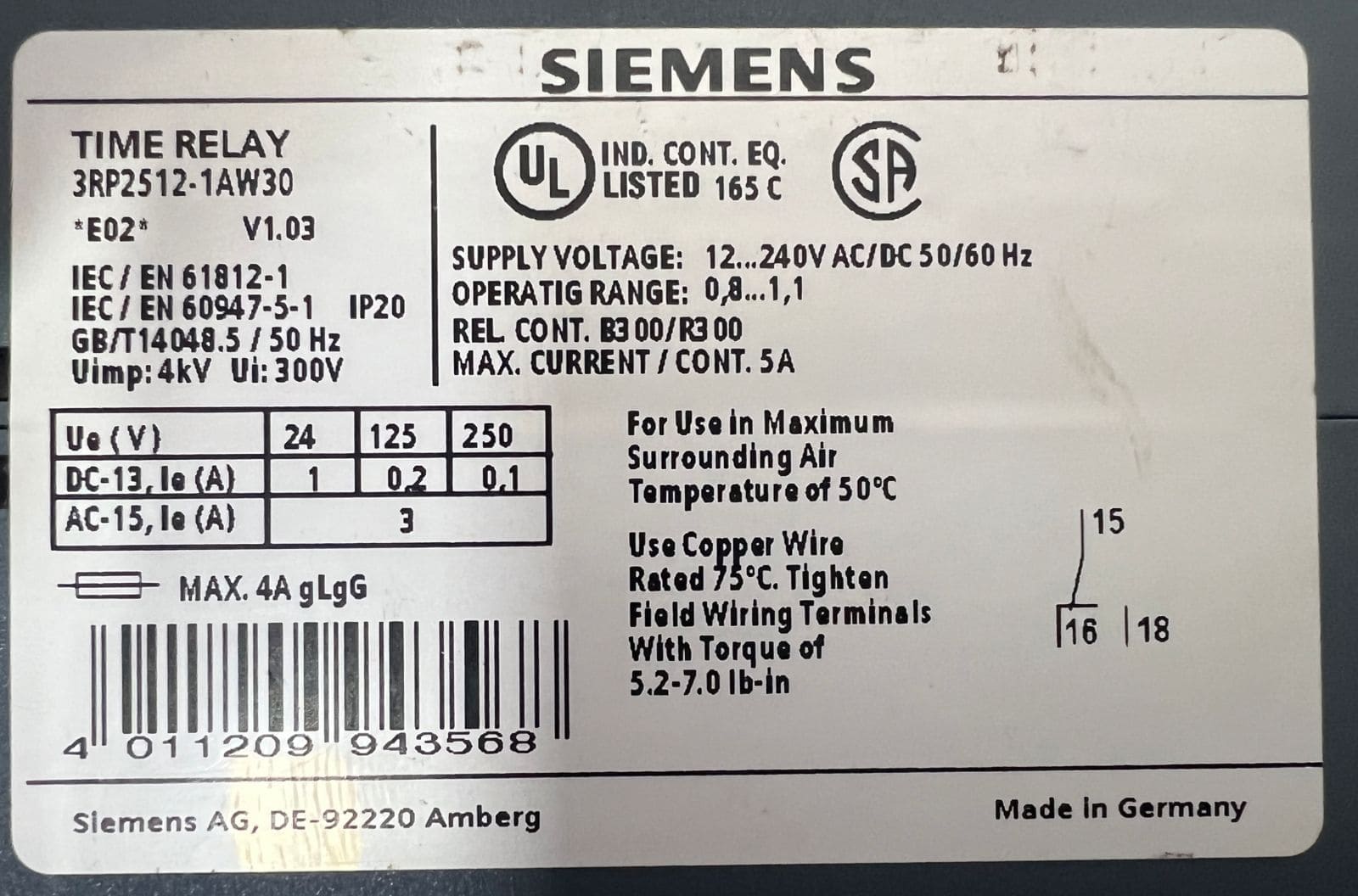

| Parameter | Value / Description |
|---|---|
| BRAND | Siemens |
| TYPE | Time Relay |
| PART NO. | Siemens 3rp2512-1aw30 Time Relay |
| MODEL | 3rp2512-1aw30 |
| E02 | V1.03 |
| Iec/en | 61812-1 |
| Iec/en | 60947-5-1Gb/t14048.5/50hz |
| Uimp | 4kv |
| Ui | 300v |
| Supply Voltage | 12...240v Ac/dc 50/60hz |
| Operating Range | 0,8...1,1 |
| Rel Cont | B300/r300 |
| Max. Current/cont | 5a |
| Part No | 11010 3rp2512-1aw30 |
| Order Ref | Po.dec-18.535 |
| Our Ref | 18-a44616-en |
| : | 4011209943568 |
| Made in | Germany |
| Reference No | 609 |
