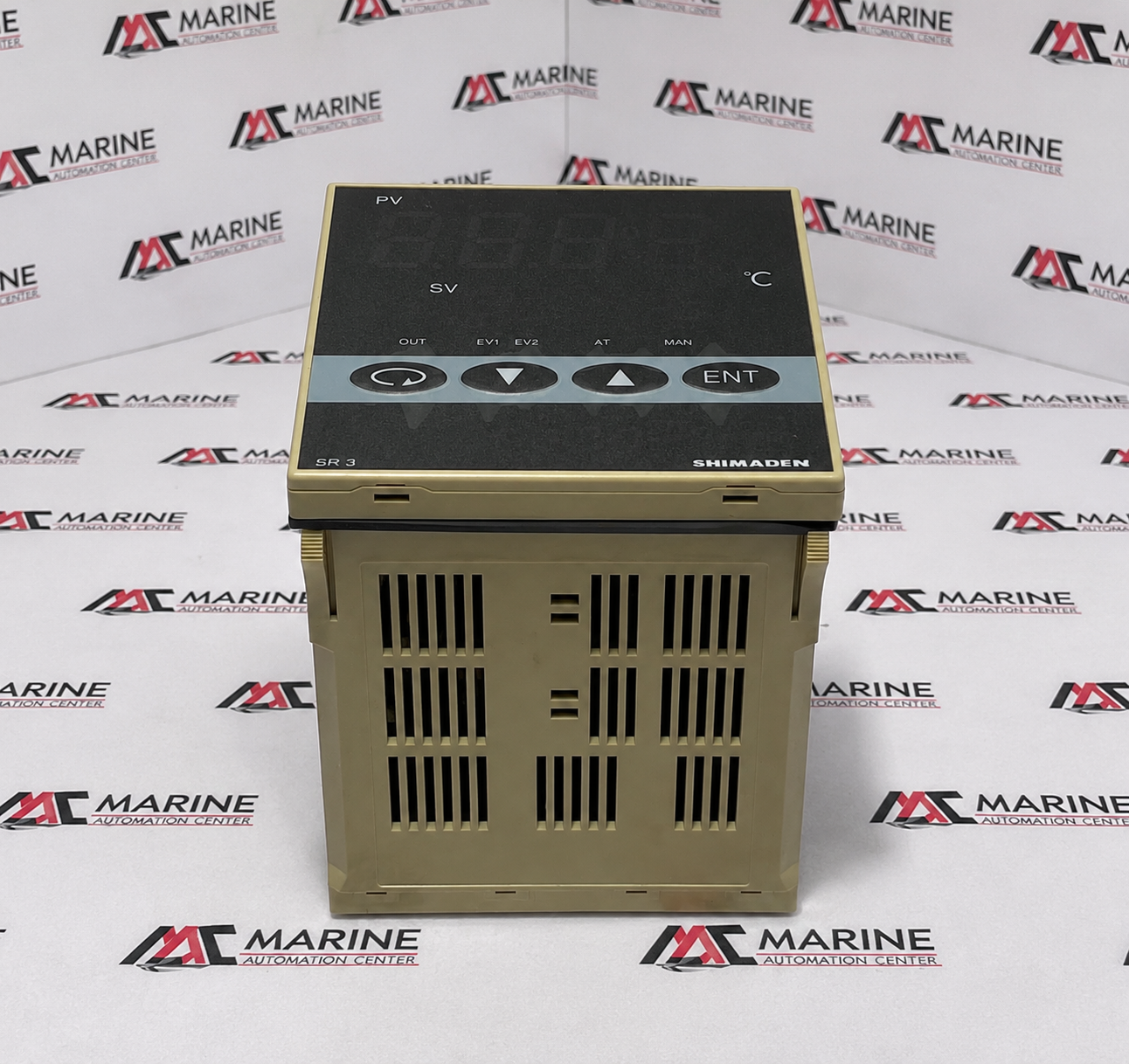

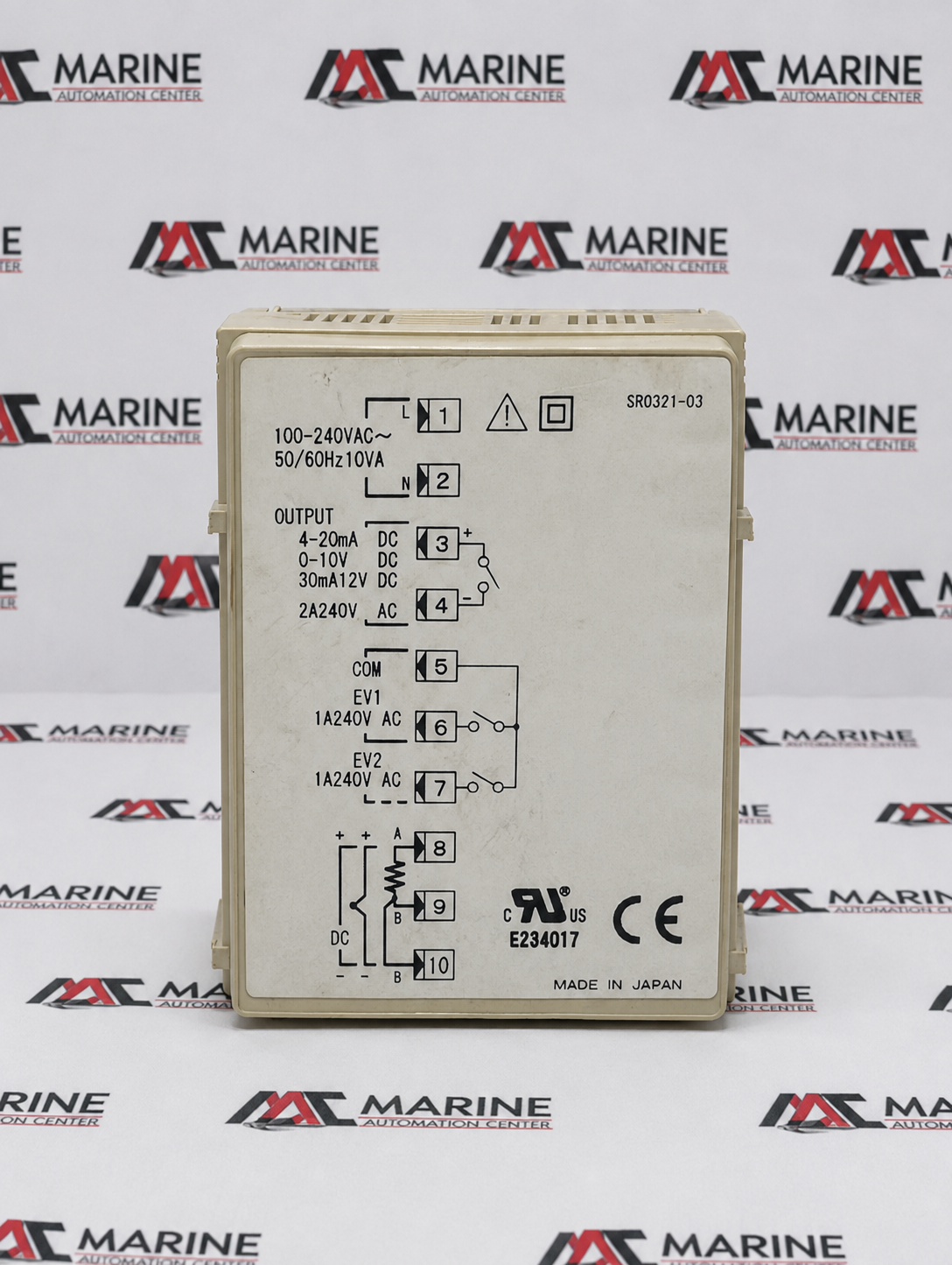

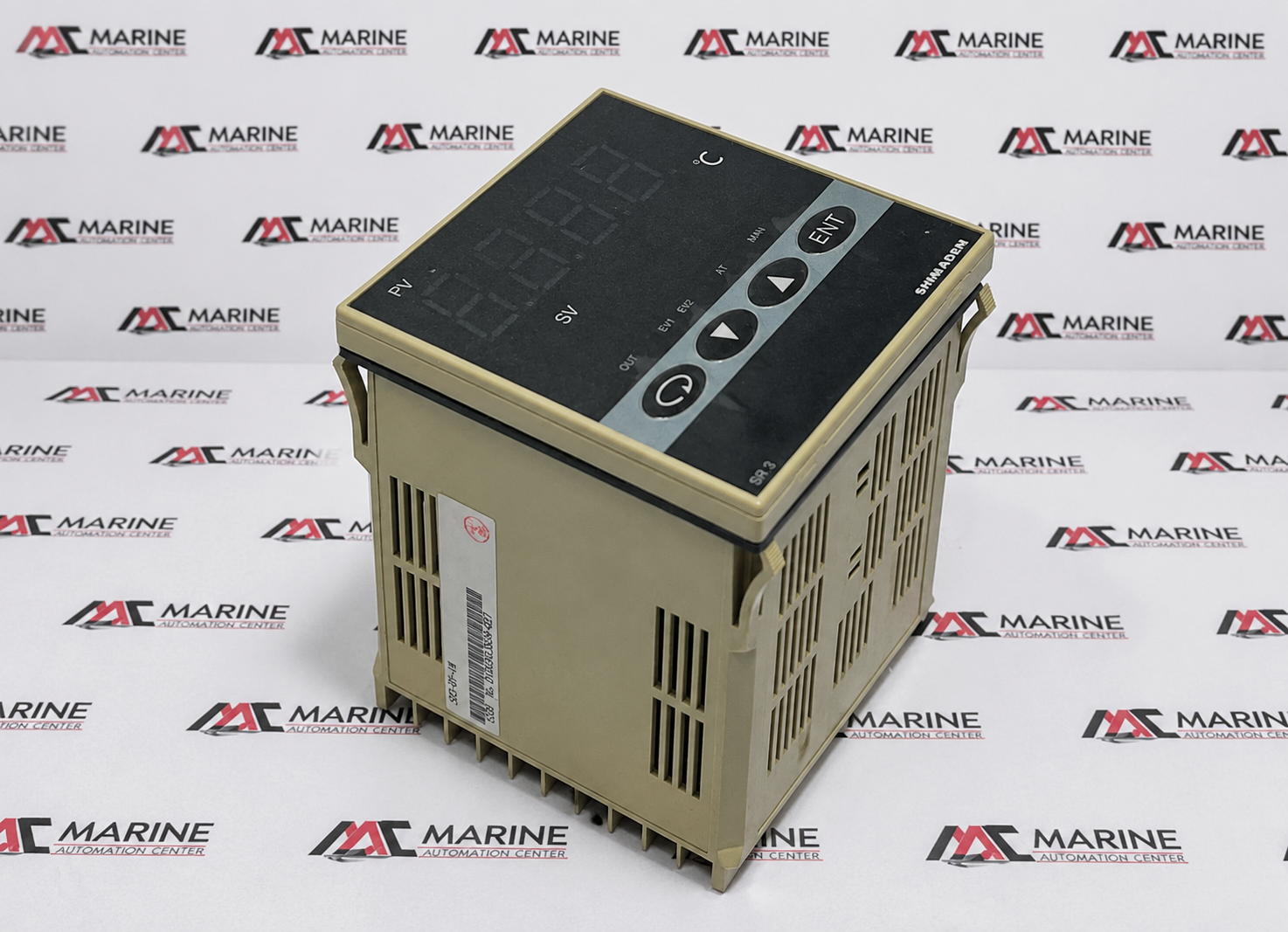

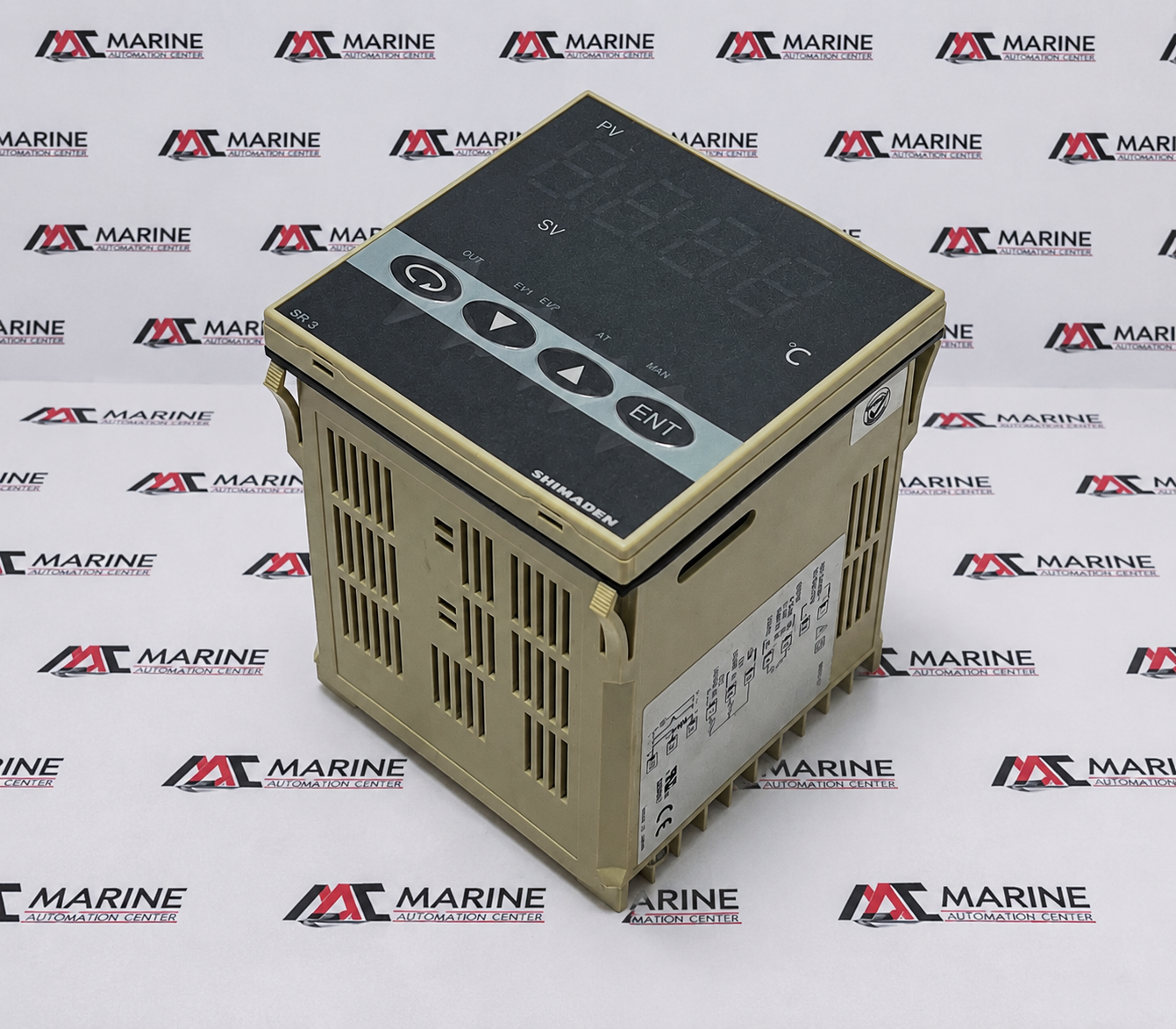

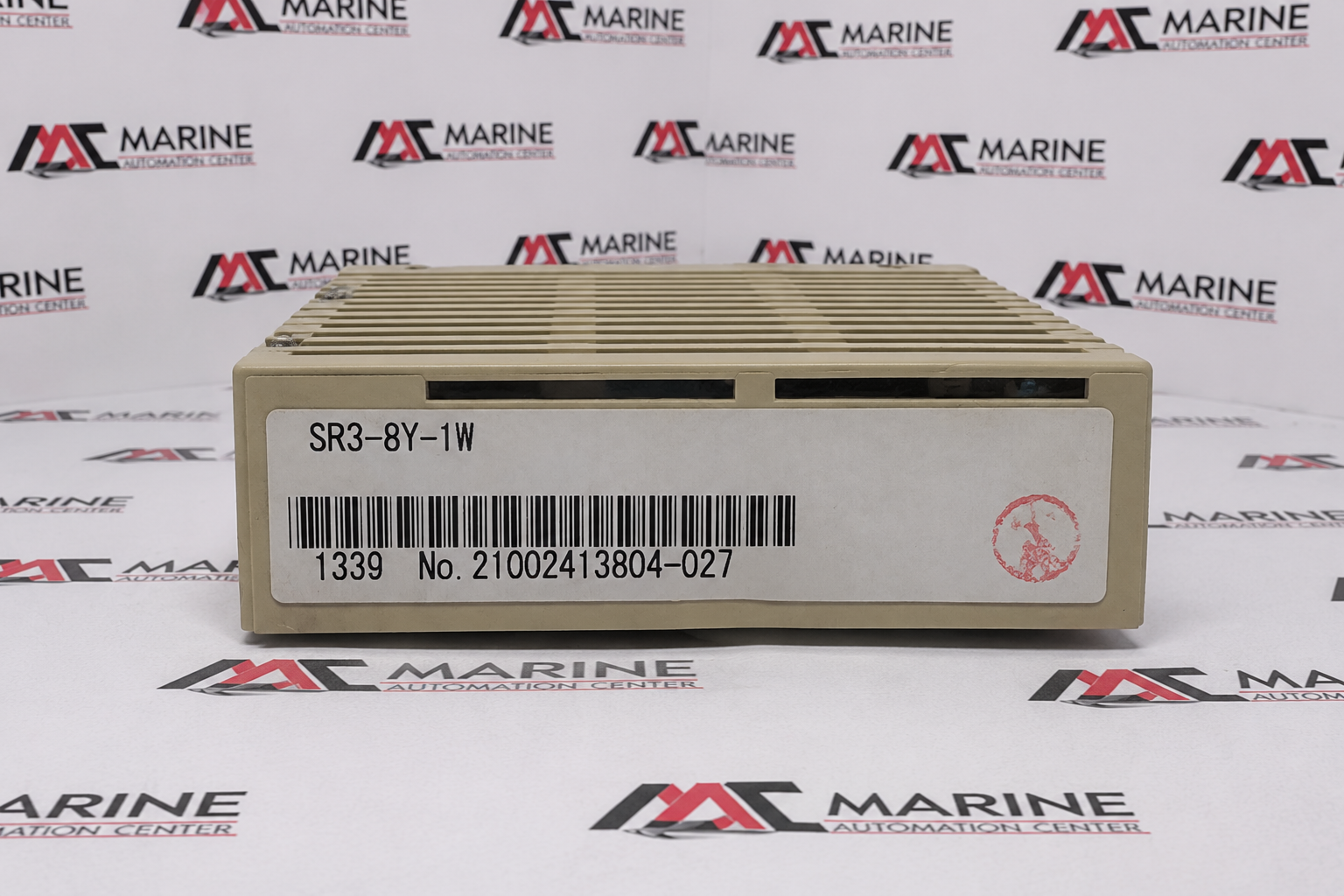

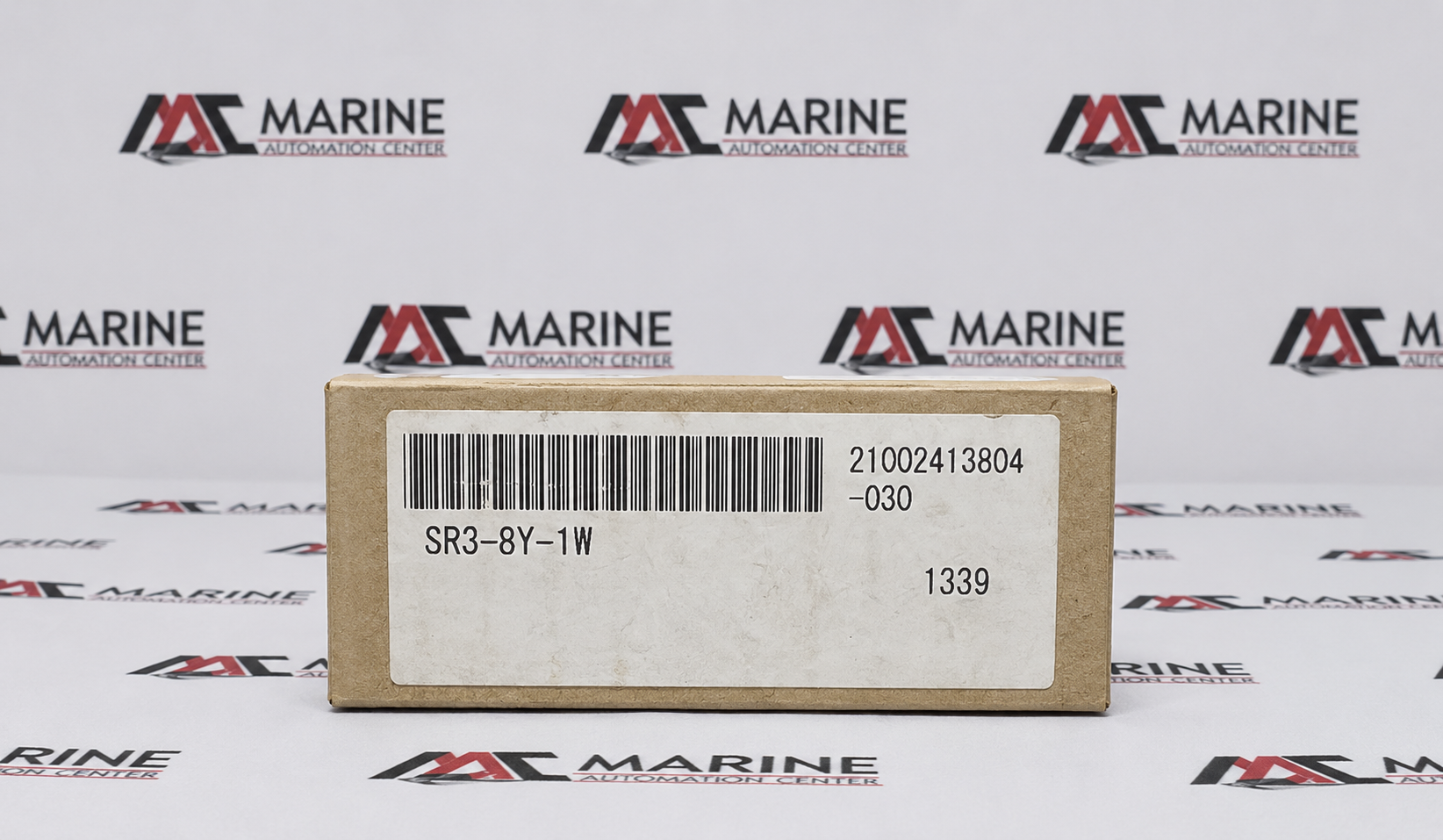

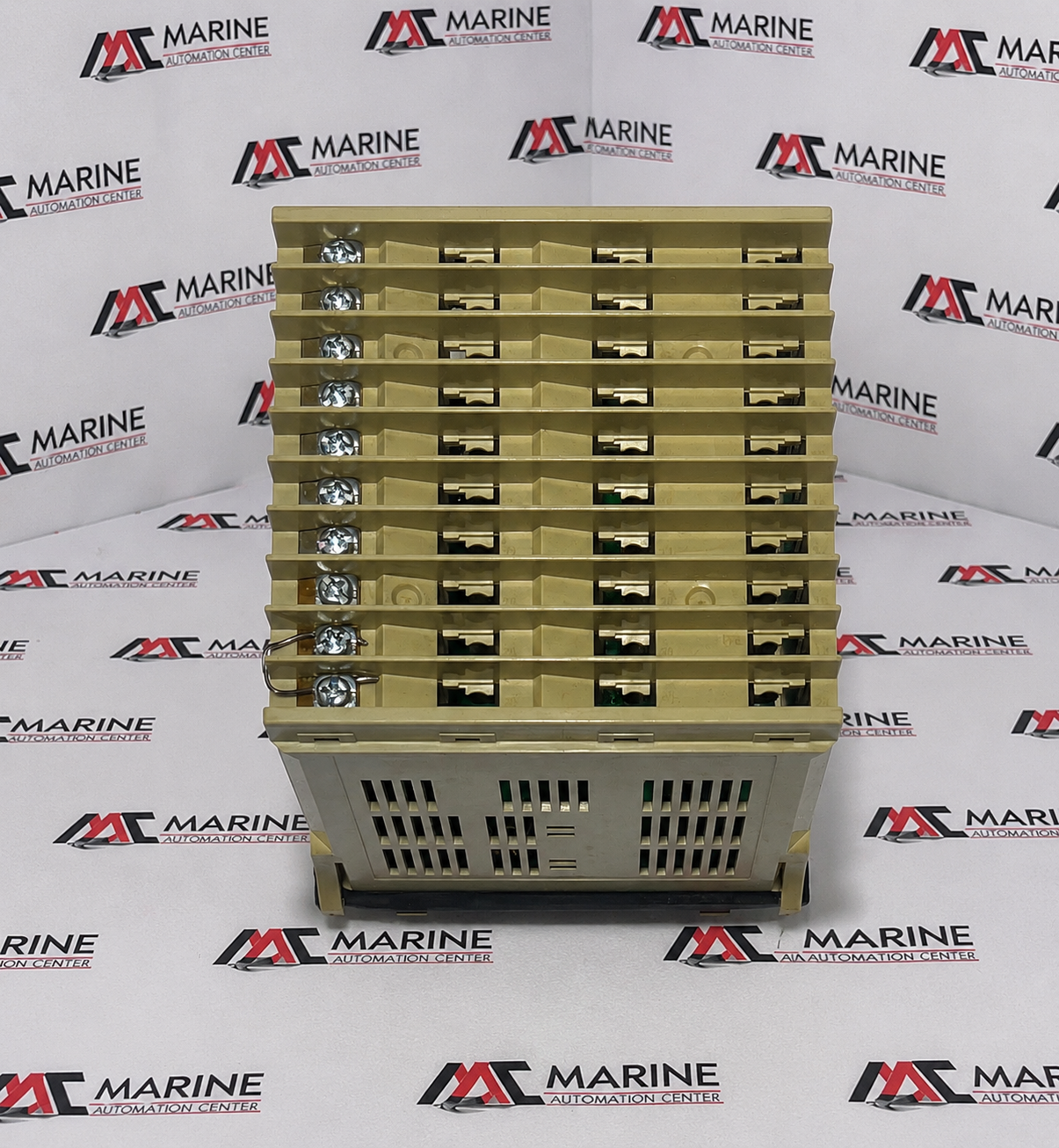

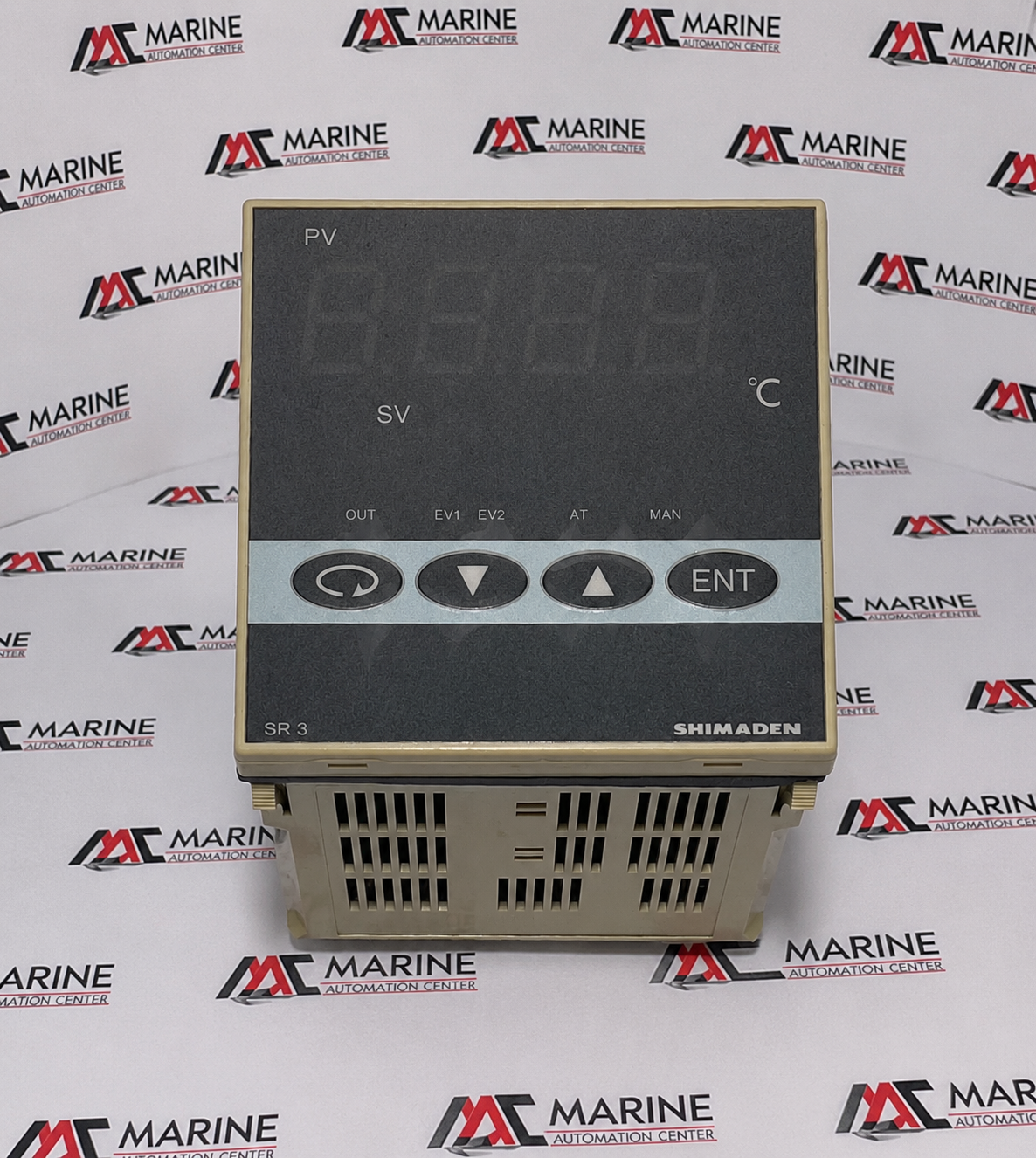

Shimaden SR3-8Y-1W Temperature Controller
Shimaden SR3-8Y-1W Temperature Controller is a compact digital temperature control device designed for precise regulation of heating and cooling processes. It provides accurate temperature monitoring with stable control output, making it suitable for industrial ovens, furnaces, HVAC systems, and process automation applications.
BRAND
Shimaden
TYPE
Temperature Controller
PART NO.
Shimaden Temperature Controller SR3-8Y-1W
MODEL
SR3-8Y-1W
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Shimaden |
| TYPE | Temperature Controller |
| PART NO. | Shimaden Temperature Controller SR3-8Y-1W |
| MODEL | SR3-8Y-1W |
| DISPLAY SIZE | 96 × 96 mm DIN Panel Mount |
| CONTROL MODE | Auto-Tuning PID / ON-OFF Control |
| INPUT TYPE | Multi-Input (Thermocouple, RTD, mV, Voltage, Current) |
| POWER SUPPLY | 100–240 V AC |
| FREQUENCY | 50/60 Hz |
| POWER CONSUMPTION | 10 VA |
| CONTROL OUTPUT | Relay Output (2 A, 240 V AC Resistive Load) |
| ANALOG OUTPUT | 4–20 mA DC / 0–10 V DC |
| SSR DRIVE OUTPUT | 12 V DC, 30 mA |
| EVENT OUTPUTS | EV1 & EV2, 1 A at 240 V AC |
| DISPLAY | Dual 7-Segment LED (PV / SV Display) |
| INPUT RANGE | Multi-range configurable for Temperature and Process Signals |
| FRONT PANEL PROTECTION | NEMA 4X / IP66 (Dust & Splash Proof Front Panel) |
| MOUNTING | Panel Mount |
| STANDARD | UL Recognized (E234017), CE |
| APPLICATION | Industrial temperature, humidity and process control for ovens, furnaces, plastic machinery, packaging equipment, food processing, HVAC systems, laboratory equipment and industrial automation. |
| MADE IN | Japan |
| REF NO. | 1273 |
