SELCO M2000.0130 Alarm Engine Controller
SELCO M2000.0130 Alarm Engine Controller is a microprocessor-based engine alarm and monitoring controller designed to supervise critical engine parameters and provide reliable alarm, shutdown, and protection functions. It enhances engine safety and operational reliability in marine, industrial, and power generation applications
BRAND
SELCO
TYPE
Alarm Engine Controller Module
PART NO.
M2000.0130
MODEL
M2000 Engine Controller
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | SELCO |
| TYPE | Alarm Engine Controller Module |
| PART NO. | M2000.0130 |
| MODEL | M2000 Engine Controller |
| Voltage Rating | 12 V – 24 V DC Universal Operational Band |
| Application | Integrated monitoring, protection, automated cranking sequence, and emergency shutdown tracking for industrial diesel or gas-driven generator installations |
| IEC | CE Marked; meets industrial electromagnetic noise immunity standards EN 50081 and EN 50082 |
| Serial no. | 509782 |
| Monitoring Capacity channels | Hosts up to 9 distinct emergency shutdown entry streams and/or 7 dedicated warning alarm tracking pathways |
| Start Attempt Parameters | Programmable logic engine facilitates up to 4 sequential manual or automatic cranking cycles with adjustable resting duration blocks |
| Start Disengagement Detection | Operates on discreet feedback loops triggered via potential-free inputs from internal or external tacho relays |

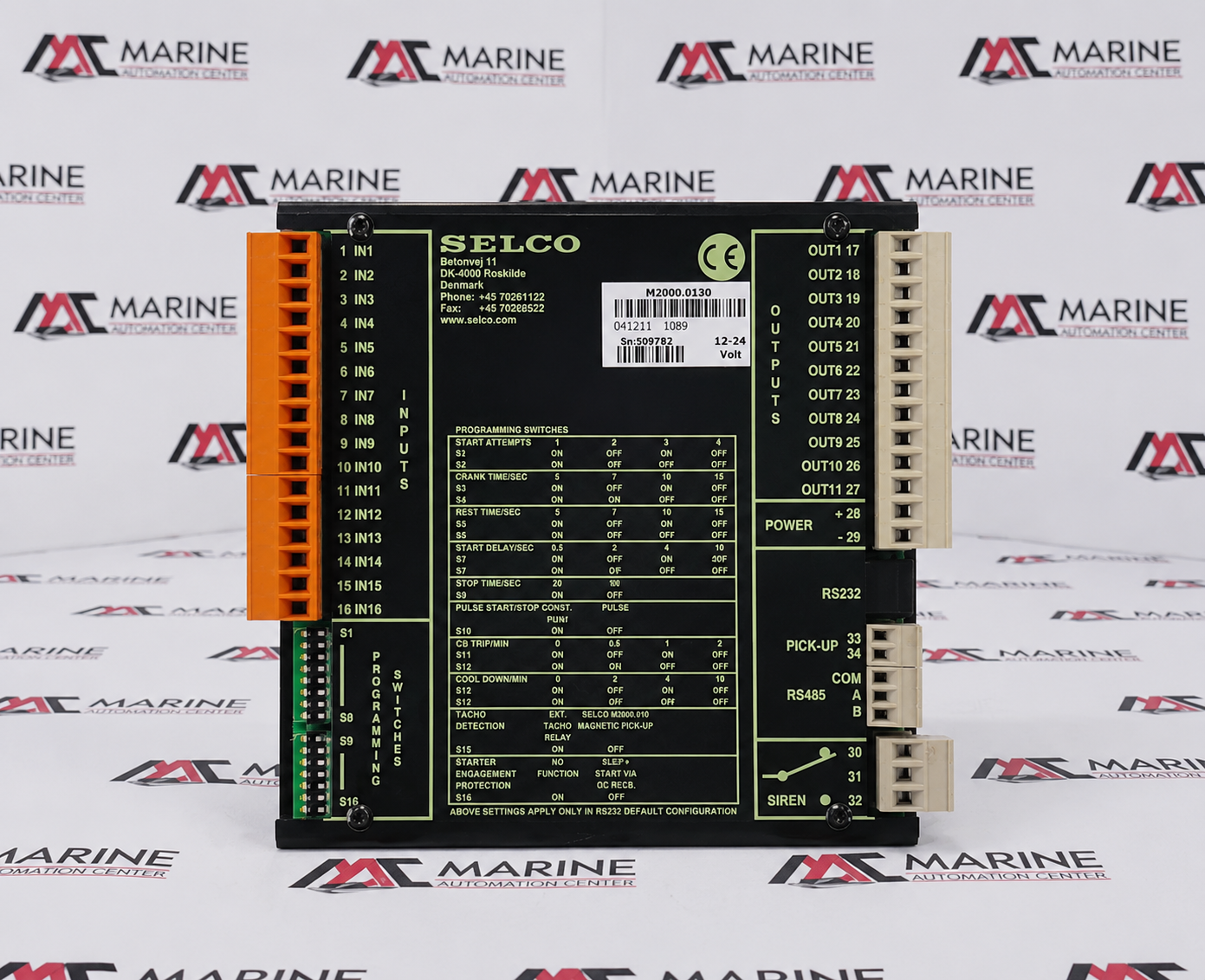

| Built-in Interfaces | Equipped with an RS232 terminal interface connector for customized PC-based profile setup |
| Net Base Assembly Weight | ~405 grams to 410 grams |
| Mechanical Installation Footprint | Engineered for clean switchboard front-door panel flush mounting with standardized compact sizing dimensions of 144 mm × 144 mm and an insertion depth constraint of 35 mm |

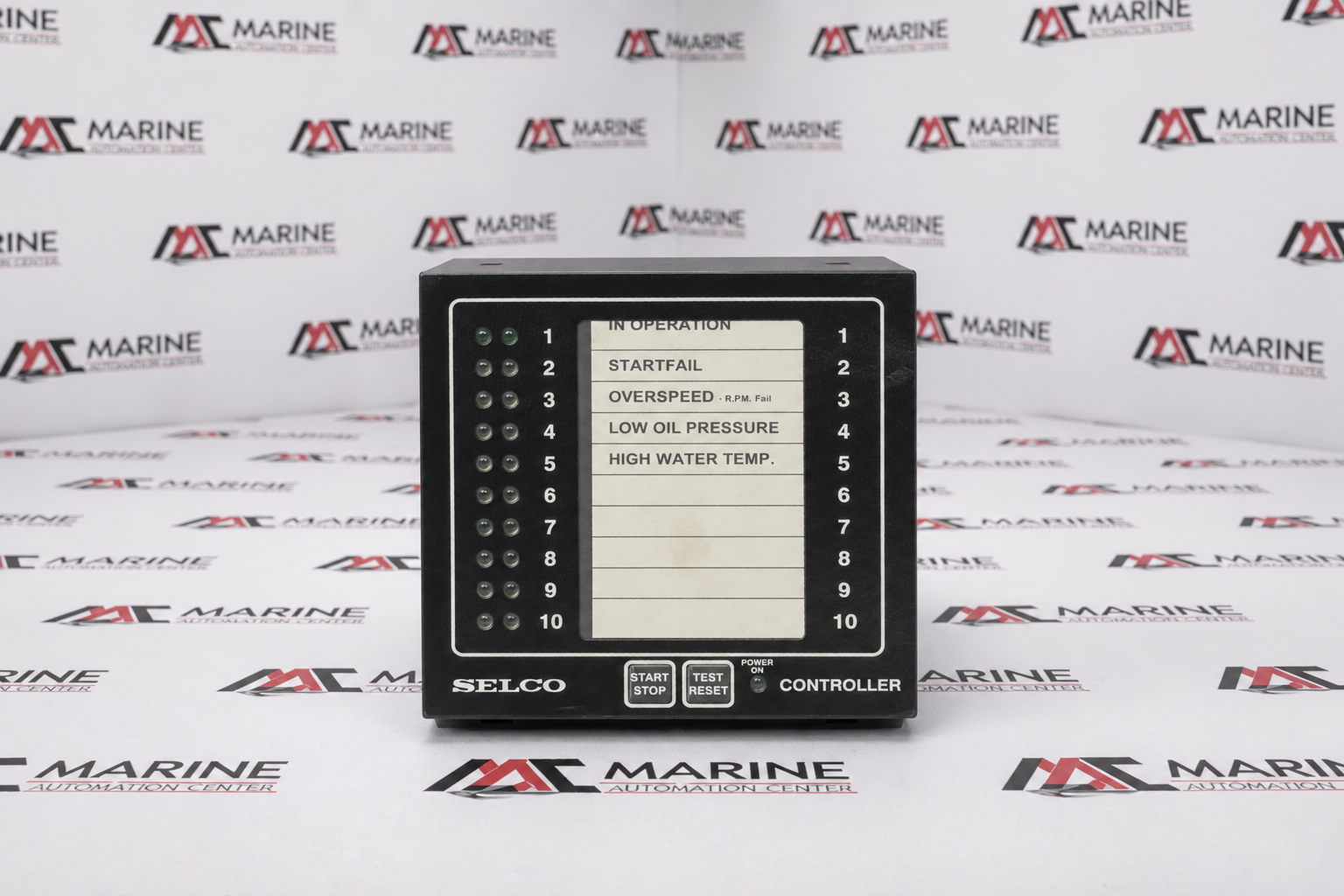

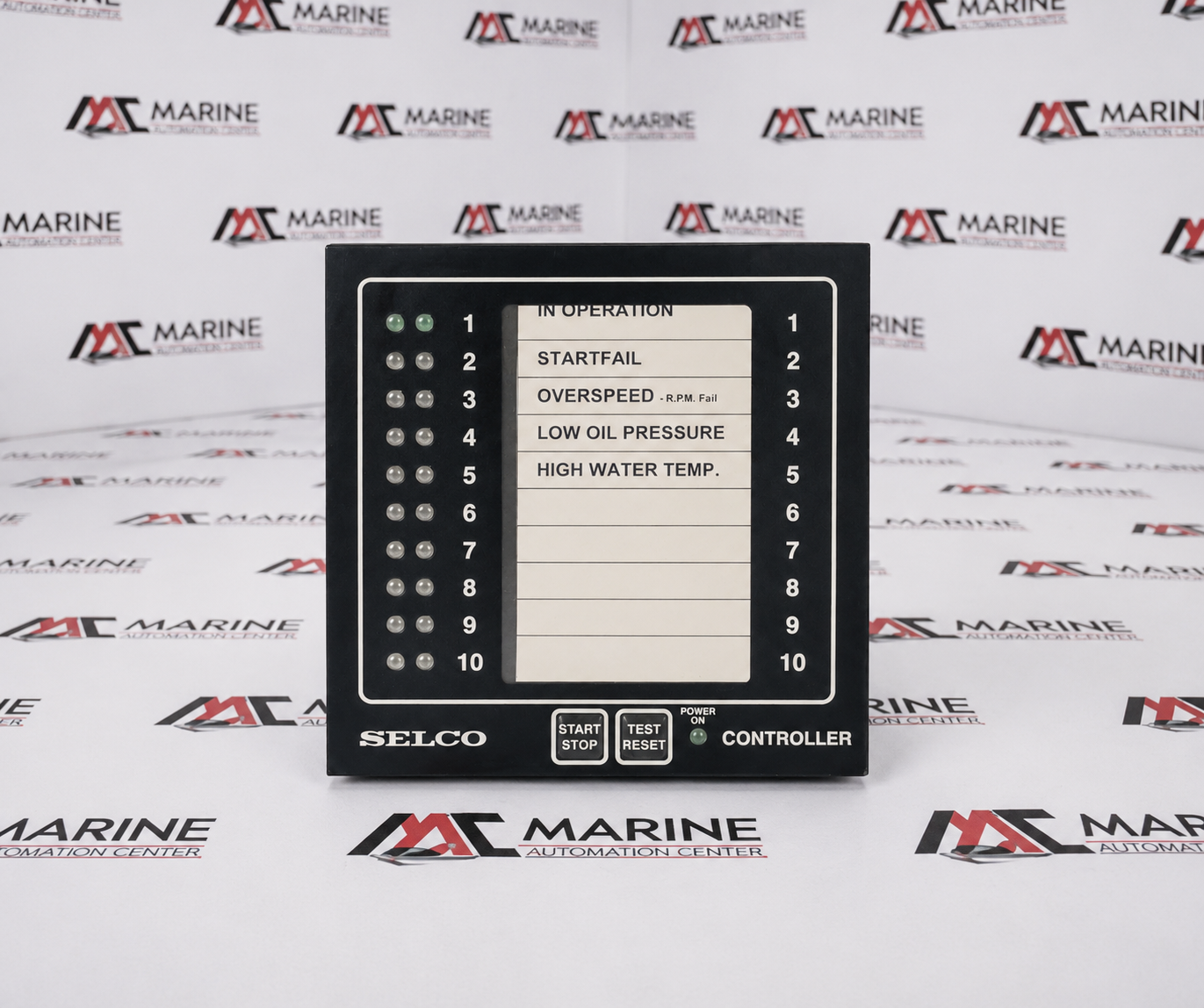

| Visual Display Configuration | Front console face uses two dual-color high-intensity LEDs per configuration column with transparent windows for legend insert descriptions |
| Thermal Execution | Undergoes a standard 50-hour factory operational thermal burn-in inspection process to guarantee high-noise suppression and logic isolation |
| Made In | Denmark |
| REF NO | 337 |
