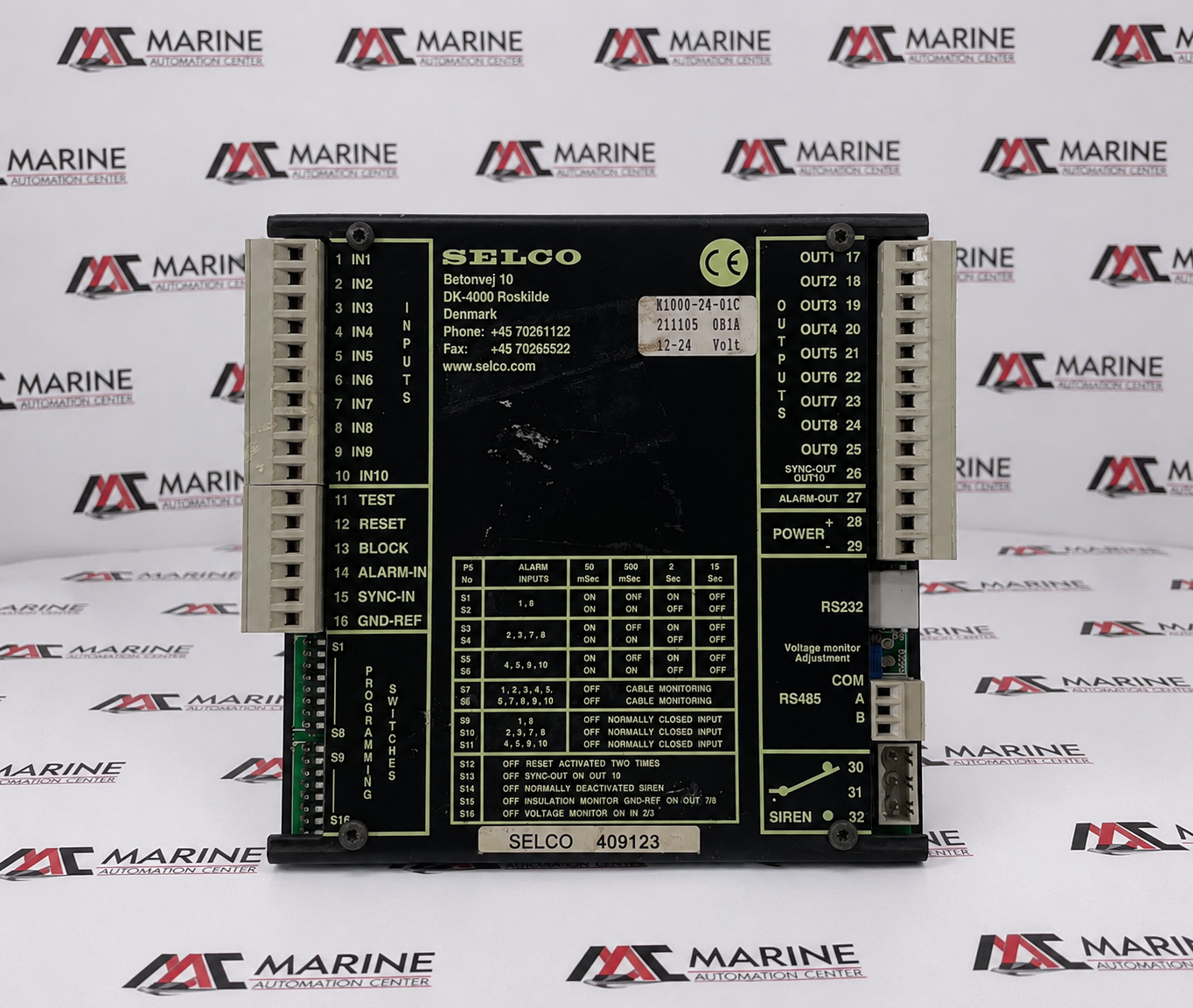

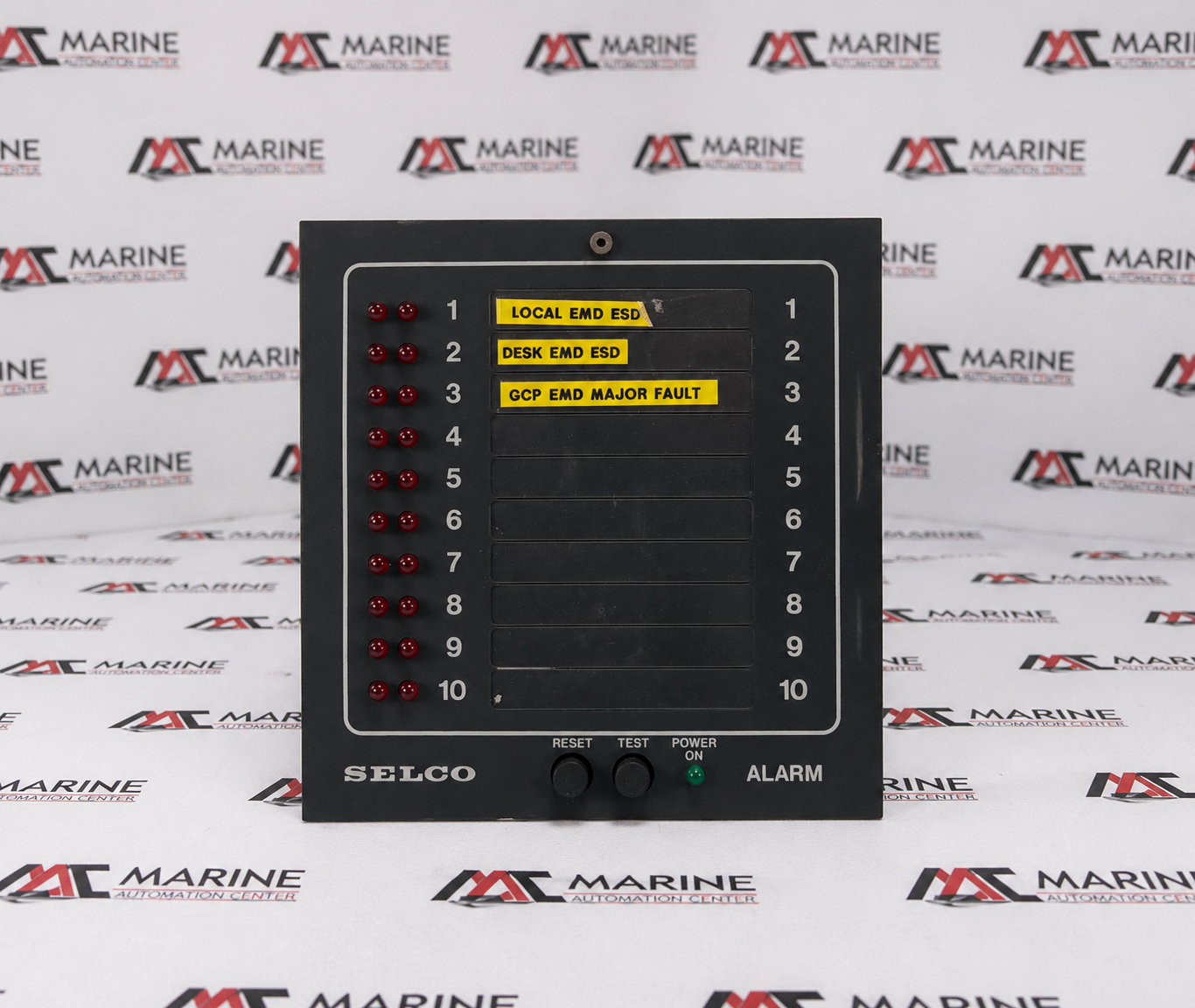

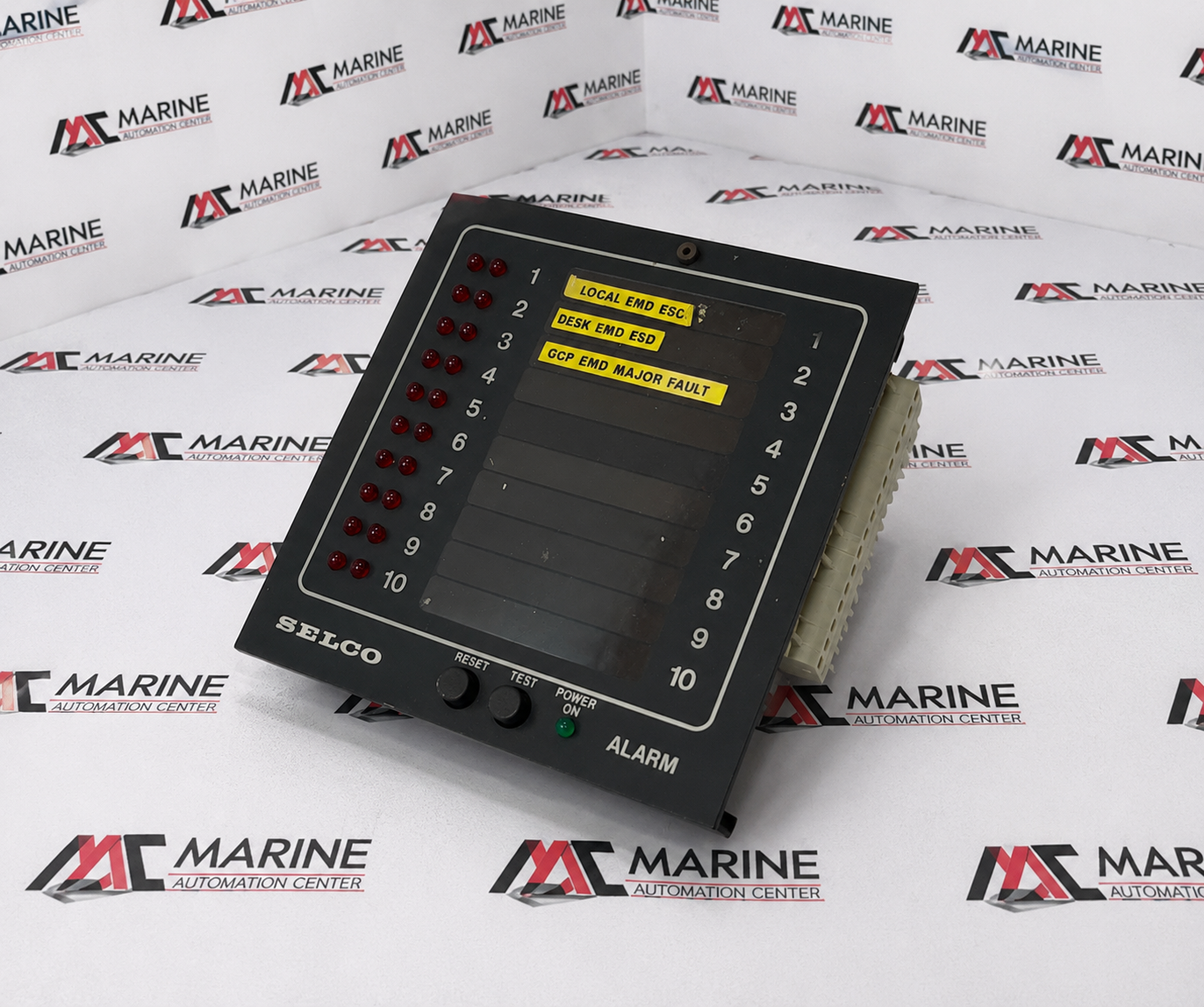

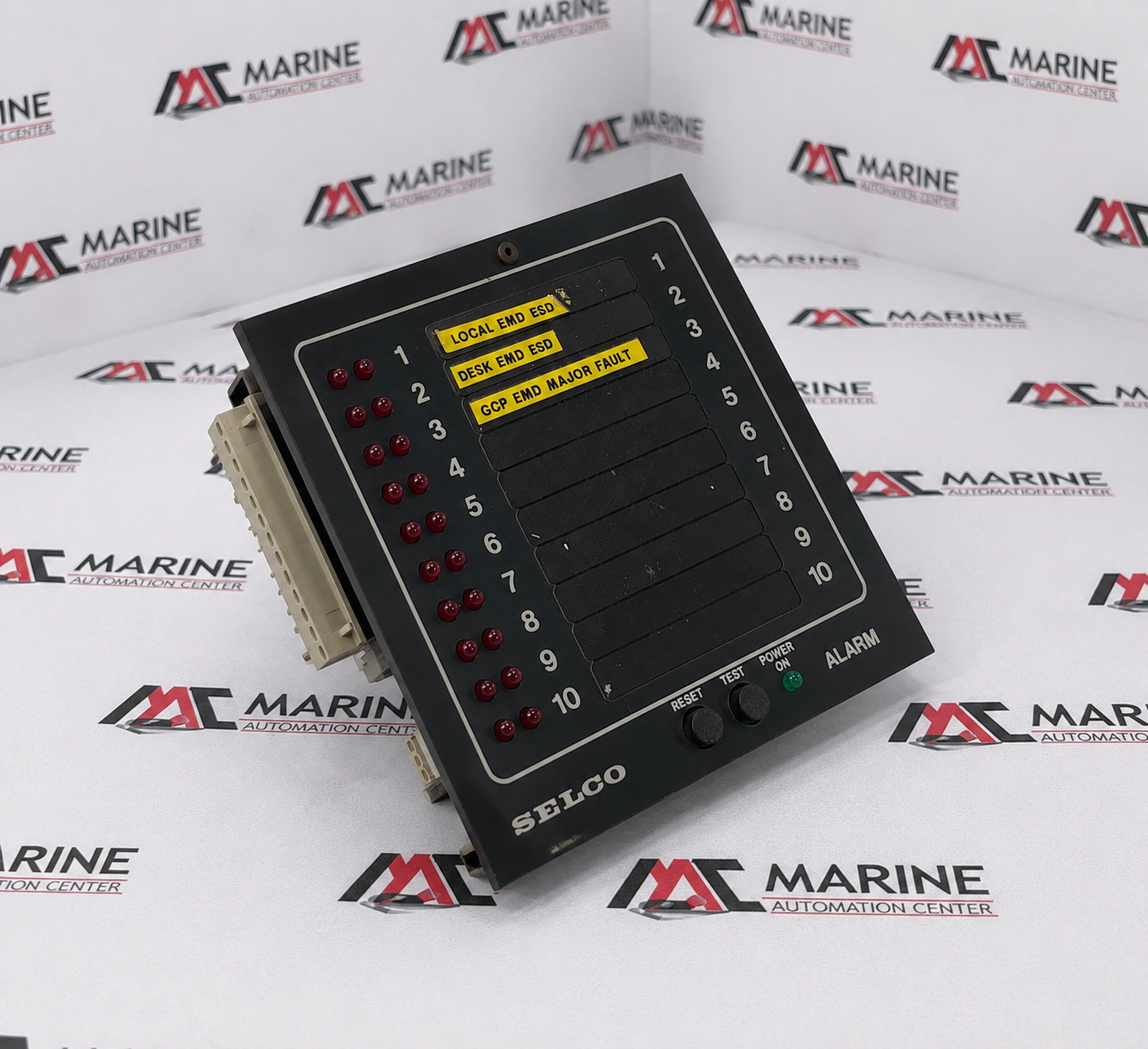

SELCO A/S M1000 Series Process Alarm Monitor / Annunciator Panel
SELCO A/S M1000 Series Process Alarm Monitor / Annunciator Panel (Part No. M1000-24-10C) is a reliable alarm monitoring unit designed for process supervision and fault annunciation in industrial and marine systems. It provides clear visual alarm indication, multiple input monitoring, and dependable operation for detecting abnormal process conditions, making it ideal for engine rooms, power plants, automation systems, and safety monitoring applications.
BRAND
SELCO A/S
TYPE
Process Alarm Monitor / Annunciator Panel
PART NO.
M1000-24-10C
MODEL
M1000 Series
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | SELCO A/S |
| TYPE | Process Alarm Monitor / Annunciator Panel |
| PART NO. | M1000-24-10C |
| MODEL | M1000 Series |
| MANUFACTURER | SELCO A/S |
| Voltage Rating | 24 V DC |
| Application | Marine alarm monitoring, engine room alarm annunciation, process alarm management, and industrial fault indication systems |
| Input Channels | 10 |
| Output Channels | 10 open-collector outputs |
| Input Contact Type | Potential-free NO or NC dry contacts |
| Front Protection | IP56 (flush-mounted) |
| Status LED Matrix | 20 high-intensity red LEDs (2 per channel) |
| Mounting Type | Flush Panel Mount |
| Made In | Denmark |
| REF NO | 377 |
