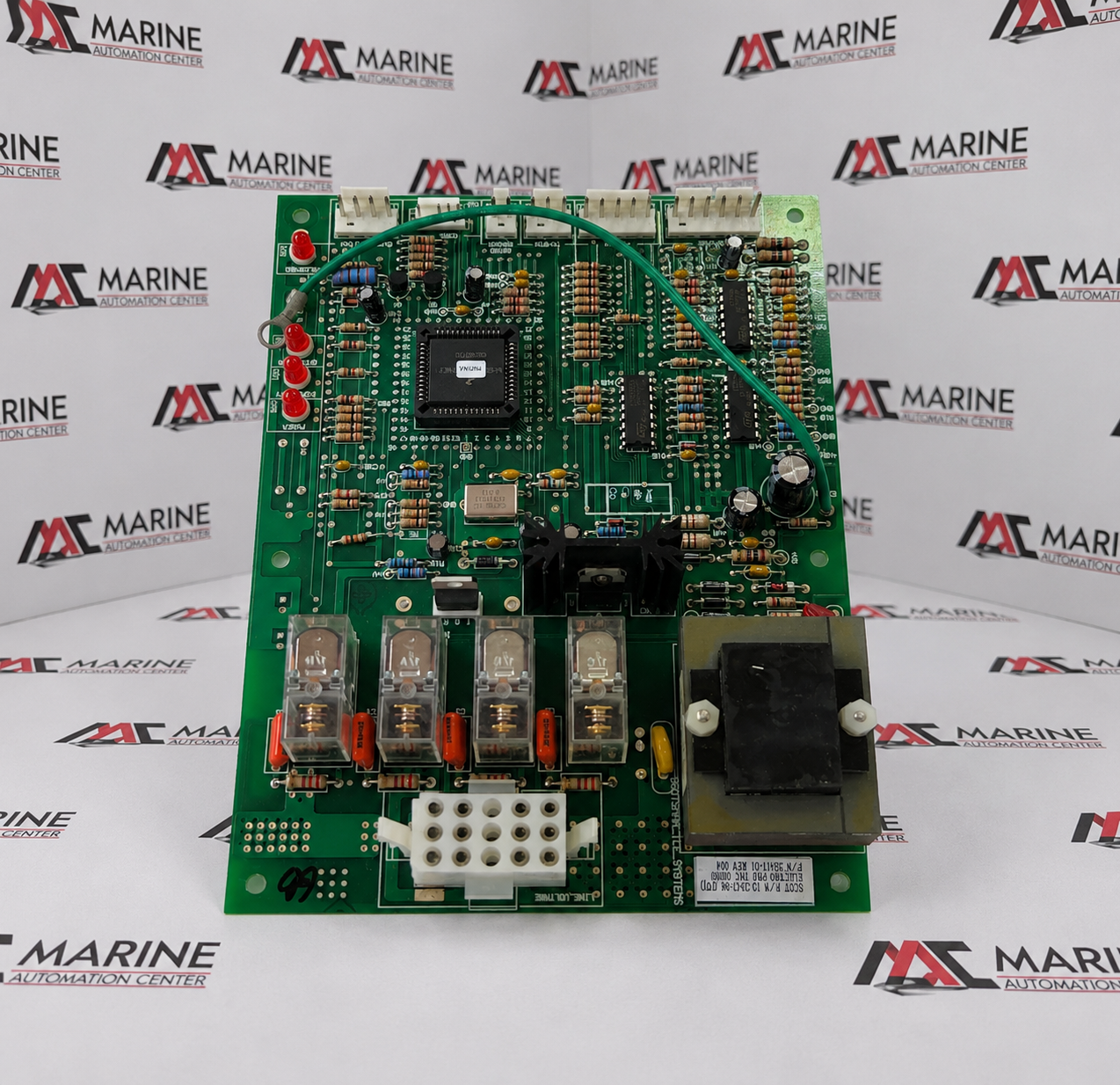

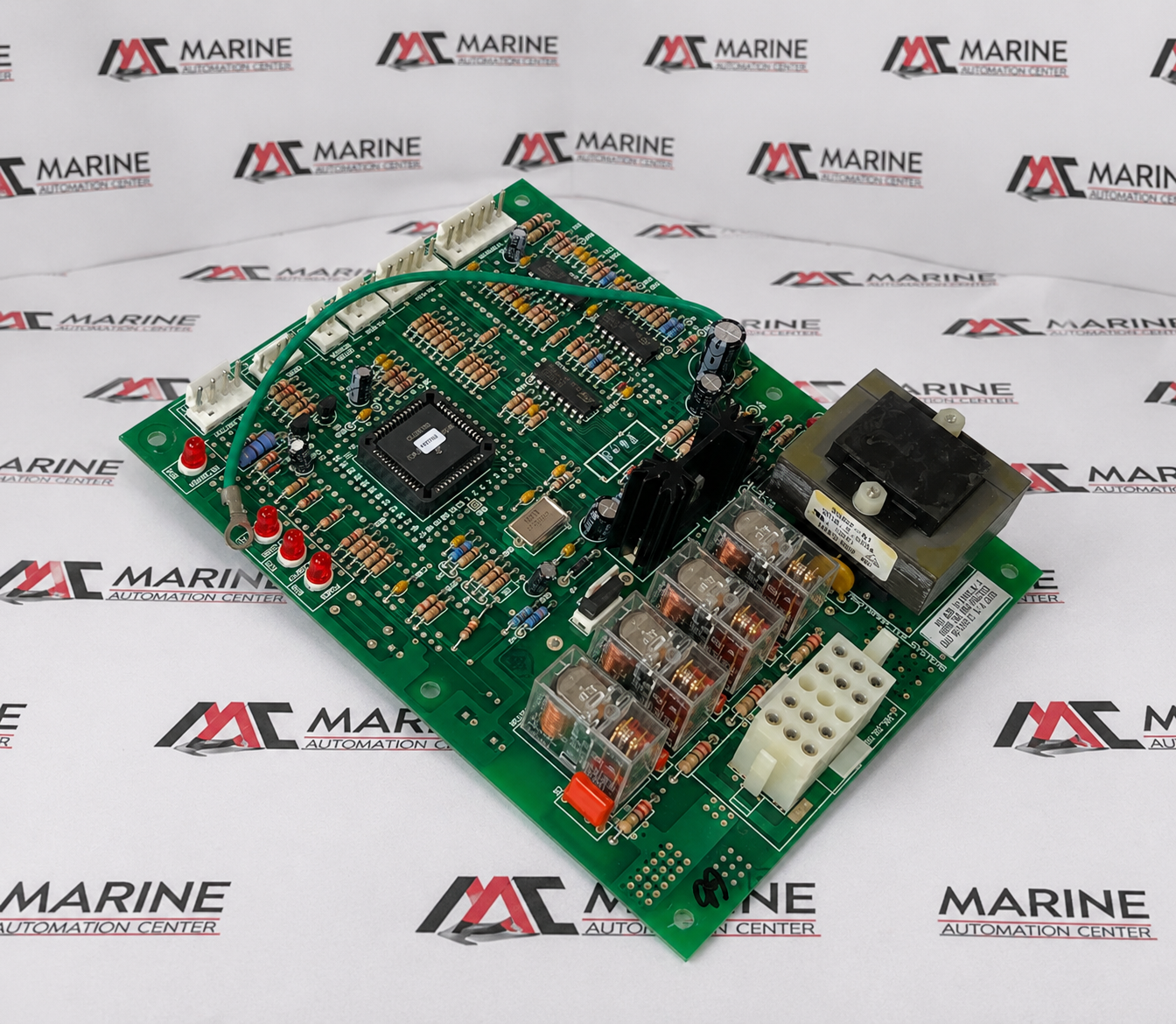

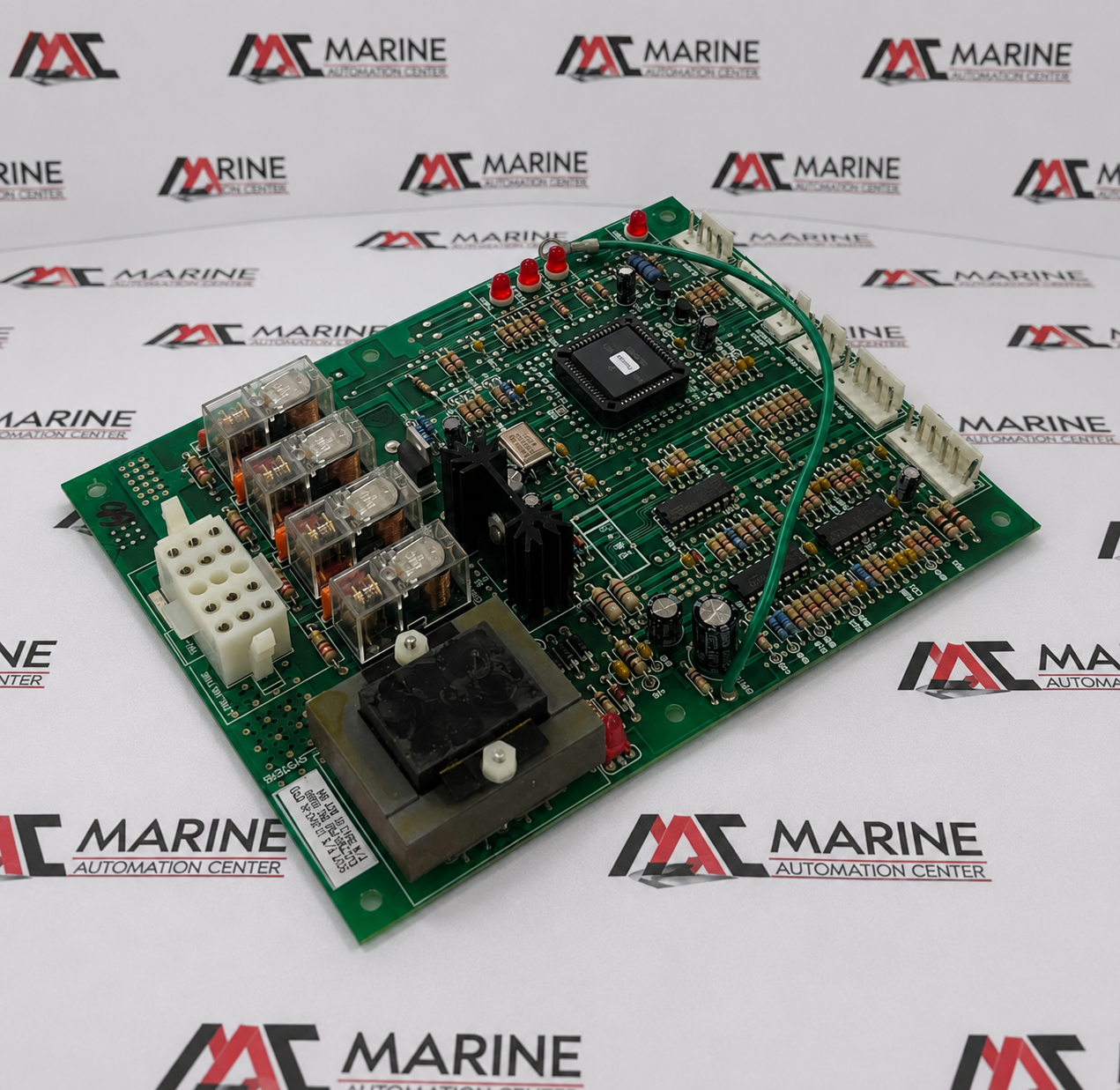

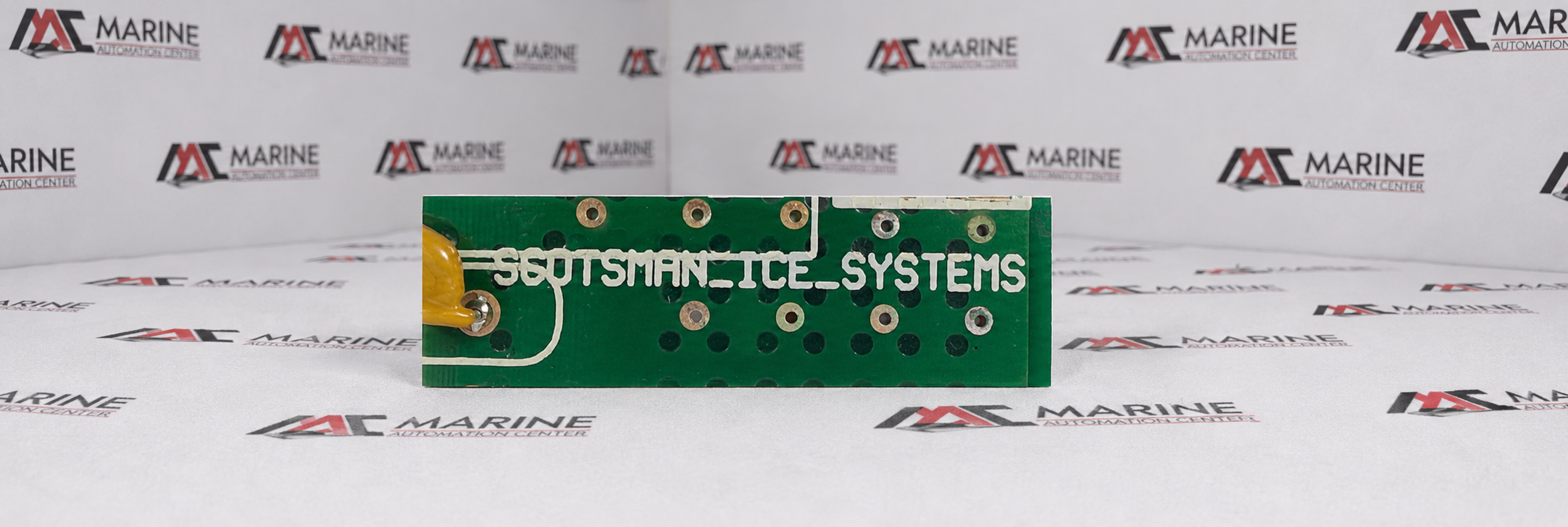

Scotsman Ice Systems Main Control Circuit Board

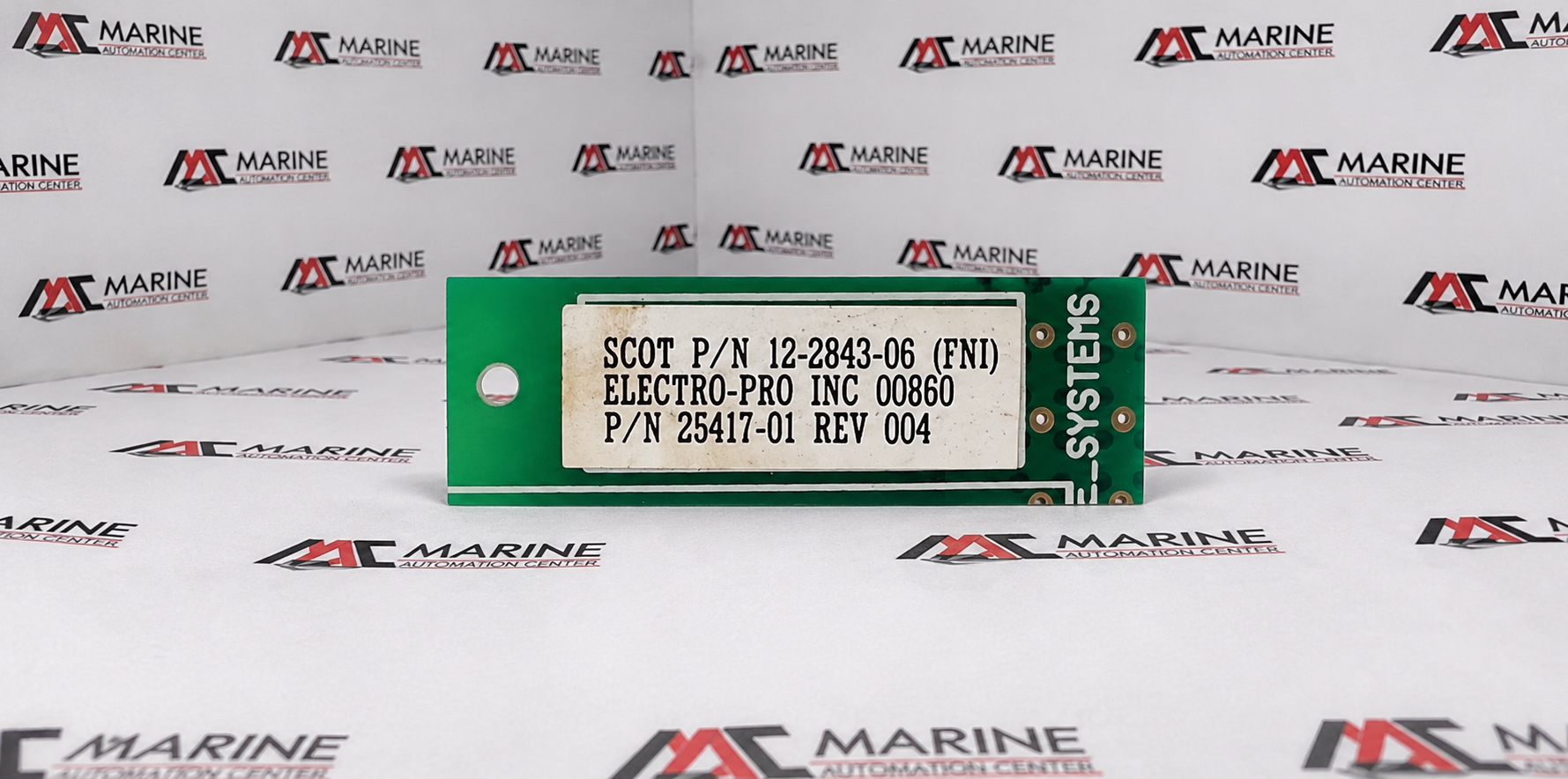

Scotsman Ice Systems Main Control Circuit Board (Part No. 12-2843-06 FNJ, Model P/N 25417-01 REV 004) is the primary electronic control board used in Scotsman commercial ice-making equipment. It manages machine operation, monitors system functions, and controls key components to ensure reliable ice production and efficient performance in commercial refrigeration and food service applications.
BRAND
Scotsman Ice Systems
TYPE
Control Circuit Board
PART NO.
Main Control Circuit Board 12-2843-06 (FNJ)
MODEL
12-2843-06 (FNJ)
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Scotsman Ice Systems |
| TYPE | Control Circuit Board |
| PART NO. | Main Control Circuit Board 12-2843-06 (FNJ) |
| MODEL | 12-2843-06 (FNJ) |
| MANUFACTURER | Scotsman Ice Systems |
| Application | Commercial ice machines, flakers, marine ice-water dispensers, and offshore ice dispensing systems |
| Power Transformer | On-board step-down transformer for logic power conditioning |
| Microprocessor System | Central timing and sensor processing controller |
| Industrial Relays | 3 heavy-duty electromechanical relays |
| Relay Functions | Auger motor, compressor loop, and hot-gas harvest valve control |
| Field Wiring Interface | 12-pin Molex connector matrix |
| Vibration Sensitivity | Transformer solder joints may crack under heavy vibration |
| Typical Service Parts | Filtering capacitors, relays, and power transformer components |
| Mounting Type | Machine control cabinet PCB mount |
| Made In | USA |
| REF NO | 378 |
