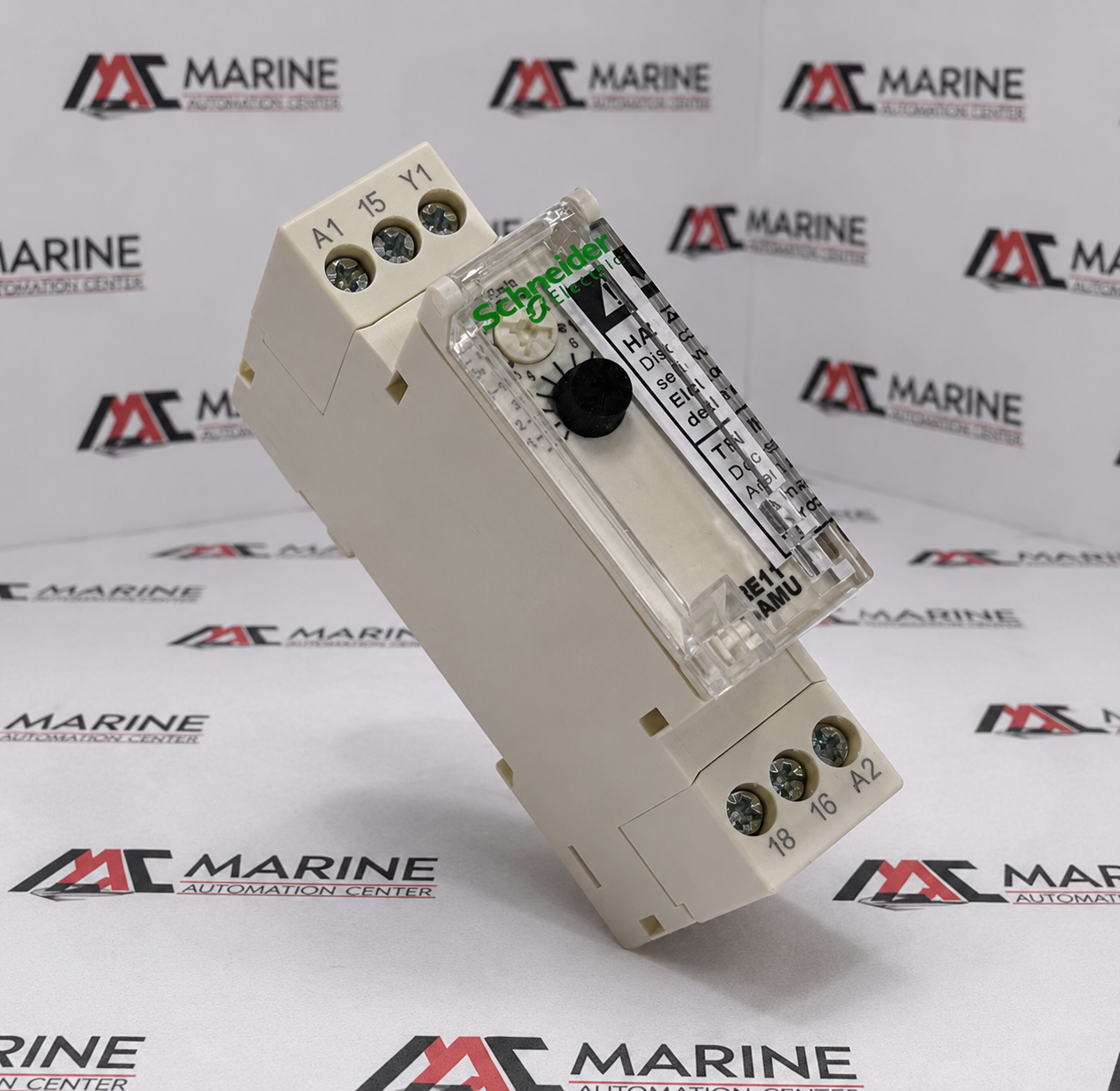

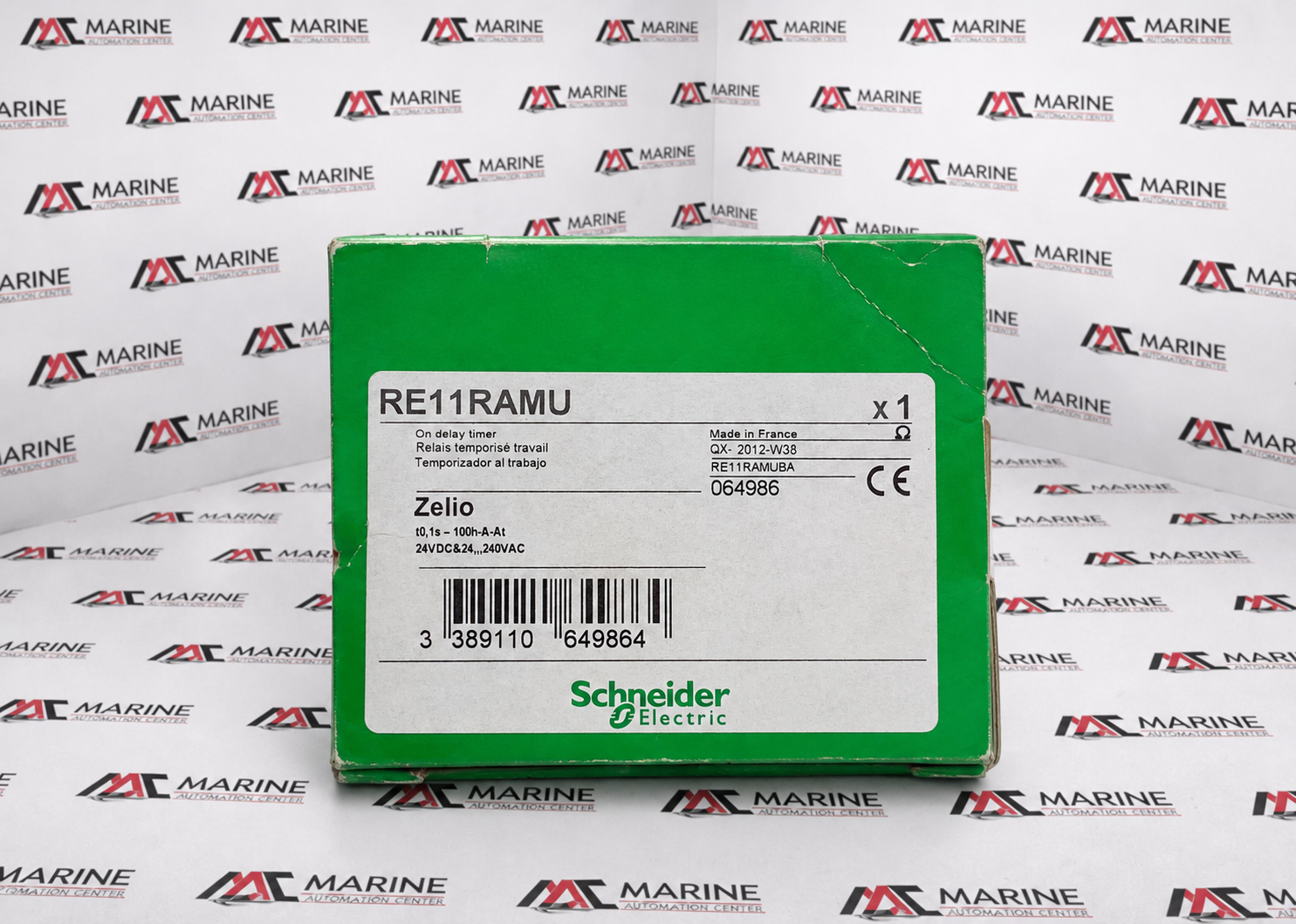

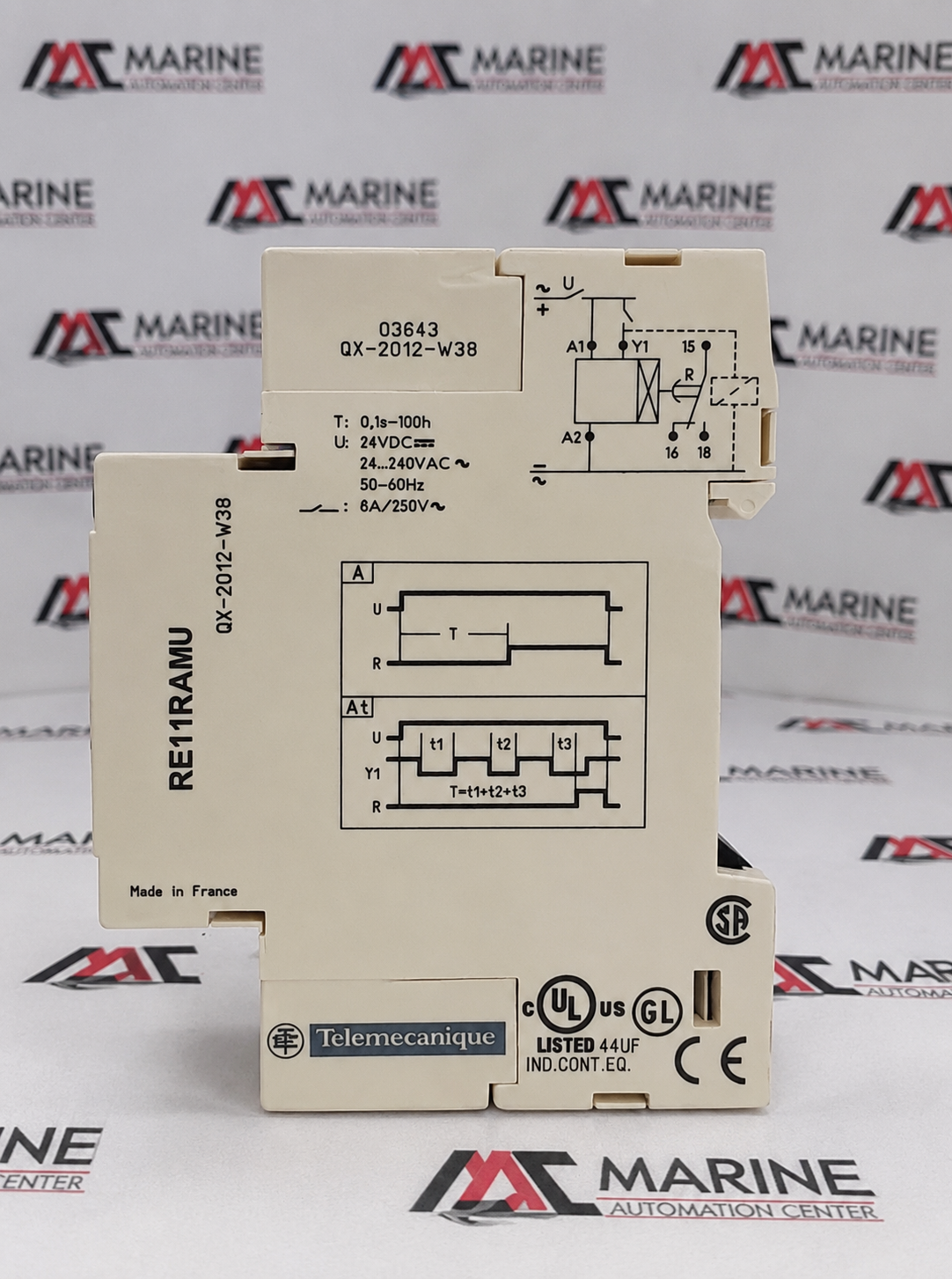

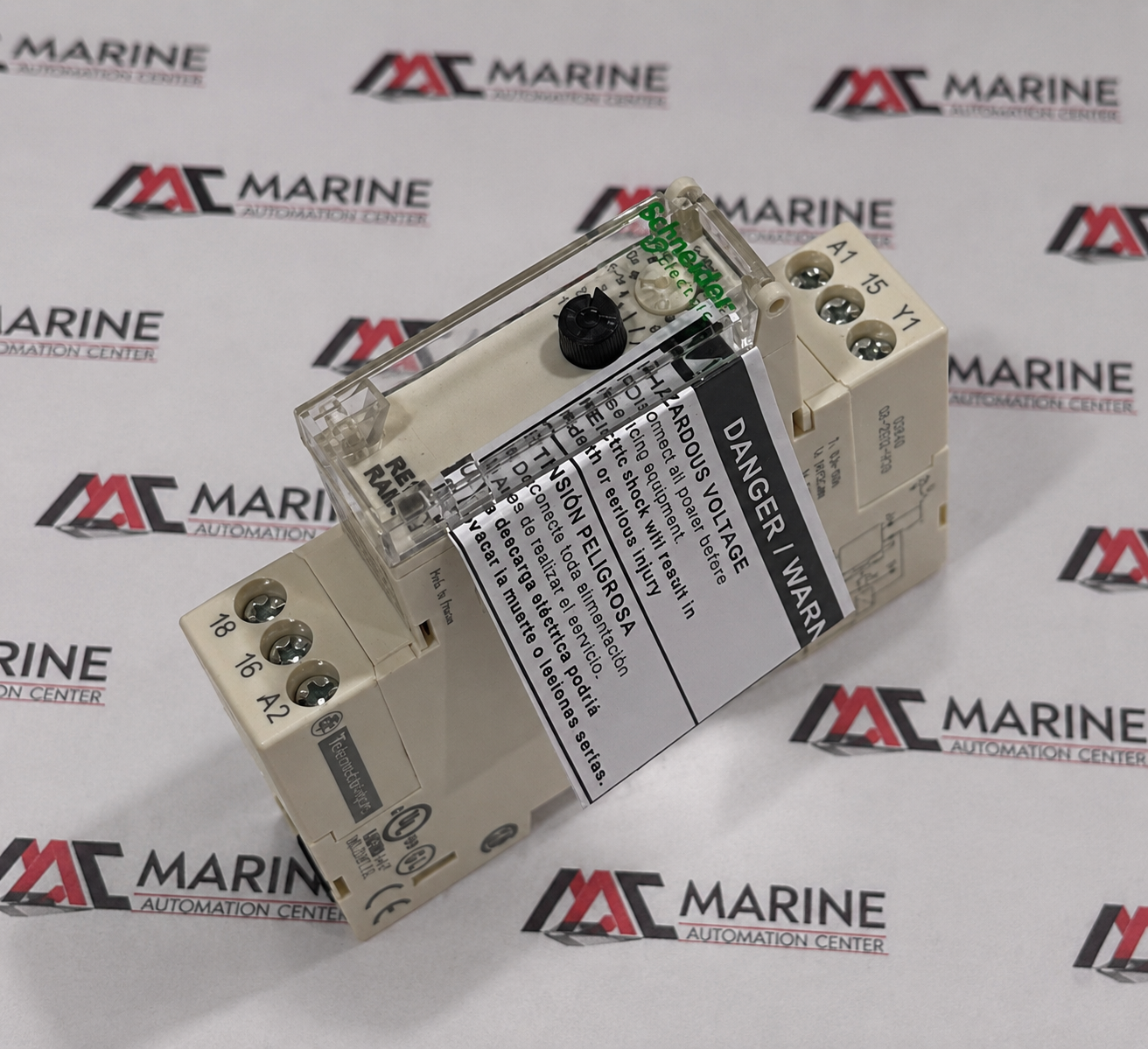

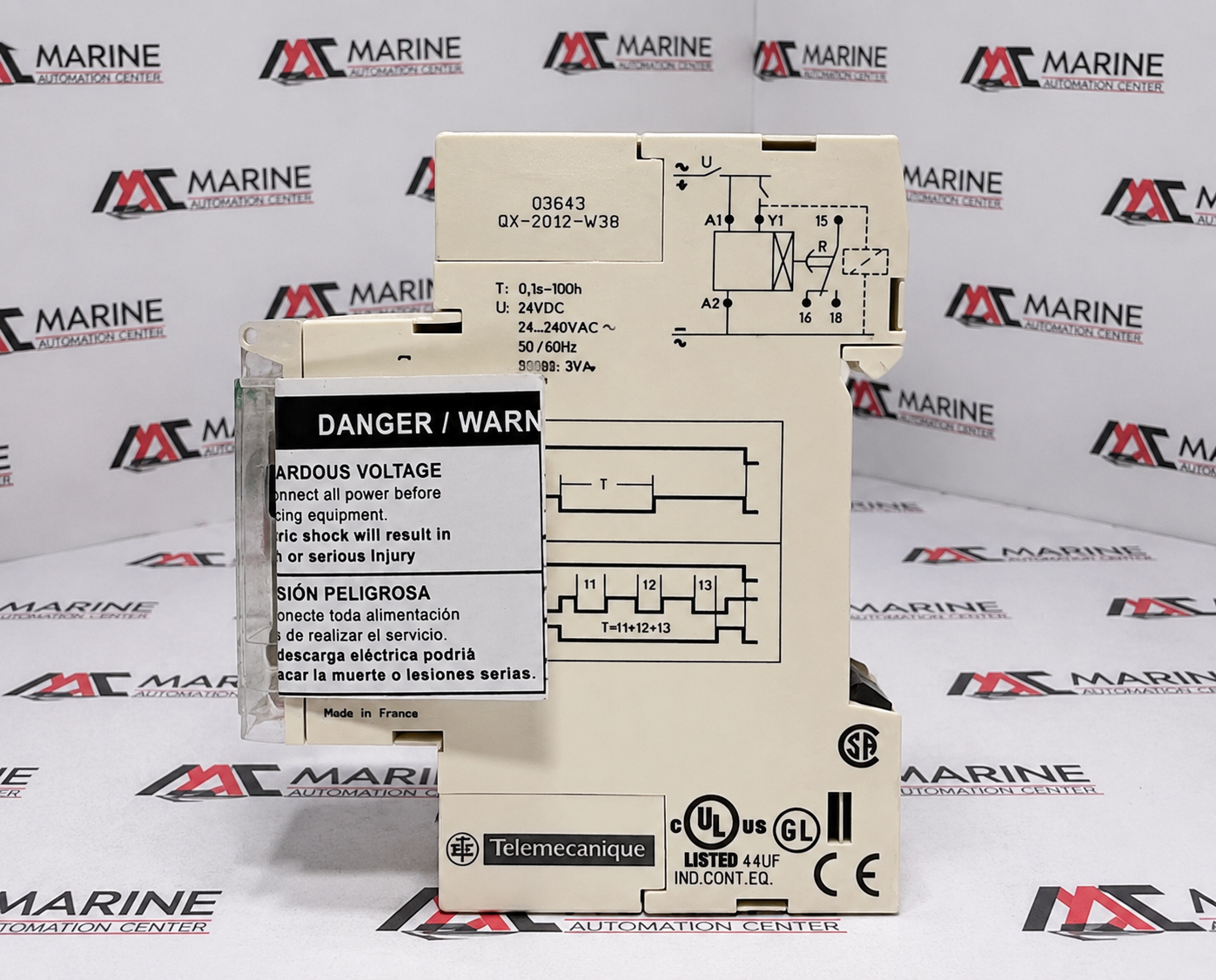

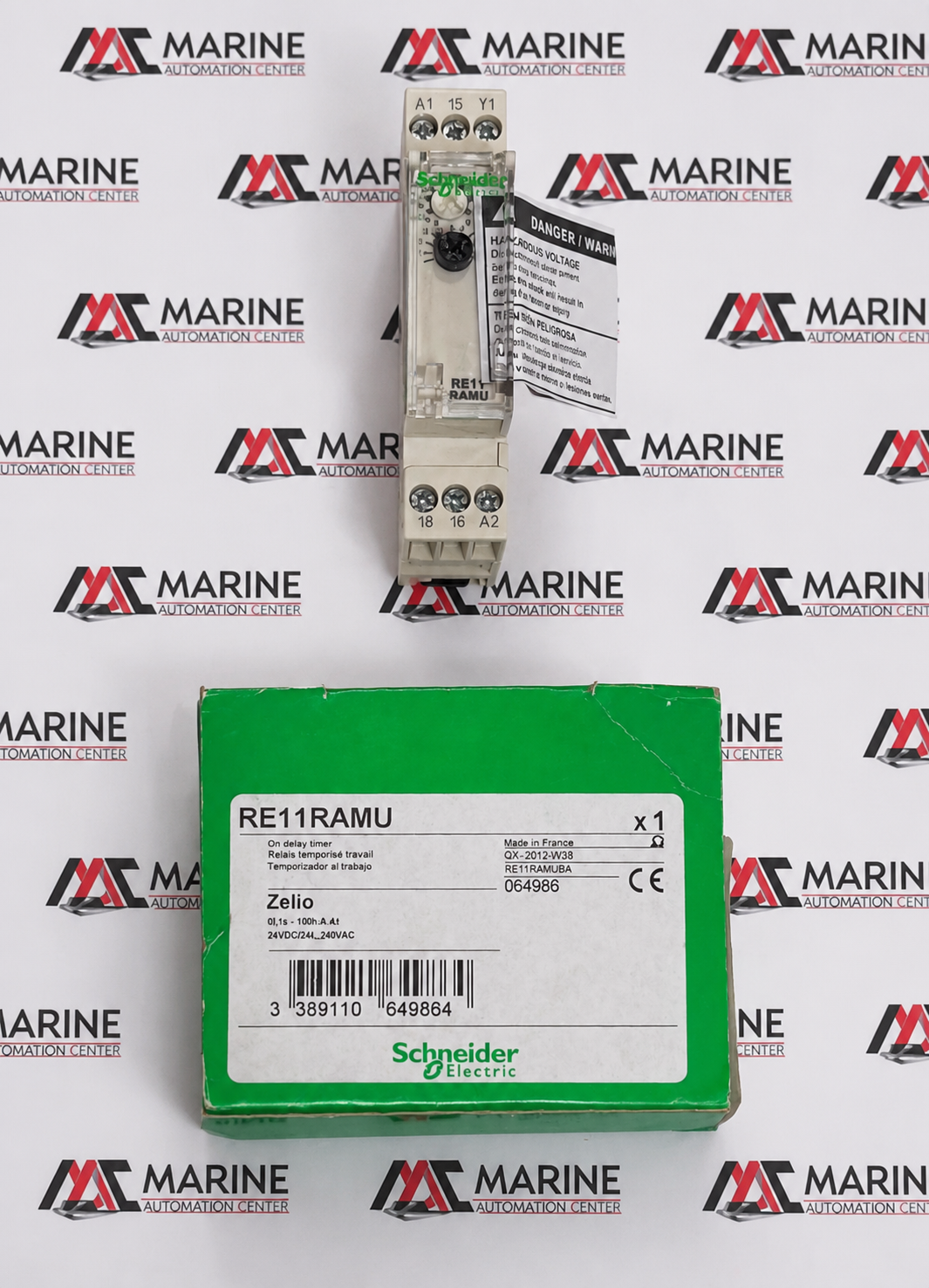

Schneider Electric Zelio Time RE11RAMU On-Delay Timing Relay
Schneider Electric Zelio Time RE11RAMU On-Delay Timing Relay is a compact and reliable timing relay designed to provide accurate delayed switching in industrial control systems. It offers adjustable time settings, dependable on-delay operation, and robust performance, making it ideal for motor control, automation panels, machinery sequencing, and process control applications.
BRAND
Schneider Electric
TYPE
Timing Relay
PART NO.
RE11RAMU
MODEL
Zelio Time RE11RAMU
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Schneider Electric |
| TYPE | Timing Relay |
| PART NO. | RE11RAMU |
| MODEL | Zelio Time RE11RAMU |
| MANUFACTURER | Schneider Electric |
| Voltage Rating | 24 V DC / 24-240 V AC, 50/60 Hz |
| Application | Motor control, pump sequencing, lighting control, automation timing, marine control systems, and industrial process control |
| Adjustment Range | 0.1 seconds to 100 hours |
| Timer Function Description | Standard On-Delay and On-Delay with pause/sum-up memory |
| Power Supply Terminals | A1 and A2 |
| Approvals | cULus Listed, GL, CSA, CE |
| Mounting Type | DIN Rail / Plug-in Relay Base Mount |
| Made In | France |
| REF NO | 528 |
