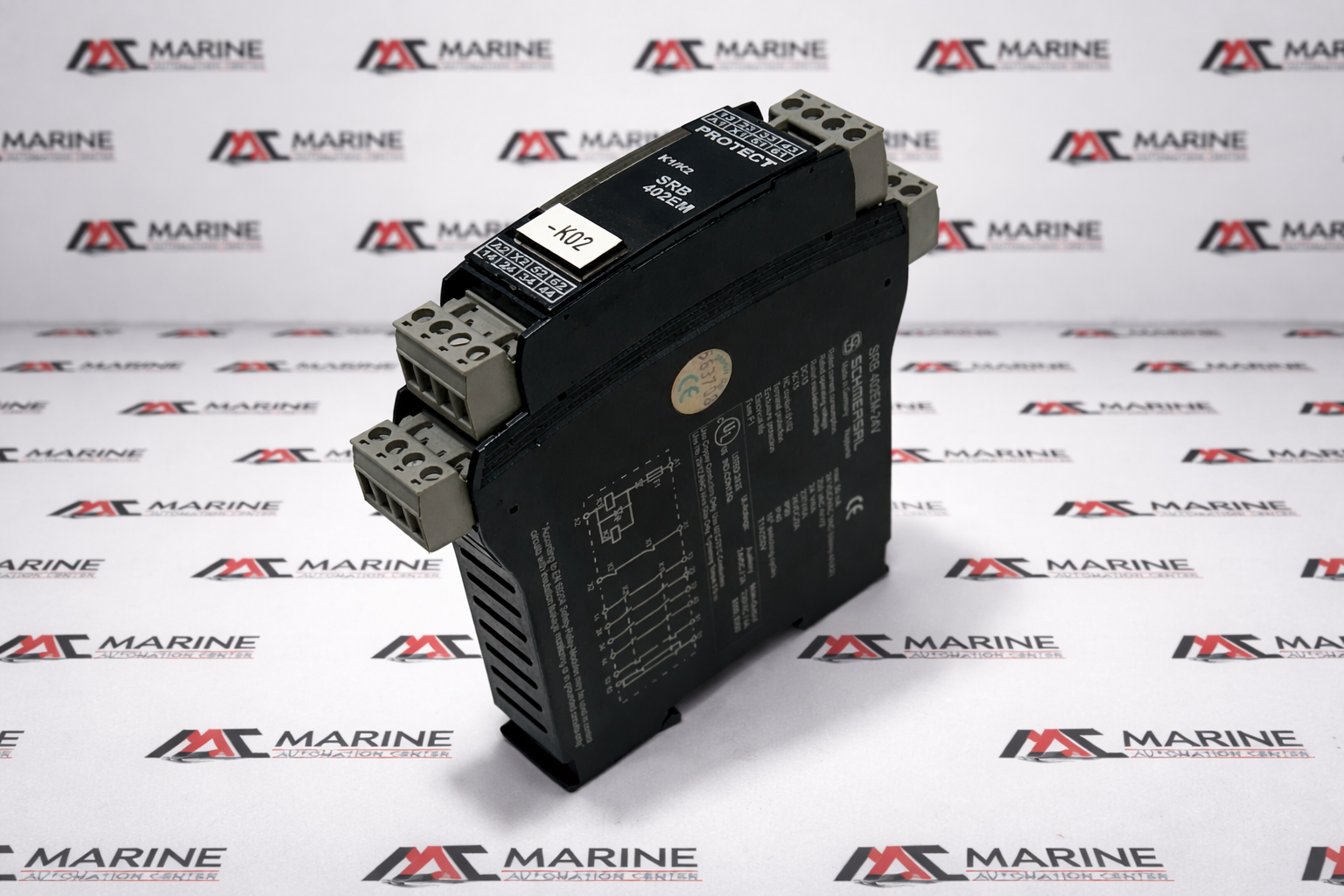

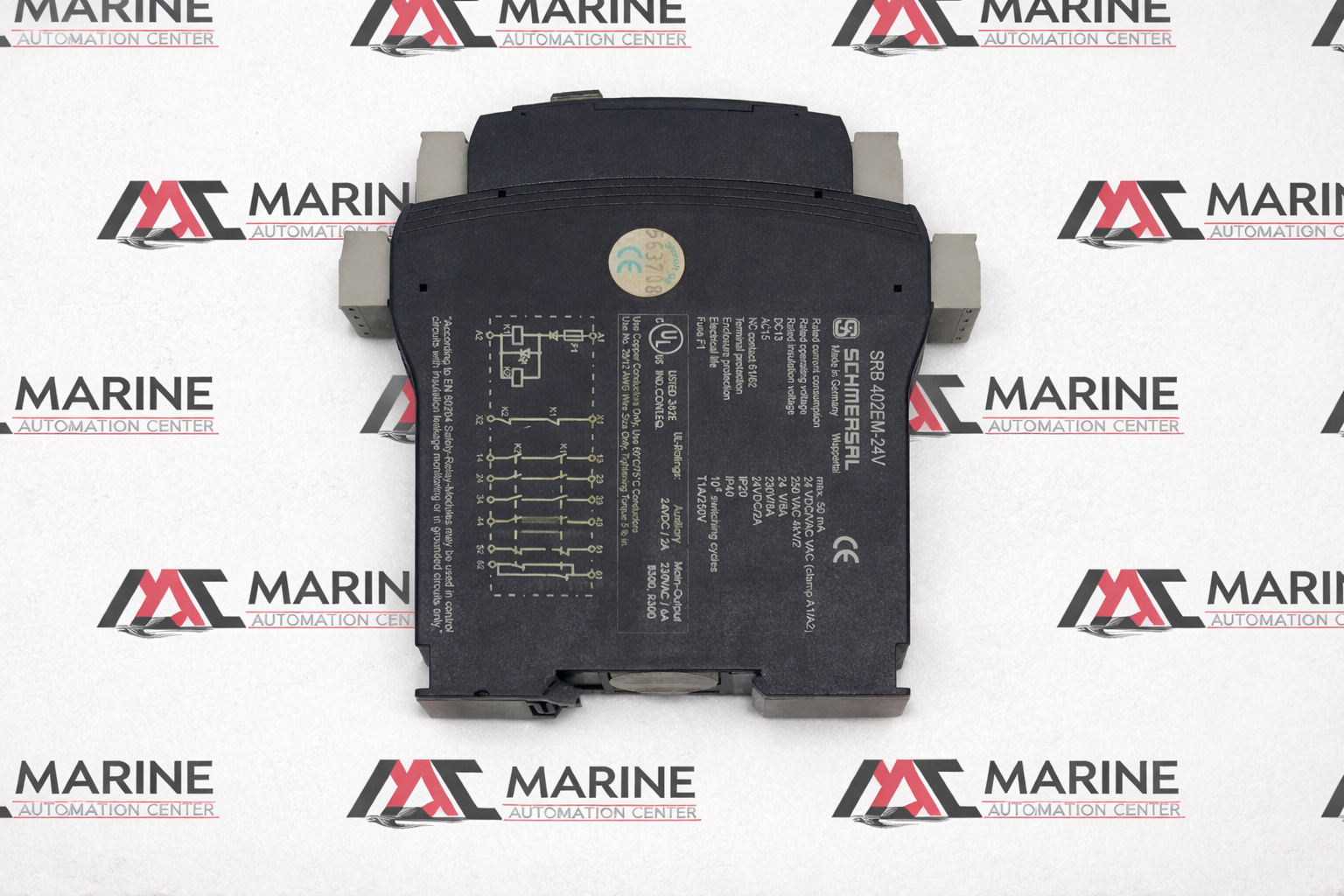

Schmersal Srb 402em-24V Safety Relay
Buy Schmersal SRB 402EM-24V safety relay with 24V DC/AC operation, low 50mA consumption, IP20 terminals, and IP40 enclosure. Supports AC15 (230V/8A) and DC13 (24V/8A) applications with high reliability and long electrical life. Manufactured in Germany.
BRAND
Schmersal
TYPE
Safety Relay
PART NO.
Schmersal Srb 402em-24V Safety Relay
MODEL
Srb 402em-24V
Full Technical Specifications ▶

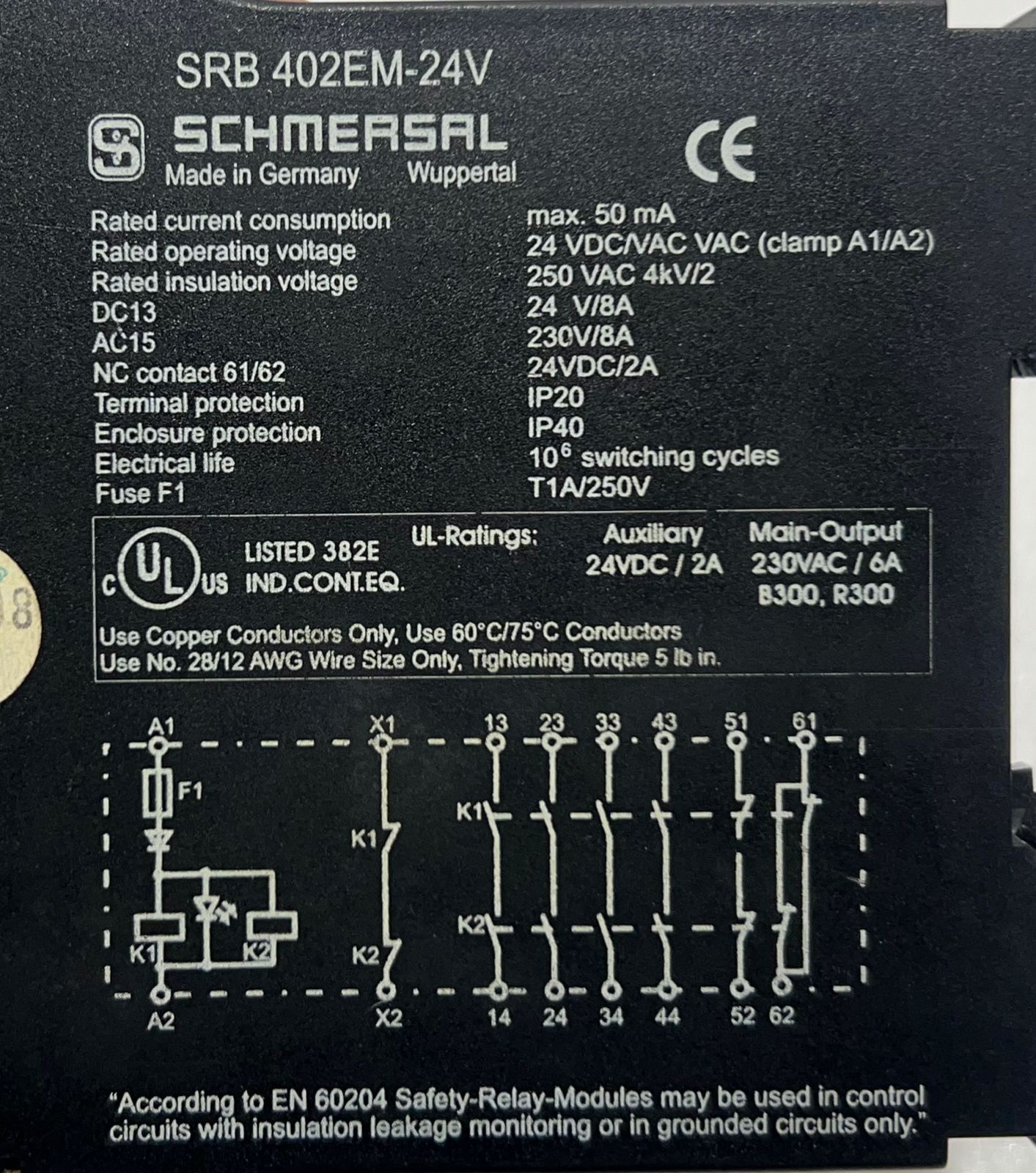

| Parameter | Value / Description |
|---|---|
| BRAND | Schmersal |
| TYPE | Safety Relay |
| PART NO. | Schmersal Srb 402em-24V Safety Relay |
| MODEL | Srb 402em-24V |
| : | K1/K2 |
| Rated Current Consumption | max. 50ma |
| Rated Operating Voltage | 24vdc/vac vac |
| Rated Insulation Voltage | 250vac 4kv/2 |
| Dc13 | 24v/8a |
| Ac15 | 230v/8a |
| NC contact 61/62 | 24vdc/2a |
| Terminal Protection | Ip20 |
| Enclosure Protection | Ip40 |
| Electrical Life | 10 6 switching cycles |
| Fuse f1 | T1a/250v |
| Ul-Rating | Auxiliary 24vdc/2a |
| Main-output | 230vac/6a |
| : | B300, R300 |
| : | 838761 |
| Made In | Germany |
| Reference No | 801 |
